Pneumatinis pakėlimo pagalvė GSP4,5, 4,5 t

Trumpai apie prekę

Prekė: Pneumatinis pakėlimo pagalvė GSP4,5, 4,5 t. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: Stix
• Modelis: 23-58-46756

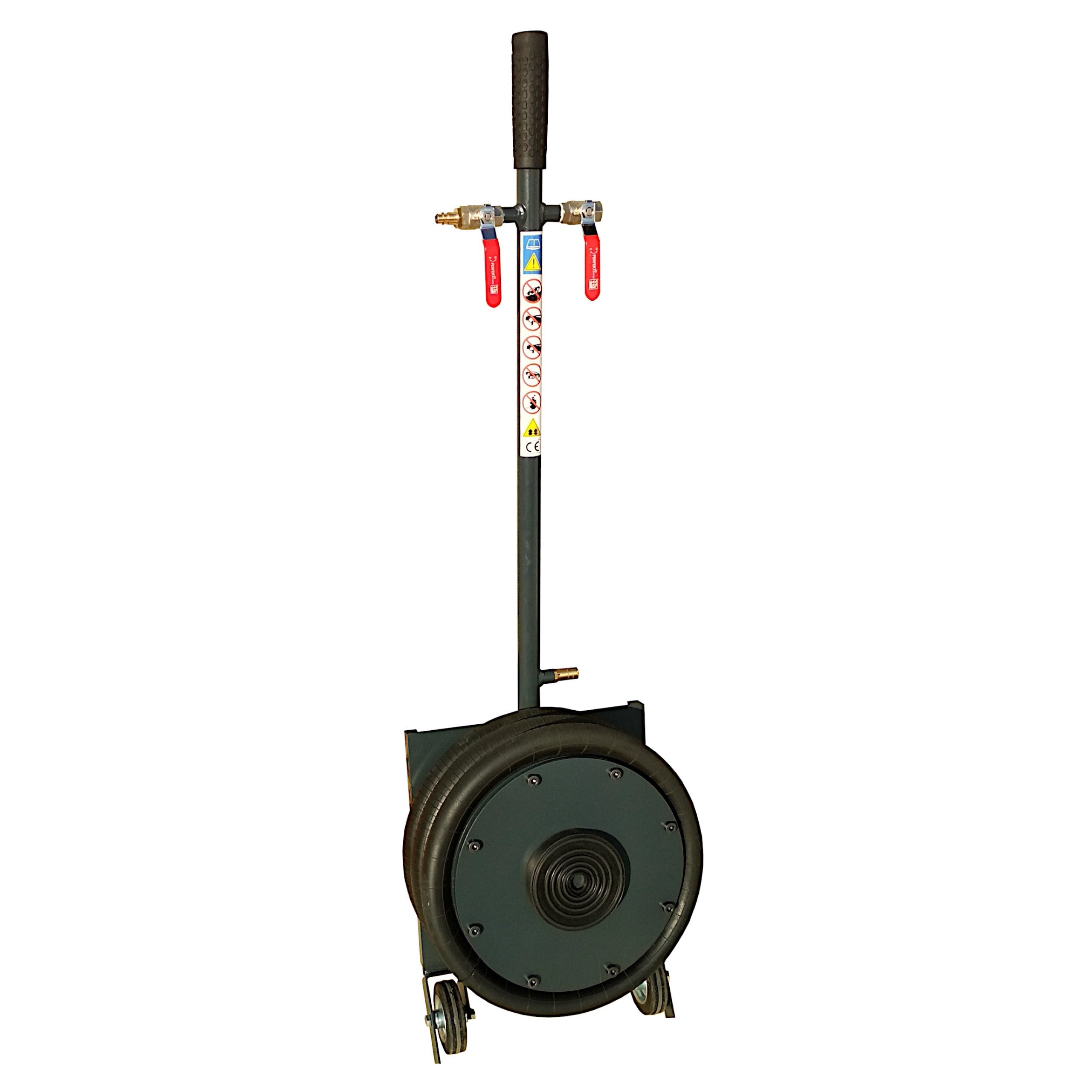

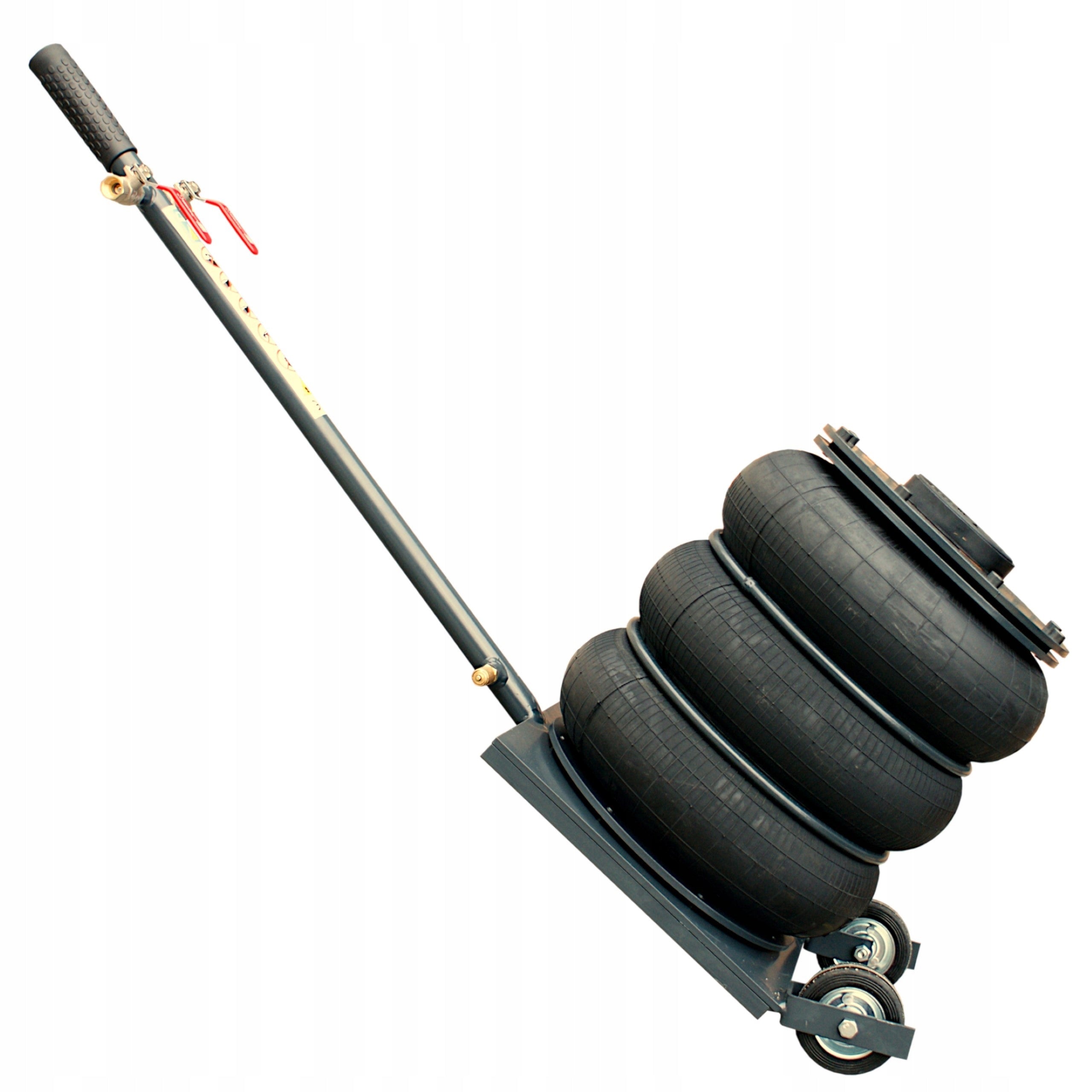

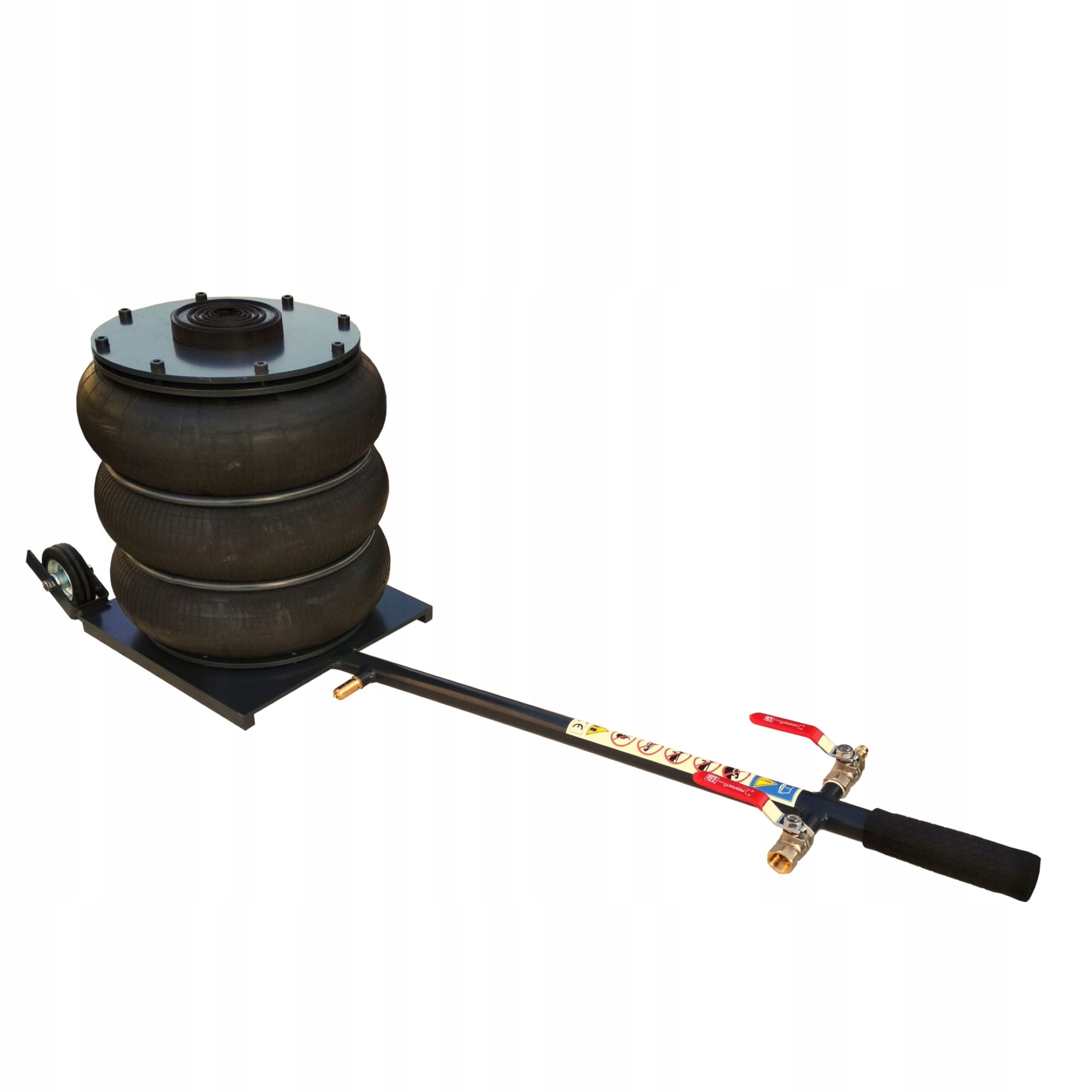

The GSP4,5 cushion lifter has been designed for vulcanization plants and car workshops. The purpose of the lift is to lift the point of the vehicle with a mass of up to 4,5 tons.

The simple and extremely solid design of the lift guarantees its reliable use and makes this product an ideal solution for a car workshop when there is a need to quickly lift the vehicle to remove a wheel. The lift is powered by compressed air with operating pressure from 6 to max. 8 Bar. The safety valve is activated when the pressure of 8,3 Bar is reached.

⚙ Technical parameters:

• Catalog number: 23-58-46756
• Model: GSP4,5 Graphite
• Manufacturer: STIX Tool
• Maximum height: 380 mm
• Minimum height: 140 mm
• Lifting capacity: 4500 kg
• Handle length: 730 mm
• Pillow diameter: 330 mm
• Rubber foot diameter: 110 mm
• Air connection: 3/8"
• Two valves: inlet, outlet
• Safety valve - certified: cuts off air supply above 8,3 bar
• Rubber washer thread: M20 x 2,5
• Rubber foot: yes, included

⚠ The design and construction of the lift ensures compliance of the product with the Health and Safety rules, the lift has an EC declaration of conformity and CE mark.

🔥 The lifter is distinguished by a number of advantages, confirming its high quality and functionality:

• welded construction of thick-walled steel sheet,
• corrosion protection – powder coating in graphite colour,
• rubber bellows made of durable rubber (3-level),
• metal telescope inside bellows, stabilizing the lift and preventing the lifted vehicle from swaying,

• handle with a length of 73 cm welded to a square base,
• anti-slip grip made of corrugated rubber,
• wheels Ø80 mm, metal with full rubber tire, facilitating the transport of the lift and its insertion under the chassis,
• possibility of vertical backrest of the lift thanks to elongated flat bars at the wheels,

• ball valves 3/8” - inlet and outlet with convenient levers,
• safety valve, preventing the cushion from tearing if the permitted compressed air pressure is exceeded (above 8,3 bar),
• rubber foot screwed to the lift plate and protecting the lifted element from slipping,
• optional equipment: screw-on booster caps 3 and 7,5 cm (available in our other offers).

🔧 Thanks to the lift, you can do a lot of necessary work on the car yourself, which saves you time and money that you would have to spend on a visit to a mechanic!

• Replace your wheels and tires with ease, ensuring a safe ride.
• You will repair the exhaust system, taking care of combustion efficiency and reducing exhaust emissions.
• You will replace oil and coolant regularly, keeping the engine in optimal condition.
• You will check the brake system, ensuring the reliability of the braking system.
• You will perform a regular review of the condition of the car, identifying potential problems and preventing major breakdowns.
• You can repair the suspension for a smooth and comfortable ride.
• You can replace wear parts, such as swing arms, joints, and more, to keep your car in top condition.

💡 Optional equipment available in other offers:

• Wound rubber for lift - offer no.: 13183176988
• Increase pad 30 mm - offer no.: 13183179645
• Increase pad 50 mm - offer no.: 14562889780
• Increase pad 75 mm - offer no.: 13183184025
• Increase pad 100 mm - offer no.: 13183185540

⚠ With the help of booster pads, you can increase the lifting height.

⭐ ⭐ ⭐ ⭐ ⭐

Quality of products STIX Tool

The GSP4,5 lifter is part of the renowned STIX Tool product line, which is known for offering proven high-quality tools for automotive workshops, tire services and individual users. The main features that distinguish the STIX Tool include:

• Reliability and durability: The STIX Tool is made of durable, robust materials, which guarantees long-lasting and trouble-free use even during intensive use in a variety of tasks in the car workshop.
• High build quality: Each tool in the STIX Tool line is characterized by high build quality, which ensures effective and precise operation when performing various tasks.
• Good value for money: Despite the high quality, the STIX Tool offers an attractive value for money, which makes it available to a wide range of users, both professional mechanics and hobbyists.

Thanks to these features, tools from the STIX Tool line are valued by users for their reliability, durability and favorable value for money. The lift, which is part of this product line, continues this tradition, ensuring high quality and effectiveness in lifting vehicles in car workshops.

⚠ Note - Remember about car supports (bubbles)

The pneumatic lift is used to lift the vehicle, and after lifting it, it is recommended to place special car supports, also known as "bubbles", under the vehicle in designated places.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	28 kg
Parametry	Brand	Stix
Parametry	Manufacturer code	23-58-46756
Parametry	EAN (GTIN)	5907471964310
Parametry	Lifting capacity	4500 kg
Parametry	Minimum lifting height	150 mm
Parametry	Maximum lifting height	380 mm
