Trumpai apie prekę
Prekė: Plėtimo modulis Raspberry Pi M.2 HAT+ (Compact) Raspberry Pi 5. Kategorija: Priedai.
- Gamintojas: Raspberry pi
- Modelis: SC1771

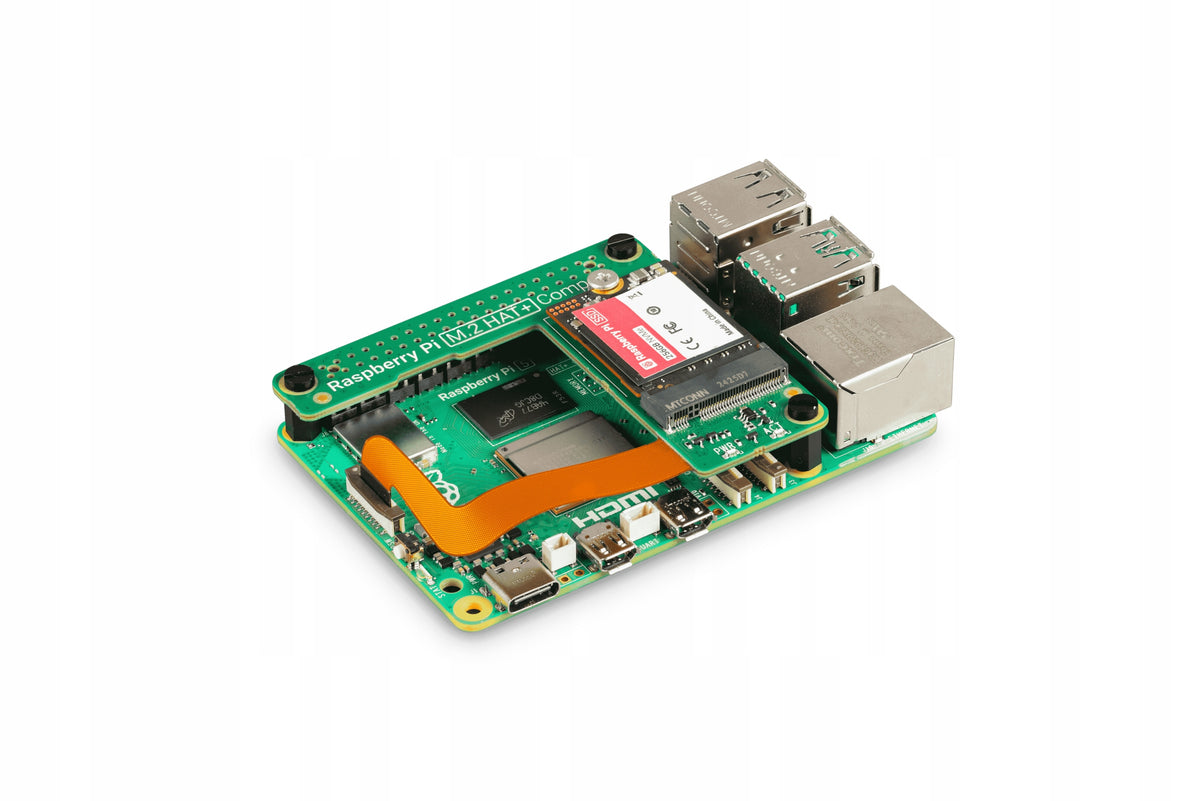

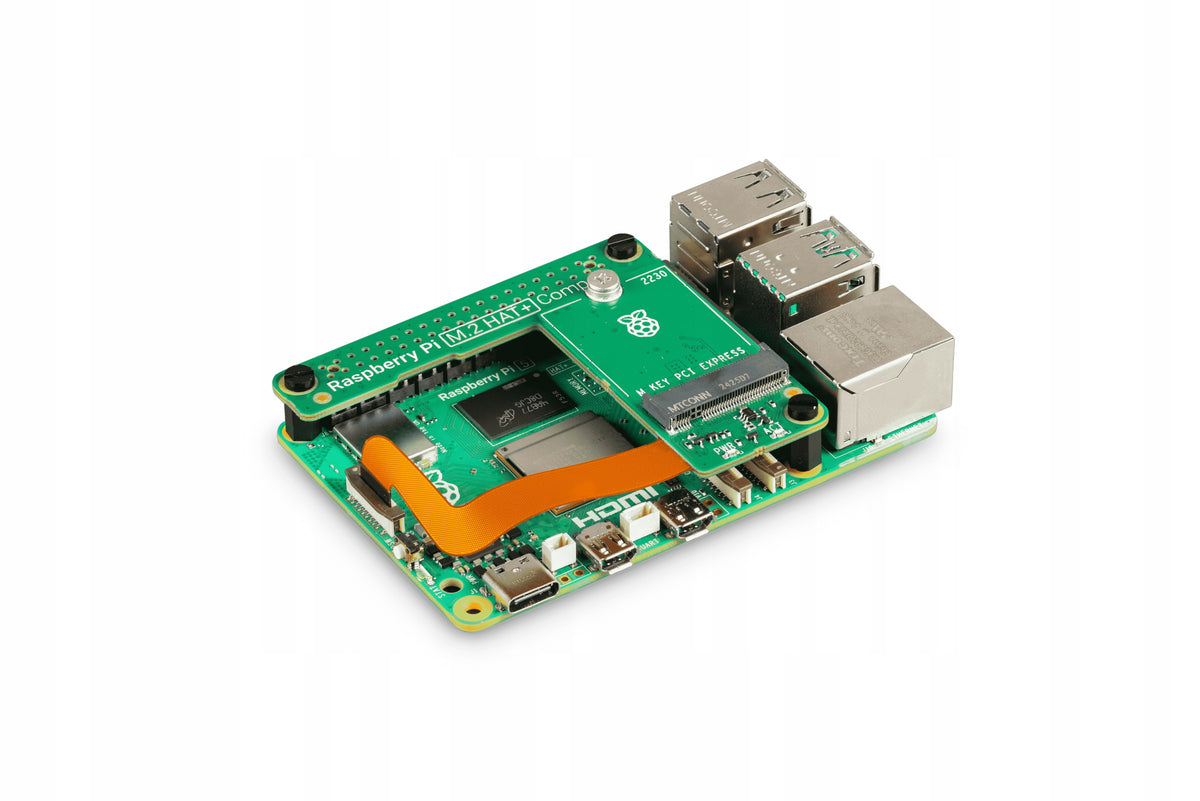

Raspberry Pi M.2 HAT+ (Compact) - M.2 extension module for Raspberry Pi 5
Description
The Raspberry Pi M.2 HAT+ expansion module in the Compact version allows you to connect M.2 devices with PCIe interface directly to the Raspberry Pi 5 . The adapter uses a single-line PCIe 2.0 interface available through a 16-pin 0,5mm FPC connector and supports M.2 M-key devices in 2230 format. The module provides data transfer up to 500 MB/s, can deliver up to 3 A for the connected device and complies with the HAT+ specification.
Compact design has been developed for installation inside the Raspberry Pi 5 housing, while maintaining space for the fan. The module will work well in projects requiring high-speed NVMe storage or other PCIe devices in M.2 2230 format.
Properties
- Interface: PCIe 2.0 x1 up to 500 MB/s
- Device Connector: M.2 M-key
- Supported device format: M.2 2230
- Power supply of the connected device: up to 3 A
- LED Indicators: Power and Activity
- Compatibility: Raspberry Pi HAT+ specification
- Compatibility: Raspberry Pi 5
- Version: Compact
Comes with

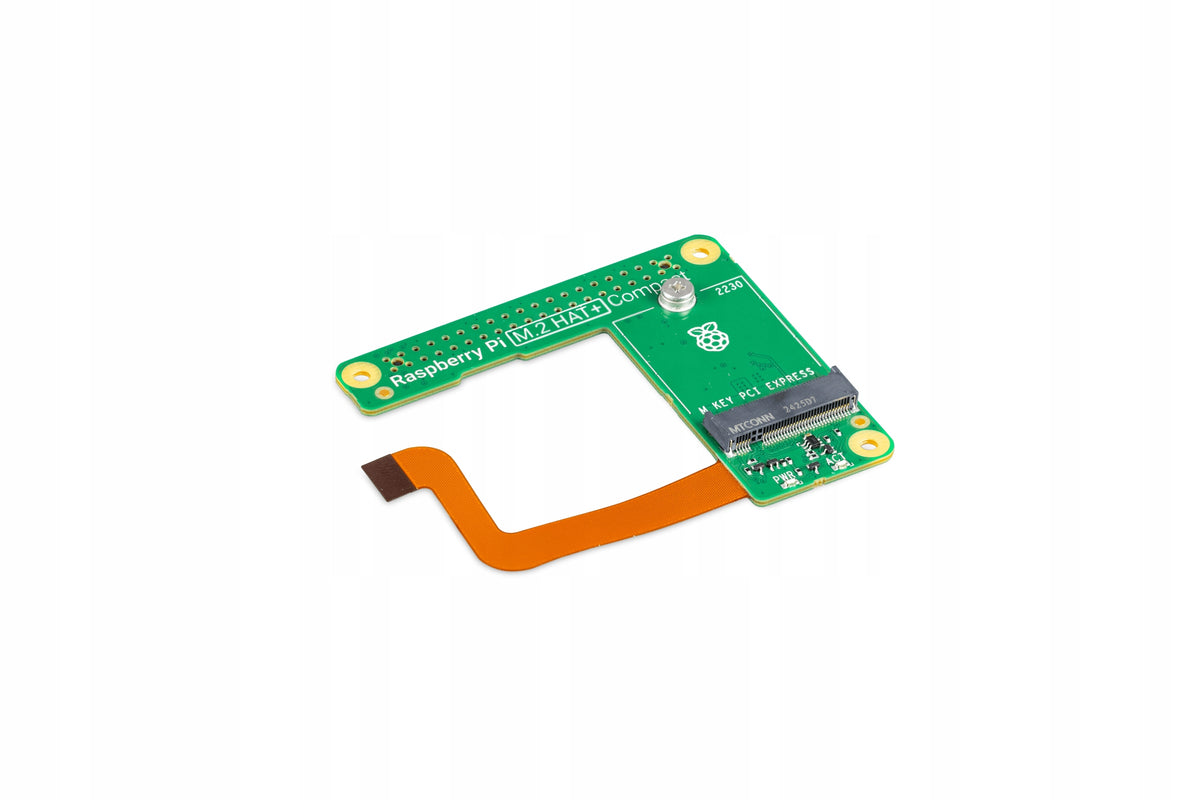

- Raspberry Pi M.2 HAT+ (Compact)
- FPC tape
- Threaded spacers and screws
- Double flanged screw for fixing the M.2 device
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | SC1771 |
| Parametry | Manufacturer | Raspberry pi |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5056561805863 |
