Plėtimo modulis Raspberry Pi 5, 4 x USB 3.2, 2 x dideli HDMI, USB Type-C

Trumpai apie prekę

Prekė: Plėtimo modulis Raspberry Pi 5, 4 x USB 3.2, 2 x dideli HDMI, USB Type-C. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Pi5 Module BOX-B Waveshare 27835

Multifunction Minicomputer Kit with 4 x USB3.2 2x HDMI Extension for Raspberry Pi 5

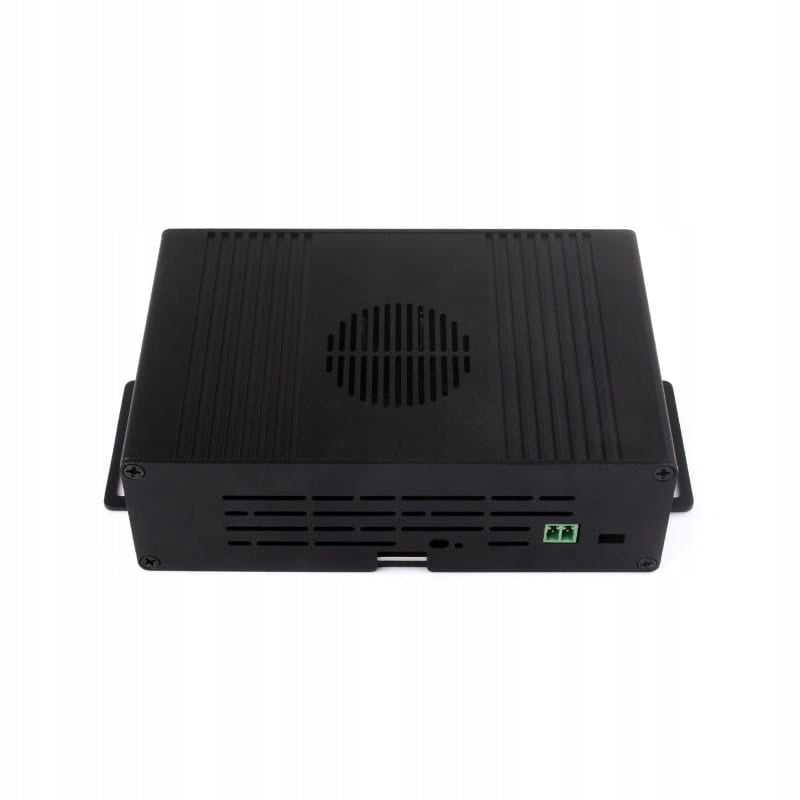

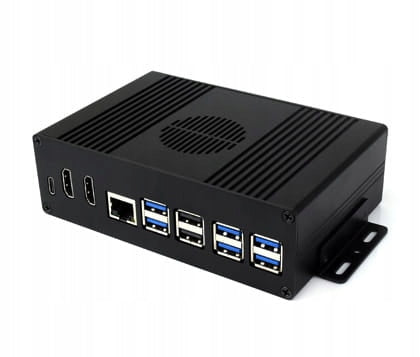

The multifunctional minicomputer kit with 4 x USB3.2 extension for Raspberry Pi 5 allows you to add four USB ports with speeds up to 5 Gbps thanks to the VL805 chip. The ideal solution for connecting disks, keyboards, mice or network interfaces, increases the functionality of the Raspberry Pi 5. The aluminum housing provides protection, efficient cooling with ventilation holes (and an optional fan) and facilitates the installation of additional modules, and the USB power control function improves energy management.

Specification:

• PCIe interface:
• PCIe ×1 Gen2,
• throughput up to 5 GT/s.
• USB ports:
• 4 x USB3.2 Gen1,
• Connection type: USB Type-A,
• Maximum transfer speed up to 5 Gbps per port.
• USB controller: VL805, high-performance control system, low latency, stable operation.
• Housing material: High quality aluminum.
• Housing dimensions: Customized for Raspberry Pi 5, provides access to all ports and interfaces.
• Cooling: Ventilation holes, possibility of installing an additional fan.
• USB power supply: Support power control, power management delivered to connected devices.

The set includes:

1. Pi5 HDMI and Type-C x1 Adapter
2. PCIe to 4-channel USB 3.2 Gen1 x1 adapter
3. Matal housing and white aluminum alloy base plate x1
4. Silicone button x1
5. PCIe x1 cable
6. Screw clamp x1
7. Package x1
8. SH1.0 3PIN x1
9. SH1.0 3PIN x1
10. PH2.0 3PIN x1

The Rasberry Pi shown in the pictures is not part of the set and must be purchased separately!
