Plačiaekranis keitiklio laidas su nuotolinio valdymo pultu

Trumpai apie prekę

Prekė: Plačiaekranis keitiklio laidas su nuotolinio valdymo pultu. Kategorija: Automobilio vaizdo registratoriai.

• Gamintojas: no brand
• Modelis: 1610210009511

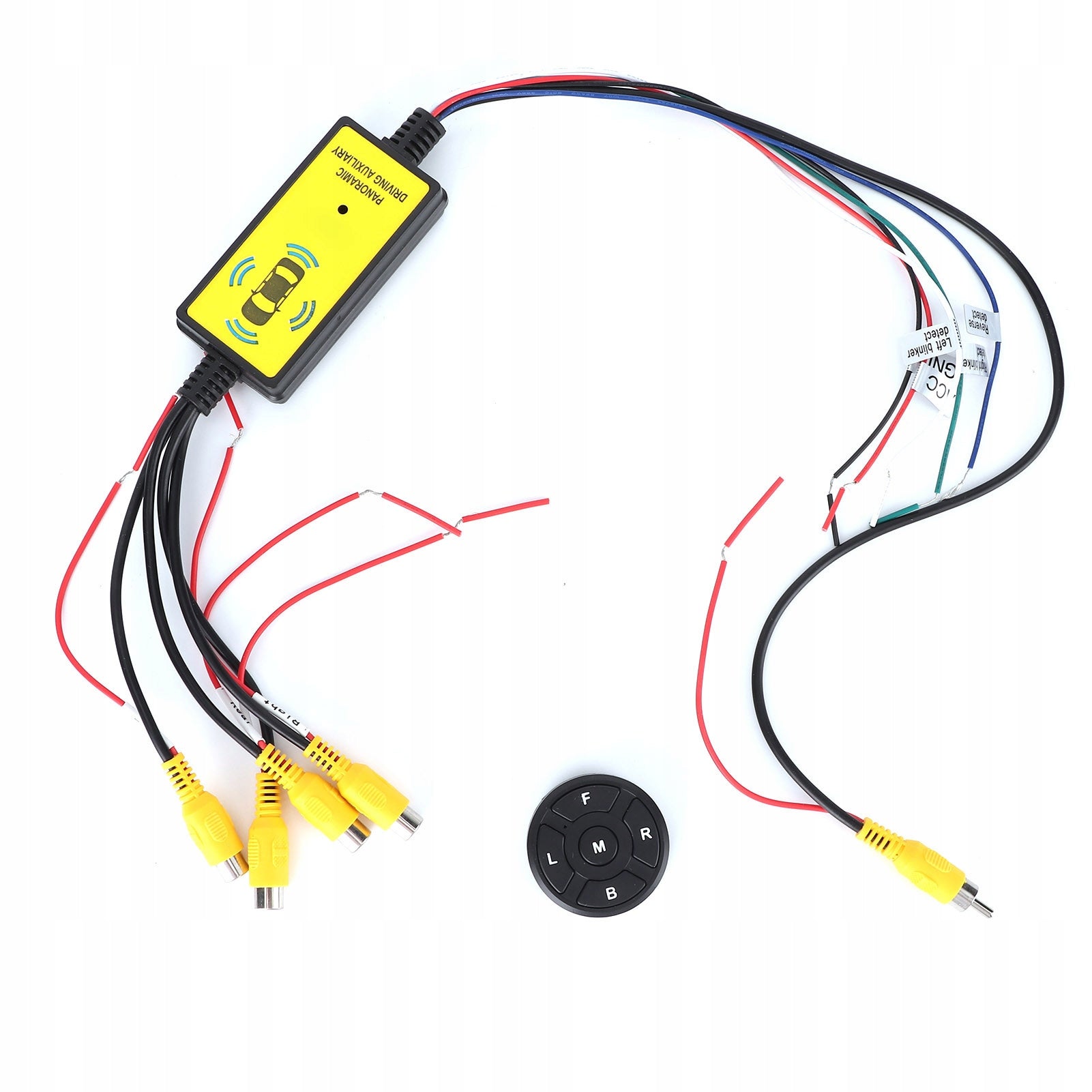

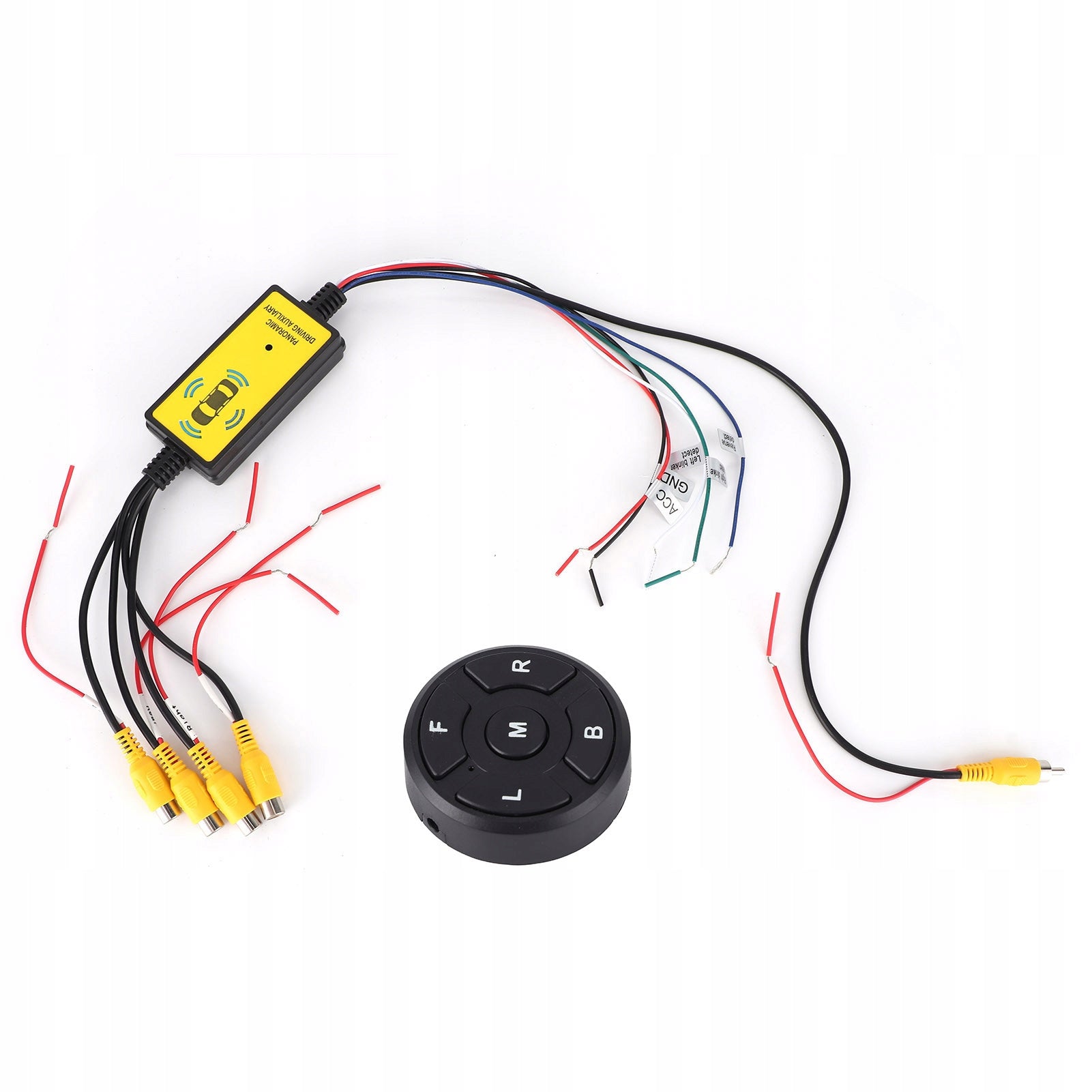

360 DEGREE WIDESCREEN CONVERTER SMART CONNECTION CABLE + REMOTE CONTROL

Function:

▶ 1. 4-channel video input: view on the left, view on the right, view on the back and view on the front. Each group of video inputs has a DC+12V voltage to power the camera.

▶ 2. The output shares the video channel and outputs a power cord that starts the screen. Designed with a power protection circuit to protect your vehicle's camera and circuit.

▶ 3. Using wireless remote control, single-chip intelligent circuit detection, precise control, stable performance and high reliability.

▶ 4. Support various car decoders, add multi-channel cameras and video input. Support decoders and then use DVDs or car monitors to solve the blind spot in your car.

▶ 5. It can detect left and right steering and reversing the car to switch to the appropriate video channel. When exiting the undo state, the video source switches to display the front view of 7s (this function can be selected depending on the situation), and then returns to the default state of disabling the video output.

✅Specification:

• Item Type: Video Switch
• Material: ABS
• Wide voltage power input: DC8V-16V, large truck: DC24V-12V power supplyRemote control battery: CR2025 (included), capacity: 170 mAh
• Converter Size: Approx. 80 x 40 x 20 mm/3,1 x 1,6 x 0,8 inches
• Wireless Remote Control Size: Approx. 40x10mm/1,6x0,4 inch

✅Cabling:

• 1. The blue wire is connected to the reversing light to control the trigger;
• 2. The white wire is connected to the left flashing light to control the trigger;
• 3. The green wire is connected to the right flashing light to control the trigger;
• 4. Red and black wires are power input wires + 12 V

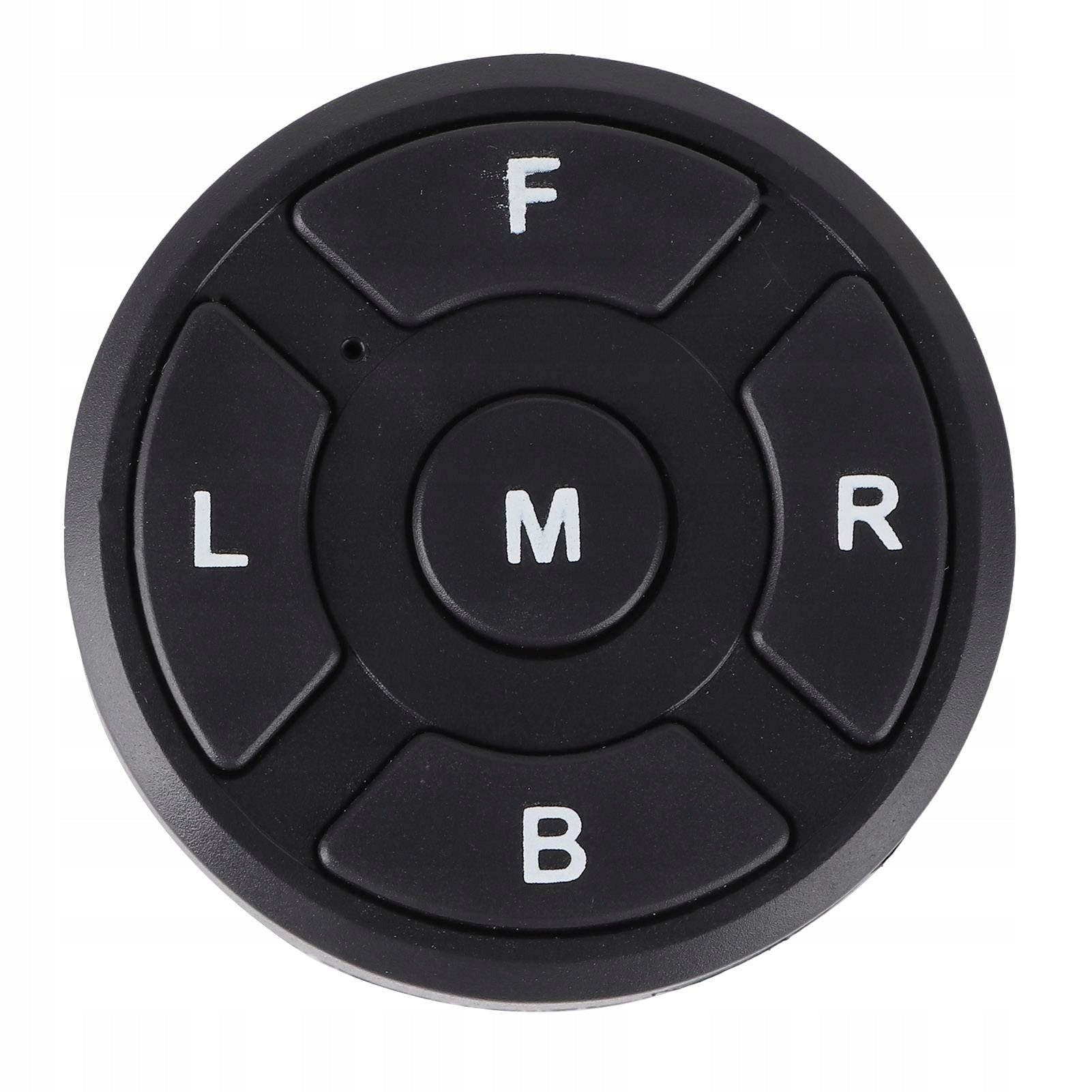

• 5: remote control: M key mode switch and output from video output trigger function;

Button B rear viewKey R right viewKey L one left viewKey F front view(Double control method of this product, automatic electronic line can also be disconnected, and the remote control is as convenient as using the remote control. When using the rear view of the trigger to exit the front view 7 S, it only supports the reversing function of the reversing trigger, which mainly reduces the malfunction. Instructions for setting the LED remote control (support only products with remote control)

• 1. When the remote control button presses any key to work, both the indicator light receiver and the remote control LED will start flashing, indicating that the transceiver is working normally.
• 2. Press and hold the M button on the remote control for 5 seconds, the receiver LED flashes 2 times, indicating the functions of mode 1 "Automatic switching to front view after rear view" and mode 2 "Exit immediately after closing the rear view". Do the switching work. Finally, restart the power to use.
• 3. Remote control code matching mode, often press the receiver button for about 3S, the receiver LED goes out, press any remote control button, the receiver LED flashes twice, indicating that the codes are completed, and finally restart the power to use.

List of packages:

▶ 1 x Video Switch Box

▶ 1 x Remote Control
