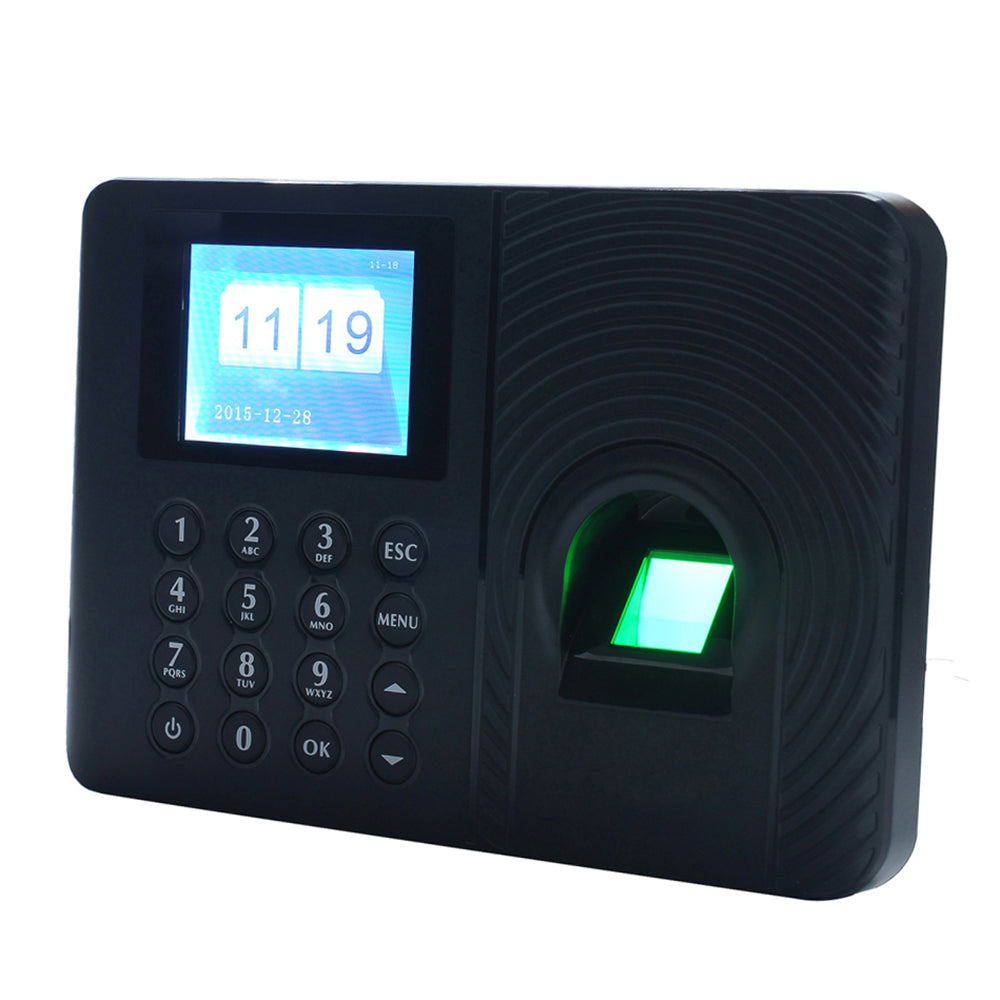

Pirštų atspaudų skaitytuvas Smart 2.4" TFT LCD Time UB

Trumpai apie prekę

Prekė: Pirštų atspaudų skaitytuvas Smart 2.4" TFT LCD Time UB. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 7592CGTW

Function:

1. Do not need software, implant complex attendance software on fingerprint attendance machine.

2. Easier operation steps that can learn to work in 5 minutes.

3. Identification time less than 1s with high standard blur identification.

4. Download USB Flash Drive Download Excel Reports.

5. The T9 input method can edit the name, department, frequency and other information.

6. High precision total fingerprint reflection.

Specification:

• This machine is designed to check attendance with fingerprints and password and suitable for office, factory, hotel, school, restaurant, retail store, hospital.
• Characteristics:
• Do not need software, implant complex attendance software on the fingerprint machine.
• Easier work steps that can learn to work in 5 minutes.
• Download the USB drive Download Excel reports.
• Identification time less than 1s with high standard blur identification.
• High precision total fingerprint reflection.
• The T9 input method can edit the name, department, frequency and other information.
• Suitable for office, factory, hotel, school, restaurant, retail store, hospital.
• Fashionable appearance with HD screen and full grace design.
• Disk Requirements:

1. The format should be fat32

2. Capacity should not be more than 16g; USB 1.1 support and some USB 2.0 (USB 3.0 not supported).

3. The GHO file should not exist on a U drive. It is therefore suggested that the USB flash drive format first.

4. The downloaded data is listed as follows:

• 1) Monthly. Xls (Monthly Attendance Report)
• 2) glog.txt (this file will ask the user's stamp record, which will display the user's registration ID number, username, time and method of impact. )
• 3) info.xls (stroke schedule and turn schedule)
• 4) AFP.DAT (this file contains user information and fingerprint image. You can directly copy and upload this file to the same computer. Users can swipe fingerprints on other machines without registering each computer after another.
• Specifications:
• Model: A3
• Color: Black
• Fingerprint Capacity: 1000
• Record capacity: 100000
• Operating Mode: Offline
• Identification mode: fingerprint, password
• Authentication mode: 1: N, 1:1
• Recognition speed: less than 1s
• FAR: ≤0 0001%
• FRR: ≤ 0,01%
• Communication mode: USB drive, USB
• Sensor: optical sensor with high precision reflection
• Effective detection area: 16*16 mm （360 ° recognition）
• Screen: 2,4 inch HD LCD
• Language: Chinese, English
• Resolution: 500dpi
• Operating Voltage: DC 5v
• Operating temperature: 0-60 ℃
• Operating humidity ： 20%-80%
• Battery: 1*3V CR2032Battery for time display (in)
• Position Size: 17 * 12 * 3,1 cm / 6,69 * 4,72 * 1,22 inch (l * w * h)
• Item Weight: 190,6 g / 6,72 oz
• Package Size: 29 * 14,5 * 5 cm / 11,41 * 5,70 * 1,96 inch (l * w * h)
• Package Weight: 390,6g / 13,77oz

List of packages:

• 1 * Fingerprint Presence Machine
• 1 * Power Adapter
• 1 * User Manual (Chinese, English)
• 1 * bag of screws
