Prekė: PCIe į 4 NVMe M.2 SSD adapteris Raspberry Pi 5. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: PCIE TO 4-CH NVME Board (B) NP 50535

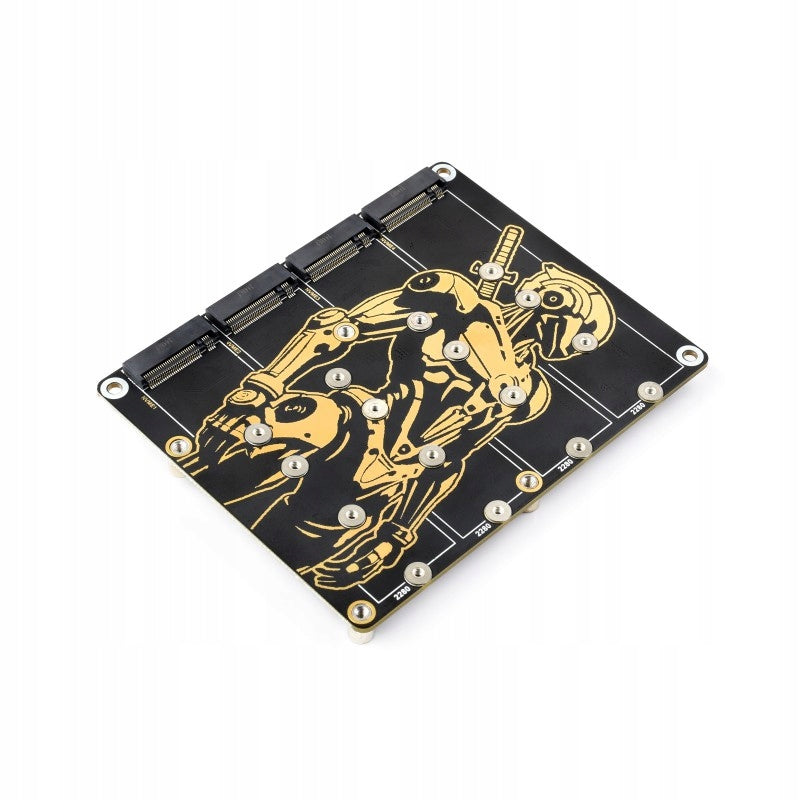

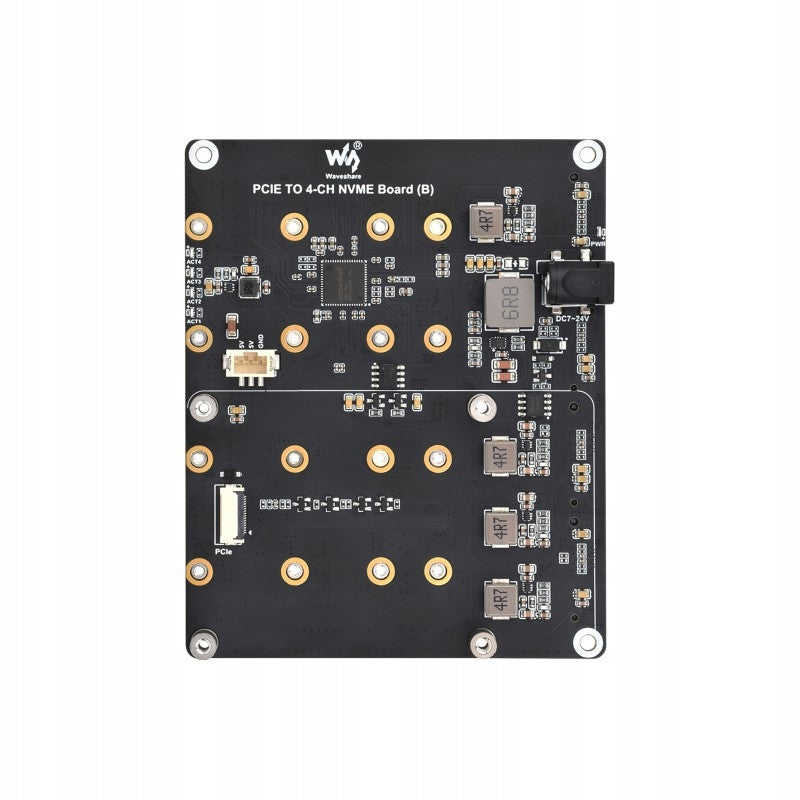

An extension for the Raspberry Pi 5 that allows you to connect up to four NVMe M.2 SSDs. The adapter communicates through the PCIe interface, offering high read and write speeds, which greatly improves performance. The board also has the ability to power the Raspberry Pi 5.
Key features:
- Designed specifically for the Raspberry Pi 5
- Support for 4 NVMe M.2 SSDs (M KEY)
- Compatible with disk sizes: 2280, 2260, 2242, 2230
- PCIe x1 Gen2 interface for fast data transfer
- Possibility of booting the system from SSD
- Wide input voltage range (7V-24V) for module power supply and Raspberry Pi
- Ability to power Raspberry Pi 5 with power up to 5V 5A
- Built-in LED to monitor the operating status of disks
Connection to Raspberry Pi 5 via 16PIN connector
The adapter uses a dedicated PCIe 16PIN connector in the Raspberry Pi 5, providing a stable and fast connection.

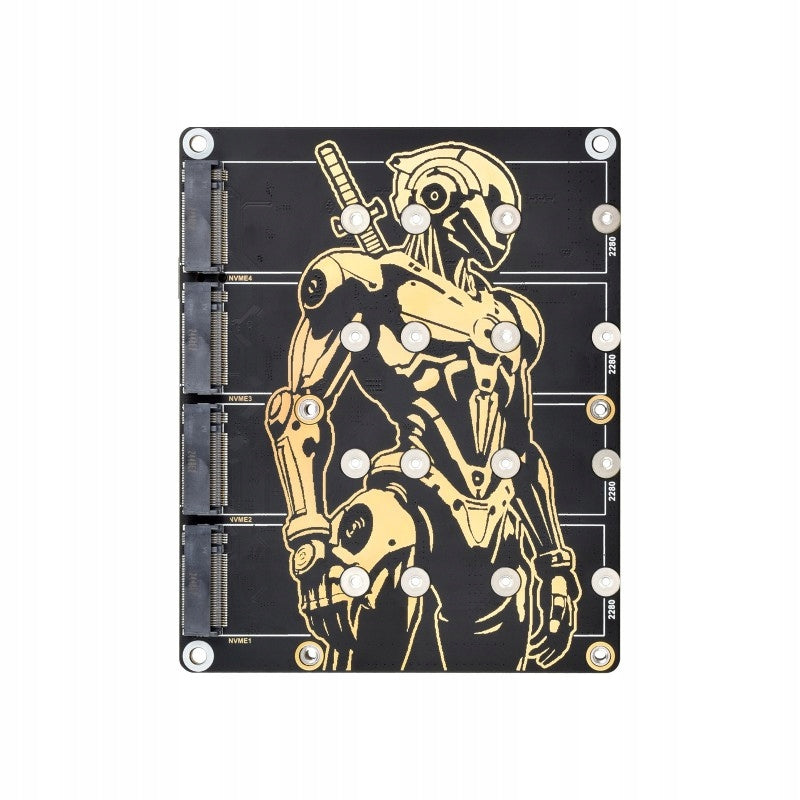

Support for four NVMe SSDs
Compatible with M.2 drives in sizes 2280 / 2260 / 2242 / 2230. Note: Only NVMe-enabled drives are supported.
Improved read/write speeds
The use of NVMe drives significantly speeds up system performance and file operations compared to a standard microSD card. The adapter supports booting the system from an SSD.
Raspberry Pi 5 power supply
The built-in DC socket (7V~24V) allows you to power both the adapter and the Raspberry Pi 5 itself (up to 5V 5A) using the included 3PIN cable. The board can also be powered with a Raspberry Pi 5.
Built-in LED indicators
LEDs make it easy to monitor the operating status of each of the connected drives.
Installation
Technical specification:
- Interface: PCIe x1 Gen2
- Compatibility: Raspberry Pi 5
- Disk support: 4x NVMe M.2 (M KEY)
- Disk sizes: 2280 / 2260 / 2242 / 2230
- Input voltage: 7V ~ 24V (DC connector)
- Output voltage: to 5V 5A (for RPi5)
- Indicators: Working status LEDs
Dimensions
Contents of the set
- Adapter PCIE TO 4-CH NVME Board (B) ×1
- Screw set ×1
- PH2.0 3PIN ×1 cable
- Cable 16PIN ~40mm ×1
The kit does not include the Raspberry Pi board shown in the pictures in the description.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | PCIE TO 4-CH NVME Board (B) NP 50535 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5906358321895 |
| Parametry | Batteries included | no |
