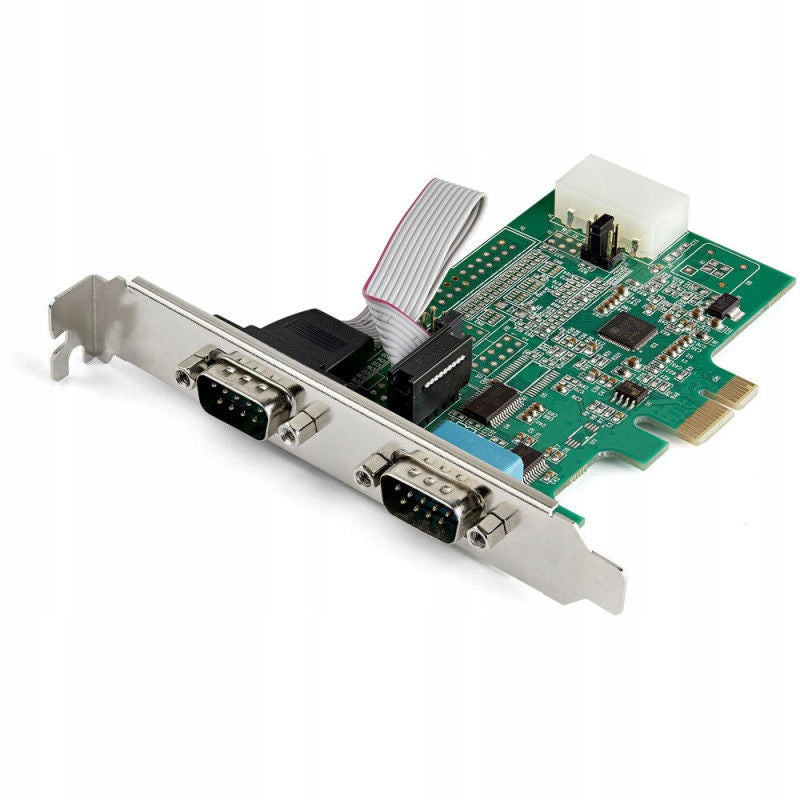

PCI plokštė Startech PEX2S953

Trumpai apie prekę

Prekė: PCI plokštė Startech PEX2S953. Kategorija: Tinklo plokštės.

• Gamintojas: StarTech
• Modelis: inny

Host Interface: PCIe, Output Interface: Serial, Expansion Card Standard: PCIe 1.1. Colour of product: Green, MTBF (Mean Interval): 222366 h. Set of systems: Asix AX99100, Transmission rate:921,6 Kbit/s, FIFO (First In, First Out): 256 B. Supported Windows operating systems: Windows 10,Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise,Windows 10..., Supported Server Operating Systems:Windows Server 2003, Windows Server 2008 R2, Windows Server 2012,Windows Server 2012 R2, Windows.... Product width: 63 mm, Product depth: 75 mm, Product height: 15 mm

✏ The most important technical parameters:

• Performance - MTBF (Mean Interval Period): 222366 h
• Features - FIFO (First In, First Out): 256 B
• System requirements - Supported server operating systems: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
• System requirements - Supported Linux operating systems: Yes
• Features - Transmission rate: 921,6 Kbit/s
• Features - Supported Windows operating systems: Windows 10,Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise,Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64,Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64,Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 HomeWindows 7 Home Premium x64, Windows 7 Professional,Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64,Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64,Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64,Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8 x64, WindowsWindows 8.1 Enterprise, Windows 8.1 Enterprise x64,Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
• Ports and interfaces - Host interface: PCIe
• Ports and interfaces - Output interface: Serial
• Ports and interfaces - SCSI interface: RS-232
• Ports and interfaces - Expansion card standard: PCIe 1.1
• Ports and interfaces - Serial communication ports: 2
• Design - Internal: Yes
• Design - Colour of product: Green
• Construction - Set of circuits: Asix AX99100
• Working conditions - Temperature range (operation): -10 - 80 °C
• Working conditions - Relative humidity range: 5 - 85%
• Working conditions - Temperature range (storage): -20 - 100 °C
• Logistics data - Length of main box (external): 345 mm
• Logistics data - Width of bulk box (external): 685 mm
• Logistics data - Height of reference box (external): 306 mm
• Logistics data - Products in main box (external): 75 pcs.
• Logistics data - Harmonised system code (HS): 84733020
• Package Contents - Quantity: 1
• Weight and sizes - Product width: 63 mm
• Weight and sizes - Product depth: 75 mm
• Weight and sizes - Product height: 15 mm
• Weight and sizes - Package depth: 142 mm
• Weight and sizes - Weight including packaging: 136 g
• Technical details - Number of data bits: 5, 6, 7, 8, 9
• Technical details - Stop bits: 1, 1.5, 2
• Technical details - Parity bit: Even, Mark, No, Odd, Space
• Technical details - Flow conrol type: No, RTS/CTS, XON/XOFF
• Technical Details - Environmental Certificate (Sustainability): CE, RoHS
• Technical details - Compliance with the principles of sustainable development: Yes
• Packaging data - Quick installation instructions: Yes
• Other functions - Product weight: 56 g
• Classification - Manufacturer code: PEX2S953
• Classification - EAN: 0065030888332
• Classification - Product ID: 77943584
