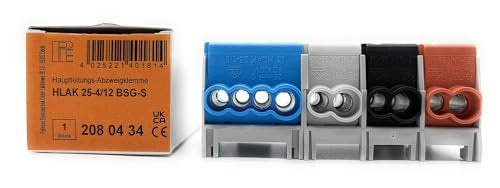

Pagrindinis elektros šakos spaustukas HLAK 25 4/12, profesionaliems elektrikams

Trumpai apie prekę

Prekė: Pagrindinis elektros šakos spaustukas HLAK 25 4/12, profesionaliems elektrikams. Kategorija: Grindų šluotos.

• Gamintojas: no brand
• Modelis: SWC5908151713471
• Spalva: multicolor

MATERIAL AND WORKMANSHIP

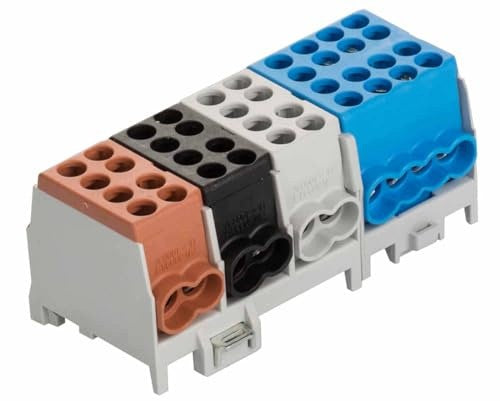

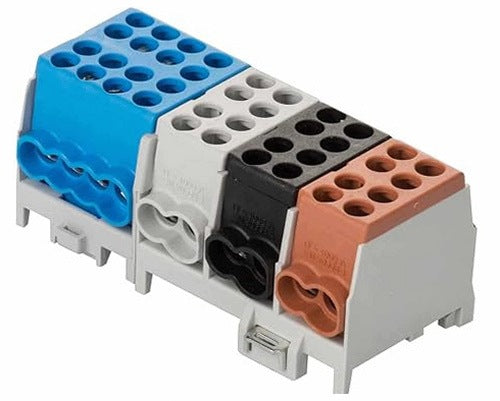

➡ Professional main branch terminal designed for electrical installations with high currents. The device enables secure connection of main wires with branch wires in electrical installation systems.

➡ The clamp supports wires with cross-sections 1,5-25 mm² for the main cable (rigid / multi-core) and 1,5-16 mm² for the branch cable (rigid / multi-wire). The maximum rated current is 130 A for copper and 100 A for aluminium according to VDE 0611/EN 60947-7.

APPLICATION

➡️ The construction includes 2 M6 screws per clamping point with a Pozidriv Z2 combi socket, ensuring a secure and reliable installation. Insulation voltage of 1000 V AC/DC with Overvoltage Category III (Uimp = 8 kV) guarantees safety in fixed installations.

PARAMETERS

➡ Fastening is carried out on the DIN 35 mm support rail in accordance with EN 50022/EN 60715 standards, which facilitates installation in distributors and distribution boards. The length of the 16 mm isolation ensures proper operation of the sleeve clamp.

WHY IT IS WORTH

➡ Degree of protection IP 20 with finger protection ensures the safety of the user during operation and maintenance. The device meets the requirements for the degree of contamination 2 (distributor assembly).

Product specification

✅ Material: copper, aluminium

✅ Rated current cu: 130 A

✅ Rated current al: 100 A

✅ Insulation voltage: 1000 V AC/DC

✅ Main cable: 1,5-25 mm² rigid/multicore

✅ Branch cable: 1,5-16 mm² rigid/multiwire

✅ Length of isolation: 16 mm

✅ Mounting: support rail DIN 35 mm
