Trumpai apie prekę

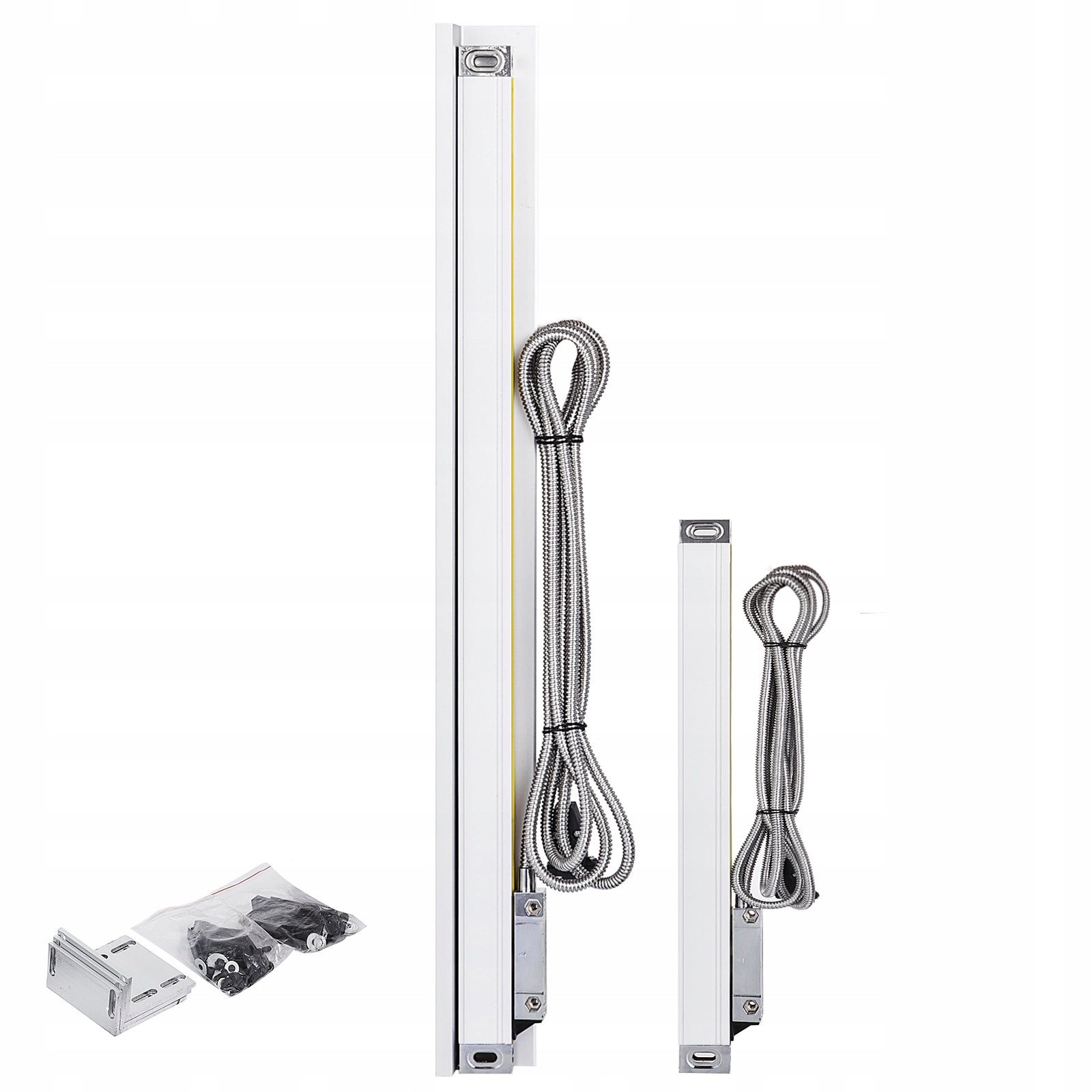

Prekė: Optinis linijinis matuoklis VEVOR 5V. Kategorija: Diagnostiniai testeriai ir sąsajos.
- Gamintojas: no brand
- Modelis: GSC250-1000MMC

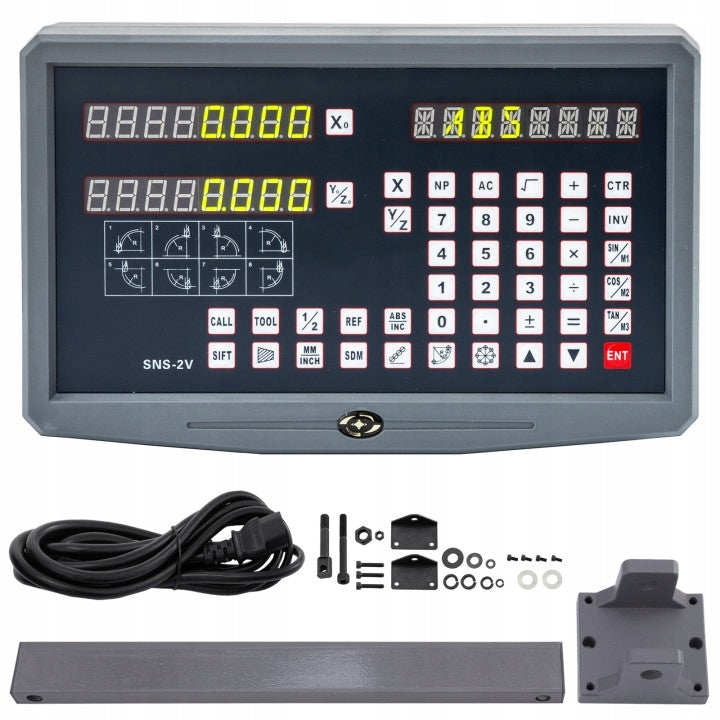

2-axis digital DRO for milling and rotary machines
High precision, robust housing and stable measurement
This 2-axis digital DRO is an instrument that can measure the position of the workpiece during machining. To achieve higher efficiency and accuracy, you must first define a coordinate system.
High efficiency
Different diameters
Fully enclosed keyboard
Professional setting of parameters
Includes brackets and a set of screws
Specifications
Power Range: 85-220 V
Power: 10W
Current: 0.5A
Operating temperature: 0-45°
Doubling Frequency: 4X
Keyboard: completely closed
Acceptable input signal: TTL square wave
Connectors: 9PD
Resolution: 0.05µm, 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm, 20µm, 50µm
Weight: 0.9kg
Size (L x W x H): 29.5 x 18.5 x 9.5 cm / 11.61" x 7.28" x3.74
High accuracy
Precision design with 10 scale types, 0.05 µm resolution, 0.1 µm, 0.2 µm, 0.5 µm, 1 µm, 2 µm, 5 µm, 10 µm, 20 µm, 50 µm. The resolution should be set according to the linear scale.
Wide application
It commonly used in hand machines is such as milling machines, lathes, linear cutting machines and grinders.
Larger diameter pattern
When editing arc in XZ or YZ plane, 8 as modes are available as shown below. Diameter patterns can be viewed by making round holes, machining the inclined plane and machining the arc.
Solid Keyboard
Solid housing, high reliability and durability of the switch design. The fully enclosed design ensures cleanliness and dustproof, increasing safety.
Free settings
Parameters can be set. Repeatability of measurements is more stable. Operating temperature: 0-45°, frequency doubling: 4x, connections: 9PD.
Rich equipment
A cable is also included.
Contents of the pack
1 x 2 axis Digital Display
The most important features
High Performance: The sensor adopts high-precision glass measuring grids as standard, which is characterized by high scanning frequency, fast graphics processing and low measurement errors. Suitable for turning, grinding, milling, drilling and EMD machines.
Multi-diameter templates: ARC machining allows for convenient arc machining on a traditional lathe. Arc enables convenient arc processing on a traditional lathe. The smaller the MAX CUT, the smoother the sheet plane is. In can is the processing of hole circle, line holes and inclination.
Fully enclosed keyboard: solid case, highly reliable and durable switch structure. The shoe is made of special plastic is for corrosion, scratches and friction.
Professional parameter setting: After enabling DRO, enter the initial system and perform self-test within 1 second. Then you can change the parameters so that you can apply them to different machines.
Bracket and screw set included: All accessories for easy installation and operation are included: two brackets, screw set and cable.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | EAN (GTIN) | 840281555659 |
| Parametry | Manufacturer code | GSC250-1000MMC |
| Parametry | Batteries included | no |
