Trumpai apie prekę
Prekė: OLED ekranas 2,23" monochrominis modulis. Kategorija: Priedai.
- Gamintojas: Adafruit
- Modelis: 4567

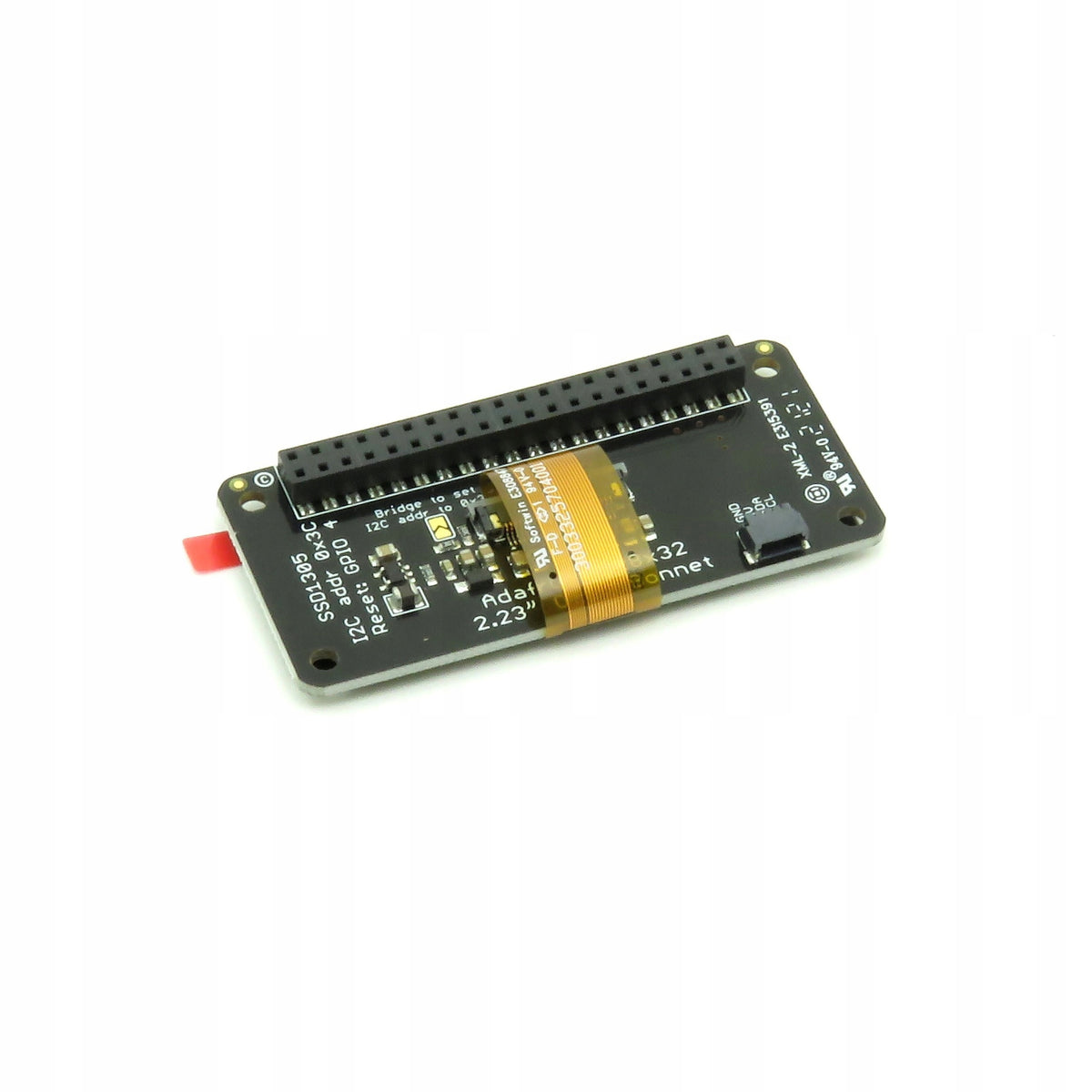

2.23" Monochrome OLED Bonnet - module with 2,23" OLED display for Raspberry Pi
Description
Module with black and white OLED display with a diagonal of 2,23" and a resolution of 128x32 px designed for minicomputers Raspberry Pi. It has a built-in SSD1305 driver and communicates via the I2C interface. The module connects to the minicomputer via a 40-pin GPIO connector. In addition, the user has a STEMMA QT connector located on the bottom of the plate. It works well for displaying text, but also graphics and simple animations. Full documentation with examples are available on the product page.
Properties
- Display Type: OLED
- Diagonal 2,23"
- Resolution: 128x32 px
- Interface: I2C
- Display Color: Black, White
- SSD1305 controller
- Pin GPIO RESET
- 40-pin connector compatible with Raspberry Pi
- STEMMA QT connector
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 4567 |
| Parametry | Manufacturer | Adafruit |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5904422327118 |
