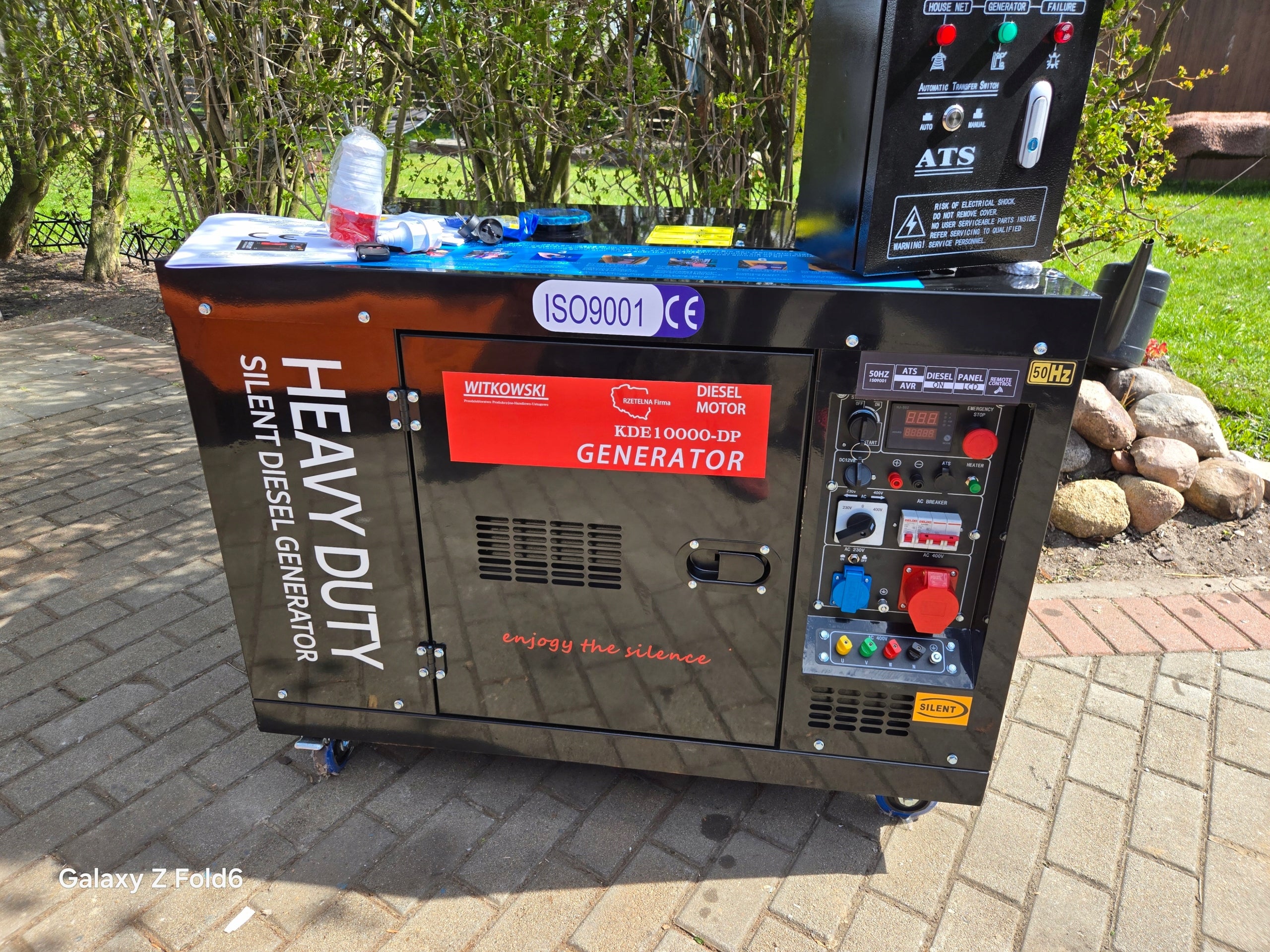

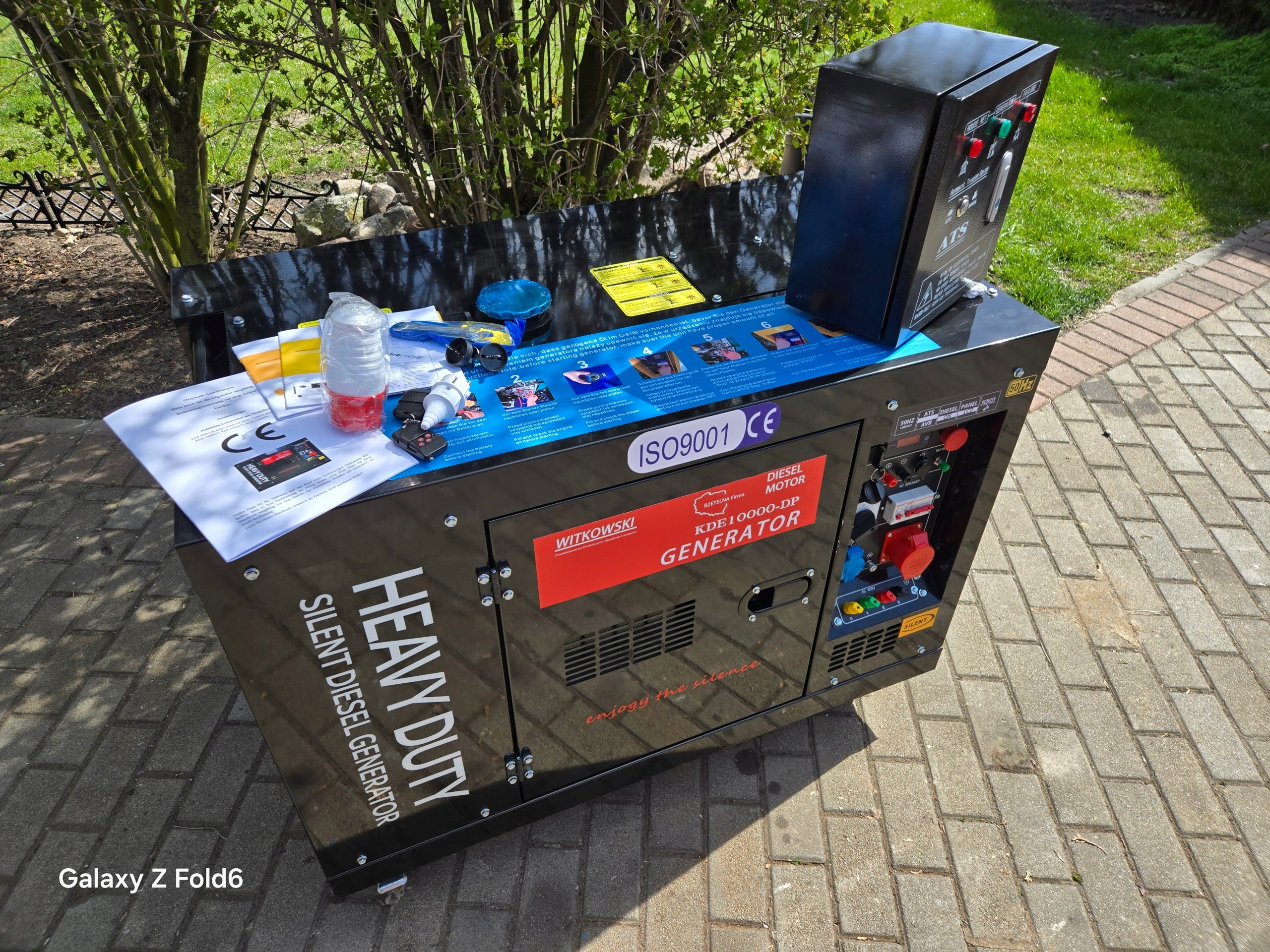

Nešiojamas generatorius KDE10000DP, 11 kVA, DUAL POWER

Trumpai apie prekę

Prekė: Nešiojamas generatorius KDE10000DP, 11 kVA, DUAL POWER. Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: KDE10000DP

• The KDE10000DP model is equipped with GLOW PLUGS, thanks to which firing the unit during frost is as easy as during plus temperatures.
• The high power of the unit allows greater freedom in connecting single-phase devices and gives the possibility of connecting large power devices (three-phase).
• Low fuel consumption: maximum 1,3l of oil per hour at maximum load.
• Effortless start-up even at minus 20 thanks to the use of a capacious 36Ah battery.
• 100% copper generator.
• Remote control of the remote control with a range of up to 80m.
• In addition to the automatic relaxer, the aggregate also has a manual relaxer, thanks to which firing becomes even easier.
• Our unit has a detailed fuel filter (similar to the car), so no two filters are needed, so the cost of ownership is reduced. Additionally, you protect the engine from damage by brak constantly airing the system of two filters.
• Adaptation to ATS (automation allowing for self-ignition in the event of energy loss and automatic shutdown of the unit when the power supply returns) through a microprocessor in the desktop, solenoid valve and socket for connection. If necessary, it is enough to buy an ATS device that allows the unit to operate in the machine.
• The aggregate has an AVR voltage stabilizer.
• The possibility of exhaust gases using the hose available in our offer.
• Easily available spare parts.
• Instructions in German with EC declaration of conformity.
• Before shipping, we do the first boot. We supply a unit tested, ready to work - flooded with engine oil and fuel.

Technical data

• diesel engine Single cylinder KM1100FA, 4-stroke high power 11kW/3000rpm is a guarantee of the life of the entire generator set
• compression ignition
• Maximum engine power 15HP
• 670 cc displacement
• timing on gears
• fuel: diesel
• powered by overflow fuel with forced return
• direct injection; injection pump
• combustion 1,1 l/h ON at 5,5kW, 0,9 l/h at 3,5kW
• paper fuel filter
• forced lubrication; oil pump
• oil level and pressure sensor
• built-in reusable oil filter (metal)
• oil bowl capacity 1,65l
• electric starter with a power of 1,2kW
• equipped with a solenoid valve for starting without the use of a decompression lever
• Replacement paper air filter
• volume 65 ~ 74 dB - distance 7 m
• weight of the generator itself 50kg - generator fully wound with copper, length of the stator 15cm.
• rated power at 230V 6,2 kW (10kVA)
• rated power at 400V 8,0 kW (10kVA)
• Maximum power at 230V 6,7kW (11kVA)
• Maximum power at 400V 8,5kW (11kVA)
• Output voltage 400V/230V/12V
• C16 protection at 400V, C32 at 230V (very important: indicates the power of the generator)
• frequency 50Hz
• AVR (Variable Load Voltage Stabilization)
• self-excited brushless generator - very durable
• length of aggregate 1050 mm
• width 620 mm
• height 730 mm
• weight 200 kg
• 25 L tank

Equipment

• Electric start with key (starter).
• Large 36Ah battery

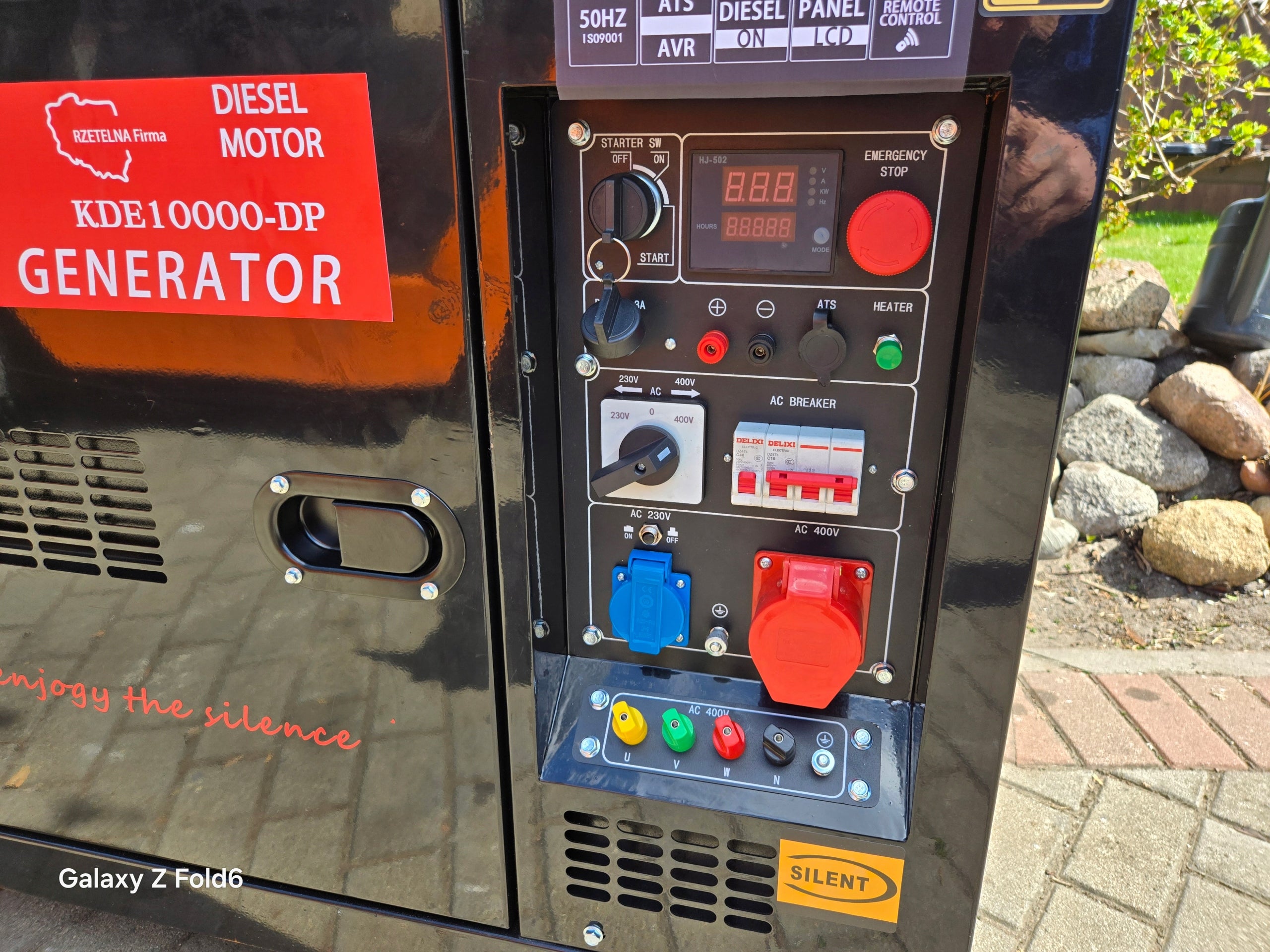

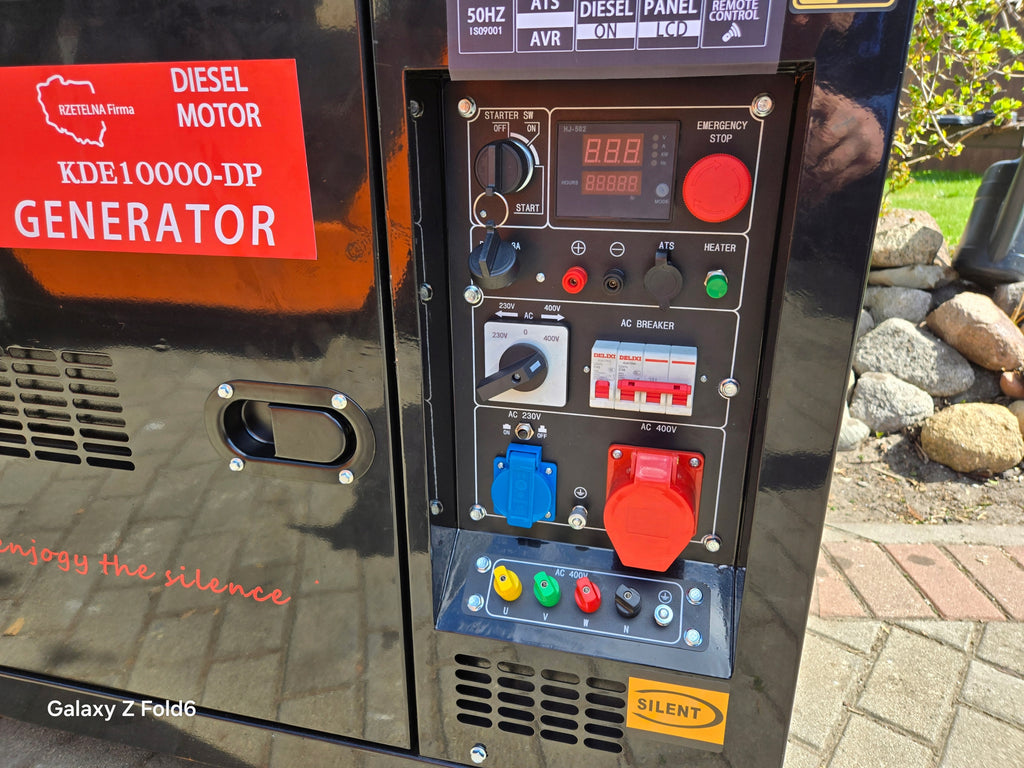

• Electronic display indicating the number of hours worked, voltage, frequency.
• Additional manual relaxer
• Rectifier for charging other external batteries.
• Adapted to ATS (components: microprocessor in the desktop, solenoid valve and connection socket on the desktop). After purchasing an ATS device, the unit can operate in a vending machine.
• Socket 400V 16A
• Socket 230V 32A
• Fuel tank 25 L
• Full transport wheels for easy movement
• One exhaust with a diameter of 39mm, allowing you to extend the exhaust and lead the exhaust gases outside the room (snakes on offer)
• Remote controls operating at a distance of 60-80m depending on the location of the unit (open space, walls, ceilings)

Akcesoria for ongoing operation

• Plug 230 V (output) x 2 x 230 V (standard) with earthing
• 16A 400V plug
• Key set (8/10/12/14)
• Screwdriver
• 2 remote controls
• User manual in Polish

Specifications
