Multimetras 20A AC/DC UT61D+ NCV USB chart+ PRO

Trumpai apie prekę

Prekė: Multimetras 20A AC/DC UT61D+ NCV USB chart+ PRO. Kategorija: Multimetrai.

• Gamintojas: UNI-T
• Modelis: UT61D+

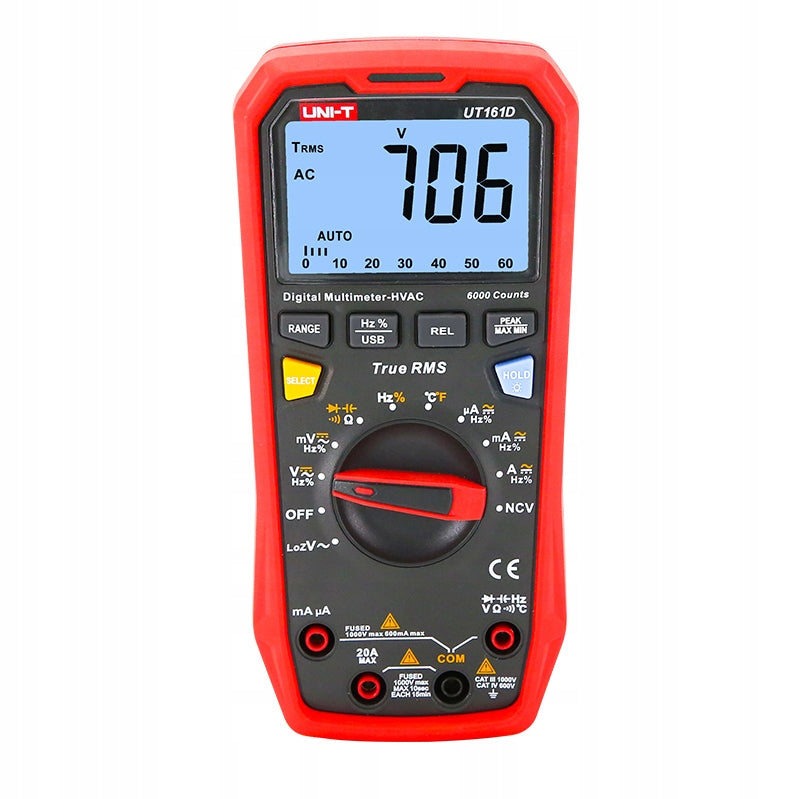

UNIT UT61D+

Multimeter compact size, having a large backlit display that allows you to work in almost any lighting conditions.

• Measurement of AC/DC voltage up to 1000V,
• Current measurement AC/DC 20A
• Resistance measurement up to 60MΩ
• Detection with one voltage cable
• Freezing of the last indication
• Communication with computer - USB cable
• Illuminated display
• LoZ~ GOLD PLATED WIRES 20A
• Automatic shutdown after 15 minutes of inactivity
• Temperature measurement (sensor included)
• HOLSTER – rubber cover
• Safety level: CAT Ⅱ 1000 V / CAT V 600 V.
• Power supply: 4 * 1,5 V AAA batteries (free)

Technical data of the UT61D+ meter

• Maximum value: 5999
• DC voltage: 60mV / 600mV / 6V / 60V / 600V / 1000V
• AC voltage: 60mV / 600mV / 6V / 60V / 600V / 1000V
• Permanent current: 600 μA / 6000 μA / 60 mA / 600 mA / 6 A / 20 A
• AC current: 600 μA / 6000 μA / 60 mA / 600 mA / 6 A / 20 A
• Resistance: 600Ω / 6000Ω / 60kΩ / 600kΩ / 6MΩ / 60MΩ
• Capacity: 60nF/600nF/6μF/60μF/600μF/6mF/60mF
• Frequency: 10Hz~10MHz
• Temperature: -40 ~ 1000 ° C / -40 ~ 1832 ° F
• LED test: Yes
• Continuity buzzer: Yes

• gold plated measuring wire ends
• Measuring cables 20A included

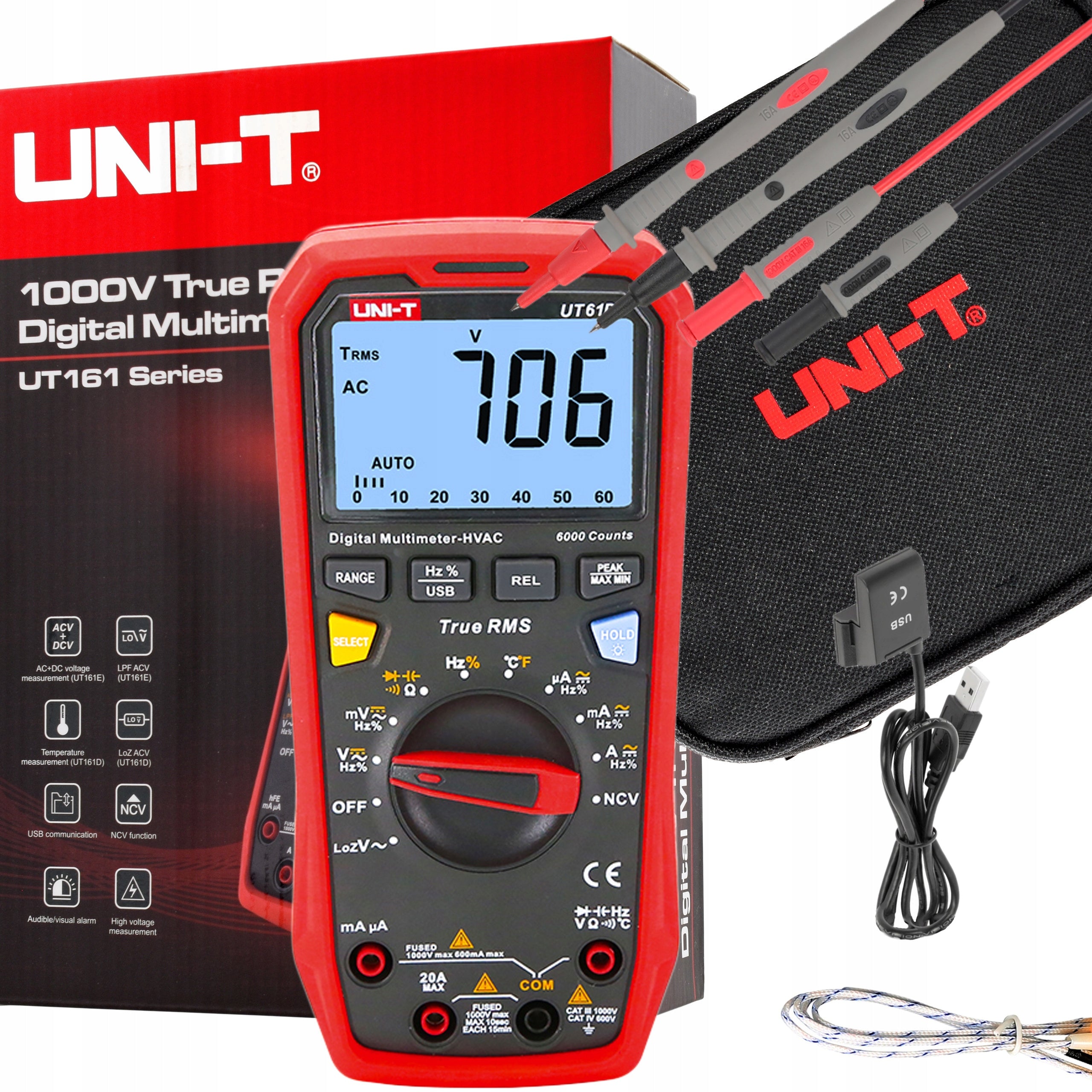

The set includes:

• UT61D+ meter
• set of measuring wires - gold-plated tips
• temperature sensor - thermocouple
• USB cable for communication
• 4 x 1,5V AAA power batteries
• cover - case
