Multifunkcinis instaliacijų parametrų matuoklis SONEL MPI-540-PV Start

Trumpai apie prekę

Prekė: Multifunkcinis instaliacijų parametrų matuoklis SONEL MPI-540-PV Start. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI540PVS

Multifunctional Electrical Installation Parameter Meter

SONEL MPI-540-PV START

✅ The largest touch panel on the market (7”) – extraordinary ergonomics and ease of use

✅ Removable microSD card – easily increase memory capacity

✅ Li-Ion battery – longer operation of the meter

✅ Measurements of photovoltaic installations in accordance with PN-EN 62446

✅ Cooperation with the meter of sunlight and temperature

✅ Report on research of photovoltaic installations after transferring data to the Sonel Electrical Measurements program

✅ Reading data of current network parameters – immediate evaluation of the tested device

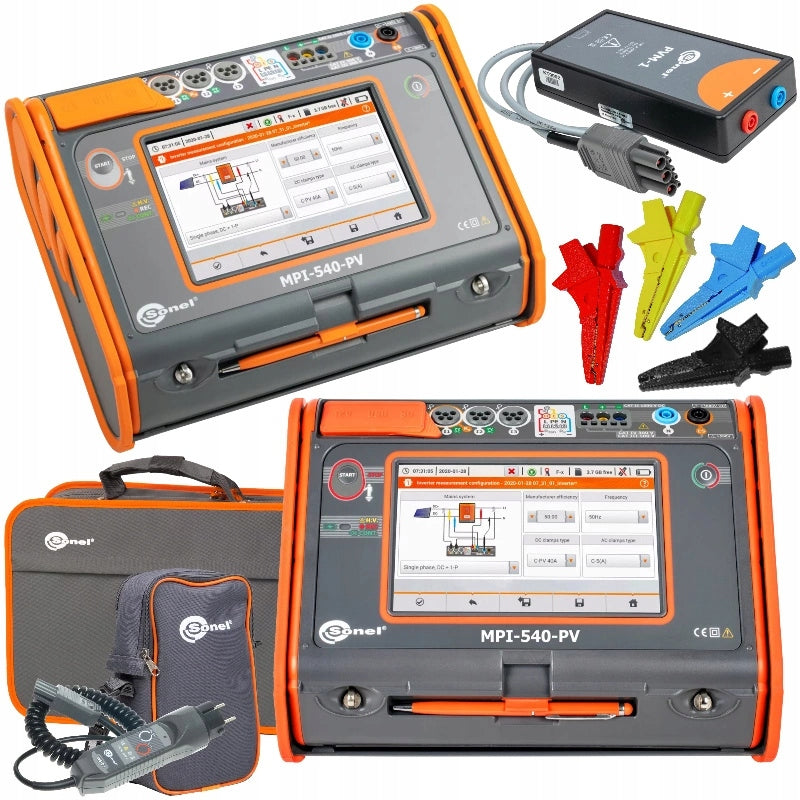

What's included in the kit?

• 1 pc. MPI-540 multifunctional electrical installation parameter meter
• 1 pc. PVM-1 PV Adapter
• 1 pc. MC4 adapter - banana sockets (set) WAADAMC4
• 1 pc. C-PV clamp cable WAADACPV
• 1 pc. C-PV measuring clamps
• 1 pc. M-13 case
• 2 pcs. AAA alkaline battery LR03 (24A) 1.5 V WABATAAA
• 1 pc. Program for operating power quality analyzers of the PQM and MPI-540 series Sonel Analysis 4
• 1 pc. Free program for downloading data from Sonel Reader meters
• 1 pc. Measurement trigger adapter (UNI-Schuko plug) WS-03
• 1 pc. Adapter for rail connector with M4/M6 thread - set of 4 pcs WAADAM4M64
• 1 pc. 1.2 m red 1 kV cable (banana plugs) WAPRZ1X2REBB
• 1 pc. 1.2 m blue 1 kV cable (banana plugs) WAPRZ1X2BUBB
• 1 pc. 1.2 m black cable , 1kV, terminated with banana plugs, marked N WAPRZ1X2BLBBN
• 1 pc. 15 m blue grounding test lead on a reel (banana plugs) WAPRZ015BUBBSZ
• 1 pc. 30 m red grounding test lead on a reel (banana plugs) WAPRZ030REBBSZ
• 2 pcs. 30 cm ground probe WASONG30
• 1 pc. 1 kV yellow blade probe (banana socket) WASONYEOGB1
• 1 pc. 1 kV red pin probe (banana socket) WASONREOGB1
• 1 pc. 1 kV blue pin probe (banana socket) WASONBUOGB1
• 1 pc. Crocodile clip yellow 1 kV 20 A K-02
• 1 pc. Red crocodile clip 1 kV 20 A K-0 2
• 1 pc. Crocodile clip black 1 kV 20 A K-01
• 1 pc. Li-ion battery 11.1 V 3.4 Ah AKU-15
• 1 pc. Z-7 battery charging power supply
• 1 pc. 230 V power cable (IEC C7 plug) WAPRZLAD230
• 1 pc. Cable for charging the battery from a 12V car socket WAPRZLAD12SAM
• 1 pc. L-2 case
• 1 pc. Harness for the meter set WAPOZSZEKPL
• 1 pc. WAPRZUSB USB Cable
• 1 pc. 4GB microSD card WAPOZMSD4
• 1 pc. Sonel WAPOZUSBSTICK pendrive
• 1 pc. WAPOZTPEN touchscreen pen
• 1 pc. WADOKCK calibration certificate
• 1 pc. 1.2 m yellow 1 kV cable (banana plugs) WAPRZ1X2YEBB

The calibration certificate is a document issued free of charge during the meter production process.

Confirms the assignment of metrological properties and the maintenance of measurement traceability.

In the calibration certificate, under the date of issue of the document there is a dotted field: "Date of putting into service". This is a field left for the user of the device, in which the date of purchase should be entered.

The entered purchase date can be used to determine the next calibration date based on the manufacturer's recommendation below:

It is recommended to carry out the next metrological confirmation (calibration) within 12 months from the date of purchase, but no later than 24 months from the date of production/testing.

The next metrological control is carried out by the Research and Calibration Laboratory Sonel SA, and the issued document is called the Calibration Certificate.

MPI-540-PV Start

✅ Parameters measured in class S standards PN-EN 61000-4-30 – high accuracy of measurements

✅ Energy loss calculator – quick diagnosis of potential savings

✅ Measurement of all parameters of shock protection – one device instead of several

✅ Quick short-circuit loop measurement with RCD switch without triggering (up to a few seconds) – time saving

✅ Self-tests – possibility of automatic measurements in sequence – simplification of measurements

✅ Fast track from measurements to report – saving time

FEATURES

✅ The MPI-540-PV instrument can record the electrical energy quality parameters 50/60 Hz in class S of EN 61000-4-30:

• voltages L1, L2, L3 – average values in the range up to 500 V,
• currents L1, L2, L3 – average values, current measurement in the range up to 3 kA (depending on the current clamps used),
• frequency in the range of 40 Hz – 70 Hz,
• active power (P), reactive power (Q), apparent power (S),
• power factor (PF), cos, tg,
• harmonic (up to 40th in voltage and current),
• THD harmonic distortion factor for current and voltage,
• recording of events for current and voltage,
• energy flow – 4 quadrants.

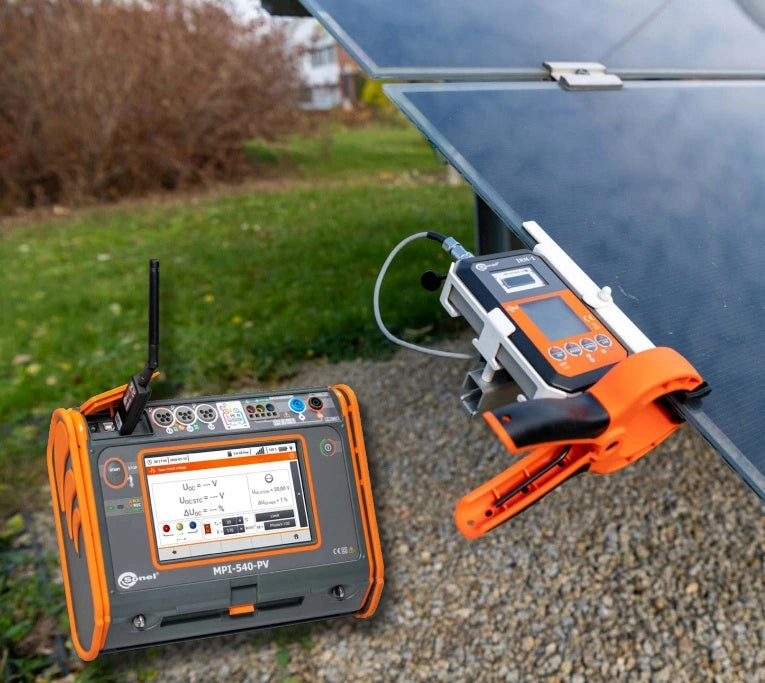

Photovoltaics under supervision

✅ We will perform a complete set of tests on the DC and AC side – in accordance with the guidelines of PN-EN 62446.

✅ By measuring the parameters associated with the photovoltaic installation, the instrument will automatically convert them to STC (Standard Test Conditions) reference conditions.

✅ Measurements of voltage, currents and power on the AC and DC side of the inverter will allow you to verify its efficiency.

✅ Recording the results in the meter memory will allow you to perform a report of the tests carried out in the Sonel Electrical Measurements program.

Comprehensive Network Parameter Analysis

✅ The built-in three-phase recorder allows for **monitoring the current network status** and **recording** its parameters such as **voltage, current, power, harmonics, and THD.**

✅ The meter enables **reading selected values** and **displaying their real-time graphical presentation.**

✅ Parameters are measured **independently of the recording saved to the memory card**. The device can display:

• **Voltage and current waveform graphs (oscilloscope),**
• **Voltage and current graphs over time,**
• **Phasor diagrams,**
• **Measurements of multiple parameters in tabular form,**
• **Harmonic graphs** for **current** and **voltage.**

✔ Safety and conditions of use

• Measuring category according to PN-EN 61010: II 1000 V DC
• Degree of protection: IP51
• Type of insulation according to PN-EN 61010-1 and IEC 61557: double
• Working temperature: 0...+45°C

✔ Memory and communication

• Measurement results memory: unlimited
• Results transmission: USB 2.0

✔ Other information

• Quality standard – development, design and production: ISO 9001
• The product meets the requirements of EMC (emission for the industrial environment) according to the following standards: PN-EN 61326-1 PN-EN 61326-2-2

Specification – 3-phase recorder

✔ Indications in the table:

• A- Parameter
• B- Measuring range
• C- Maximum resolution
• D- Basic Error
• 1- AC voltage (TRMS)
• 2- AC TRMS
• 3- Frequency
• 4- Active, reactive, apparent and deformation power
• 5- Active, passive and apparent energy
• 6- cos and power factor (PF)
• 7- Harmonic
• 7.1- Voltage
• 7.2- Current
• 8- THD
• 8.1 Voltage
• 8.2 Current
• 9- Asymmetry coefficient

Specification – electrical installation parameters

✔ Table symbols:

• A- Measurement functions
• B- Measuring range
• C- Display Range
• D- Resolution
• E- Accuracy (% wm + digits)
• 1- Fault loop impedance
• 1.1 Short circuit loop ZL-PE, ZL-N, ZL-L
• 1.2- ZL-PE short circuit loop in RCD mode
• 2- Measurements of RCD parameters, RCD tripping test and measurement of tripping time tA measuring current 0.5 In, 1 In, 2 In, 5 In
• 2.1- RCD of general type and short-time delay
• 2.2- Selective RCD
• 3- Measurement of RCD tripping current IA measuring current 0.2 In…2.0 In
• 3.1- for sinusoidal differential current (AC type)
• 3.2- for 1-way differential current and 1-way with 6 mA DC bias (type A)
• 3.3- for direct differential current (type B)

Specification – parameters of electrical installations

✔ Indications in the table:

• A- Measurement functions
• B- Measuring range
• C- Display range
• D- Resolution
• E- Accuracy (% w.m. + digits)
• 1- Grounding resistance
• 1.1- 3-wire and 4-wire method
• 1.2- 3-wire method + clamps
• 1.3- 2-clamp method
• 2- Land resistivity
• 3- Insulation resistance
• 3.1- Measuring voltage 50 V
• 3.2- Measuring voltage 100 V
• 3.3- Measuring voltage 250 V
• 3.4- Measuring voltage 500 V
• 3.5- Measuring voltage 1000 V
• 4- Resistance of protective and compensating conductors
• 4.1- Measurement of continuity of protective and compensatory connections with current 200 mA
• 4.2- Small current resistance measurement

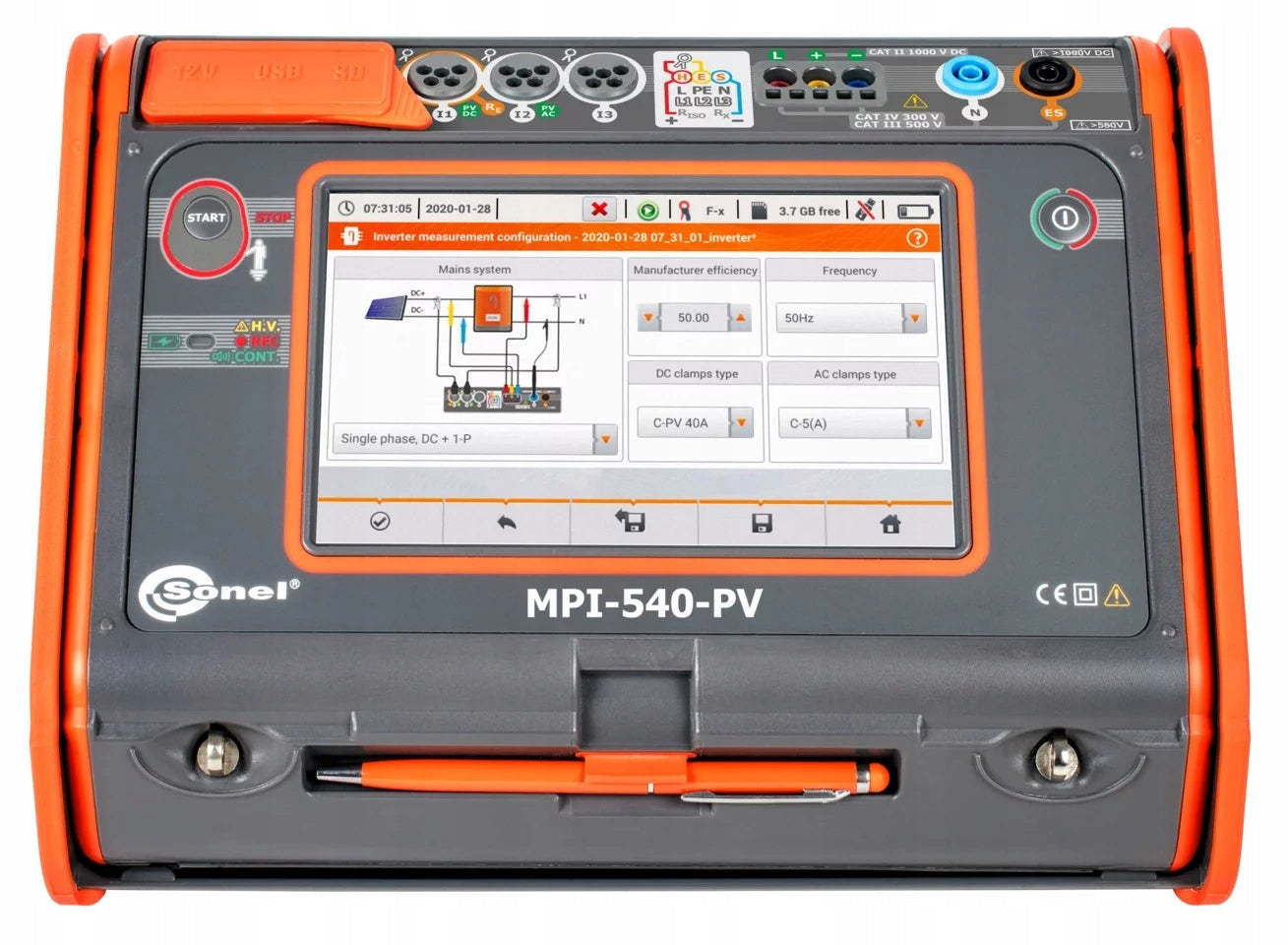

CONSTRUCTION

1. Starting the measurement procedure
2. Touch electrode
3. Touch screen
4. Ear to fasten suspenders
5. Turn the meter on and off
6. ES socket for measuring ground resistance and ground resistivity
7. N socket of the recorder
8. Measuring sockets
9. Clamp sockets I1, I2, I3- recorder, Re-ground measurement

• A- Back
• B- Save
• C- Show last measurement
• D- To the main menu
• E- Select
• F- Show additional icons
• G- Add position
• H- Edit item
• I- Search
• J- Delete item
• K- Close MENU

Specifications
