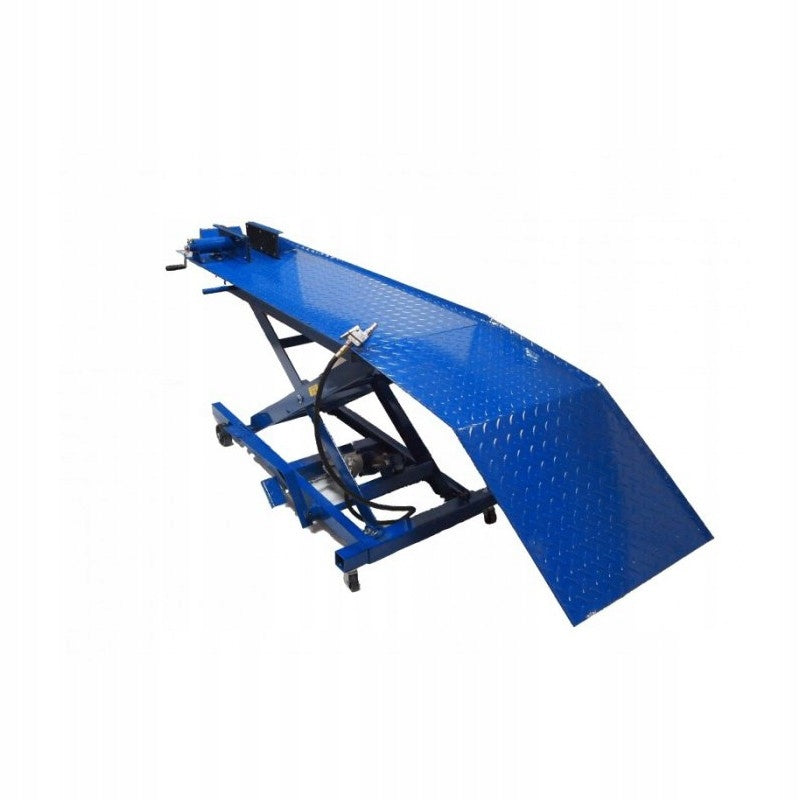

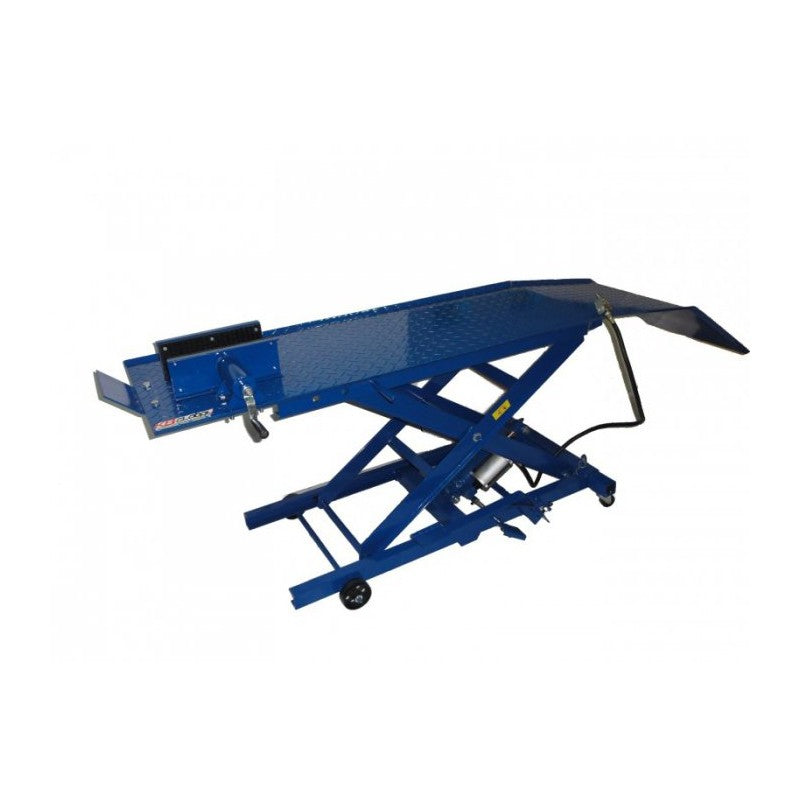

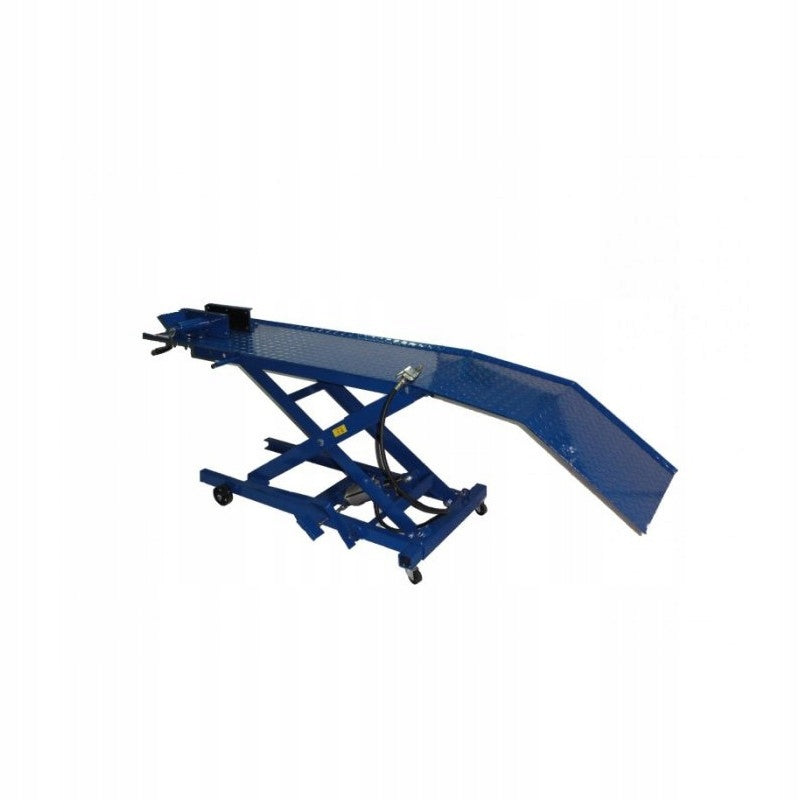

Motociklų hidraulinis ir pneumatinis žirklinis keltuvas, 0,36 t

Trumpai apie prekę

Prekė: Motociklų hidraulinis ir pneumatinis žirklinis keltuvas, 0,36 t. Kategorija: Motociklų keltuvai.

• Gamintojas: Castex
• Modelis: T61004A

Code: T61004A

Product description

Motorcycle lift T61004A with scissor support mechanism. Lifting of the vehicle takes place in the range from 210 to 780 mm. Lifting is carried out by a pneumatic-hydraulic unit, operating at an operating pressure of 8 bar. This guarantees lifting of motorcycles weighing up to 360 kg. It is operated with foot pedals.

Secure fastening is guaranteed by a crank vise placed on the front (coated with protective rubber) and 4 additional buckles located on the sides. They are easy to attach a rope or tape, which additionally stabilizes the two-wheeler. The 2 screws at the base allow you to balance the equipment and position it even on an uneven surface.

The inrun allows quick introduction and then convenient descent of the machine from the platform.

The working platform has useful mounts to stabilize the motorcycle. The base is equipped with small wheels, allowing free movement of the lift at the service station.

Data:

• Lifting capacity 360 kg
• Max. Lifting height: 780 mm
• Lift and overrun width: 490 mm
• Jaws with rubber inserts
• 2 swivel and 2 fixed casters for handling
• Foot lever for lifting and lowering
• Hydraulic-pneumatic actuator
• Easy removal of the overrun (hinged slide-in)
• Net weight: 98 kg
• Gross weight: 118 kg
• Package dimensions: 1510x650x300 mm

All our products are covered by warranty and post-warranty service.
