Mobilios keltuvo kolonos sunkvežimiams NORTEC PRO PK8500W, 8,5 t, 2,2 kW, 2 vnt.

Trumpai apie prekę

Prekė: Mobilios keltuvo kolonos sunkvežimiams NORTEC PRO PK8500W, 8,5 t, 2,2 kW, 2 vnt.. Kategorija: Keltuvai stulpams.

• Gamintojas: Nortec
• Modelis: PK8500W-2K

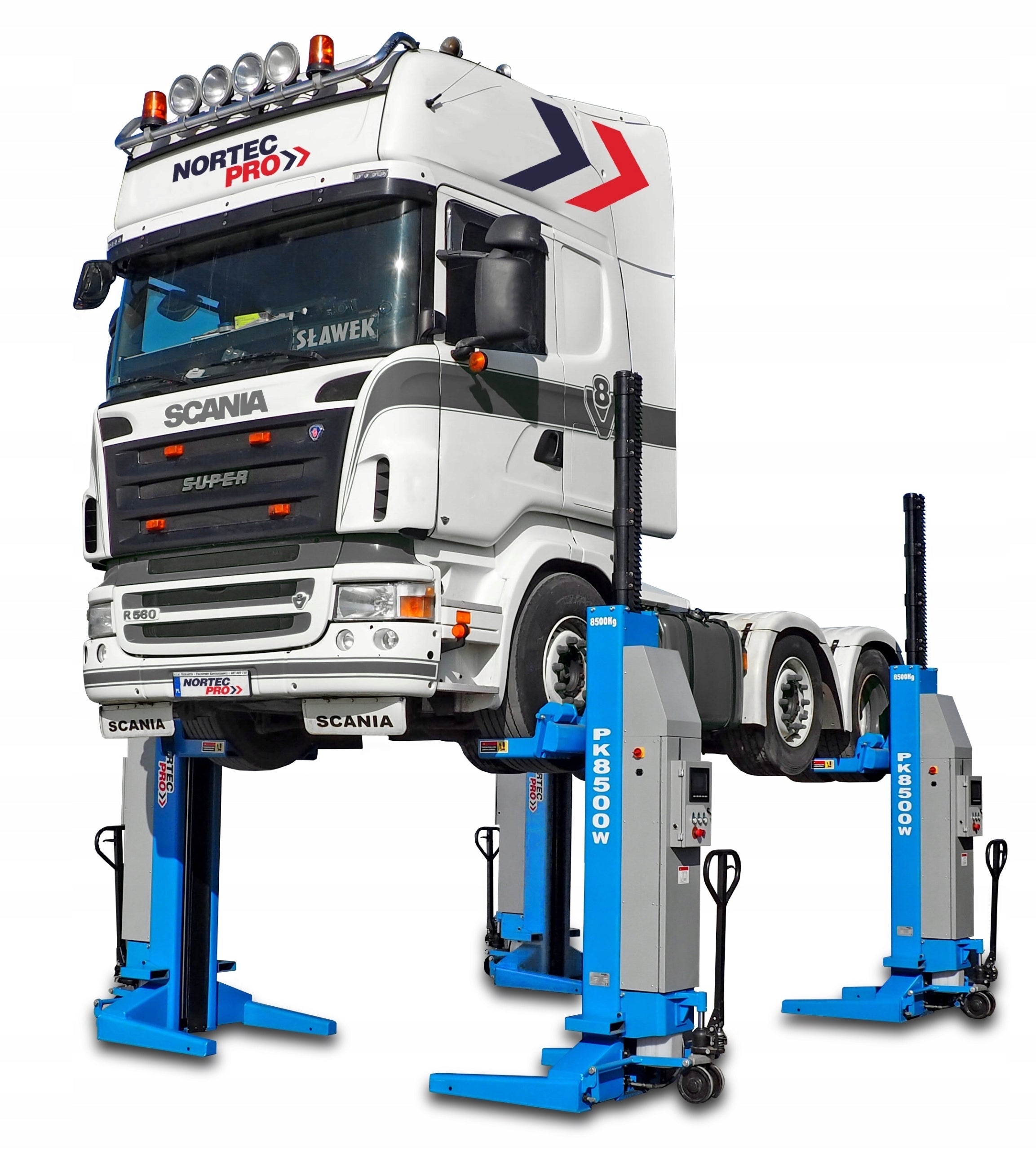

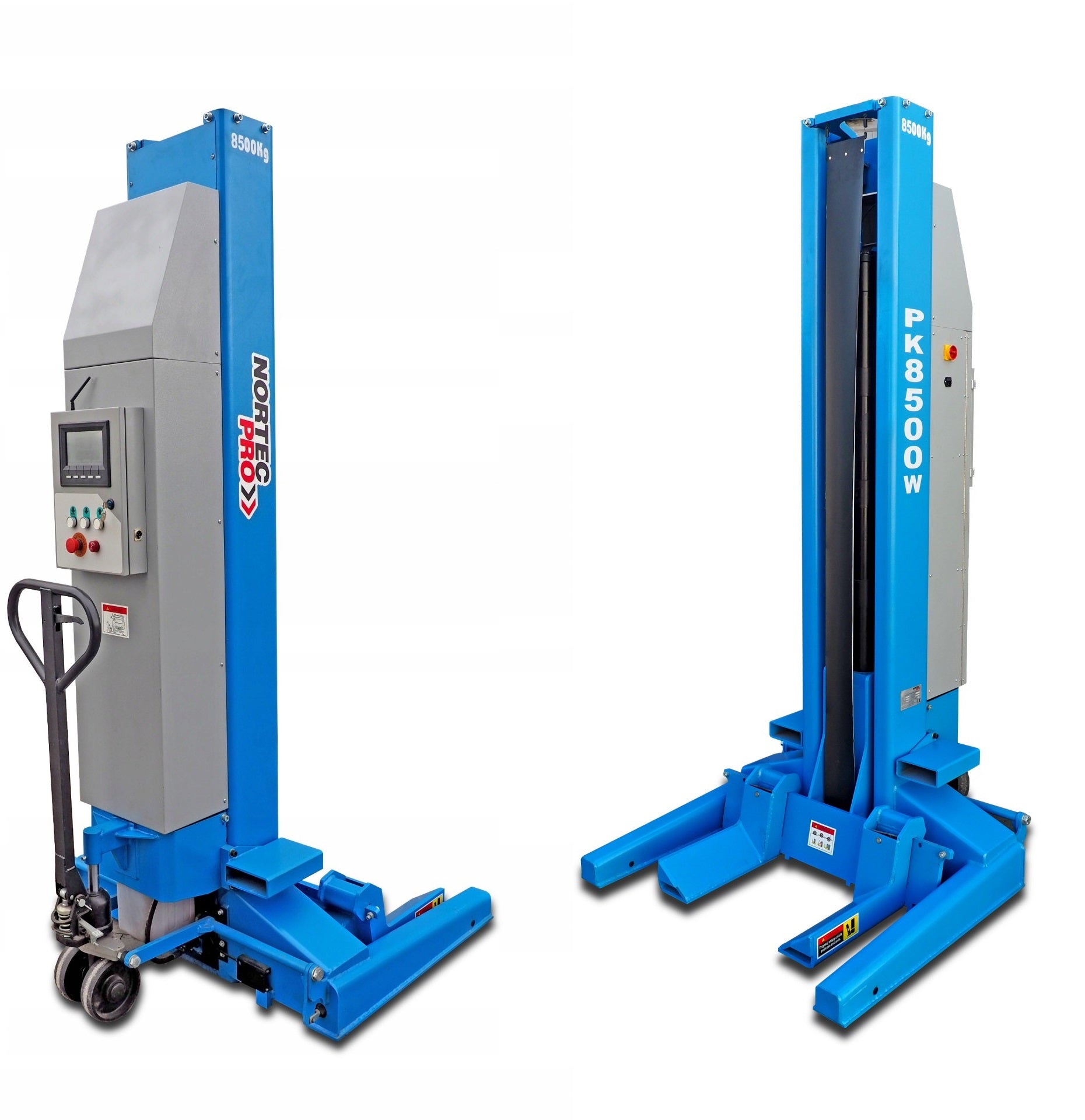

PK8500W Mobile column lift NORTEC PRO 8,5 T – 2 pieces

It is a modern and extremely versatile solution for lifting heavy vehicles, designed for professional workshops servicing trucks, buses and specialized vehicles.

The PK8500W offers an impressive lift of 8,5 tons per column, ensuring high performance and safety when working with heavy vehicles. The system allows expansion of up to 96 columns, thanks to which it can be flexibly adapted to the needs of large services and fleets.

The lift is equipped with battery power and wireless communication, which significantly increases the mobility of the device and comfort of work. The lack of wires facilitates the organization of the station and allows free movement of columns in the workshop.

A big advantage of the model is also the adjustable fork spacing, allowing you to adjust the lift to different types of wheels and vehicles.

The NORTEC PRO column lifts are designed as fully mobile devices. Thanks to the use of synthetic wheels and a hydraulic pallet mechanism, their movement is fast, convenient and trouble-free.

In addition, the system is equipped with overload protection, which increases the safety of use and protects the device during intensive use.

Robust construction and modern technological solutions make the lift provide fast, effective and reliable operation even in the most demanding service conditions.

NORTEC PRO PK8500W is an ideal choice for professional workshops that expect maximum mobility, high lifting capacity, modern technology and the possibility of expanding the system with the development of the service.

Advantages:

• A set of mobile speakers made of the highest quality materials with a full manufacturer's warranty
• For trucks, semi-trailers and machinery.
• Expandable with more columns up to 96
• Lifting with hydraulic pistons equipped with a safety valve located inside the cylinder to prevent accidental damage.
• Electro-hydraulic control system, ensuring alignment and synchronization of trolleys, controlled by the control panel COLORFUL display from each column
• The system is equipped with overload valves.
• Mechanical safety locks with automatic function controlled electro-magnetically.
• The control column has a large touch screen for setting the lifting parameters of the entire set, including the lifting height, the number of columns involved in a given operation. The screen visualizes the current situation and displays advice and messages about problems.
• Closed electrical system, with 24V low voltage control.
• Each of the columns is equipped with a set of 2 own high-capacity batteries, charged with 230V current, giving the entire system great autonomy (no wire connections between the columns).
• Communication between columns is carried out using wireless, in addition, connection cables
• The construction is made of thick steel cross-sections, guaranteeing strength and stability.
• Columns powder coated with epoxy paint.

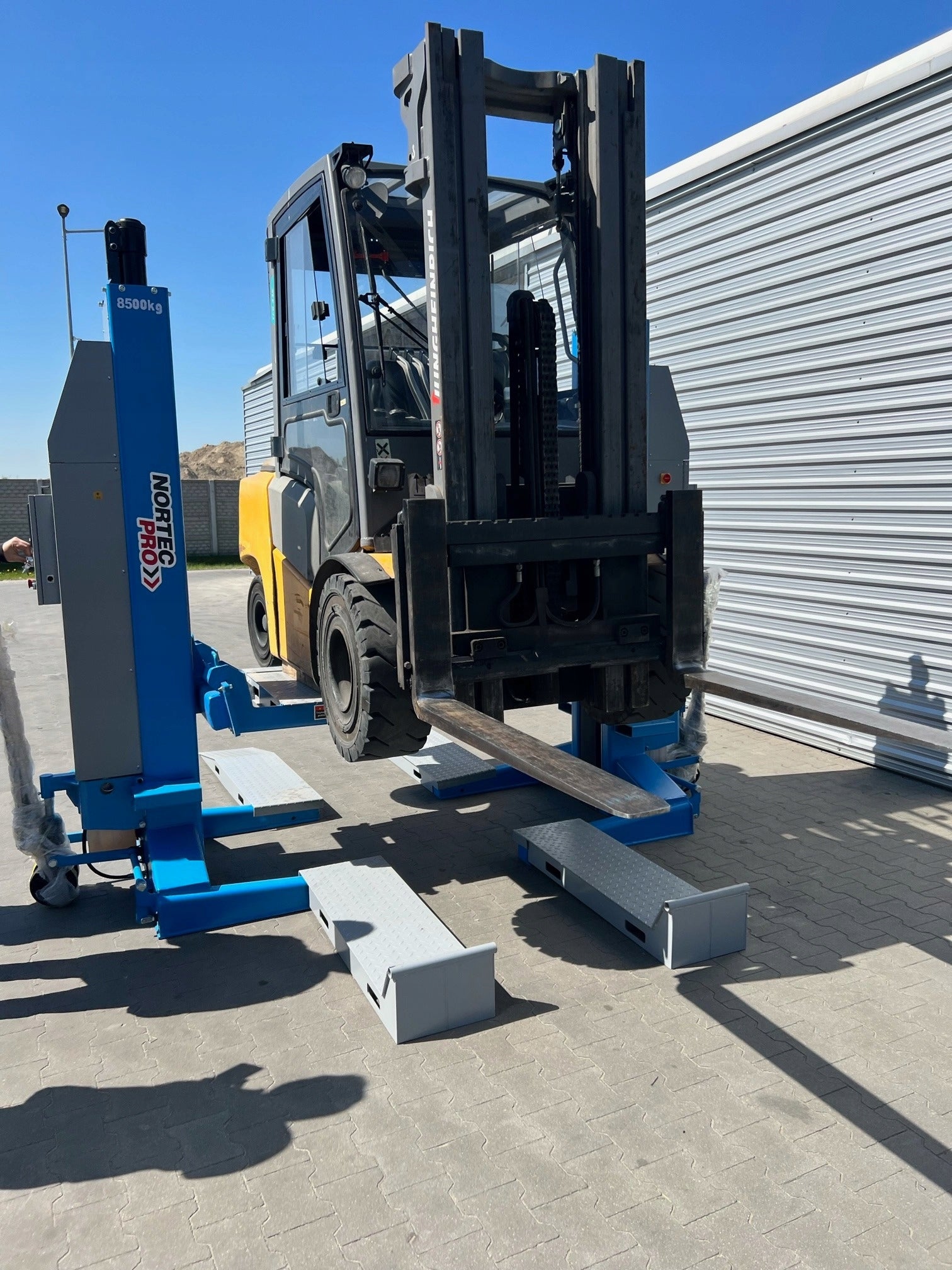

• Columns can be combined in pairs of 2 pcs for lifting e.g. forklifts or tractors
• 4 pieces most commonly used for lifting trucks, semi-trailers or vans
• 6 pieces for lifting a set of tractor semi-trailer or large buses 8 pieces and more for special applications

Features of lifts:

✅ The speakers have microprocessor control which ensures full synchronization of the set and safety,

✅ Lifts have a number of electrical protections m.in. about incorrect connection of columns and about the operation of the lift,

✅ Mechanical lock of fixed height,

✅ Columns with lifting capacity up to 8.500 kg (one column)

✅ Adjustable fork spacing - so no additional adapters are needed

✅ Possibility to set different height between pairs of columns,

Application:

• Special Vehicles Factory
• Services of trucks
• Maintenance services
• Bus depots
• Forklift services
• Electric car services such as BMW or Tesla
• services of vans

Nortec MLX8500 axial stands: as an option to facilitate work with the wheel

High racks are available, with a lifting capacity of 8 500 kg.

Stands can be folded; can be placed under the lift column to release the wheel and have access to the wheel

All our stands have the option of main adjustment and precision adjustment

Below application

Another option is axial beams are designed for wheel-free repairs, or for lifting semi-trailers. For lift PK8500W as optional equipment with lifting capacity from 28t.

Specifications
