Mini USB-C dokas Renkforce RF-HUB-810

Trumpai apie prekę

Prekė: Mini USB-C dokas Renkforce RF-HUB-810. Kategorija: Dokavimo stotelės.

• Gamintojas: Renkforce
• Modelis: RF-4499450

Manufacturer: Renkforce / Product number: 2249725 / Product weight: 0.40kg / EAN: 4064161037424

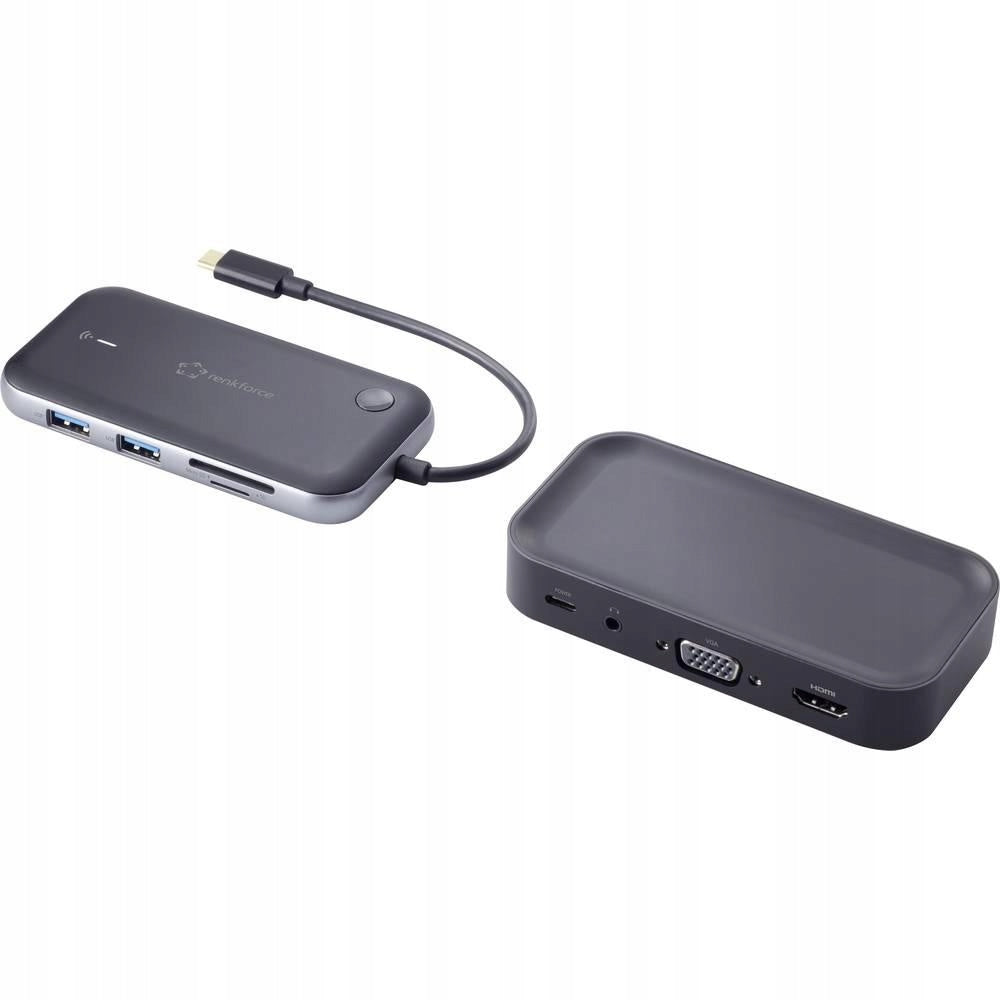

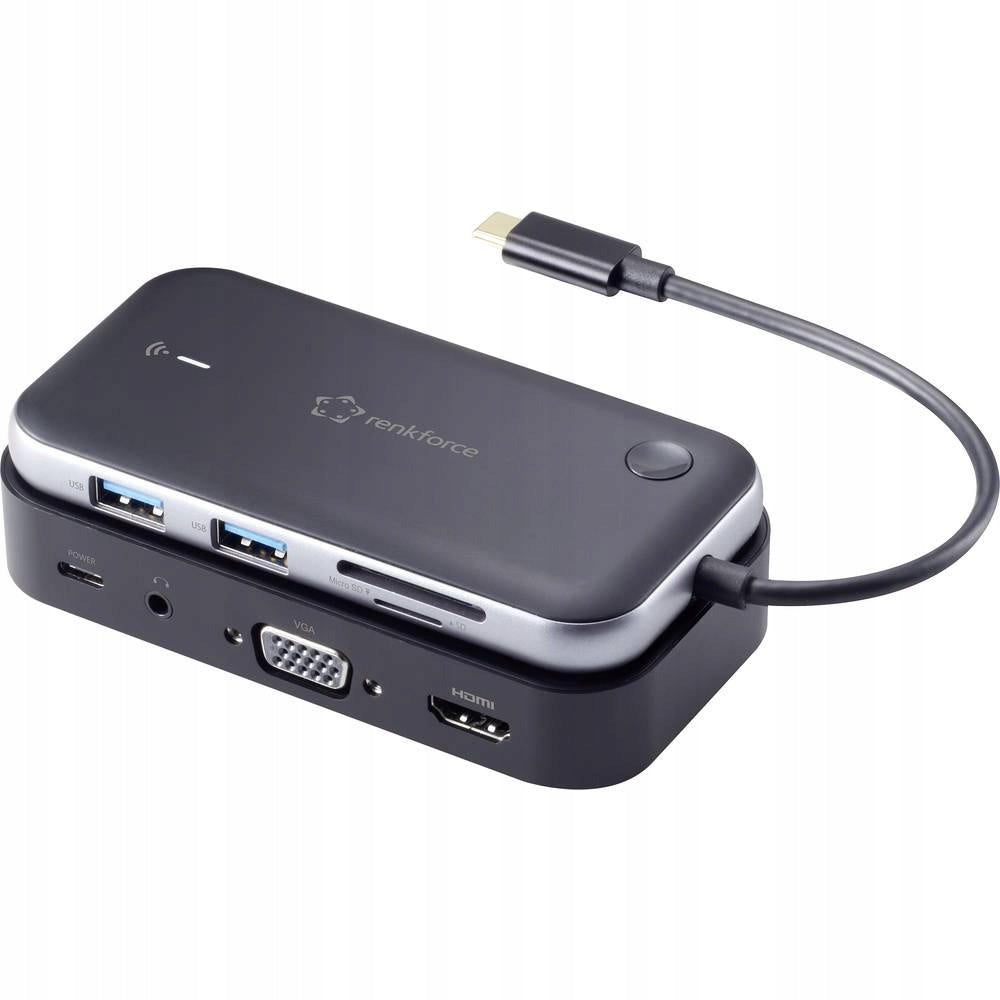

Hub USB C Renkforce for wireless image transfer

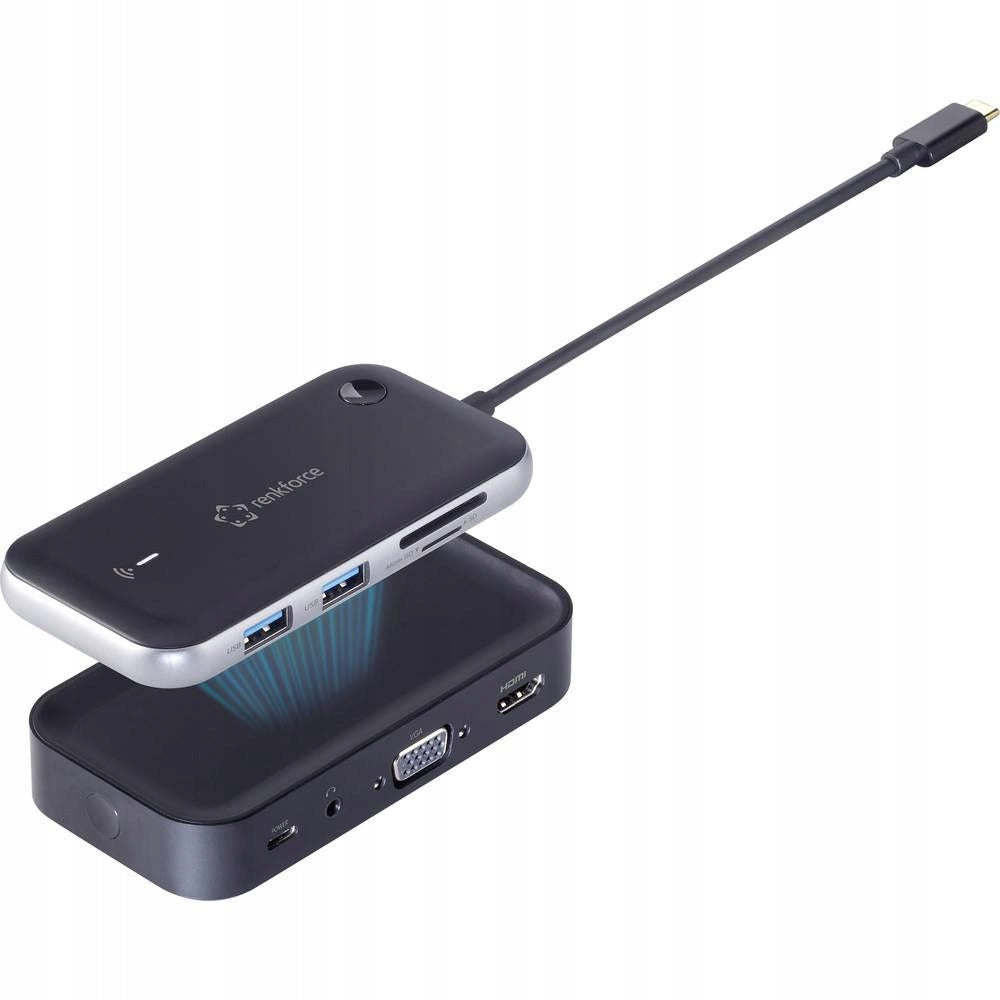

The first wireless in its class There are more and more computers and mobile phones on the market with the new USB-C output. Thanks to the new USB-C Renkforce hub, you can easily connect them wirelessly to other devices,such as HDMI or VGA screen - regardless,whether in the office or at home It works as follows:transmitter which also has two USB 3.0 inputs, SD card slot and TF output,is connected to a computer or smartphone via USB-C. Wireless signal transmission to the receiver,which is connected to the screen via audio, HDMI, USB-C or VGA signal. With Plug & Play, data transfer can be easily started without additional installation or software. The transmission can also be stopped at the touch of a button: the stop button on the Renkforce USB-C hub stops the signal when necessary. Transmitter: 1 x USB-C plug 2 x USB 3.0 (5 Gbps/5V0.9A@4.5W) 1 x SD card slot: 1 x TF output Transmitter dimensions: 112.5 x 57.5 x 14 mm Receiver 1 x audio 3.5 mm 1 x HDMI (1080Pixel) 1 x USB-C socket (5V2A@10W) 1 x VGA (1080 pixels) Receiver dimensions 115.5 x 60.5 x 22.5 mm

Special features

• USB C Hub with Wireless Image Transmission
• No need for installation
• Simultaneous use of HDMI and VGA
• STOP button

Characteristic

• USB-C hub with wireless display (transmitter and receiver)
• SD and TF can be used at the same time
• HDMI and VGA can be used at the same time
• Maximum transmission distance: 10 meters
• Plug and work: no additional installation or software required

Technical data

• Further specifications: Supports up to 2 monitors (1x VGA, 1x HDMI) at 1080p/60 Hz
• Powered by USB-C/2 A.
• Operating temperature and air humidity: 0 to 45°C and 10% to 85% RH
• Storage temperature and humidity: -10 to 70°C and 5% to 90% RH
• Transmission frequency range: 5150 - 5250 MHz and 725 - 5850 MHz.
• Transmission Power: 12 dBm
• Product depth: 22.5 mm
• Number of monitors supported: 2
• Interface: USB-C, 2x USB 3.2 Gen 2 (USB 3.1), HDMI, VGA, SD slot, microSD slot, 3,5 mm jack (stereo)
• Manufacturer Color: Black
• Compatibility: Notebook
• Suitable for Brand: Universal
• Plastic-free packaging: yes
• Vertical Resolution: 1080 px
• Horizontal resolution: 1920 px
• Laptop docking station specification: wireless image transmission, integrated card reader
• Product Width: 60.5 mm
• Weight: 211 g
• Product height: 115.5 mm
• Connector A: USB-C
• Connector B: SD, microSD, VGA female connector, HDMI female connector, 3,5 mm female jack connector, USB-A 3.2 Gen 1 female connector (USB 3.0)

Scope of delivery

• USB C Hub
• USB-C to a cable (80 cm)
• User Manual
