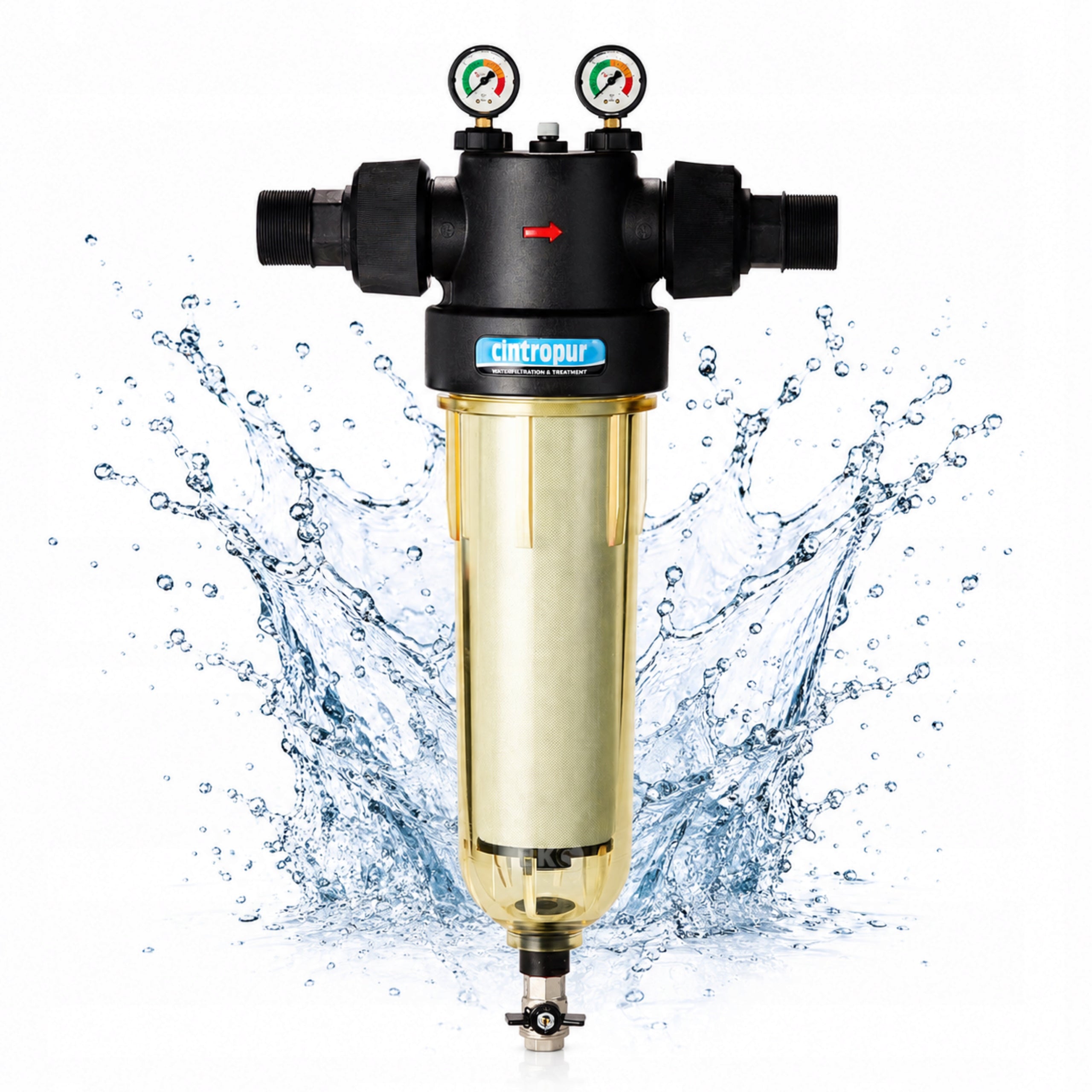

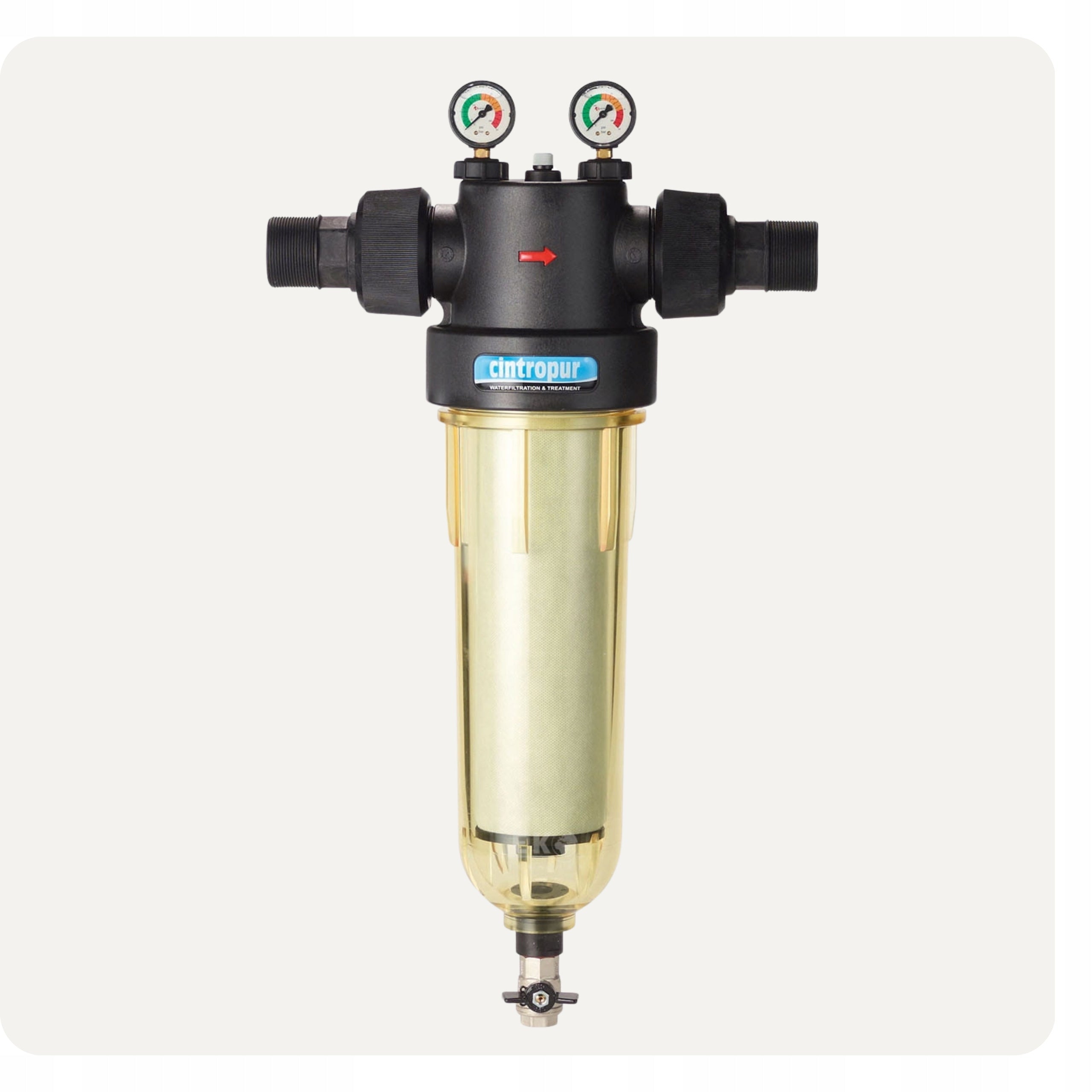

Mechaninis vandens filtras Cintropur NW 500, priešfiltris

Trumpai apie prekę

Prekė: Mechaninis vandens filtras Cintropur NW 500, priešfiltris. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Cintropur
• Modelis: NW 500
• Talpa: 1.3 l

❇ Mechanical Filter Cintropur NW 500 (2”)

➡ Cintropur NW 500 is an industrial in-line filter made of ultra-durable synthetic material, resistant to the toughest working conditions.

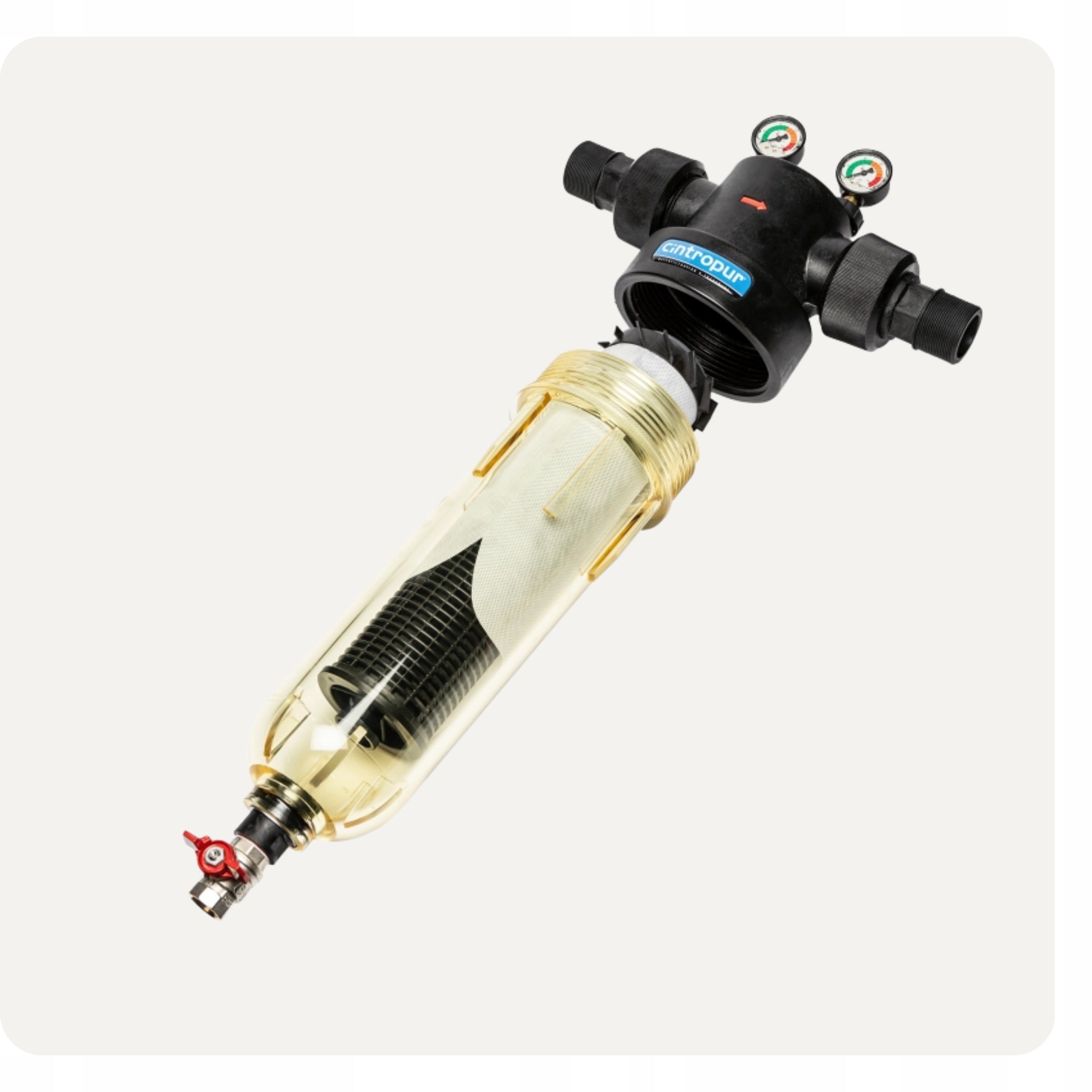

➡ Uses centrifugal force – the built-in centrifuge discards impurities to the bottom of the lampshade, preventing clogging of the cartridge and maintaining a high flow rate of up to 18 m³/h.

➡ Blocks sand, rust, silt and slurries. Removes turbidity and color of water, protecting against corrosion and failures the entire installation, sanitary facilities and machinery.

❇ Why choose Cintropur NW 500 filter?

✔ Performance 18 m³/h – simultaneous treatment of huge amounts of water.

✔ No pressure loss – cyclone construction and large surface area (1288 cm²).

✔ Transparent lampshade – constant preview of the degree of soiling of the cartridge.

✔ Manometers – glycerin indicators precisely assess sleeve wear.

✔ Pressure up to 16 bar – reinforced head and O-Rings give 100% tightness.

✔ Quick service – the design allows for easy removal of deposits.

❇ Wide range of applications

• Own shots and industry: Ideal as a pre-filter to protect advanced water treatment plants and expensive production machinery.
• Agriculture: Effective protection of irrigation networks, droplet systems and sprinklers against blockage by sand particles.
• Ecology: The perfect solution for safe and efficient rainwater filtration (rainwater recovery).
• Sanitary installations: Protection of domestic and commercial water supply networks against sediment destroying fittings.

⬇ Real opinions of installers and users

✔ “NW 500 is a class in itself. The material is incredibly strong, and the 2 inch connection ensures that the filter does not throttle the flow even with high draw. ”

✔ “Dthanks to the centrifugal centrifuge, this filter lasts much longer on one cartridge than ordinary in-line filters. Most of the shit immediately falls to the bottom. ”

✔ “Glycerine pressure gauges make things very easy – a glance at the pressure and you immediately know whether you need to clean the sleeve or not. ”

❇ How to use the Cintropur filter optimally?

✔ Adjust the degree of filtration – the device works with replaceable filter sleeves with a wide range of microns (from 1 to 300 microns), which allows you to perfectly adapt them to water quality.

✔ Apply wall mount – due to the dimensions of the device (71 cm high), mount them using the factory wall mount system to relieve installation pipes.

✔ Modular connections – in case of increased demand, you can easily connect the filters in series (for gradual filtration) or in parallel (for increased flow).

⬇ Frequently Asked Questions ❓

➡ What material is the filter made of?

The device is made of 100% high-strength synthetic materials, which guarantees resistance to mechanical damage and corrosion.

➡ How does a loose connection work?

The filter features a loose 2” screw connection sealed with a durable O-Ring for maximum tightness and easy installation.

➡ Is the filter suitable for well water?

Yes, centrifugal filtration perfectly copes with the removal of sand, silt and suspensions characteristic of deep-sea intakes.

⬇ Technical specification

• Model: Cintropur NW 500
• Filter type: mechanical, centrifugal
• Water flow: up to 18 m³/h
• Connection: screw 2”
• Filtering area: 1288 cm²
• Maximum working pressure: 16 bar
• Working temperature: 5°C – 50 ºC
• Filter thresholds available: 1 / 5 / 10 / 25 / 50 / 100 / 150 / 300 microns
• Equipment: glycerin pressure gauges, wall mounting system, O-Ring seal
• Dimensions (H x width x diameter): 71 cm x 36,3 cm x 18,8 cm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Cintropur
Parametry	Kind	filter
Parametry	Capacity	1.3 l
Parametry	Product weight with unit packaging	8 kg
Parametry	Manufacturer code	FWCCNW500
Parametry	EAN (GTIN)	5425024030300
Parametry	Packaging status	original
Parametry	Model	NW 500
