Maršrutizatorius Teltonika RUTX50 5G/4G LTE su VPN

Trumpai apie prekę

Prekė: Maršrutizatorius Teltonika RUTX50 5G/4G LTE su VPN. Kategorija: Mobilieji maršrutizatoriai.

• Gamintojas: Teltonika
• Modelis: RUTX50
• Plotis: 132 mm
• Aukštis: 60 mm

About the manufacturer

Teltonika Networks is a Lithuanian manufacturer of industrial network devices, specializing in IoT, M2M and mobile communication solutions. The company designs and manufactures its equipment in Europe, emphasizing high quality, stability and connection safety in industrial, commercial and professional applications.

Product Description

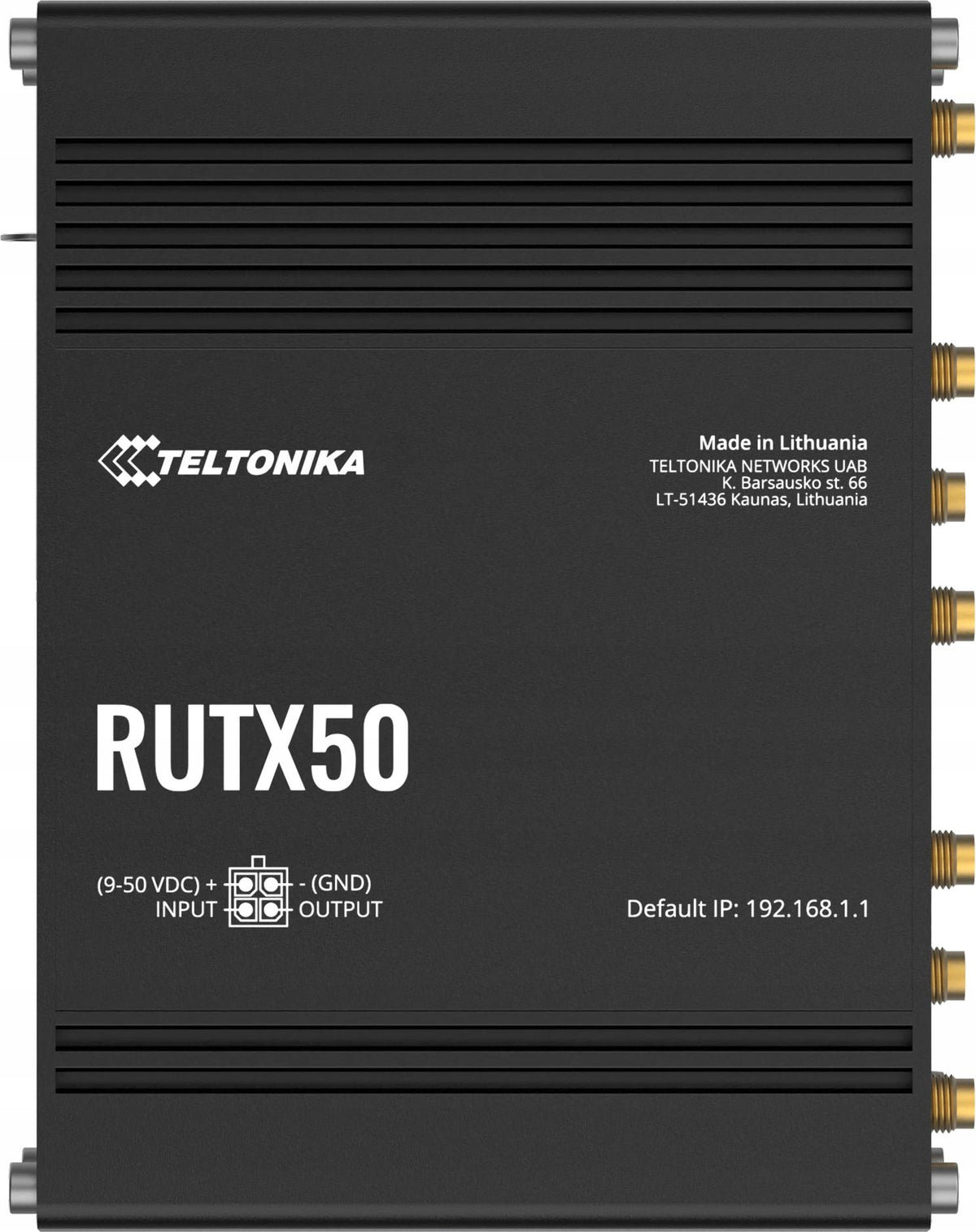

Teltonika RUTX50 is an advanced industrial 5G LTE router with support for 4G LTE Cat 20 and 3G, designed for demanding industrial applications, IoT and mobile communication. The device enables very high data transmission speeds over a 5G cellular network and stable wired connections thanks to the built-in gigabit Ethernet switch.

The router offers extensive configuration options, advanced security features (firewall, VPN, user management), as well as support for multiple network services. Thanks to remote management by Teltonika Remote Management System (RMS), it is perfect for distributed installations where reliability, monitoring and easy service are key.

The RUTX50 is designed as an industrial-grade device – it ensures stable operation in a wide temperature range, is adapted to continuous operation and meets a number of standards for electromagnetic compatibility and safety, which is confirmed by certificates, including the required CE marking for the European market.

Product Features

• Industrial 5G Mobile Router with 4G LTE Cat 20 and 3G Support
• Support 5G NSA and SA networks (depending on the operator and available infrastructure)
• Built-in 5-port 10/100/1000 Mbps Ethernet switch
• Dual-band Wi-Fi 5 (802.11ac) 2,4 GHz and 5 GHz access point and client
• High transmission speeds in the mobile network (depending on network and operator conditions)
• Advanced security features: firewall, VPN, filtration, access management
• Support for multiple VPN protocols (e.g. OpenVPN, IPsec, L2TP, PPTP – depending on the software version)
• Possibility of remote management and monitoring by Teltonika RMS
• Interfaces for integration with IoT and automation systems (e.g. Digital inputs/outputs – depending on the hardware version)
• Industrial housing, 24/7 operational design
• Wide operating temperature range, suitable for industrial applications
• Certified product (m.in. CE marking and other certificates according to the requirements of the target market)

Technical data

Cellular modem

• Technology: 5G NR, 4G LTE, 3G
• 5G operating modes: NSA, SA (depending on the operator's network)
• Supported 5G NR bands: region- and variant-dependent, covering selected Sub-6 GHz bands
• Supported LTE bands: LTE FDD and TDD bands compliant with the manufacturer's specification for a given region
• Supported 3G bands: selected WCDMA bands according to regional specification
• Throughput: high download and upload speeds on 5G and LTE networks (detailed values depending on hardware version, network and radio conditions)
• SIM card slots: 2 x nano SIM (dual SIM with switching)

Wired interfaces

• Ethernet ports: 5 x RJ45 10/100/1000 Mbps (1 x WAN/LAN, 4 x LAN – software configurable)
• VLAN support (depending on RutOS configuration)

Wireless interfaces

• Wi-Fi: 802.11a/b/g/n/ac (Wi-Fi 5)
• Frequency: 2,4 GHz and 5 GHz
• Operating modes: access point, client, WDS and others available in RutOS
• Wi-Fi security: WPA/WPA2, network segmentation capability (e.g. guest networks)

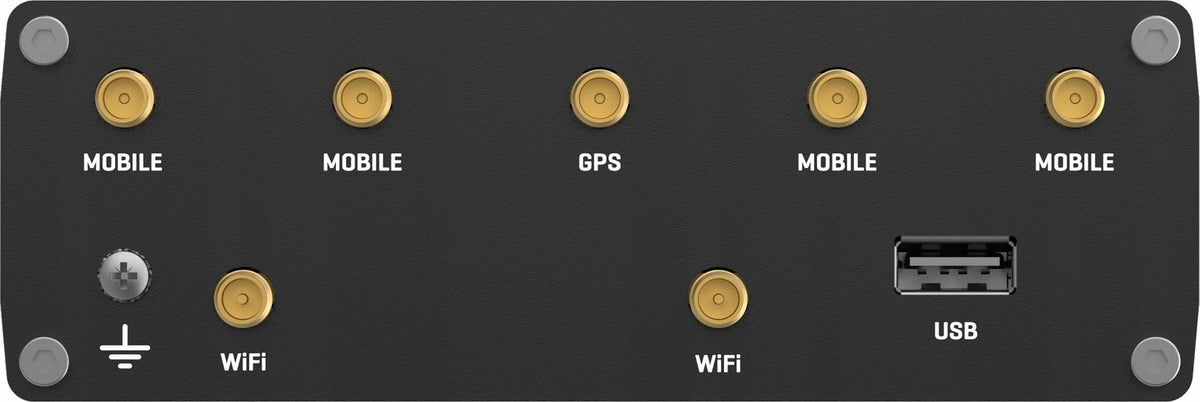

Connectors and antennas

• Cellular antenna connectors: SMA/similar type connectors (according to manufacturer's documentation)
• Wi-Fi antenna connectors: external connectors for 2,4 GHz and 5 GHz antennas
• Possibility to connect external 5G/LTE and Wi-Fi high-gain antennas

Software Features

• Operating System: RutOS (based on Linux, developed by Teltonika Networks)
• Management: web interface, SSH, CLI, Teltonika RMS
• Routing and network services: DHCP, NAT, static routes, QoS, DMZ, port forwarding
• Security: firewall, traffic filtration, user management, protection against network attacks
• VPN: Multi-VPN protocol support (m.in. OpenVPN, IPsec, GRE, L2TP, PPTP – depending on RutOS version)
• Support for tunnels and link redundancy (failover, load balancing – depending on configuration)
• Ability to update software remotely and locally

Power supply and working environment

• Power supply: external power supply (DC, according to Teltonika specification for RUTX50)
• Power consumption: depends on load and configuration (according to manufacturer data)
• Operating temperature range: industrial (wide temperature range suitable for field and industrial cabinet applications)
• Humidity: according to the manufacturer's specification for industrial equipment

Certificates and Compliance

• CE marking (compliance with EU requirements)
• Meeting standards for electromagnetic compatibility and electrical safety
• Other regional and industry certifications, depending on the target market (according to manufacturer’s information)

Dimensions and design

• Industrial enclosure, suitable for installation in cabinets and industrial installations
• Dimensions and weight: compatible with Teltonika RUTX50 data sheet
• Color and finish: characteristic of the RUTX series

Contents of the pack

• Industrial router 5G LTE Teltonika RUTX50

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Model	RUTX50
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Manufacturer	Teltonika
Parametry	Kind	5G
Parametry	Supported standards	LTE
Parametry	Width	132 mm
Parametry	Height	60 mm
Parametry	Depth	95 mm
Parametry	EAN (GTIN)	4779051840250
Parametry	Manufacturer code	RUTX50
Parametry	Certificates of conformity	CE
Parametry	Wireless operation standard	802.11g,802.11b
Parametry	Band	2,4 GHz,5 GHz
