Maitinimo sistema su POE jungikliu 8 IP kameroms BCS-IP8GB/E-S/E dėžėje

Cena:
€332,76
Noliktava:
Ir noliktavā

Trumpai apie prekę

Prekė: Maitinimo sistema su POE jungikliu 8 IP kameroms BCS-IP8GB/E-S/E dėžėje. Kategorija: Jungikliai ir koncentratoriai.

  • Gamintojas: BCS
  • Modelis: 5904890706248

BCS-IP8Gb/E-S/E is a power system for 8 IP network cameras equipped with switch PoE. This unmanaged switch, apart from 8 PASSIVE PoE ports, also has 2 UPLINK ports (gigabit ethernet). Thanks to this device, it is possible to power and transmit signal from cameras on one UTP cable. It is possible to connect external devices such as e.g. the next switch, router or NVR.

CHARACTERISTICS

  • Switch PoE for 8 IP cameras,
  • Switch type: unmanaged,
  • 8 x PoE PASSIVE,
  • 2 x Uplink 1000Mbit,
  • Power supply: 96W,
  • Electronic fuses,
  • Leak-proof class: IP20,
  • Dimensions: 250×200×85mm.

SPECIFICATIONS LAN PORTS Number of ports 10x RJ45 Type of ports 8 x PoE10/100Mbps

2 x Gigabit UpLink LAN Port Features 1 ... LAN 8 PoE OUTPUT -for PoE PASSIVE receivers (up to 40W) and 802.3af (up to 15,4W),802.3at (up to 30W) LAN G1, LAN G2 UPLINK Gigabit (without PoE power) LAN port security 1 ... LAN 8,Vin Surge Protection LAN Port Protection 1 ... LAN 8 Short Circuit Protection 0,75 A with Auto Back Power Control PoE Switch ON/OFF -Items 1 ... 8 (LAN 1 ... LAN 8)

PoE OFF on port - switch in OFF position

PoE ATTACHED on port - switch in ON position POWER SUPPLY PoE output voltage 48 VDC +/- 2% Power consumption 96 W Input voltage 190 ~ 260 VAC, 50 Hz Power supply input protection Fuse fuse immediate 3,15A Power supply output protection Electronic overload protection at 3 A (each power supply)

Electronic short-circuit protection (power supply restart may be required after short-circuiting)

Surge protection LED_AC operating signal (yellow) - presence of mains voltage

LED1 (blue) - presence of output voltage

LEDs in LAN connectors 1 ... LAN 5 - presence of PoE power supply on the port Housing design Housing BCS-H

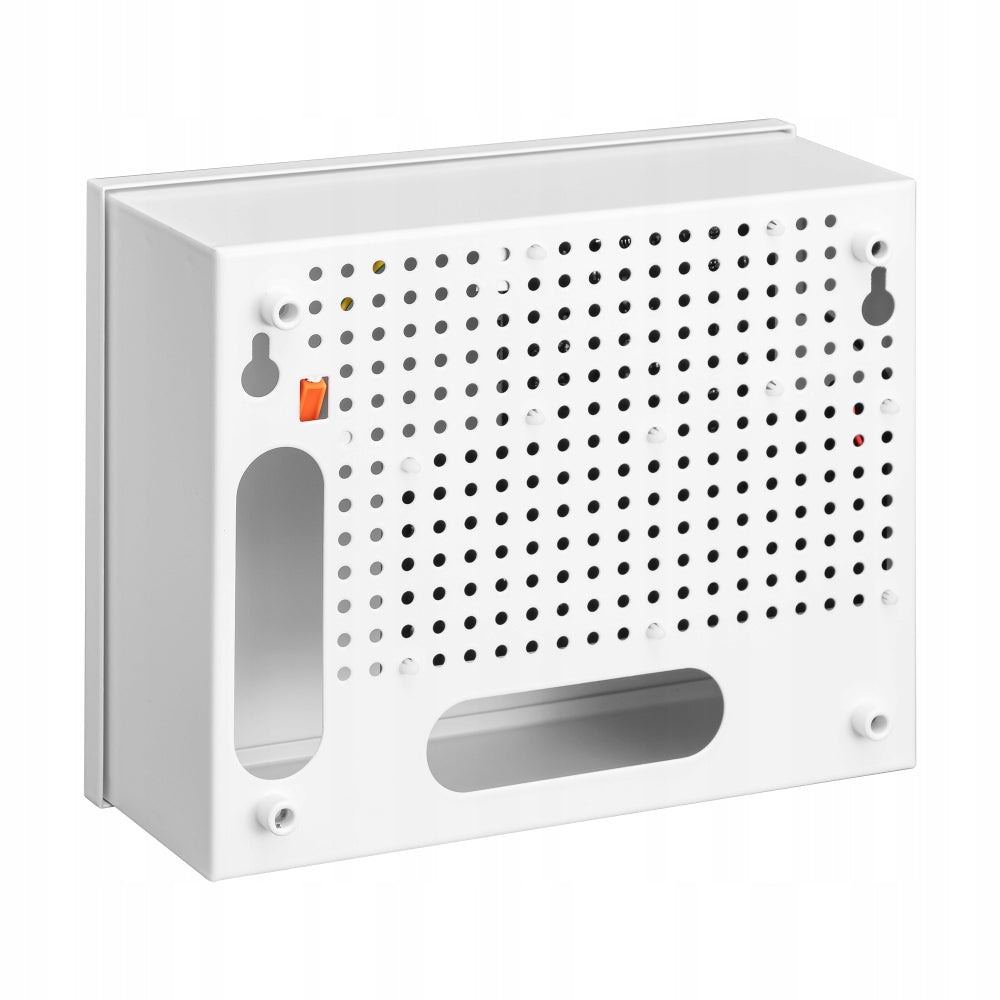

Housing material - steel sheet 0,8 mm

Powder coated housing in white

Mounted opening tamper

System opening 4,8 mm in pitch 10,8 mm

Distance to the wall

Mounting holes 6 mm Wall mounting GENERAL Operating temperature -10 ~ +40°C Protection class IP20 Weight 1.51 kg Dimensions 250 x 200 x 85 mm

8073

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer BCS
Parametry Number of ports 8
Parametry EAN (GTIN) 5904890706248
Parametry Manufacturer code 5904890706248
