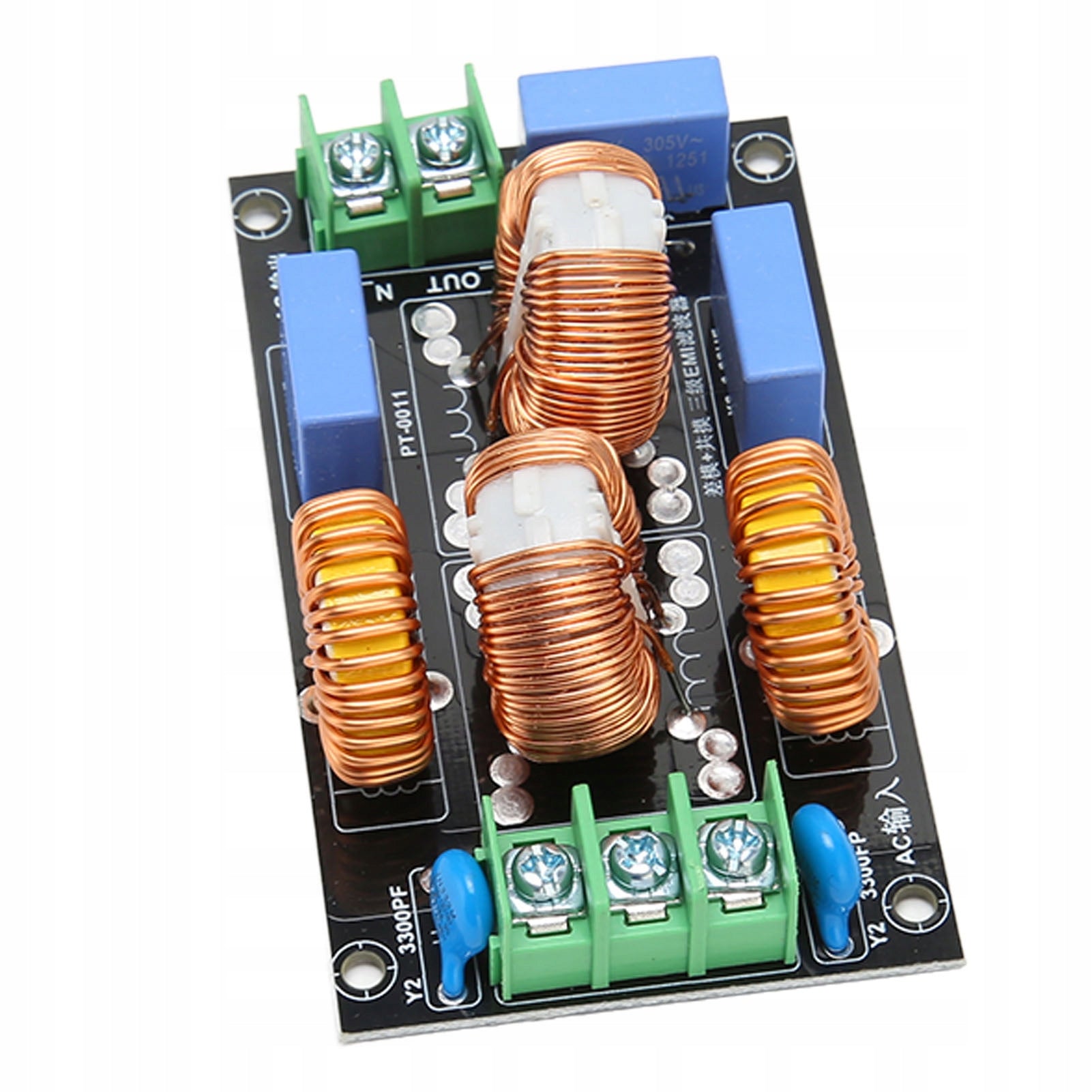

Maitinimo filtras 3 pakopų EMI EMC T2 garso stiprintuvui

Trumpai apie prekę

Prekė: Maitinimo filtras 3 pakopų EMI EMC T2 garso stiprintuvui. Kategorija: Maitinimo šaltiniai ir įkrovikliai.

• Gamintojas: no brand
• Modelis: AG250807019073

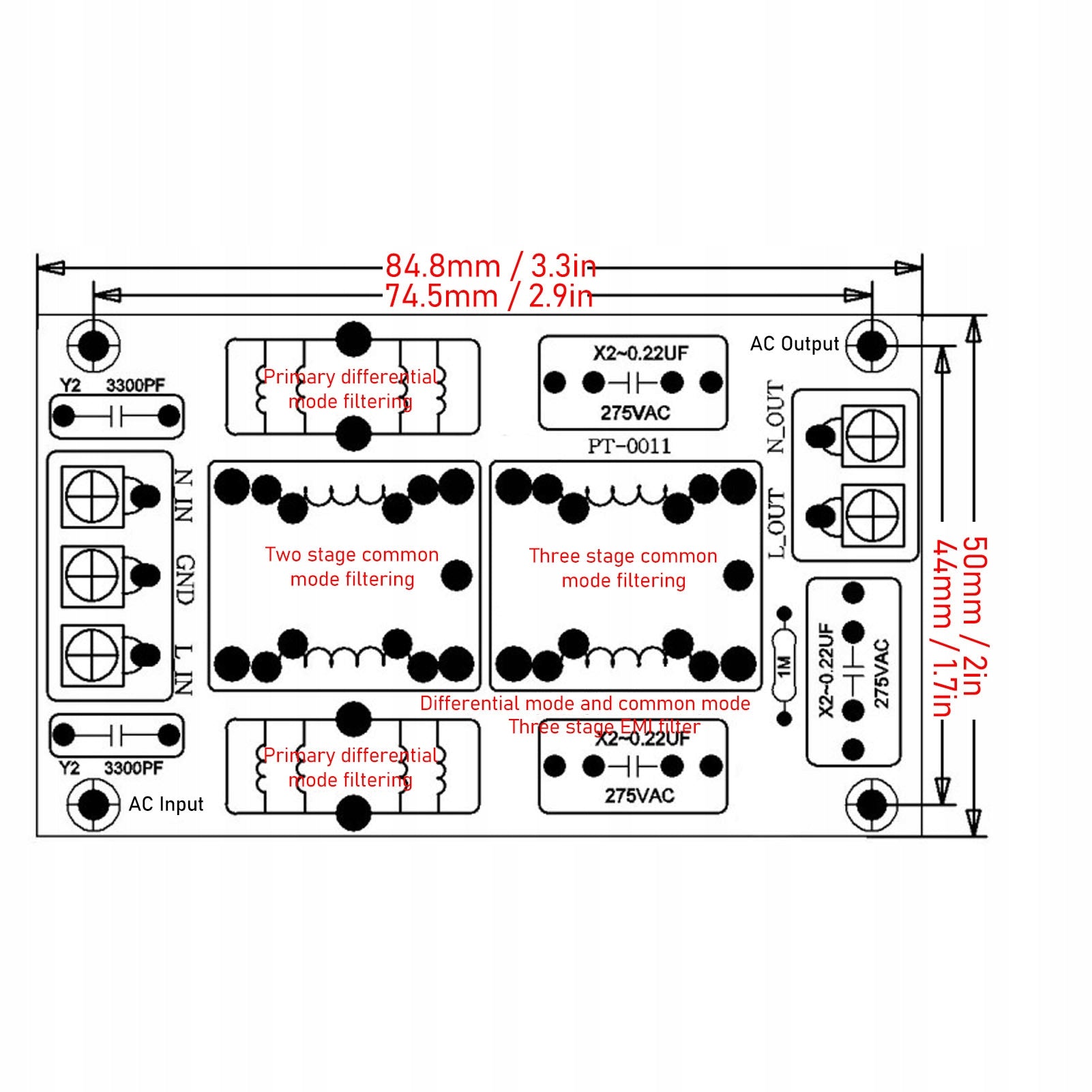

Function:1. Three-stage composite: Three-stage composite (one-way differential mode and two-stage common mode) EMI filter circuit. Single-stage filtering in common mode, by capacitor x2 and common mode inductor, in combination with common mode filtering.

2. Two-stage filtering: Asks EMI EMC power supply filtering uses two-stage filtering, better filtering noise. Significantly improve the sound quality of the wzNaNamacniacz, improve the resolution and make it quiet.

3. Fast Transitional Pulse Group Supression: Asks filtering of the EMI EMC power supply can stump the problem of fast transient pulse interference with the repetition rate of several kilohertz in some places of users.

4. Differential mode filter for one stage: single differential mode filtering, two differential mode inductors, alternating current power differential mode filtering for medium throttling and high frequency interruptions.

5. Eliminate Noise: The filter python with decoder or booster can be used to filter the DC component of the power supply, eliminate and thump the transformer noise, high frequency in the power supply, clean power supply.

Specification:Position type: asks power supply filtering

Matter: PCB

Input voltage: single-phase AC 100-250 V

Output voltage: single-phase AC 100-250 V

Rated Current: 4a

Input port: 3 wires 7.62 Socket

Output port: 2 wires 7.62 Socket

How to use:Install and use

List of packages

:1 x Power Supply Filtering Question
