Magnetinis trikojis laikrodžio jutikliui KD11290 KRAFT&DELE

Trumpai apie prekę

Prekė: Magnetinis trikojis laikrodžio jutikliui KD11290 KRAFT&DELE. Kategorija: Sukimo ir posvyrio jutikliai.

• Gamintojas: Kraft&Dele
• Modelis: KD11290

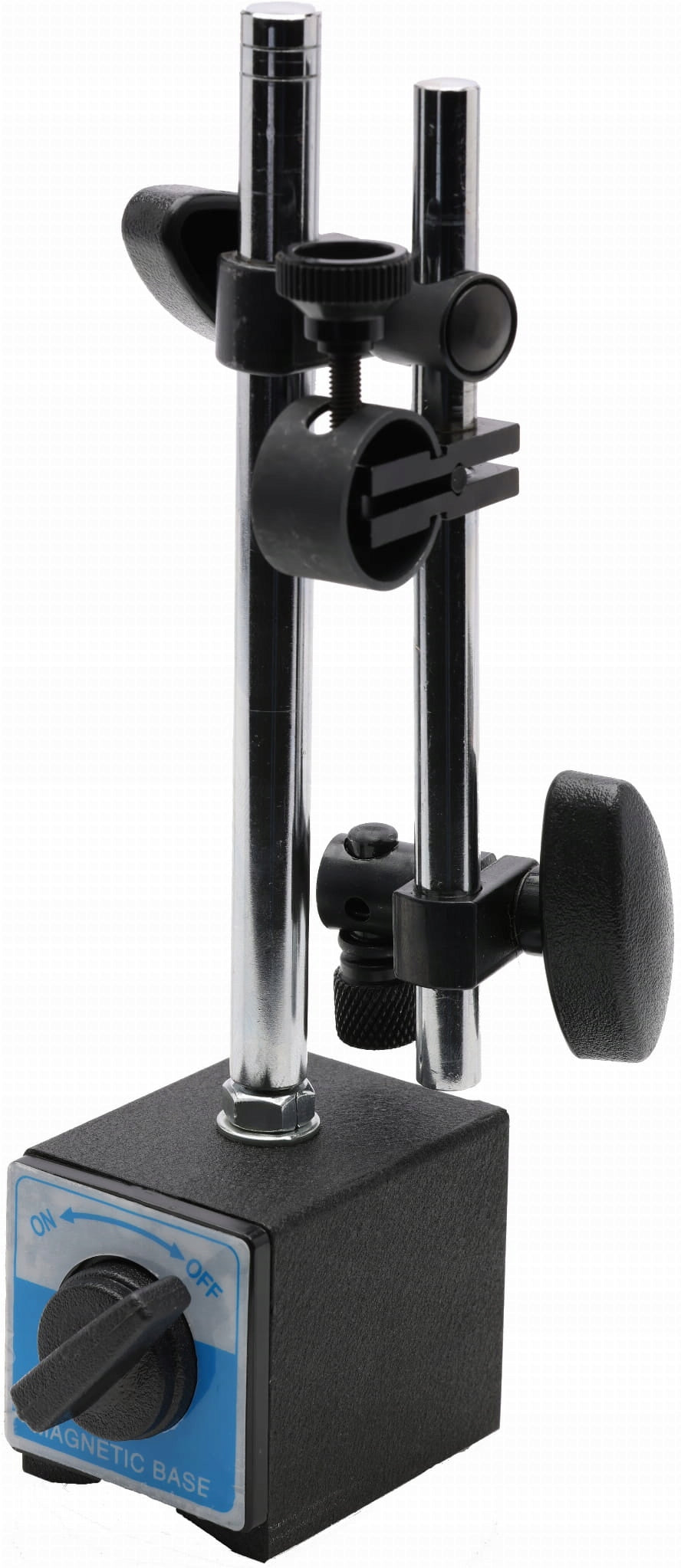

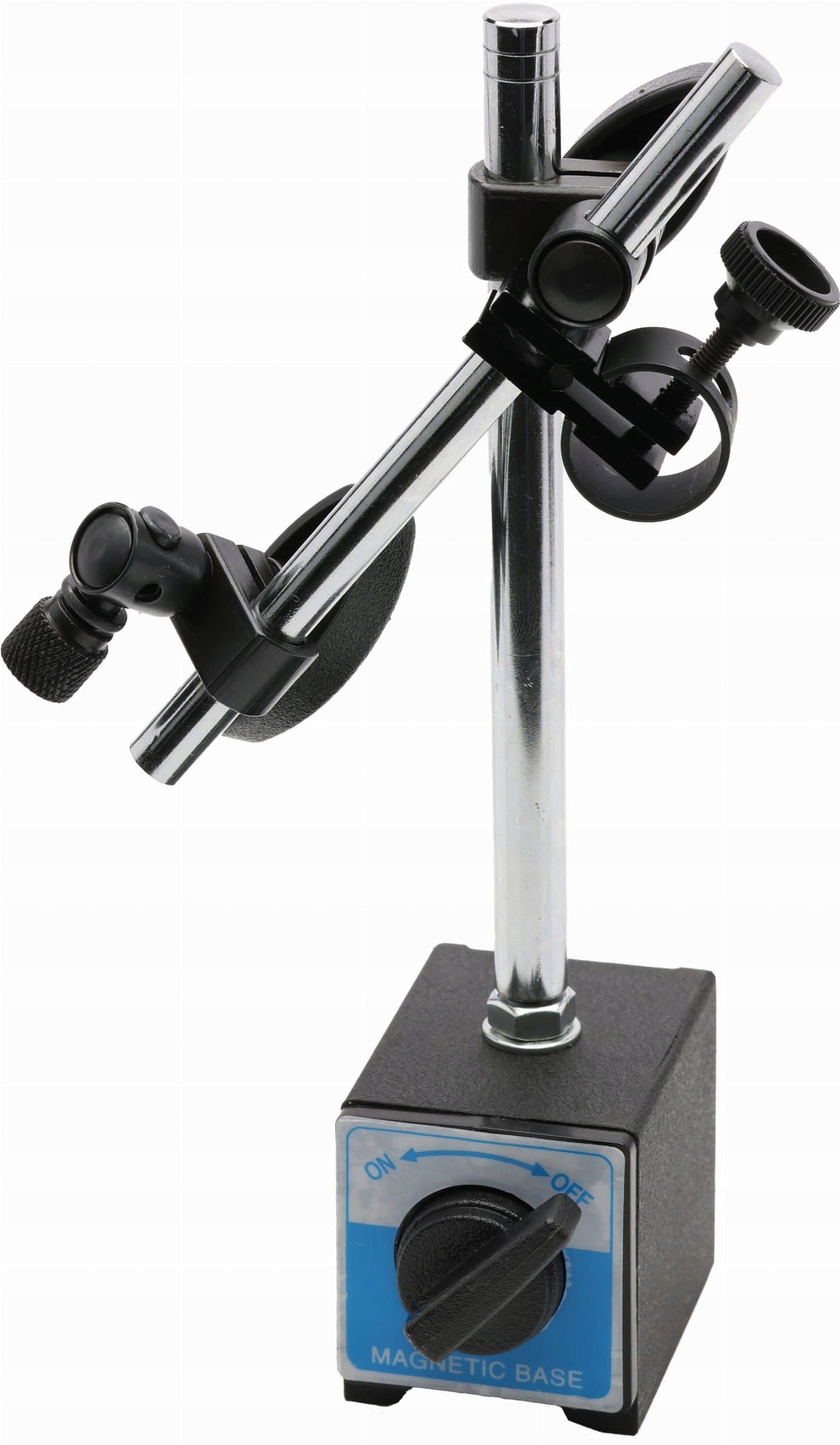

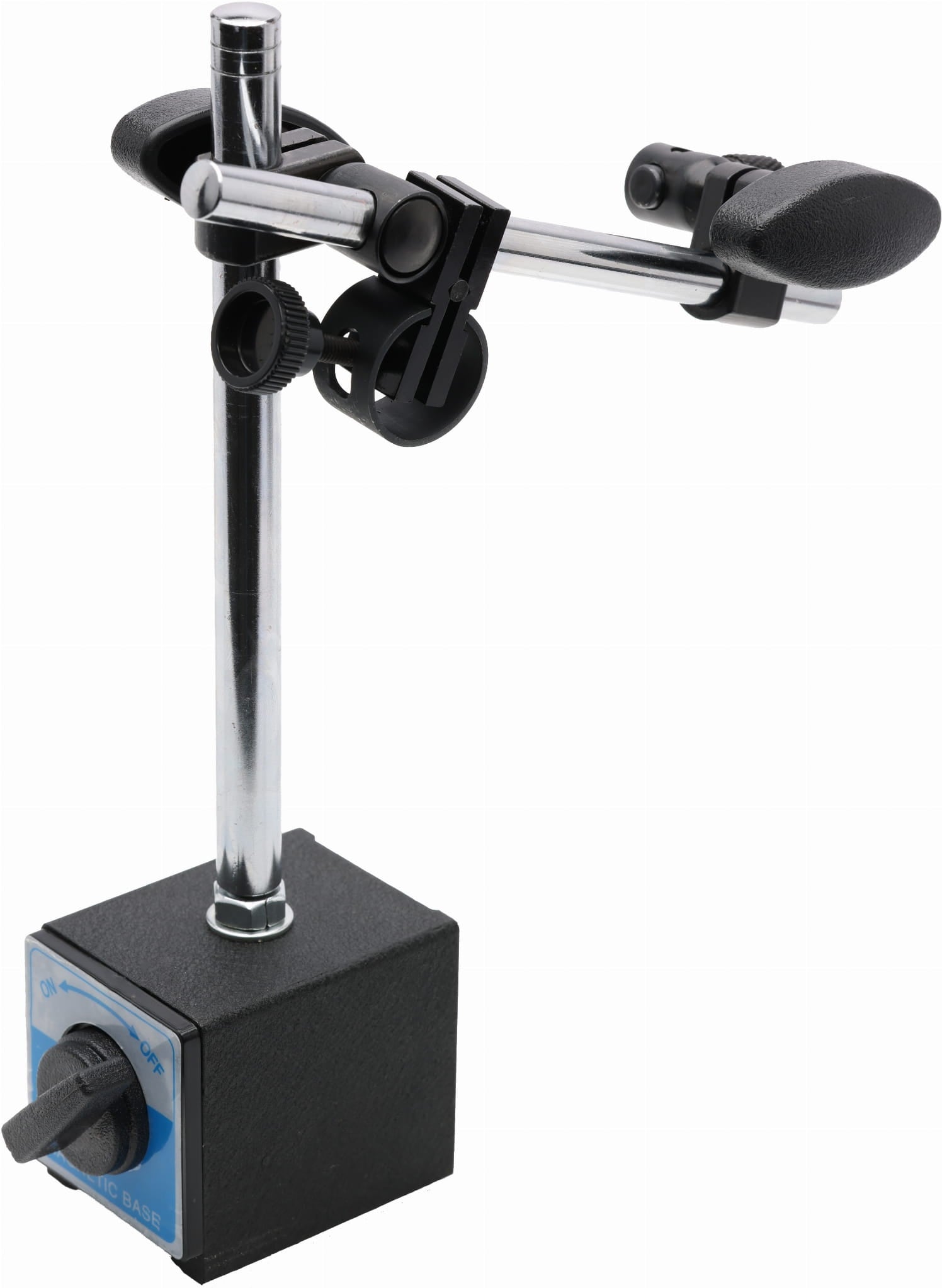

The KD11290 magnetic tripod from KRAFT&DELE is a measuring instrument used for stable mounting of the clock sensor on metal surfaces. The design based on a neodymium magnet with a prismatic groove and a multi-articulated arm allows precise positioning of the sensor in any plane during dimensional inspection of mechanical components.

Model KD11290 Neodymium Magnet Type Internal Thread M8 Weight 1,5 kg

Characteristics of the KD11290 tripod

Neodymium magnet with release knob

Neodymium magnets are characterized by a much greater attraction force in relation to their mass than traditional ferrite magnets. The magnet release knob allows you to quickly reposition the tripod without having to forcefully detach it from the ground, which reduces the risk of shifting the measured element.

Prismatic groove in the base

The prismatic groove (V-shaped) allows the base to be securely supported on cylindrical surfaces – shafts, pipes or flanges. Without this element, mounting the tripod on rounded surfaces would be unstable and could lead to reading errors.

Multi-articulated arm with clamps

The joint system with individual clamps allows you to position the arm tip at any point in the space within reach of the tripod. After tightening the clamps, the structure retains rigidity, eliminating vibrations and creep that would falsify the measurement result.

Internal thread M8

M8 thread is a standard used in the vast majority of clock sensors available on the market. Before buying, it is worth verifying the specification of your sensor – manufacturers are less likely to use M6 or M10 threads, but these differences exclude direct installation without an adapter.

Technical specification

Model KD11290 Brand KRAFT&DELE Magnet Type Neodymium Sensor Mounting Thread Internal, M8 Base Dimensions 60 × 50 × 55 mm Weight 1,5 kg

Application

The KD11290 magnetic tripod is used wherever precise, stable mounting of the clock sensor on a metal substrate is required:

• Control of axial and radial impact of brake discs
• Measurement of drive shaft and crankshaft beating
• Verification of pulley and clutch geometry
• Checking the flatness of motor heads and blocks after milling
• Wheel hub and bearing control during chassis diagnostics
• Setting tools and details on machine tools
• Control measurements in series production processes

Compatibility with clock sensor

The tripod is equipped with an internal thread M8. Before installation, check whether the mounting pin of your clock sensor has an external thread M8 or whether the sensor is equipped with a handle with an 8 mm hole. Most clock sensors available in the metric standard are compatible with this size, but it is worth verifying the specifications of a specific model.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kraft&Dele
Parametry	Product weight with unit packaging	1.5 kg
Parametry	Manufacturer code	KD11290
Parametry	EAN (GTIN)	5903957010540
Parametry	Measurement range	0.01–10 mm
Parametry	Measurement accuracy	0.01 +/- mm
Parametry	Shank diameter	8 mm
Parametry	Dial diameter	58 mm
