Lygio matuoklis Nivel System NL320R su trikojų SJJ1 ir 2,4 m rulete LS-24

Trumpai apie prekę

Prekė: Lygio matuoklis Nivel System NL320R su trikojų SJJ1 ir 2,4 m rulete LS-24. Kategorija: Optiniai nivelyrai.

• Gamintojas: Nivel System
• Modelis: NL320R + łata + SJJ1 +RD300

Professional laser leveler Nivel System NL320R – precise measurements and full control of drops!

Nivel System NL320R is an advanced rotary laser that will meet the expectations of the most demanding users in the road, engineering and surveying industries. This model allows you to determine drops in two axes (X and Y) – which guarantees maximum precision when making surfaces, foundations or off-road structures.

• Drops in two axes – full control of inclinations in both directions
• Long range – up to 500 m (diameter) with digital sensor
• Automatic leveling – quick preparation for work
• IP65 resistance – the highest protection against dust and moisture
• AKU CL power supply – up to 40 hours of operation on a single USB-C charge

This device was created for specialists who can not afford to compromise on the quality of measurements.

• Drops in two axes – slope control in X and Y.
• Accuracy ±1 mm/10 m – professional results.
• Working range up to 500 m – work in large areas.
• Digital laser sensor – reading in millimeters.
• Automatic leveling – quick preparation.
• IP54 resistant housing – maximum durability.
• AKU CL battery – compatible with other Nivel System devices.
• Up to 40 hours of use on a single USB-C charge.

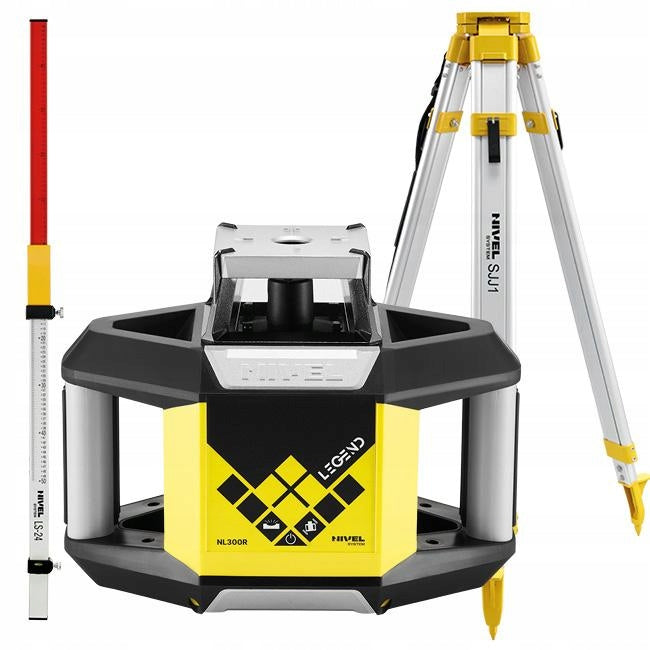

Complete set ready to work:

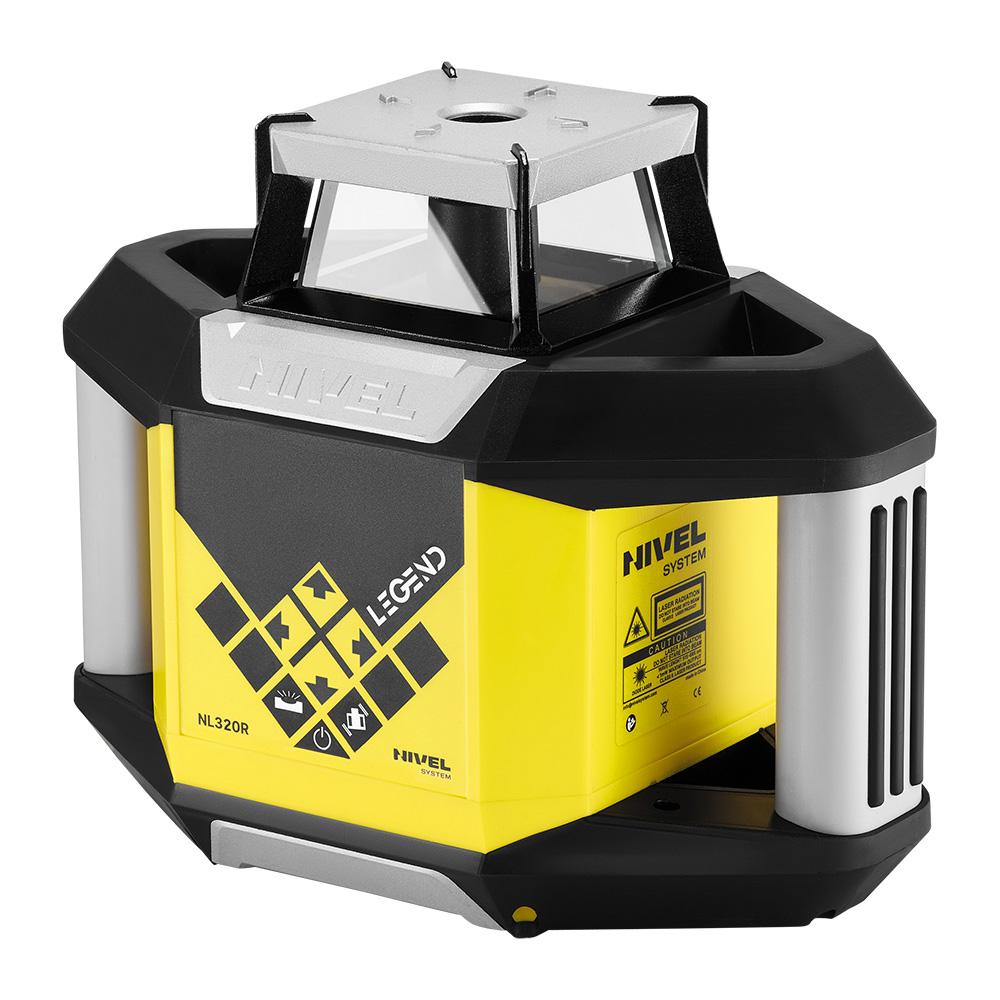

• Rotary laser Nivel System NL320R

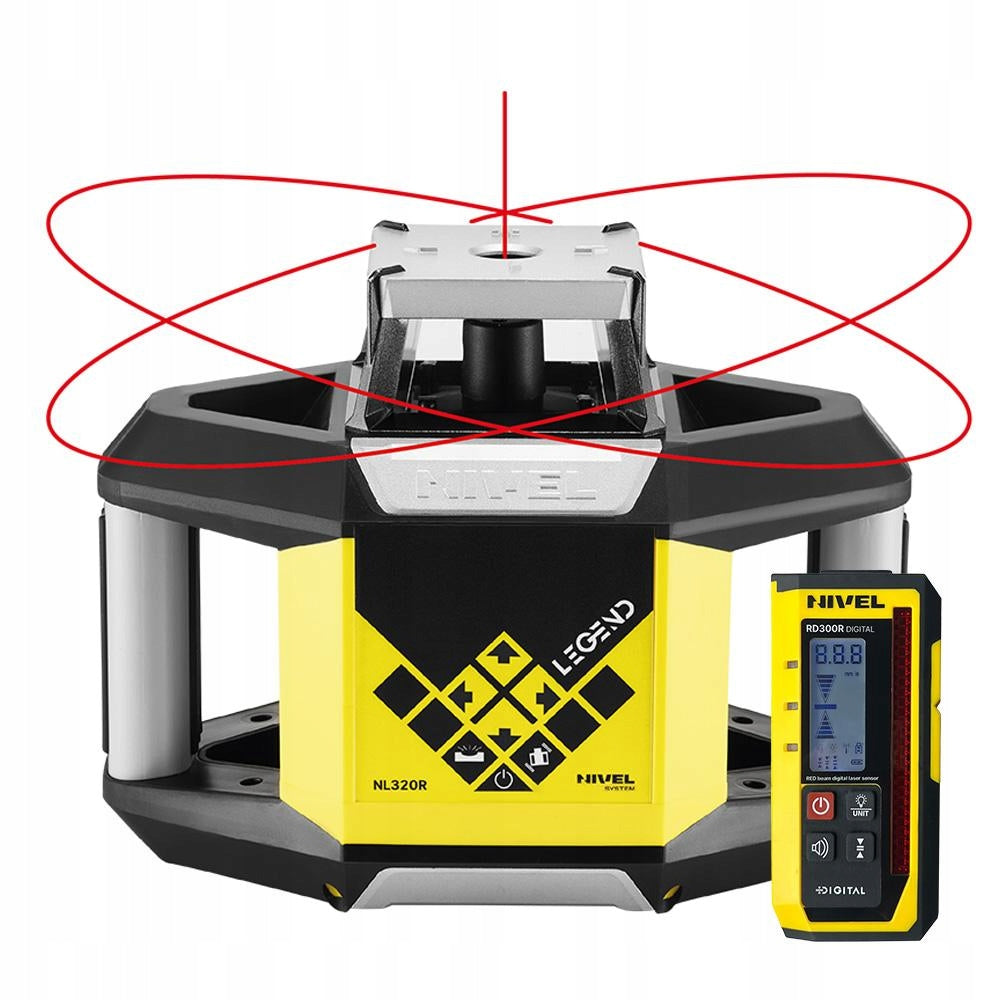

• Digital laser sensor RD300 Digital with handle
• Li-ion battery AKU CL 8000 mAh
• USB-C Charger – USB-C
• Aluminum Tripod SJJ1
• Laser patch LS-24 2,4 m
• Transport case
• User manual in Polish

Aluminum tripod Nivel System SJJ1 is designed for construction lasers, theodolites and optical levelers. With a 5/8" diameter heart screw, the tripod is compatible with all measuring devices offered by various manufacturers.

In addition to solid workmanship, Nivel System SJJ1 is characterized by high resistance to weather conditions such as rain, moisture or corrosion. Eccentric clamps allow quick assembly and disassembly of the tripod, and also act as a lock against self-assembly of equipment. The SJJ1 tripod is equipped with a flat head, which makes it easy to level quickly.

The instrument is suitable for carrying out work outside the building, and the legs finished with tips allow its stable installation in any substrate.

Most important features:

• made of aluminium
• resistant to weather conditions
• Eccentric clamps
• leg blockage
• grottoes on the legs
• flat head

Technical data:

• Minimum height: 0,97 m
• Maximum height: 1.60 m
• Weight: 3 kg
• Heart Screw: 5/8"

Pattern for laser levelers 2.4m

Very strong telescopic patch with a length of 2.4m. Meeting the accuracy and quality requirements. It has an orange movable element that allows you to adjust the height of the detector to operate the laser leveler.

Universal patch for laser levelers

Technical data:

• Maximum measuring height - 2,40m
• Transport height - 1,31m
• Width - approx. 3cm
• Patch weight - about 0,81kg
• Material - Aluminium
• Number of sections - 2
• BILATERAL division (unit of measurement) - millimeter -50/+50 and centimeter
• Boxed Libella
• Color scale - red (too high), silver color - (too low)
• Slider for laser sensor holder
• Plastic foot housing and upper patch element (additional patch protection against mechanical damage)

  Cover included, libella

• Measurement accuracy: ±1 mm / 10 m
• Working range (diameter): up to 500 m (with detector)
• Laser type: red, class II, 635 nm
• Self-leveling range: ±5°
• Determination of falls: YES – in two axes (X and Y)
• Head rotation speed: up to 600 rpm. /min
• Laser sensor: digital millimeter reading
• Power supply: AKU CL 8000 mAh lithium-ion battery
• Charging: USB-C – USB-C
• Working time: up to 40 hours
• Resistance: IP65 – dust and water resistance
• Working temperature: -20°C to +50°C
• Weight: approx. 2,6 kg (with battery)

TECHNICAL DATA - RD300R DIGITAL

• detection range: 105 mm
• numerical indication (range): 90 mm
• Operating modes (accuracy): ±1 mm / ±5 mm / ±10 mm
• degree of protection: IP54
• automatic shutdown: after 10 min no response/beam reception
• Power supply: 4 × AAA
• operating temperature range: –20°C to +50°C
• dimensions: 155 × 75 × 30 mm
• Weight: 0,3 kg (0,49 kg with handle)

Road construction and engineering: control and implementation of surface drops, substructures, slopes.

Geodesy and fieldwork: precise determination of levels and inclinations.

Buildings: foundations, floors, steel structures.

Installation and assembly work in the field.
