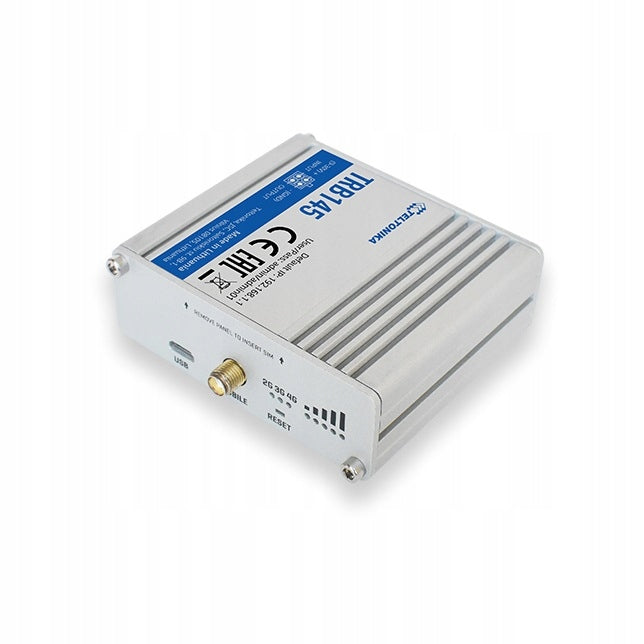

LTE 4G į RS485 keitiklis Teltonika TRB145 su VPN ir SMS funkcija

Trumpai apie prekę

Prekė: LTE 4G į RS485 keitiklis Teltonika TRB145 su VPN ir SMS funkcija. Kategorija: Mobilieji maršrutizatoriai.

• Gamintojas: Teltonika
• Modelis: TRB145
• Plotis: 70 mm
• Aukštis: 7 mm

IP converter for remote management of RS485 devices via LTE/4G network.

Very stable and solid device!

Industrial network card (gateway), LTE CAT 1 converter

Teltonika TRB145 is equipped with RS485 interface, digital inputs/outputs and micro USB port. TRB145 network cards feature a compact design (they are small) and are ideal wherever remote control via RS485 interface is required. The TRB145 gateway is designed for industrial applications, which is served by a wide range of software functions, e.g. SMS control, firewall, Open VPN, IPsec, RMS and FOTA support. The operating system is based on the Linux operating system.

Key features of RS485

• Industrial serial communication
• Wide range of supply voltages
• LTE cat. 1 to 10 Mbps
• RMS Compliance - Remote Management System Teltonika
• Compact dimensions, easy integration
• OpenLinux - operating system with a high degree of software personalization

Technical Specification

Hardware features

• Mobile connection: LTE (CAT 1) 3G/2G
• Slot SIM: Mini SIM (2FF)
• Antenna connector: 1 x SMA for LTE
• RS485: Full Duplex (4 cables) and Half Duplex (2 cables), data rate 300-115200
• Input/output: 2 x digital input/output, configurable
• CPU: ARM Cortex-A7 1.2 GHz CPU
• RAM: 128 MB (50 MB per user)
• Flash: 512 MB (70 MB per user)
• Input voltage range: 9 - 30 V DC
• Power connector: 4-pin industrial DC power socket
• Optional power source: Possibility to power the device via 6-pin RS485 connector spare terminals
• Configuration interface: Virtual NIC via micro USB
• LED signaling: Power supply, signal, network and data status

Software

• Operating system: Linux OS with Yocto SDK (offering software with a high degree of personalization)
• Network: NAT, static/ dynamic routing, Firewall (port forwarding, traffic policies, user-defined policies), OpenVPN, DDNS (>25 supported service providers)
• Services related to RS485: Modbus, Serial over IP, NTRIP
• Remote management: Support RMS, FOTA, SSH, CLI, SMS tools (status/configuration)
• Watchdog: Ping reboot, periodic reboot
• Additional features: Internet connectivity via virtual USB network interface

Mechanical and environmental features

• Working temperature: -40°C to 75°C
• Storage temperature: -45°C to 80°C
• Working humidity: 10% to 90%, non-condensing
• Dimensions: 60 mm x 70 mm x 18 mm
• Weight: 30 g

Pack contains

• TRB145
• Euro Power Supply
• 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
• Micro-USB cable (0.8 m)
• 1 x Allen Wrench
• RS485 connector
• Quick Start Guide (QSG) Quick Start Guide
• Box
