Liečiamas 7" LCD IPS ekranas, talpinis

Trumpai apie prekę

Prekė: Liečiamas 7" LCD IPS ekranas, talpinis. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: WSR-04688

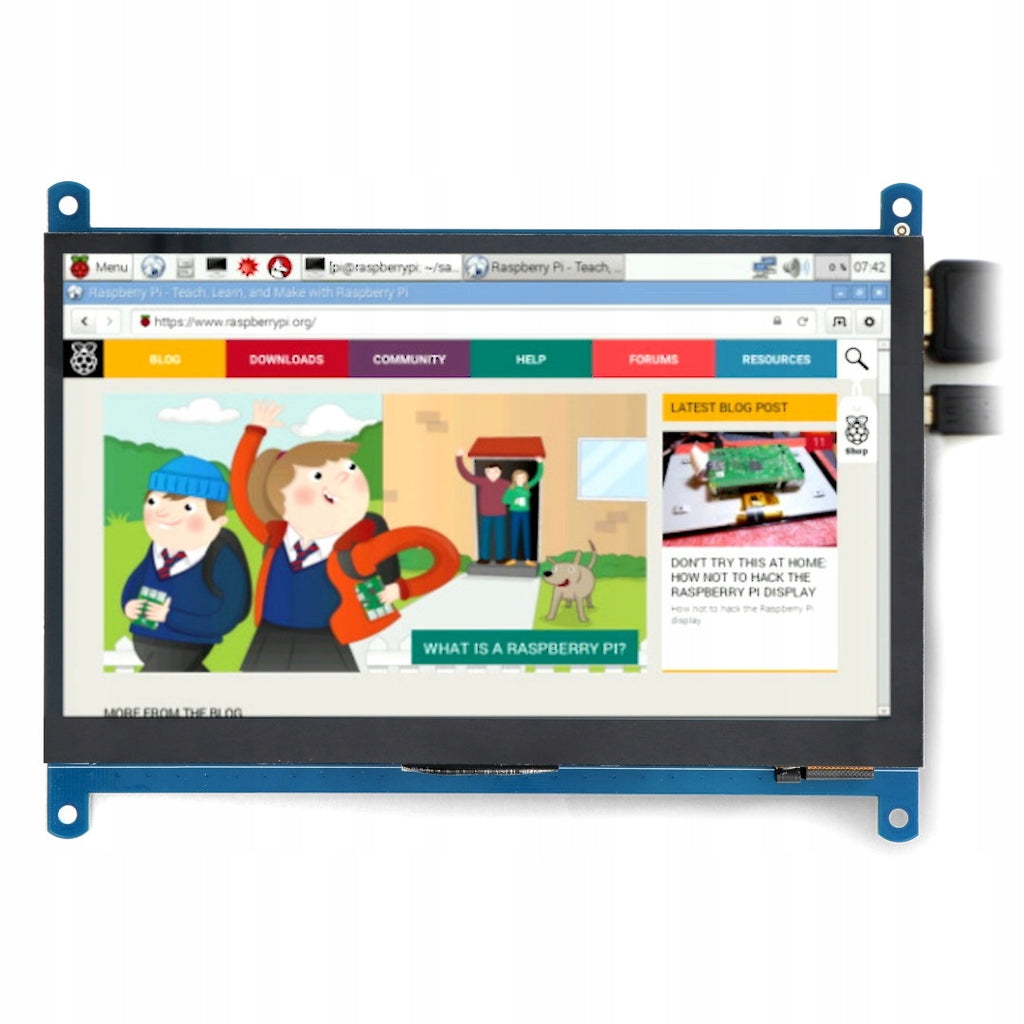

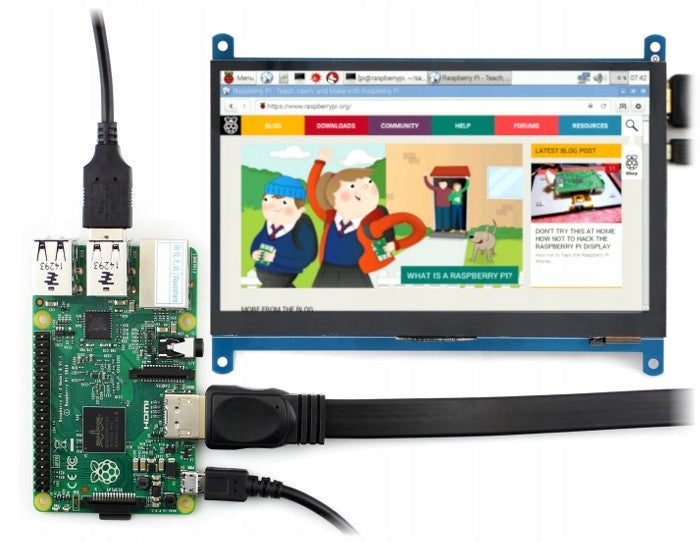

Touch screen Waveshare, capacitive 7" for Raspberry Pi with a resolution of 1024 x 600 px. Works with Raspberry Pi version 4B, 3B+, 3B+ 2B, 1B+, 1B, 1A and Zero W via HDMI and USB cable.

Index: WSR-04688

Screen specification

• Type: IPS touch screen, capacitive
• Diagonal: 7 "
• Resolution: 1024 x 600 px
• Standard HID protocol integrating with the system
• Works with:
• Rasbperry Pi version 4B, 3B+, 3B 2B and B+ Zero (works directly with the system from the manufacturer)
• Beagle Bone Black
• Banana Pi / Banana Pro
• The display also works with a PC running Windows 7/8/8.1/10 without the need to install drivers
• It also works with all other HDMI devices (touch function is not available then)
• 4 mounting holes (screws are included)
• Screen dimensions: 165 x 107 mm

The set includes

• 7" touch screen, capacitive
• HDMI cable
• HDMI Adapter - microHDMI
• Mounting Screws
• USB cable - microUSB for touch interface
• Protective film for the screen
• Screen cloth

The photos shown in the auction gallery come from various Exhibitors. Only the pictures contained in the Description show the product we offer.

Specifications
