LCD jutiklinis ekranas 5", 800x480 px, HDMI, GPIO

Trumpai apie prekę

Prekė: LCD jutiklinis ekranas 5", 800x480 px, HDMI, GPIO. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 10563

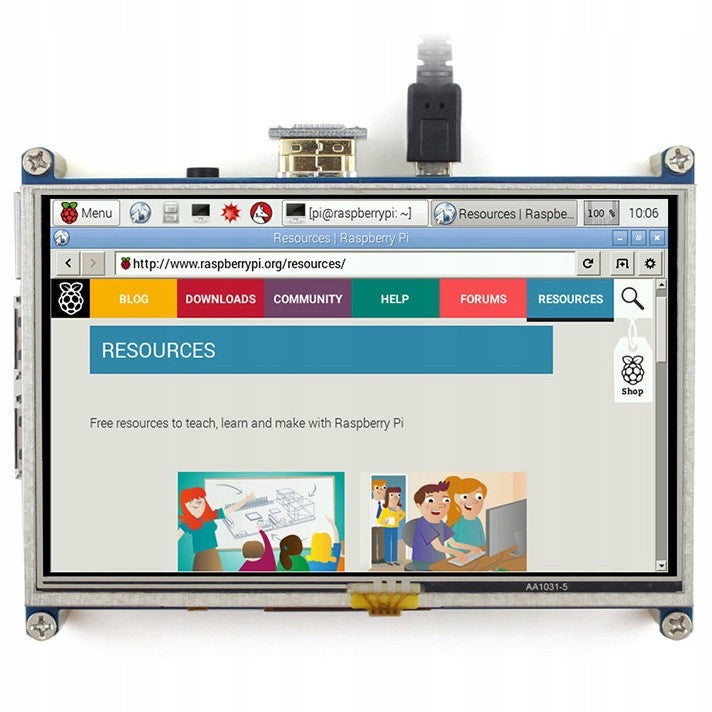

Touch screen Waveshare, resistive 5" for Raspberry Pi with a resolution of 800 x 480 px. Works with Raspberry Pi versions 4, 3, 2, B+, Zero and Zero W via HDMI and GPIO pins.

Index: WSR-04467

Connection with Raspberry Pi

To start the screen, apply the device to the GPIO Raspberry Pi pins and mount the HDMI connector.

Display software

The manufacturer has prepared an operating system with installed drivers. The system should be unpacked through an appropriate program, e.g. WinZip and upload to the card using Win32 Disk Imager.

A detailed description of connecting and installing the drivers without changing the Raspberry Pi system and the image of the finished system can be found on the manufacturer's website.

GPIO interface of touch display

Pin GPIO Symbol Description

1, 17 3,3 V Power supply 3,3 V.

2, 4 5 V Power supply 5 V.

3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC Not connected.

6, 9, 14, 20, 25 GND Weight.

19 TP_SPI SPI interface data input for touch panel.

21 TP_SO SPI interface data output for touch panel.

22 TP_IRQ Touch panel interruption, touch detection sets low state.

23 TP_SCK SPI clock signal for touch panel.

26 TP_CS Chip select for touch panel.

Waveshare touch screen specification

• Type: touch screen, resistive
• Diagonal: 5"
• Resolution: 800 x 480 px
• Works with: Raspberry Pi version 4, 3, 2, B+, Zero and Zero W (works directly with the system from the manufacturer)
• The screen uses 26 GPIO pins
• It also works with all HDMI devices (touch function is not available then)
• 4 mounting holes (screws are included)
• Screen dimensions: 121 x 76 mm

The set includes

• 5" touch screen, resistive
• HDMI connector
• Touch stylus
• Mounting Screws

The photo shown in the auction gallery comes from various exhibitors. Only the information and photos visible directly in the listing description show the product we offer.
