LCD ekranas 7" IPS, HDMI, 1024x600, tinka Raspberry Pi

Trumpai apie prekę

Prekė: LCD ekranas 7" IPS, HDMI, 1024x600, tinka Raspberry Pi. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: SKU: 13857

SKU: 13857

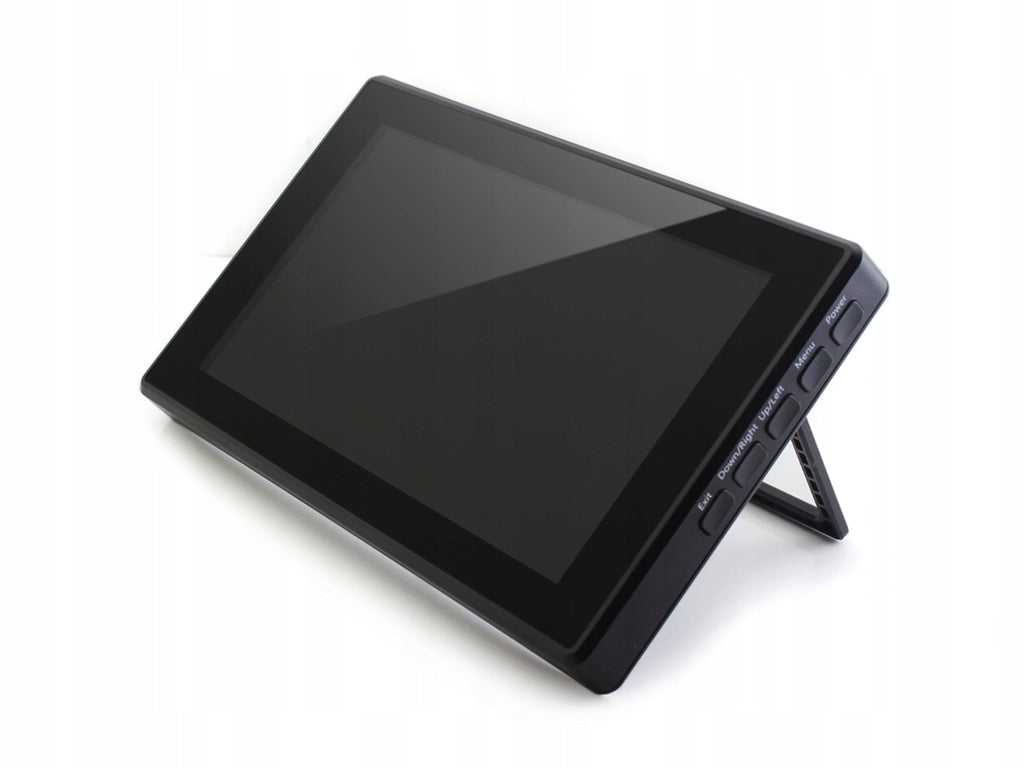

7" IPS touch screen, capacitive with a resolution of 1024 x 600 px with IPS matrix, which is characterized by, among others. Wider viewing angle, greater brightness. The product is recommended for use with all mini PCs, e.g. Raspberry Pi, the display also works with Windows PCs. The touch panel is operated via a USB port. In addition to the HDMI port, the display also has a VGA input - an adapter is required that is not included. .

• 7-inch IPS screen, hardware resolution 1024 × 600, programmatic resolution scaling up to 1920 × 1080
• Glass capacitive touch screen, 6H hardness, control via USB port
• Display parameters control: OSD menu operated by buttons on the display housing

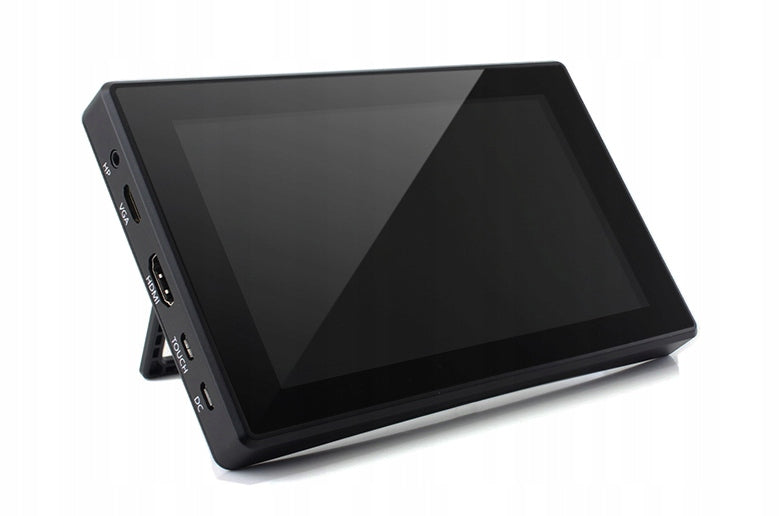

• Interface: HDMI and VGA - (for VGA required adapter which is not included)
• 3,5mm audio jack, support HDMI audio output
• Works with Raspberry Pi Raspbian, Ubuntu, WIN10 IOT supported single point touch panel
• Works with PC with Windows 10/8.1/8/7, 10 point touch panel supported
• High-quality housing, can be set at an angle of inclination of 30 ° / 50 °
• Display Power Supply: 5V/2A

Additional information

Wiki: www. waveshare . com/wiki/7inch_HDMI_LCD_(H)_(with_case)

Included:

• 7inch HDMI LCD (H) (with case)
• HDMI cable
• USB type A plug to micro B plug cable

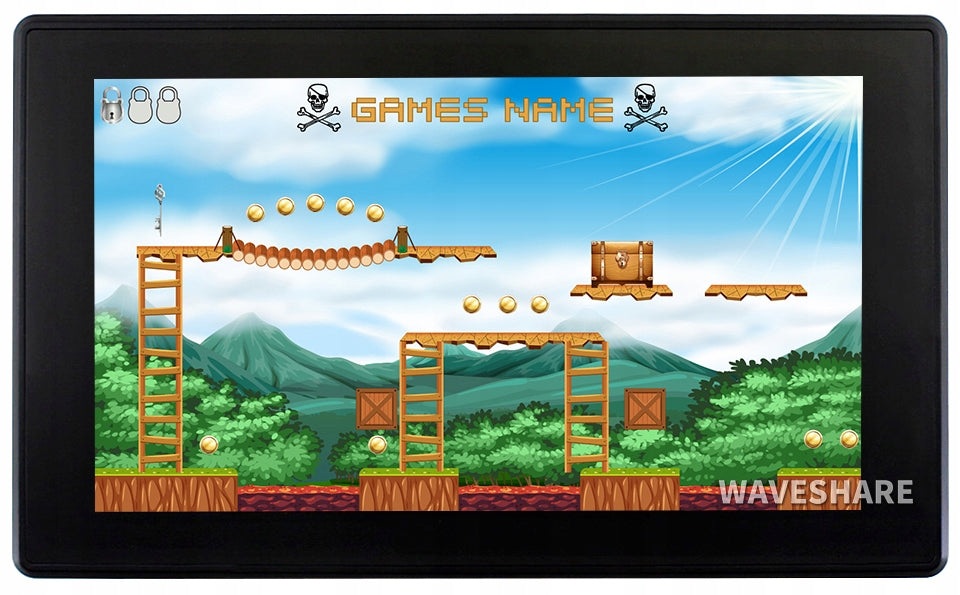

Examples of display usage

The RPI module, Jetson Nano and PC visible in the pictures are not included in the sold set.

Specifications
