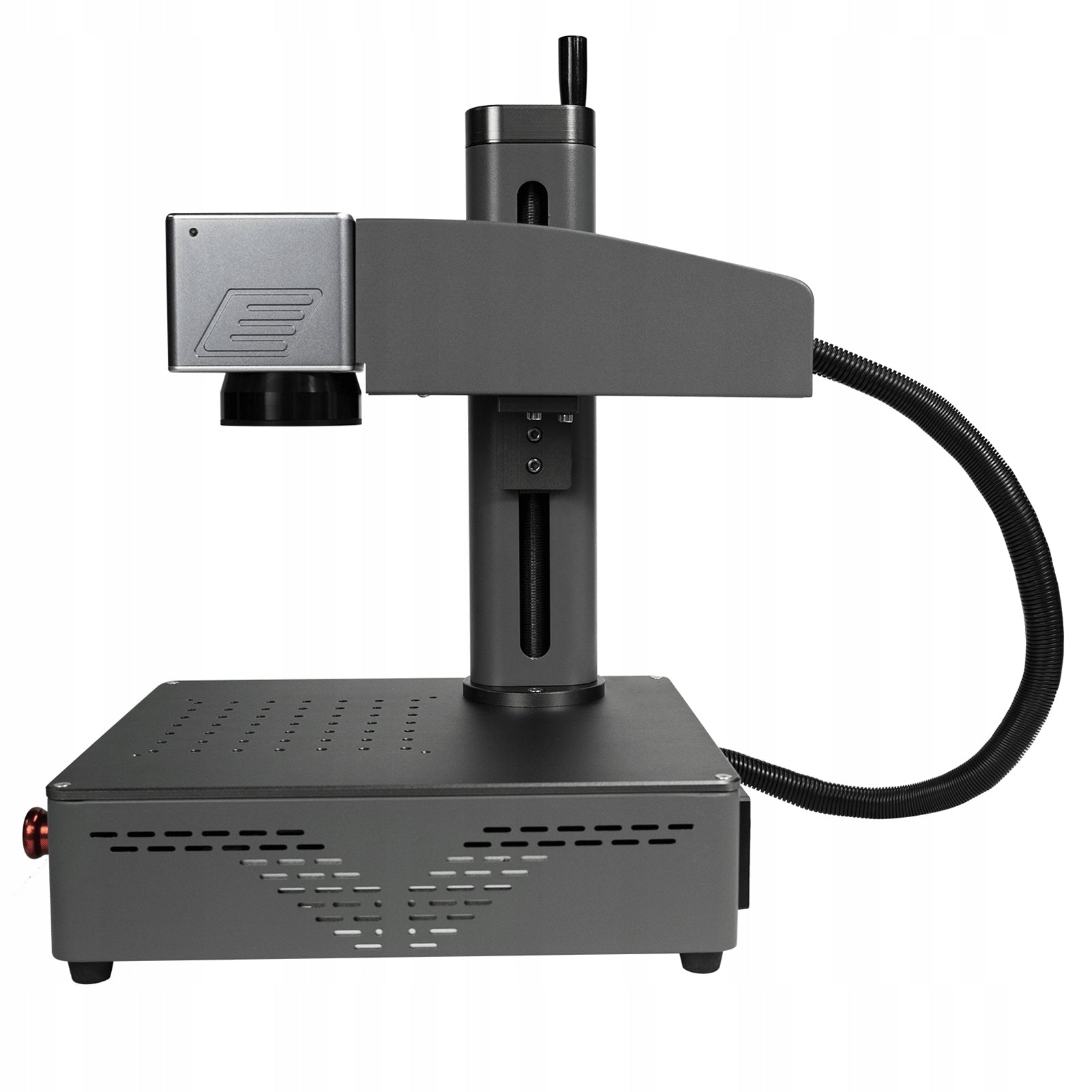

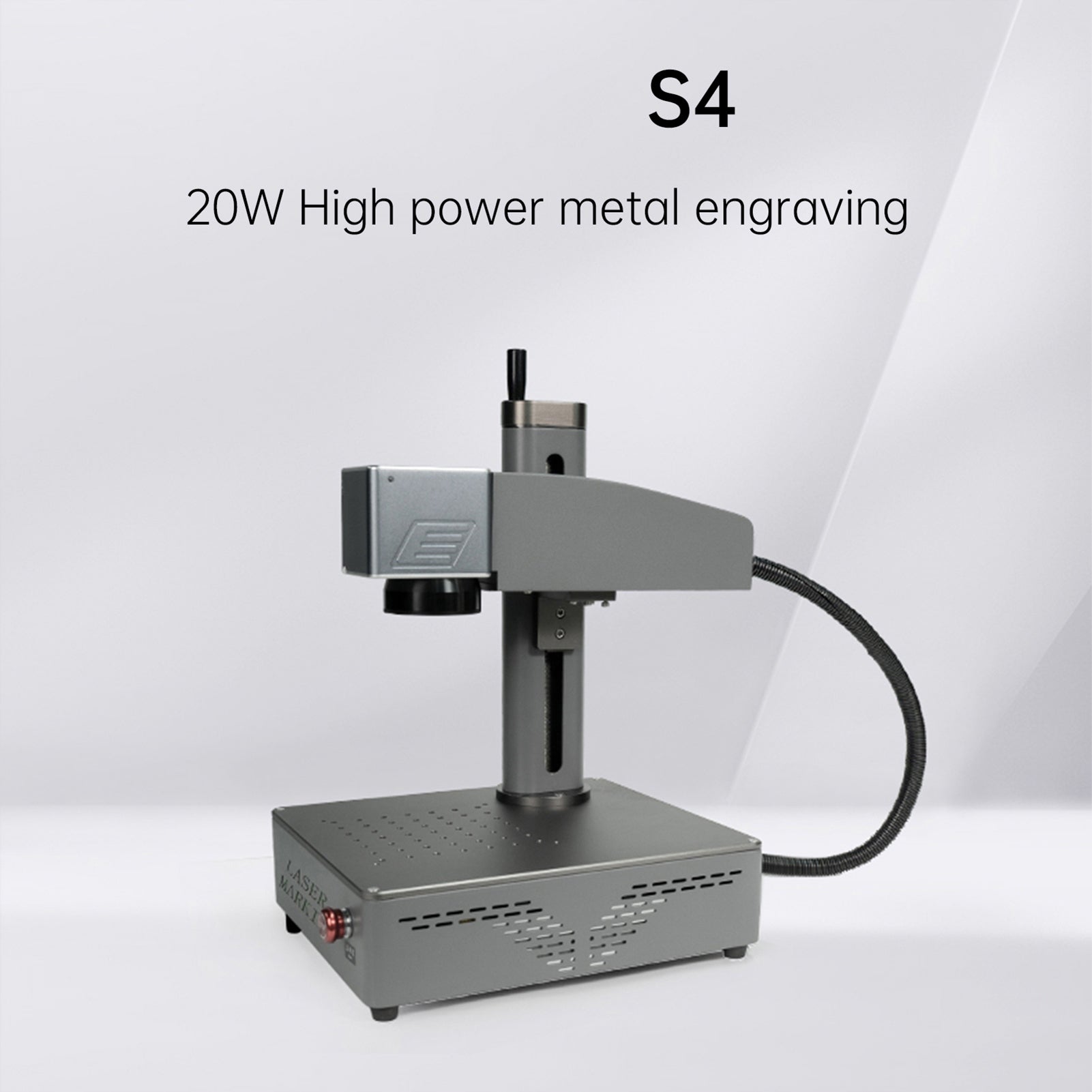

Lazerinis graviravimo aparatas 20W, 20x20 cm, 10000 mm/s

Trumpai apie prekę

Prekė: Lazerinis graviravimo aparatas 20W, 20x20 cm, 10000 mm/s. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 8425WVZO

Function:Laser class LNDustrial 20W: using solid state pulse laser, using Q adjustment technology to achieve peak power 15kW 1064nm pulse laser output, supporting all metals such as aluminum. acrylic, carbon steel, gold, painted metal, most plastic, meaning faster and finer.

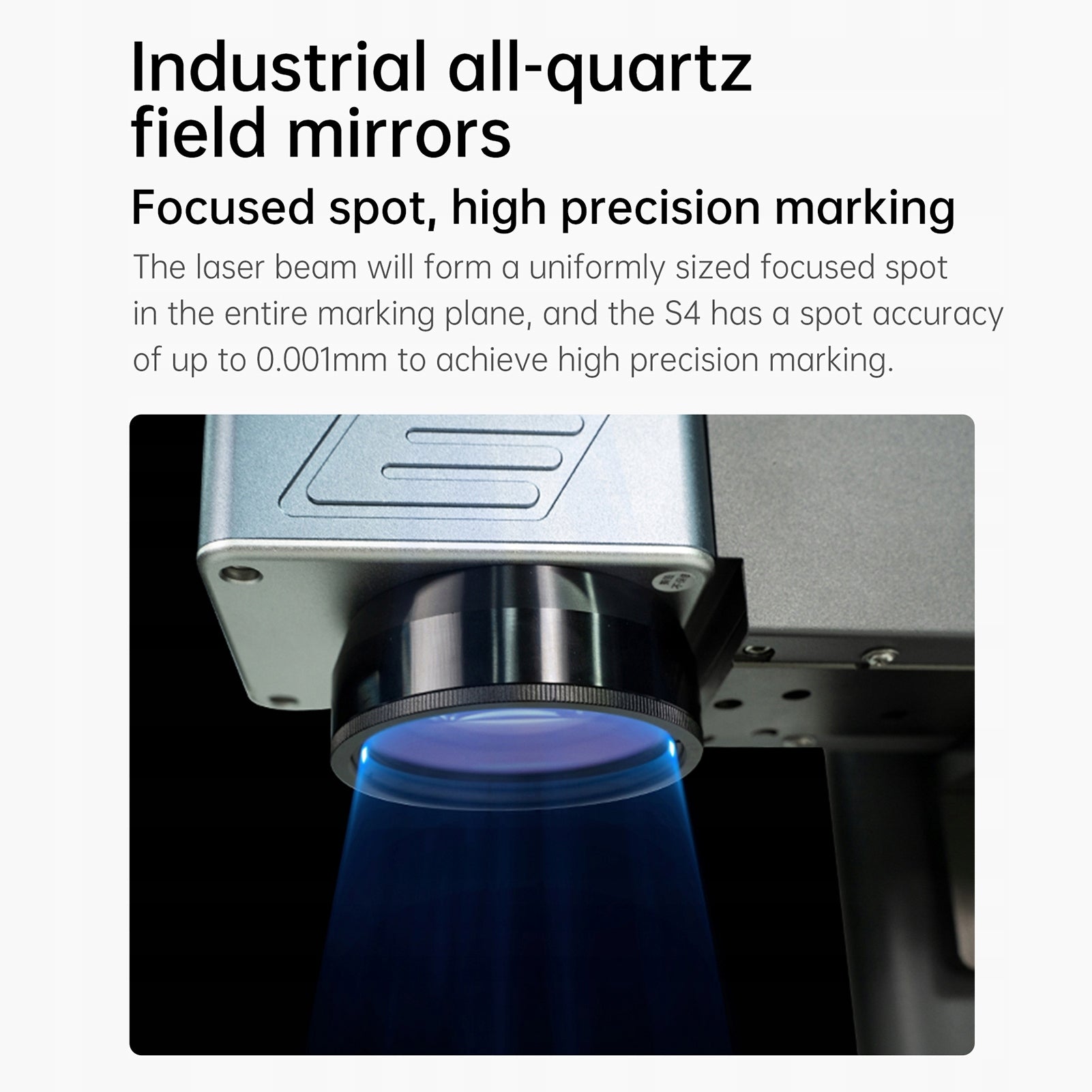

2. Excellent engraving performance: The integrated design of the oscillator, with field mirror, can be fast marking 10000mm/s, small size can also ensure the full game of pulse laser performance. And the S4 has a point accuracy of up to 0,001mm to achieve high precision marking.

3. Fast \ U0026 Accurate positioning: double red focus; Add intelligent function fixed on red light, electric focus to say goodbye to the traditional way of adjusting even.

4. Manual \U0026 Precise focus: Adopting high precision lifting screw bracket, manual adjustment axis can lift the lens according to the actual situation to achieve better marking effect.

5. Safe Protection: Design with button switch. Press it to stop the operation immediately, tap again to open it.

6. Strong compatibility: you can edit photos, vector images, barcodes, two-dimensional code engraving and serial numbers in the software. And automatic skip code function, etc., to meet different carving needs.

Specification: Specification:

Laser power: 20 W.

Ambient temperature: -10 ℃ -65 ℃

Repeat accuracy: ≤0,001 mm

Engraving depth: 0,015-0,2 mm

Engraving accuracy: ≤0,001 mm

Engraving speed: ≤10000 mm/s

Cooling: built-in fan

Laser wavelength: 1064nm

Engraving area: 11x11 cm, 15x15 cm, 20x20 cm

Line width marking: 0,001-0,05 mm

Support formats: PLT, DXT, BMP ...

Support system: for Win7/10/XP

Product Size: 28x33x42cm (L*W*H)

Product weight: 11,5 kg/25,3lb

Package List: Laser Engraving Kit 1 x
