Lauko valdoma IP kamera HiLook PTZ-N2C600M-DE, 6 Mpx, 2 vnt., PoE

Trumpai apie prekę

Prekė: Lauko valdoma IP kamera HiLook PTZ-N2C600M-DE, 6 Mpx, 2 vnt., PoE. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: PTZ-N2C600M-DE HiLook by Hikvision

6Mpx | Smart Hybrid Light | PoE | Microphone + Speaker | Autotracking Lite | IP66 Housing

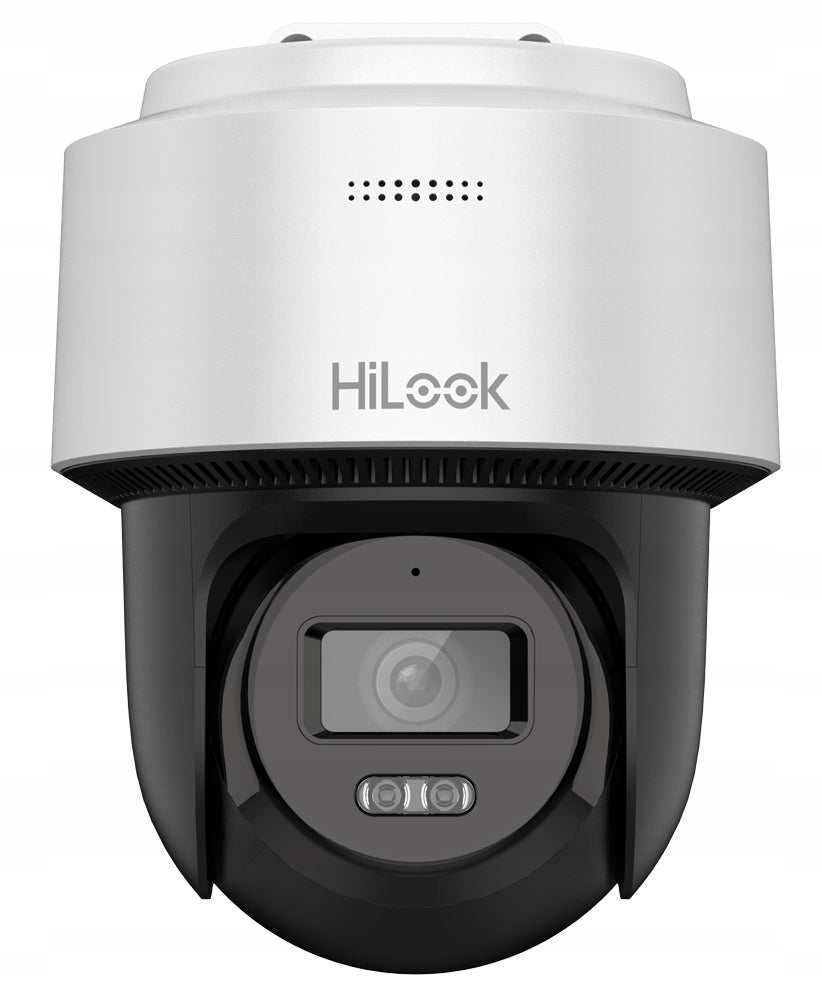

Rotating camera PTZ-N2C600M-DE brand Hilook by Hikvision is an external monitoring solution for people looking for professional solutions to protect their home or business.

The camera is equipped with an efficient 6Mpx sensor, guaranteeing excellent visibility of details. The night mode of the access camera is in three modes - infrared, color and mixed mode.

A big advantage of the camera is the algorithm for detecting AI motion detecting people's silhouettes. What’s more, the camera has an autotracking function (Autotracking Lite) of people moving within the protected area.

Technical parameters:

• Transducer: 1/2.4" PS CMOS
• Recording resolution: 3200 × 1800px (6Mpx)
• Fixed focal length lens: 2.8mm
• Sensitivity: 0.001 Lux @(F1.6，AGC ON), B/W: 0 Lux with IR
• IR illuminator: Yes, range up to 30m
• White light illuminator: Yes, range up to 30m
• Smart Hybrid Light: Yes - 3 lighting modes
• Intelligent functions: human silhouette detection, autotracking (lite)
• Video compression: H.265, H.264, MJPEG
• Built-in microphone and speaker: Yes - two-way audio
• Remote support: iVMS-4200, Hik-Connect, HiLookVision
• Housing tightness class: IP66
• Power supply: PoE 802.3af, 12V DC (max. 9W)
• Housing material: metal + plastic
• Dimensions: 163.9 × 185.8 × 131.9 mm
• Weight: 0.62 kg

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

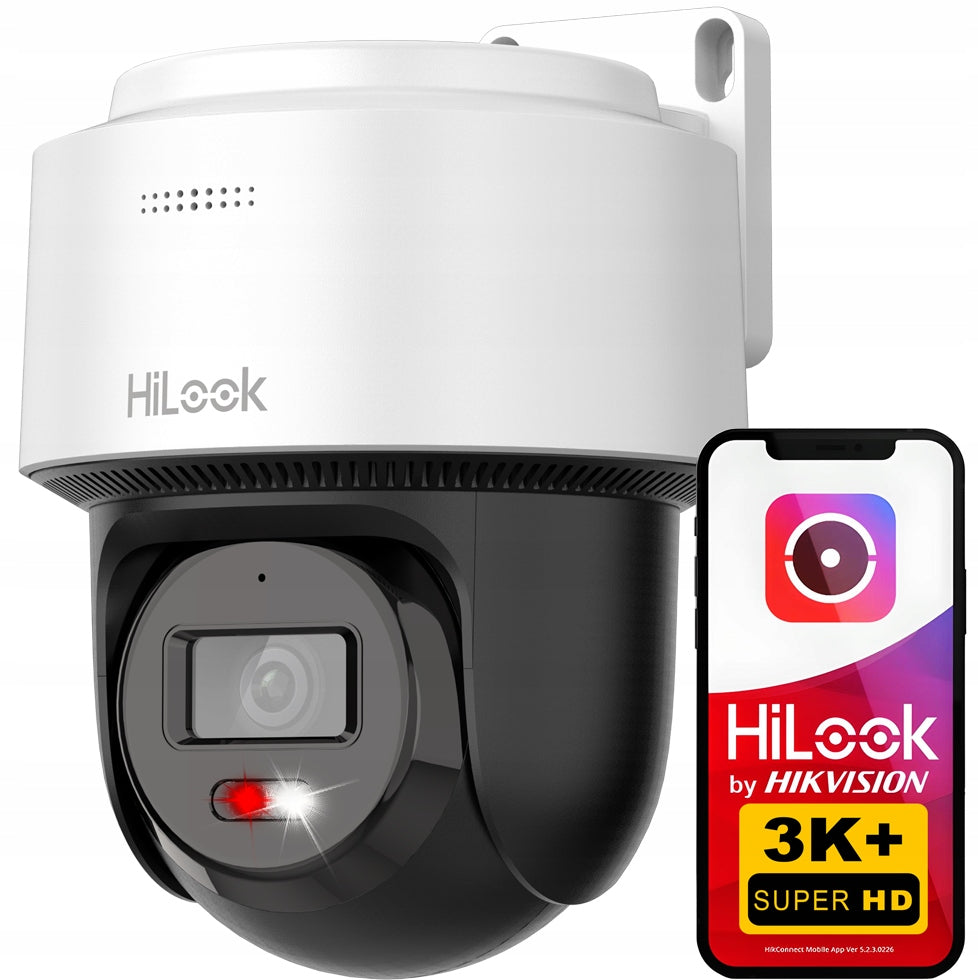

HiLook by Hikvision monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App / HikConnect for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The camera belongs to a series of devices using innovative Smart Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night in three modes:

• Infrared mode
• In color mode
• In mixed mode (the camera starts color mode when motion is detected)

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

The presented camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, thanks to the built-in human body detection function, the camera effectively reduces the number of false alarms caused by the movement of irrelevant objects (leaves, animals).

The PTZ-N2C600M-DE camera not only detects movement - it is also able to follow the head of moving people! This allows for precise observation without the need for a manual rotary head setting.

Important: camera allows you to track people moving at normal speed (without running).

The camera operates at 6Mpx resolution, allowing for much more accurate recording of details than standard FullHD models. The high resolution of the camera allows you to maintain high values of the DORI parameter even with a wide recording account.

The DORI value for the HiLook PTZ-N2C600M-DE camera is:

• Detection(D): 76m
• Observation(O): 30m
• Recognition(R): 15m
• Identification(I): 7m

Camera

• Converter: 1/2,4" CMOS Progressive Scan
• Transmission standard: IP
• Maximum resolution: 6Mpx @3200x1800
• Sensitivity: Colour: 0.001 Lux @(F1.6, AGC ON), B/W: 0 Lux with light
• Shutter speed: 1/3 s to 1/100,000 s
• Slow shutter mode: supported
• Lens: 2.8 mm
• Recording angle (horizontally): horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

IR illuminator and white light

• IR range: up to 30m
• IR wavelength: 850 nm
• White light range: up to 30m

Image compression

• Video compression: Main stream: H.265, H.264, MJPEG
• H.264: Base Profile/ Main Profile/ High Profile
• H.265: Main profile
• Video Bitrate: 32 Kbps to 8 Mbps

PTZ

• Rotation/tilt range: 0° to 345°, 0° to 80°
• Rotation speed: configurable in the range of 4°–25°/s
• Tilt speed: configurable in the range of 4°–20°/s


• Main stream - max. Frame Rate: 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Auxiliary stream - max. Frame Rate: 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
• Image functions: BLC, HLC, 3D DNR
• Wide dynamic range: DWDR
• Smart Hybrid Light: Yes
• Image settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/night mode: automatic / manual switching

Intelligent functions

• Motion detection: yes, with object classification; human silhouette detection
• Autotracking: supported - lite version; tracking people moving at normal walking speed

Network

• Compatibility: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Selected functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous preview: up to 6 channels
• Alarm trigger: Motion detection, video sabotage, unauthorized login
• Number of users/hosts: up to 32 users3 permission levels: Administrator, Operator, User
• Customer software: iVMS-4200, Hik-Connect, HiLookVision
• Supported browsers WEB: IE10+, Chrome 57.0+, Firefox 52.0+

General

• Built-in microphone: Yes
• Built-in speaker: Yes
• Built-in SD slot: Yes, microSD card up to 512G
• Power Supply: 12V DC, PoE (802.3af, Class 3)
• Power consumption: 12 VDC, 0.75A, Max: 9W, PoE: (802.3af, 36V to 57V), 0.2A to 0.3A, Max: 10.5W
• Material: metal + plastic:
• Protection class: IP66
• Temp. work / Permissible humidity: -10 °C to 40 °C< 90% (non-condensing)
• Dimensions: 163.9 × 185.8 × 131.9 mm
• Weight: 0.62kg
