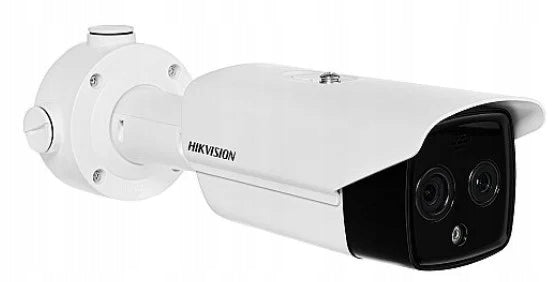

Lauko tinklinė vaizdo kamera Hikvision DS-2TD2628-10/QA

Trumpai apie prekę

Prekė: Lauko tinklinė vaizdo kamera Hikvision DS-2TD2628-10/QA. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2TD2628-10/QA

EAN: 6931847136567

SKU: DS-2TD2628-10/QA

> Brand: Hikvision

> Model: DS-2TD2628-10/QA

> Type: Bullet

> Resolution (Mpx): 4

> Housing: Bullet

> Technology: IP

> Color: White

The Hikvision DS-2TD2628-10/QA thermal imaging camera is an innovative device that stands out on the market thanks to the use of advanced IP reading technology. With its 4 Mpx resolution and sensitive VOx microbolometer, this camera can effectively detect the presence of humans, animals, and vehicles in harsh visual conditions, such as fog and smoke. The tube housing (bullet) provides not only an aesthetic appearance, but also high durability and resistance to adverse weather conditions.

As the official distributor of the Hikvision in Poland, we guarantee that all products offered by us are original and available immediately. We offer full support both during the warranty and post-warranty period, which makes our offer even more attractive. The DS-2TD2628-10/QA camera is an excellent choice for those looking for a reliable surveillance solution that works in all conditions.

Weight and Dimensions

• Product Weight: 1550 g

• Product Height: 107 mm

• Product Depth: 106.1 mm

• Product Length: 321.3 mm

Power

• DC Output Voltage: 12

• AC Input Voltage: 24 V

• Maximum Power Consumption: 8.5000

• Power Consumption (Power over Ethernet (PoE)): 8.5000

• Power Source Types: AC, DC, PoE

Package Contents

• Number of Cameras: 1

Image Sensor

• Image Sensor Type: CMOS

• CCD Sensor Size: 25.4 / 2.7

• Progressive Scan: Yes

• Sensor Type (Thermal Module): Vanadium Oxide Uncooled Focal Plane Arrays

• Effective Sensor Resolution (Thermal Module): 256 x 192

Operating Conditions

• Operating Temperature Range: -40 - 65

• Relative Humidity Range: 0 - 95

Audio

• Voice Codecs: G.711a, G.711u, G.722.1, G.726, MP2L2, PCM

Construction

• IP Rating: IP67

• Mounting Type: Ceiling / Wall

• Security Features: Waterproof

• Form Factor: Bullet

• Product Color: White

Storage Media

• Supported Memory Card Types: MicroSDHC, MicroSDXC, MicroSD (TransFlash)

• Maximum Memory Card Size: 256 GB

• Built-in Card Reader: Yes

• Built-in HDD: No

Camera

• Shutter Speed: 1 - 1/100000 s

• Min. Illumination: 0 lx

• Lens Field of View, Horizontal: 39.4°

• Lens Field of View, Vertical: 22.1°

• Camera Pixel Size: 12 μm

• Field of View (FOV) (Thermal Module): 18 x 13.5

Video

• Frame Rate: 30 fps

• Total Megapixels: 4 mpx

• Noise Reduction: Yes

• Compression Formats: H.264, H.264+, H.265, H.265+, M-JPEG

• Video Transmission: Yes

• Supported Graphics Resolutions: 352 x 288, 384 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520

• Noise Reduction Technology: 3D Noise Reduction

• Max. Resolution: 2688 x 1520

Lens System

• Focal Length: 8 mm

• Maximum Aperture: 1.6

• Digital Zoom: 4x

• Infrared Spectrum Band: 8 - 14

• Minimum Focusing Distance: 3.5000

• Focal Length (Thermal Module): 9.7 mm

• Aperture Number (Thermal Module): 1

• Identify Distance: 50.0000

• Recognize Distance: 101.0000

• Detect Distance: 404.0000

• Zoom Capability: Yes

Network

• Wi-Fi: No

• Client Operating Compatibility: iVMS-4200, Hik-Connect

• Number of Simultaneous Live View Channels: 20 channels

• User Access Level: Administrator, Operator, User

• Live View: Yes

• Bluetooth: No

• Quality of Service (QoS) Support: Yes

• Ethernet LAN Interface Type: Fast Ethernet

• Communication Standards: IEEE 802.1x, IEEE 802.3af

• Wired LAN: Yes

• Number of Users: 32 users

• Network Protocols Supported: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP

Performance

• Intended Use: Outdoor

• Number of Languages: 32

• Dynamic Range: 120.0000

• Thermal Sensitivity (NETD): 40 mK

• IFOV (Spatial Resolution): 1.24 mRad

• Alarm I/O: Yes

• Day/Night Mode: Yes

• Wide Dynamic Range (WDR): Yes

• Thermal Module: Yes

• Language Support: Multi-language

• Connectivity Technology: Wired

• Model: IP Security Camera

Ports and Interfaces

• RS-485 Ports: 1

• BNC Outputs: 1

• Microphone: Yes

• Number of Ethernet LAN (RJ-45) Ports: 1

Night Mode

• Night Mode: Yes

• LED Type: Infrared

• Night Vision Distance: 30 m

Protection

• IP Address Filtering: Yes

• HTTPS Encryption: Yes

• Automatic Network Replenishment (ANR): Yes

• Temperature Measurement Range: -20 - 150

• Temperature Measurement Accuracy: 8 °C

• Temperature Sensor: Yes

• Alarm Output Channels: 2

• Alarm Input Channels: 2

• Encryption/Security: EAP-MD5, EAP-TLS

Management Features

• Behavior Analysis: Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exit Detection

• Web Browser: Yes

• Web-based Management: Yes

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	2.51 kg
Parametry	EAN (GTIN)	6931847136567
Parametry	Manufacturer code	DS-2TD2628-10/QA
Parametry	Brand	Hikvision
Parametry	Model	DS-2TD2628-10/QA
Parametry	Kind	external
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
