Lauko stebėjimo kameros Hikvision 4MPx PoE, 4 vnt., IPC-B140HA-LUC

Trumpai apie prekę

Prekė: Lauko stebėjimo kameros Hikvision 4MPx PoE, 4 vnt., IPC-B140HA-LUC. Kategorija: Rinkiniai.

• Gamintojas: Hikvision
• Modelis: IPC-B140HA-LUC (x4) NVR CAT5E HIK SW EIFLEX

4x 4Mpx Outdoor IP Camera | 1x 4-Channel IP Recorder | 8+2 PoE Switch | Wiring & Mounting Accessories

✅ A set of IP monitoring in PoE technology with 4 external cameras 4MPx

✅ Excellent image quality 4MPx/2K+ - all details in the image remain legible at all times

✅ Cameras with the possibility of mounting inside i on outside the building - IP67

✅ Convenient installation of cameras thanks to the function of powering cameras via PoE switch

✅ Built-in lights in Hybrid Light technology:

• infrared IR illuminating the scene at night up to 20m from the camera
• white LED lights lighting the scene at night up to 15m from the camera

✅ Motion detection function 2.0 - cameras detect movement and also recognize objects (human), limiting false alarms

✅ Built-in microphone in cameras for sound recording - you will not only see, but also hear what is important

✅ Function overwrite video (loop recording)

✅ Preview via the Internet on your computer, smartphone or tablet

✅ Crimping machine, set of plugs and UTP cable by Hikvision included

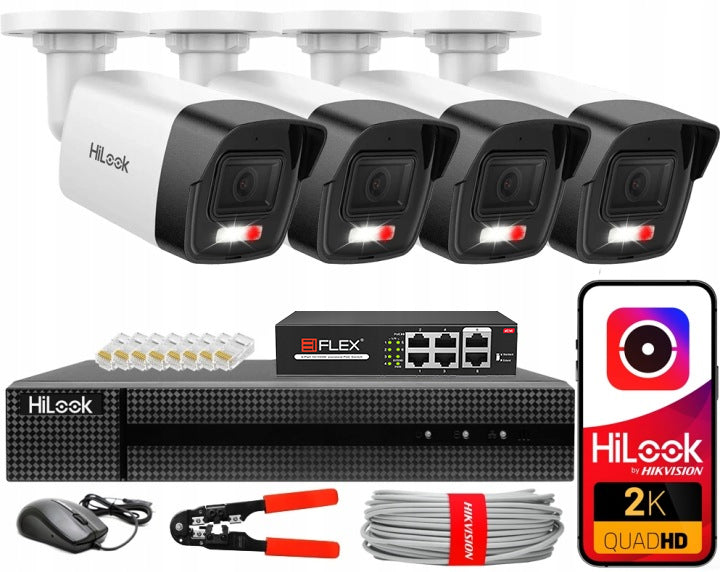

• 4 x 5Mpx horn outdoor camera - IPC-B140HA-LUC HiLook by Hikvision
• 1 x 4-channel IP recorder - NVR-104MH-D HiLook by Hikvision
• 1 x PoE Switch 4+2 Eiflex for powering cameras and connecting the system to the Internet EI-H1064PL
• 1 x UTP twisted pair cable by Hikvision - 40 meters
• 8 x RJ45 modular plug - for cameras and switch
• 1x RJ45 Plug Crimping Machine

The above system has been selected so that its installation is maximally simplified and intuitive. All devices and accessories are fully compatible with each other, and the instructions included in the kit will guide you step by step through the installation and configuration process. And if you encounter any problem, our experts are at your disposal.

✅ Remote Viewing on PC and Mobile App

HiLook surveillance systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, and the iVMS-4200 software for PCs. This gives the user constant control and supervision over the monitored area from anywhere in the world with network access. The app and software allow you to:

• View live video
• Remotely play back recordings
• Create scenarios and motion detection rules
• Control PTZ (Pan, Tilt, Zoom) cameras
• Receive notifications about events within the system

The application uses the P2P cloud for operation, so the system does not need to have ports forwarded on the router.

✅ Hybrid Light - motion-activated lighting

The HiLook IPC-B140HA-LUC uses Smart Hybrid Light technology, which combines the advantages of classic infrared (IR) illumination and white LED light.

In standard mode, the camera can work discreetly in infrared, providing night monitoring without visible light. However, when the system detects the movement of a person or vehicle, the camera can automatically turn on the white LED lighting, switching to color night vision mode. Thanks to this, the recordings are more detailed and allow you to more easily recognize the important details of the event, and the inclusion of light also works preventively, deterring potential intruders.

✅ MD 2.0 Intelligent Motion Detection

The advantage of IPC-B140HA-LUC cameras is the intelligent motion detection technology, used in them, allowing filtering false motion detection alarms and classifying objects on video recordings (human).

Thanks to the algorithm, the camera will allow you to:

• Recognize moving people with high accuracy.
• Limits the number of false alarms caused by falling leaves, insects, etc.
• Instantly informs about the detection of people in the application by means of the "PUSH" notification

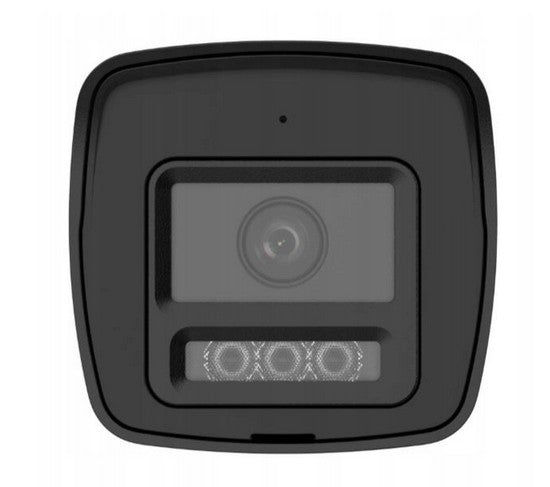

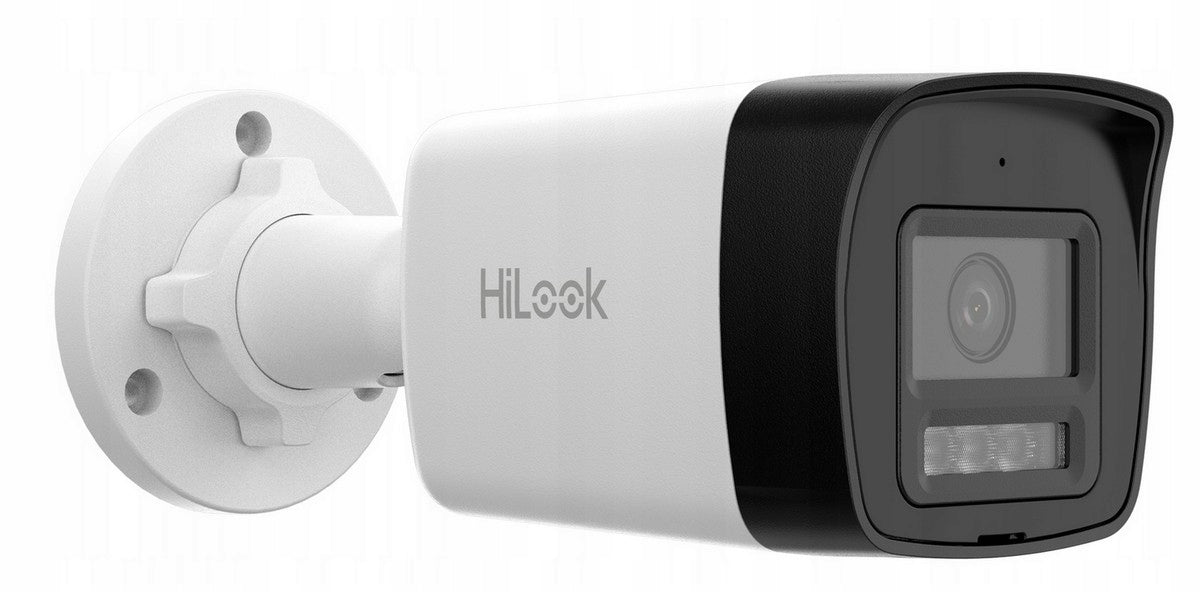

The IPC-B140HA-LUC is a network model with 4MPx resolution, equipped with a dual illuminator (IR+LED), microphone and built-in intelligent motion detection algorithm MD2.0.

Technical parameters:

• Converter: 1/2,8” 4MPx CMOS
• Recording resolution: 2560×1440 @20FPS
• Lens: wide-angle 2,8 mm
• Recording angle: ~104°
• Image compression: H.265, H.264+, H.264, MJPEG
• Wide dynamic range: DWDR
• Digital Noise Cancellation: Yes - 3D DNR
• Built-in microphone: Yes
• Night mode: Hybrid - color or infrared
• Infrared range: up to 20 m
• White light range: up to 15m
• Motion detection: yes - body detection and recognition: human
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in HiLook App: Yes
• Remote support: iVMS-4200, WEB interface, HiLook App/HikConnect
• Assembly: external or internal
• Power Supply: 12V or PoE
• Leak-proof class: IP67

Efficient 4-channel IP recorder, allowing you to support cameras with a maximum resolution of 4 megapixels.

• Number of channels: 4
• Recording resolution: up to 4Mpx
• Bitrate in/out: 40/60 Mbps
• Video Outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Ethernet interface: 1x Rj45 10 / 100 Mb/s
• Preview/remote support: HIK-Connect app, iVMS-4200 (lite)
• HDD storage: 1 (up to 6TB)
• Power supply: 12 VDC
• Power consumption: 18 W (without 10W drive)
• Dimensions: 265 x 225 x 48mm
• Weight: ≤ 1 kg

Includes power supply and mouse.

The EI-H1064PL model by EIFLEX is a universal POE switch with a large power budget (65W) dedicated to connecting and powering network devices, such as IP cameras or IP video intercoms.

Parameters:

• Number of ports: 6
• PoE ports: 4x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbs RJ45
• Switch Type:Unmanaged
• PoE power standard: IEEE 802.3af/at PoE+
• Power of one port: up to 30W
• Total PoE power: 65W
• Bandwidth: 2Gbps
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 195*130*40mm

UTP cable included is a high-quality twisted pair computer brand Hikvision, category 5E, with four pairs of asymmetrically twisted conductors - dedicated to CCTV systems.

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• 1x Crimping machine for plugs
• A set of instruction manual

The offered set guarantees trouble-free and smooth operation ensuring full safety of the monitored object or terrain. HiLook systems are solutions valued all over the world, with excellent technical parameters and the best value for money.
