Lauko radijo antena DL-1 RUZ B PM, omnidirekcinė, FM, Dipol

Trumpai apie prekę

Prekė: Lauko radijo antena DL-1 RUZ B PM, omnidirekcinė, FM, Dipol. Kategorija: Antenos.

• Gamintojas: Dipol
• Modelis: 1/RUZ/PM-B/88-108/S
• Spalva: other

Polish product

When choosing the delivery method "pick-up at the point" it is not possible to send to the Parcel Vending Machine due to the size of the antenna.

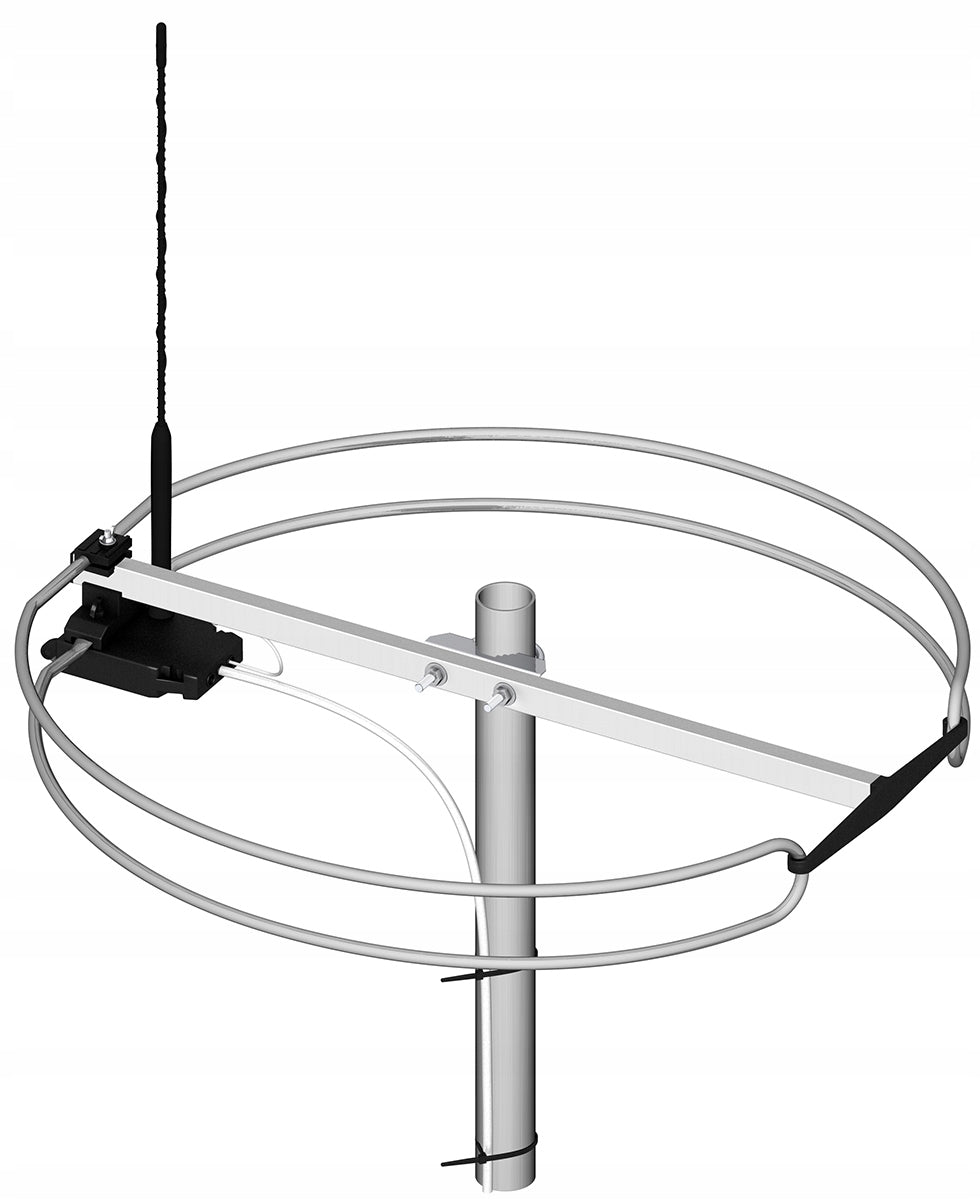

The antenna is used to receive radio stations in the UKF 88-108MHz band. It is an omnidirectional antenna so it collects signal from all directions at the same time. Galvanized steel structural elements.

The antenna receives in both horizontal and vertical polarization.

If the distance to the transmitter is very large, use an AP-FM amplifier and a power supply (preferably adjustable) - available at our auctions.

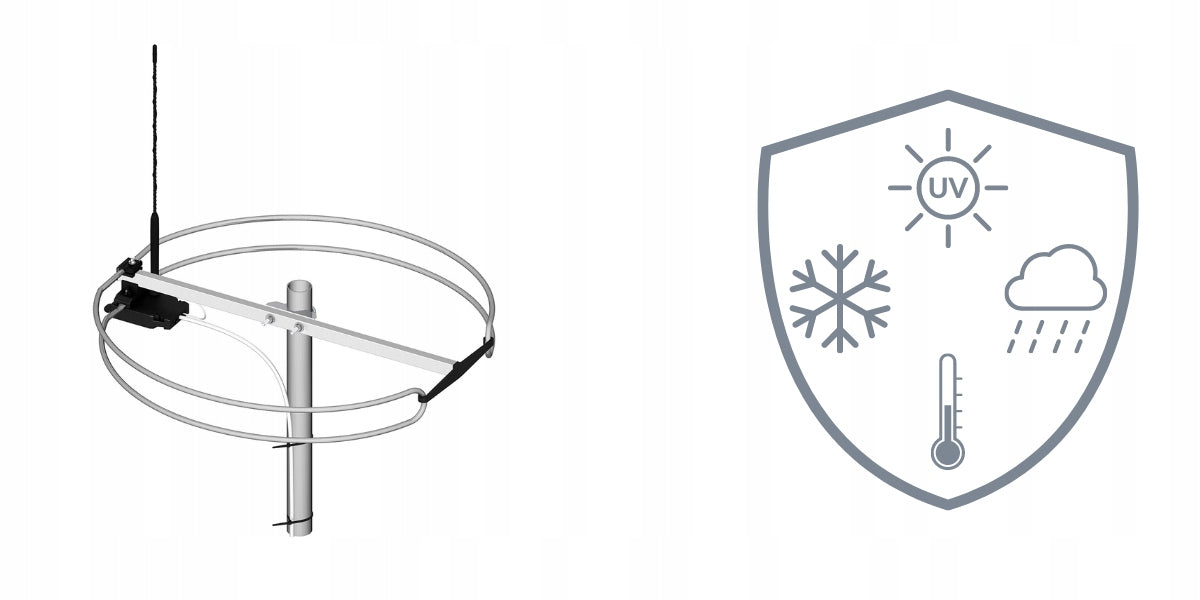

The main elements of the antenna are made of aluminium. Steel structural elements are galvanized. This guarantees high resistance of the antenna to weather conditions and damage. You can be sure that the antenna will serve you for many years!

You buy a proven Polish product

The antenna was designed and manufactured in Poland

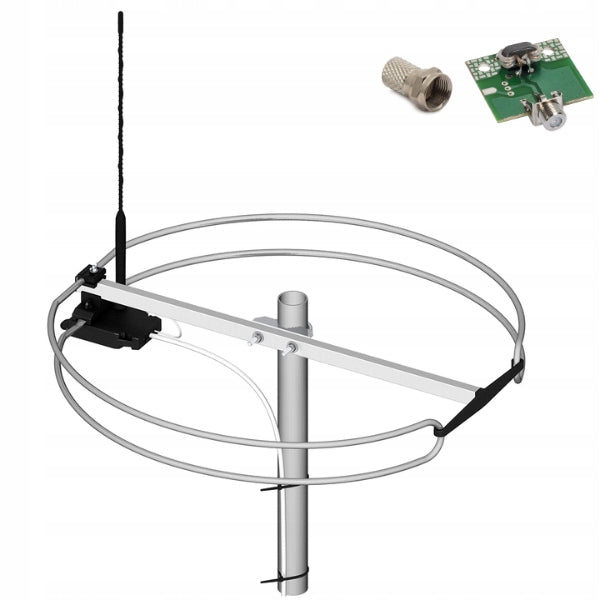

The set includes a symmetrizer and a type F connector.

The antenna uses a symmetrizer for the F connector, which ensures a good matching of the antenna and small signal loss. In addition, the installation of the antenna cable is very simple and convenient. An additional advantage is the possibility of using compression connectors that provide the most durable connection (the set includes a screw-on connector).

• Standard: FM
• Frequency [MHz]: UKF 88-108
• Front radiation. / back [dB]: 0
• Polarization: H, V
• Number of items: 2
• Output Impedance [Om]: 75
• Dimensions [mm]: 570x570x450
• Mass [kg]: 0,5
• Profit [dBi]: 1
• Maximum mast diameter [mm]: 50

Specifications
