Lauko prožektorius Ledvance Floodlight Sensor 8W 4000K 1200lm IP65 juodas

Trumpai apie prekę

Prekė: Lauko prožektorius Ledvance Floodlight Sensor 8W 4000K 1200lm IP65 juodas. Kategorija: Halogeniniai ir prožektoriniai šviestuvai.

• Gamintojas: Ledvance
• Modelis: 4099854306785
• Galia: 8 W
• Ilgis: 13.6 cm
• Spalva: white

4th generation

LED light of the renowned brand LEDVANCE is a modern lighting, which is characterized by very good quality of emitted light, high durability, resistance to harsh weather conditions and mechanical damage. Compact dimensions and light weight allow for easy installation in place of old, worn-out and power-hungry traditional halogens.

The LEDVANCE LED light is equipped with an energy-saving LED light source with a power of 8W. The lamp emits a nautical light with a color temperature of 4000K which allows to obtain a luminous flux of up to 1200lm. Tempered frosted glass ensures even light distribution. Halogen LED LEDVANCE is an innovative device that has its application outside, it is best suited as lighting garages, building facades or driveways.

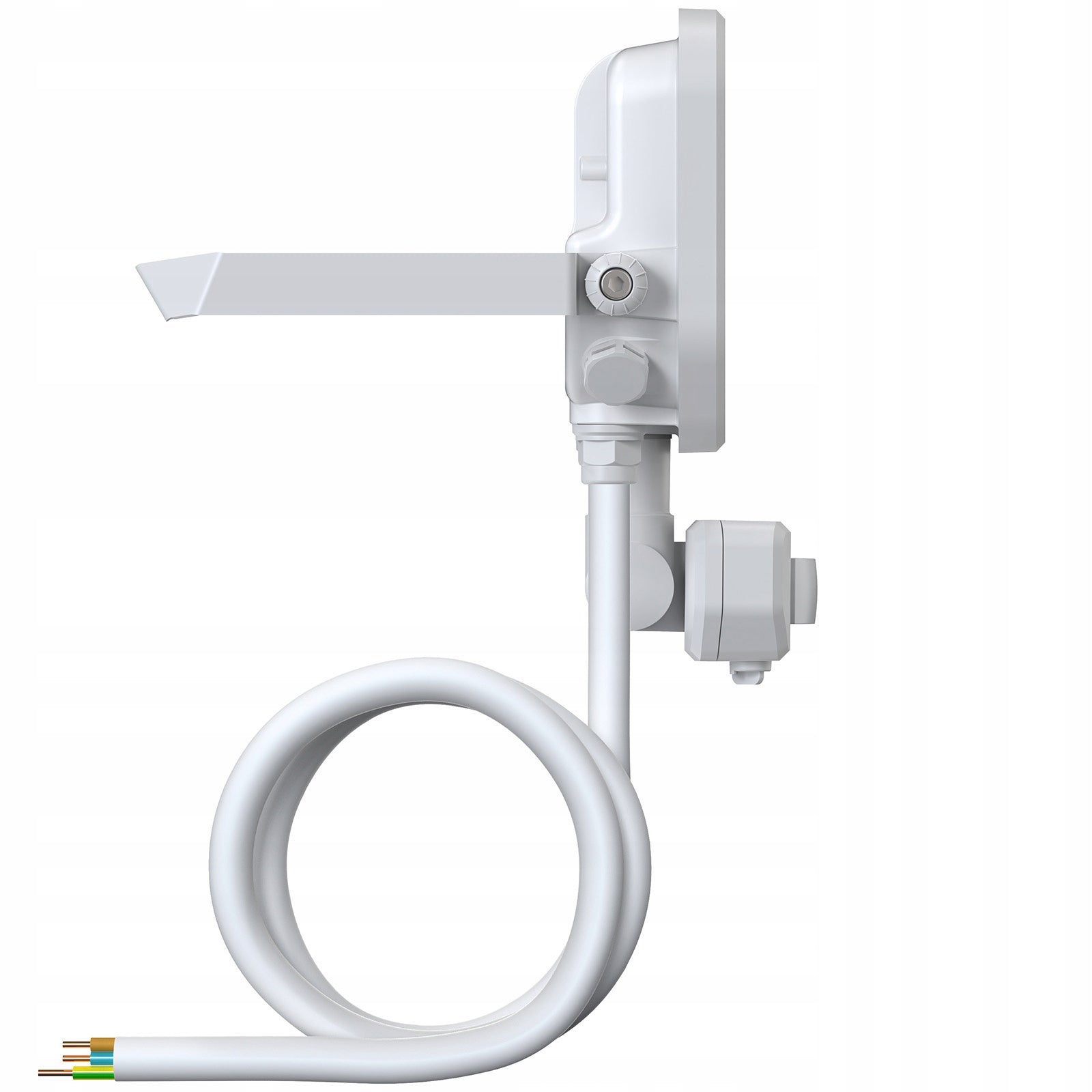

The floodlight has a flexible cable with a length of 1m.

The Multi Lumen feature allows the user to easily adjust the brightness of the light to their current needs using a switch placed directly on the housing. This makes it possible to quickly and intuitively switch between different power levels depending on lighting conditions or preferences. The Multi Lumen feature provides greater flexibility in use, allowing you to make optimal use of lighting in a variety of situations, from soft light to full power for maximum space illumination

ELECTRICAL DATA

• Nominal power: 8 W / 6 W
• Rated voltage: 220...240 V
• Network frequency: 50...60 Hz
• Rated current: 40/30 mA
• Initial inrush current: 8,9 A
• Starting current, time T: 52.2 µs
• Max number of luminaires in one circuit B16 A: 84
• Max number of fixtures in one circuit C10 A: 67
• Max number of luminaires per overcurrent circuit breaker C16: 107
• Power factor λ: > 0,90
• Total harmonic distortion: < 20 %
• Protection class: I
• Impact voltage resistance (L-N): 4 kV
• Resistance to nap. stroke (L/N-ground): 6 kV
• Working mode: Integrated LED driver

Photometric data

• Luminous flux: 1200 lm / 850 lm
• Light efficiency: 145 lm/W
• Color temperature: 4000 K
• Light colour (designation): Neutral white
• General color rendering index Ra: 80
• Standard color matching deviation: 5 sdcm
• SVM strobe effect value: ≤0.9
• Photobiological hazard group EN62778: RG1
• Photobiological hazard group EN62471: RG1
• Light distribution angle: 100° x 100°

MATERIALS AND COLOURS

• Product color: Black
• Housing color: Black
• Material: Aluminium
• Cover material: Glass
• Light-emitting surface material: Glass
• Flammability test according to IEC 60695-2-12: 650 °C
• Mercury content: 0.0 mg

ADDITIONAL INFORMATION

• Additional features: MULTI SELECT

DIMENSIONS AND WEIGHT

• Length: 136,00 mm
• Height: 170,00 mm
• Width: 56,50 mm
• Product weight: 478,00 g
• Cable length: 1000 mm

APPLICATION AND INSTALLATION

• Ambient temperature range: -30...+50 °C
• Storage temperature range: -40...+70 °C
• Connection type: Cable, 3-field
• Security type: IP65
• IK class (impact resistance) [PIM]: IK05
• Corrosion resistance class acc. to EN 12944: C4
• Darkenable: No
• Type of mounting: Surface
• Assembly location: Wall, Ceiling, Floor
• Area of application: Outdoor
• Adjustable: Yes
• With light source: Yes

SENSOR

• Sensor type: Motion, Light
• Sensor technology: Passive infrared (PIR) sensor
• Detection angle: 40°...160°
• Sensor controlled switching time: 10 s...12 min
• Motion sensor detection range: 2...12 m
• Light sensor detection threshold: 10...2000 lx
• IP sensor protection rating: IP65

• Parking
• Public areas
• Garage
• Facade of Buildings
• Construction site
• Gardens and balconies

• High versatility thanks to selectable power levels (Multi Lumen) on the housing
• Reflector, symmetrical light distribution with 100° x 100° beam angle
• Breathing valve to optimise air exchange, without prejudice to IP protection
• Robust cable gland with integrated water barrier function
• Mounting clamps with 30° angle and wide rotation area
• Factory installed flexible wire length 1 m (H05RN-F), 3 x 1,0 mm² with copper tips
• No upper light distribution coefficient (ULOR 0%) when mounted at an angle of 0°
• Energy savings of up to 90% (compared to floodlights with halogen lamps)
• Design in accordance with EN 60598-2-24 for fire hazard, e.g. through the accumulation of dust
