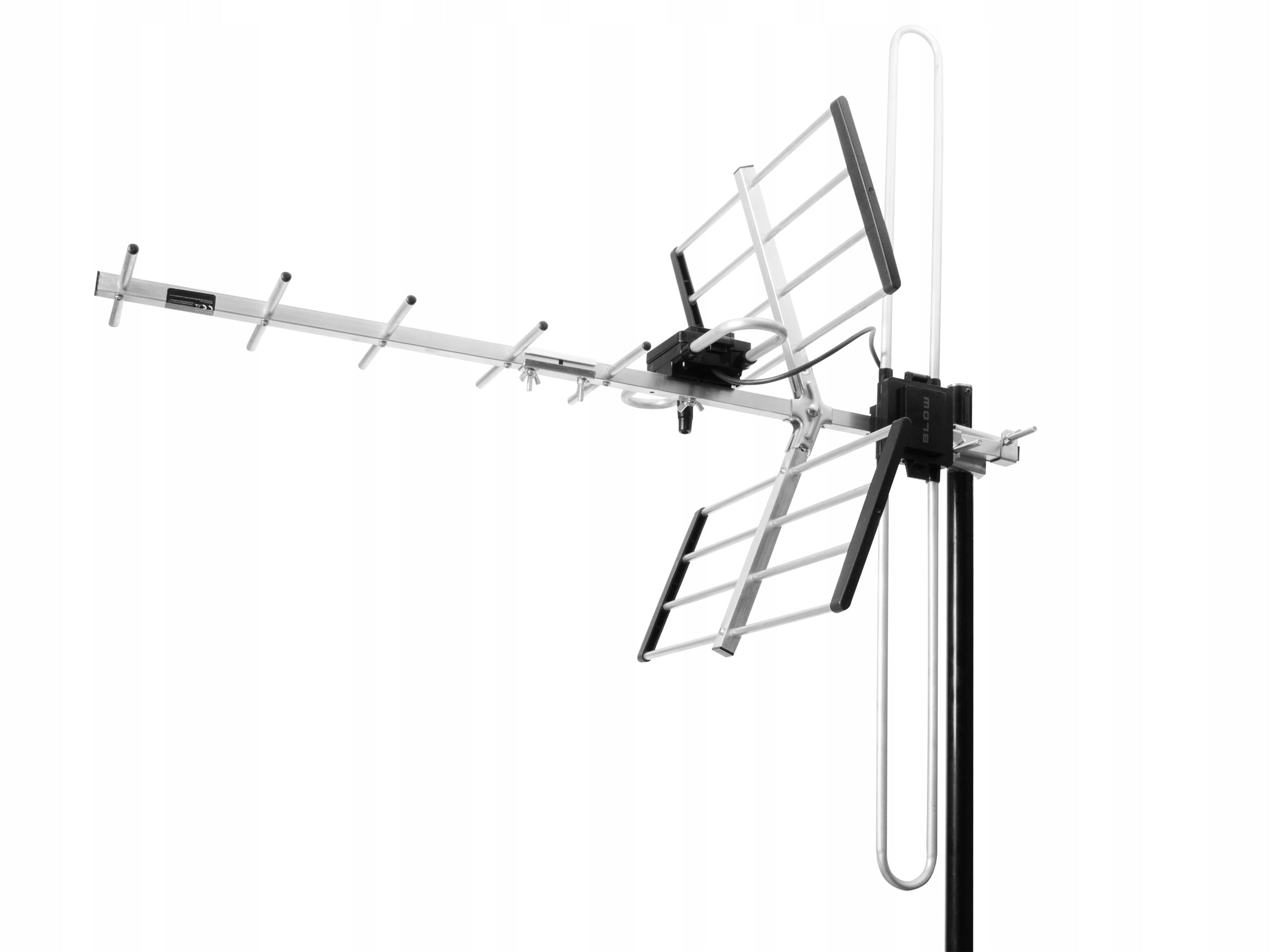

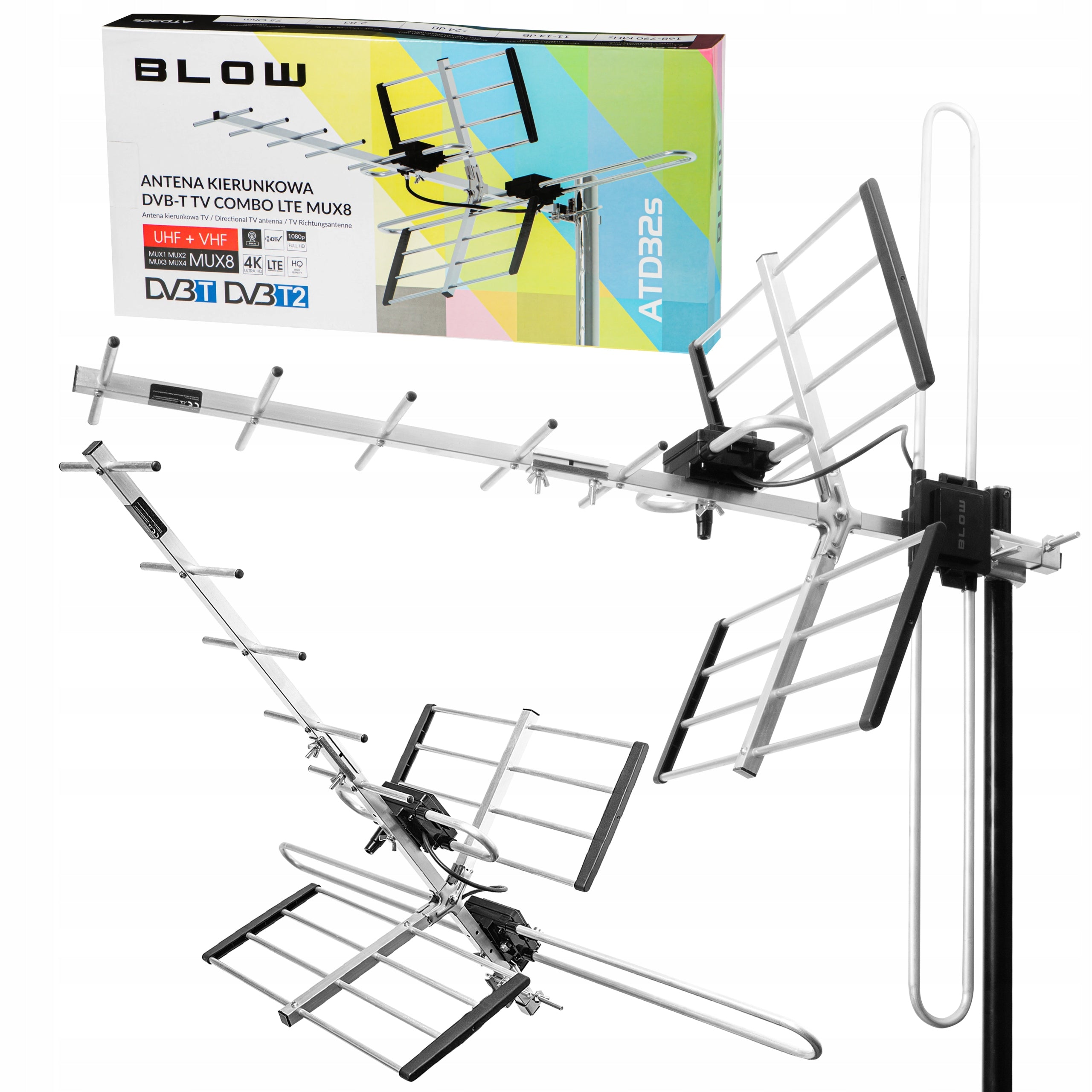

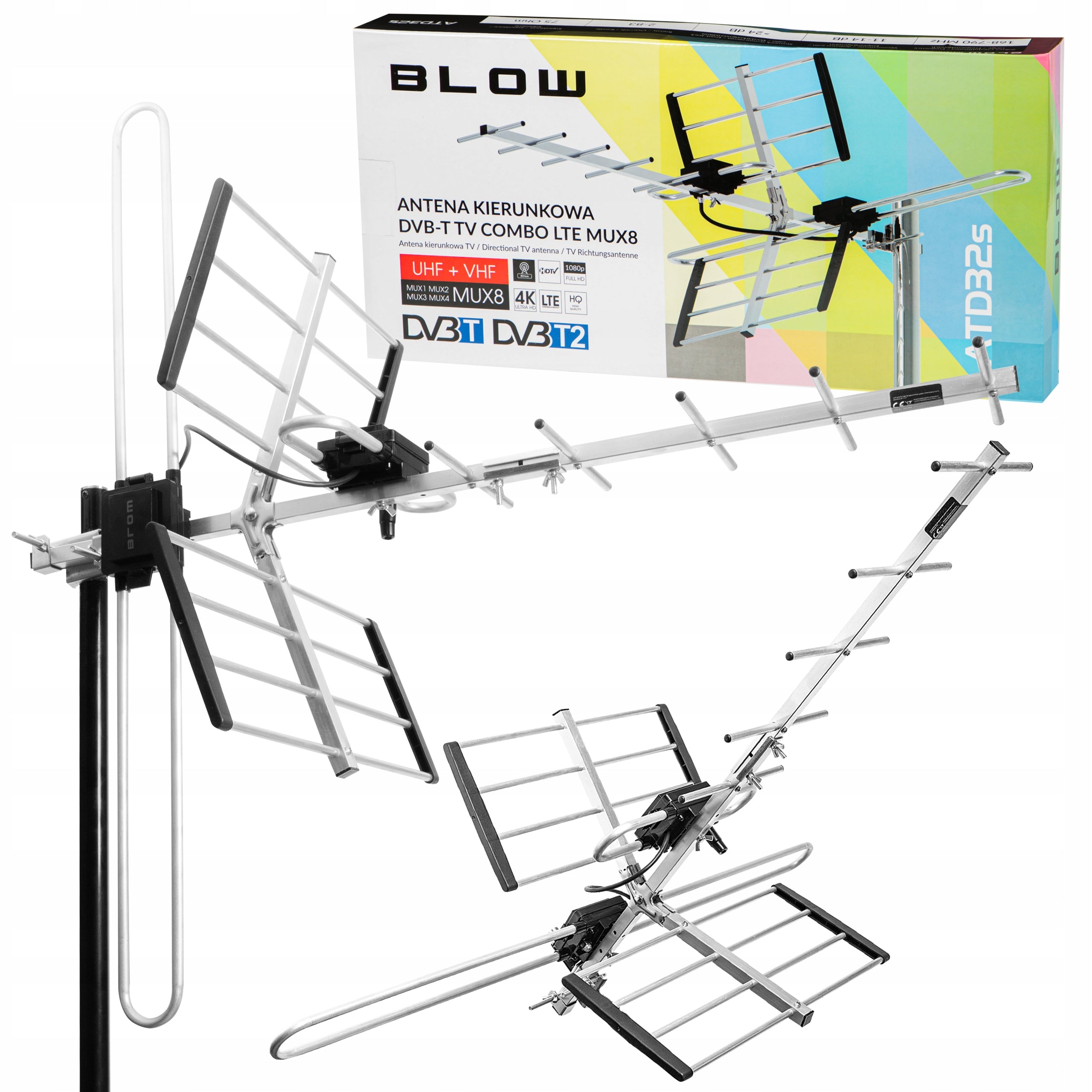

Lauko kryptinė TV antena COMBO MUX8 DVB-T2 4K ULTRA HD LTE

Trumpai apie prekę

Prekė: Lauko kryptinė TV antena COMBO MUX8 DVB-T2 4K ULTRA HD LTE. Kategorija: Antenos.

• Gamintojas: Blow
• Modelis: ATD32S
• Spalva: silver

PASSIVE DIRECTIONAL ANTENNA DVB-T BLOW

✅ Allows reception of MUX1, MUX2, MUX3, MUX4 and MUX8 channels

✅ DVB-T Directional Antenna with 14-18 dB gain

✅ Supports FullHD and 4K UltraHD

✅ Works with DVB-T2 and H.265

✅ Designed for outdoor installation

✅ Robust, stable construction

✅ Built-in symmetrizer

High-performance digital-to-analog antenna. Suitable for outdoor installation, resistant to water and UV radiation. Foldable, durable construction. Compatible with FullHD and 4K UltraHD. Use of the best production materials.

⏺ High quality workmanship

Each of the antenna elements is made of materials characterized by the highest quality, thanks to which the whole is extremely solid and stable. Aluminium of high quality is a guarantee for a long service life, providing resistance to all weather conditions. The whole structure unfolds in a simple and intuitive way, does not require the use of special tools for assembly.

⏺ Wideband reception

The antenna enables the reception of DVB-T digital terrestrial television signals in the 168- 790 MHz band, i.e. it works with all multiplexes available in Poland. The antenna is also adapted to the upcoming encoding change.

• MUX 1: Stopklatka TV, Eska TV, TTV, Polo TV, ATM Entertainment, TV Trwam, TVP ABC, Fokus TV
• MUX 2: Polsat, TVN, TV 6, TV Puls, TV Puls 2, TVN 7, Super Polsat
• MUX 3: TVP 1 HD, TVP 2 HD, TVP Info HD, TVP 3, TVP Sport HD, TVP History
• MUX 8: New TV, Metro, Zoom TV, WP, TVP Entertainment, TVP Culture HD

⏺ LTE interference filter

The LTE filter eliminates interference from mobile networks providing high-speed Internet services in the 800 MHz band, the end of the TV band is located in the immediate vicinity of the LTE 800 MHz band. This may result in interference with the reception of digital terrestrial television. The antenna offered at this auction, thanks to the LTE filter, cuts out unwanted signals above 790 MHz, and thus is resistant to interference from the LTE network.

⏺ Vertical or horizontal polarity

The element marked with an asterisk (*) in the picture can be mounted horizontally or vertically (horizontal or vertical polarization). During installation, this element should be properly mounted to obtain the best reception parameters. The element should be mounted according to the settings of the transmitter in which the antenna will be set.

⏺ Specification:

• Frequency range: 168 - 790 MHz
• Reinforcement: 11 - 14 dB
• Gain ratio: >24 dB
• Channels: 2-83
• Impedance: 75 Ohms
• Antenna length: 79cm
• Height of folded antenna (horizontal polarization): 40cm
• Length of the largest element - dipole: 78cm
• Package dimensions: 45cm x 7cm x 22cm

Specifications
