Lauko antena Telkom-Telmor ASR IQ su 5G apsauga, stiprintuvu ir maitinimo šaltiniu

Trumpai apie prekę

Prekė: Lauko antena Telkom-Telmor ASR IQ su 5G apsauga, stiprintuvu ir maitinimo šaltiniu. Kategorija: Antenos.

• Gamintojas: Telkom-Telmor
• Modelis: ASR IQ 5G Protected
• Spalva: gray

Welcome to our auction

we have to offer:

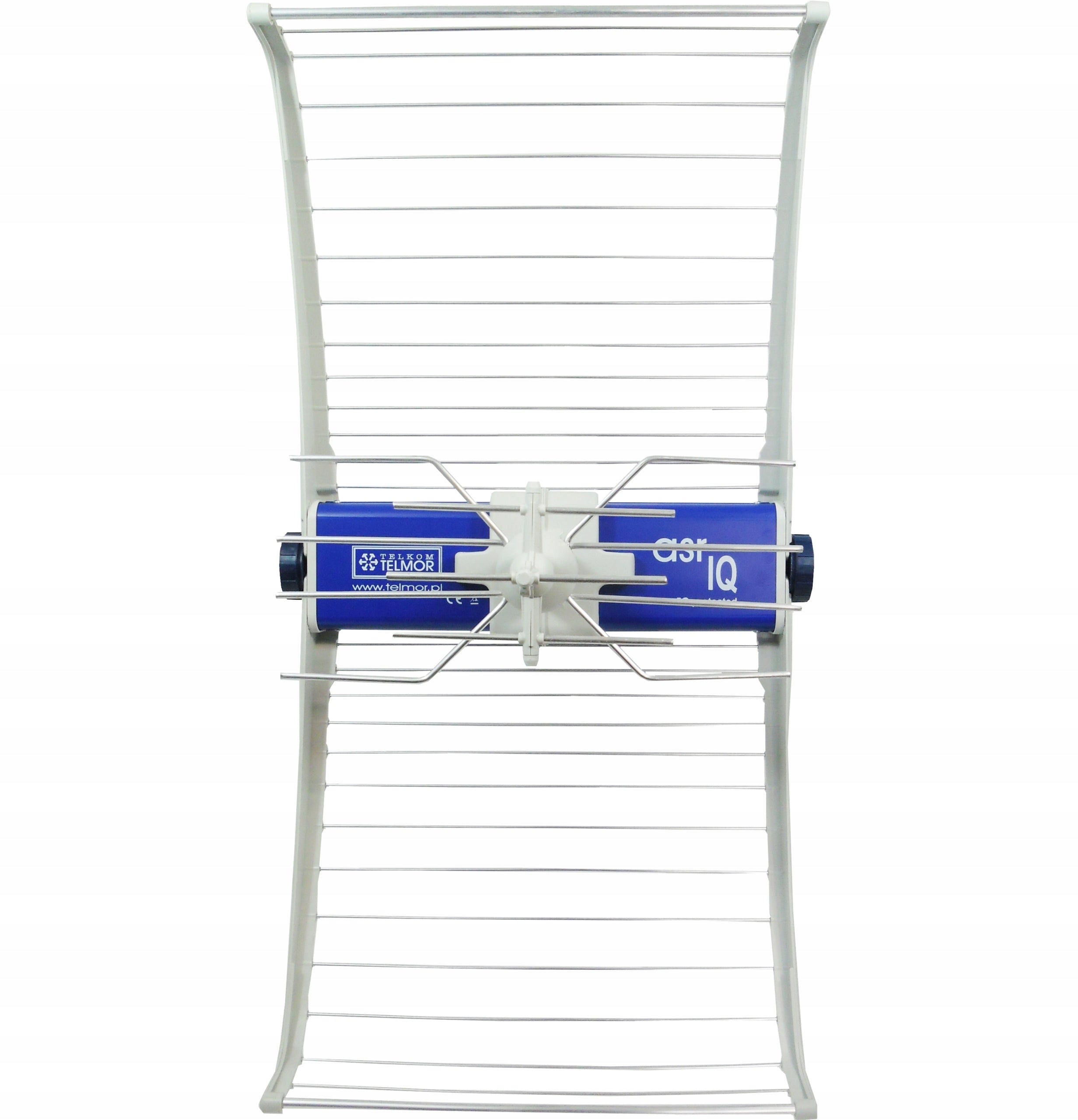

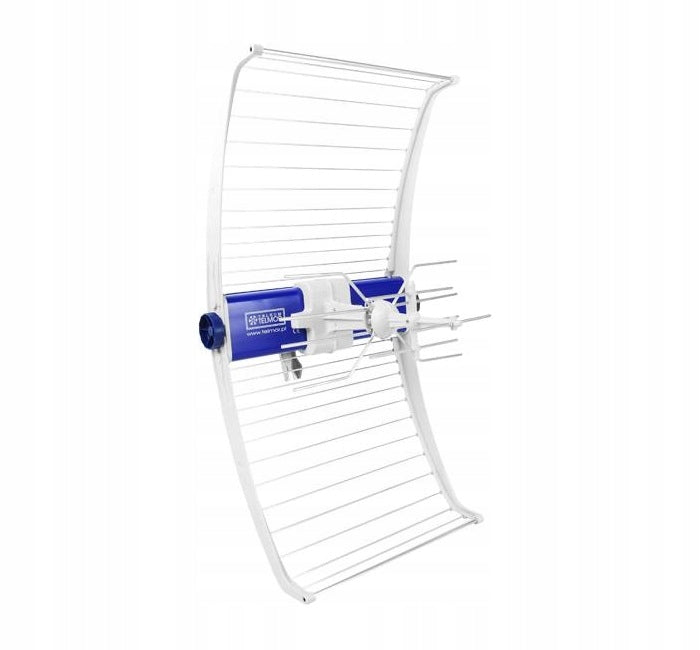

Outdoor antenna Telkom-Telmor ASR IQ 5G Protected amplifier + power supply

✅ GREAT PARAMETERS

• The antenna has a large energy gain and a built-in ultra low-noise preamplifier that can be powered by voltage in the range of 5-12V (e.g. TV or DVB-T/T2 receiver. The low level of self-noise of the first degree of amplification is very important for obtaining good signal quality (large signal/noise interval).
• The 5G Protected version also has a built-in by-pass. Not switching on the power supply voltage in this antenna makes it work like a passive antenna.

✅ IQ TECHNOLOGY

• The preamplifier continuously analyzes amplified signals and optimally adjusts its parameters.

✅ BUILT-IN 5G/LTE/GSM FILTER

• The 5G Protected version has implemented very extensive bandwidth filtration, which eliminates interference signals outside the band (5G, LTE 700, LTE 800, CDMA 450, GSM 1800, etc. ). Using the ASR IQ 5G Protected antenna, we protect DVB-T/T2 reception from the impact of signals that hinder reception

✅ READY TO ASSEMBLE

• The supplied ASR IQ antenna is completely assembled, and thanks to the hinged attachment of the headlights to the support beam, the distribution of the antenna is extremely quick and simple.

SPECIFICATION

• Frequency range: 470-694 MHz
• Gain: 14 dBi
• Gain in the operating band: 17-21 +/-2 dB
• Polarity: Horizontal (H)
• Beam size 3dB (horizontal plane): 40 degrees
• Radiation Ratio - Front/Rear: 24 dB
• Noise Ratio: ≤ 3,5 dB
• Maximum TV signal level output: 103 dBuV
• Mast diameter - maximum: 25-60 mm
• Maximum load from wind: 120 N
• Output Impedance: 75 Ohms
• Output Connector Type: Type F Socket
• Power supply of the preamplifier: +5...+12 V / 300 mA
• Dimensions of the antenna: 820 x 455 x 220 mm
• Weight 1,8 kg

BUILT-IN FILTER LTE/5G

Light antenna design and easy installation to the antenna mast.

DVB-T and DVB-T2 SIGNAL

• DVB-T2 enables more data to be transmitted

HIGHEST RESOLUTION

• Contrast and shapes presented with greater precision and in vivid colors. In addition, the extended image format of HDTV programs better corresponds to the way the human eye is perceived. The image reproduced in this format creates an impression closer to reality.
• Supports Full HD 1080p and 4K resolutions.

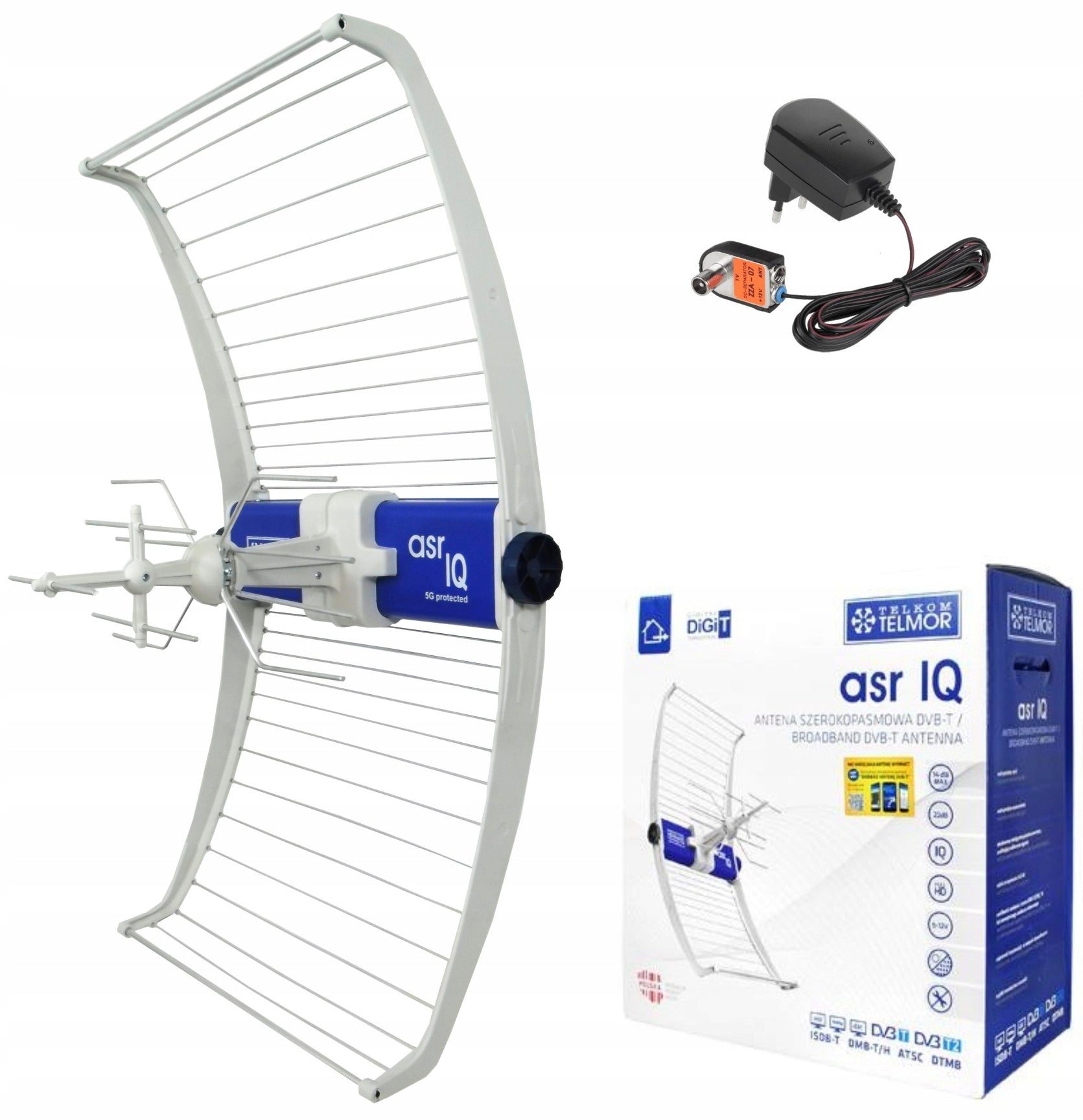

COMPOSITION OF THE SET

• Mounting accessories (cybant)
• Plug F
• Crossover ZZA-07 with power supply
• Instruction
• Box
