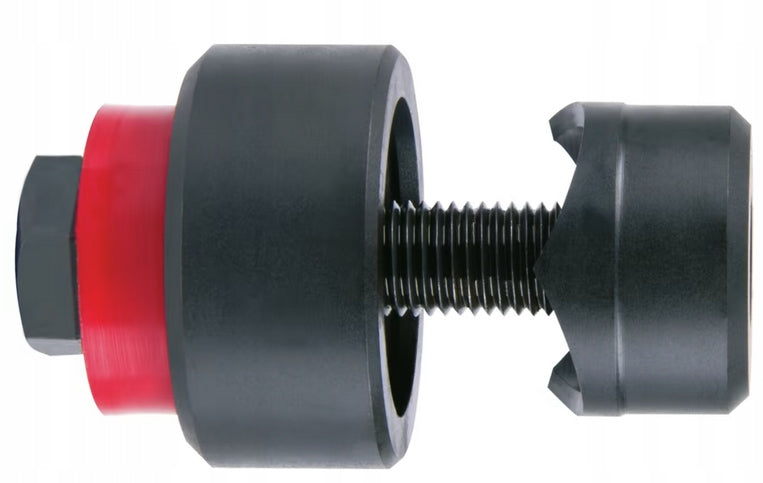

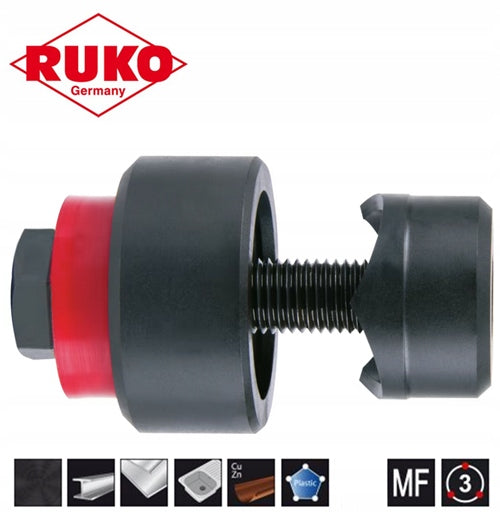

Lakštinio metalo išpjova 18,6 mm su guoliu 109186K RUKO

Trumpai apie prekę

Prekė: Lakštinio metalo išpjova 18,6 mm su guoliu 109186K RUKO. Kategorija: Įrankių rinkiniai.

• Gamintojas: Ruko
• Modelis: 109186K

Technical data:

• Ø hole (mm): 18,6mm
• screw size (mm): M10x1
• screw length: 50mm

Description of the item:

• 3 cutting tips
• for sheets with a thickness of 2,0mm
• for fast, clean perforation of steel sheets and plastics without burrs

Execution:

• Special tool steel
• Operation with a flat wrench or hydraulic tools.
• Delivery with die, stamp and pressure screw

Application:

• For punching holes in various materials such as stainless steel sheets, copper sheets, brass, aluminum, iron and plastic
• It is particularly suitable for work in hard-to-reach places such as control cabinets, dashboards, etc.

Hint:

• The pressure screw and die should be lubricated before starting work. The diameter of the drilled hole should be about 1 mm larger than the pressure screw.

Screw Punches:

In a single operation, with a few movements and little effort, you can create a finished hole without the need for post-processing.

Better tool contact with the surface due to simultaneous 3-point entry into the material, which reduces deformation of the cut-out elements. This also prevents premature damage to the screw.

The bearing facilitates and speeds up operation. Energy expenditure is reduced by approximately 67%.

Before using the punch, the lead screw should be lubricated with drilling spray or paste (e.g., RUKO).

Metric lead screws in RUKO punches are of the highest quality and are therefore designed for extreme loads. If damaged, they can always be temporarily replaced with standard fine-thread screws available on the market.

They can be used with screw wrenches as well as with manual and foot-operated hydraulic presses.

To extend the life of the tool - recommended use of lubricants.

paste, liquid or spray for cutting and threading.

General description of sheet metal bearing die:

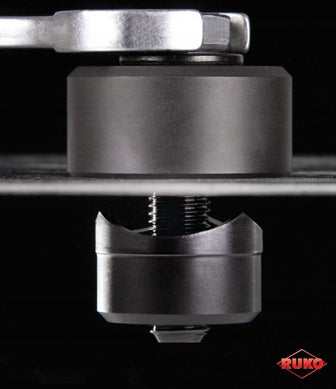

The bearing sheet die is used to cut perfectly round holes in metal sheets without the risk of deformation of the material. This tool, often called a screw cutter or punch, works on the principle of twisting the screw, which presses the stamp into the die, cutting through the sheet metal.

Why is the placenta used?

The presence of a ball bearing under the head of the screw completely changes the comfort and efficiency of work:

• Reduced drag: The bearing drastically reduces friction when tightening the screw with a wrench.
• Less effort: Requires the use of much less physical force on the part of the user compared to models without a bearing.
• Tool protection: Prevents thread from blurring, which drastically extends the life of the entire set.

Typical use in materials

The die can handle a wide range of thin materials (usually up to 2 mm thick):

• Stainless steel and carbon steel sheets
• Colored metals: copper, brass, aluminum
• Certain types of plastics

Where is it most often used?

• Installation work: Cutting holes for cable glands, buttons and controls in metal control cabinets and electrical switchgears.
• Hydraulic and finishing work: Making perfect holes for kitchen faucets or dispensers in stainless steel sinks.
• Automotive and workshop: Modifications of housings, installation of additional accessories or sensors in body elements.

RUKO OHG was founded in 1974 and specializes in the production of high-quality tools for drilling, dredging and cutting metal.

Today, RUKO GmbH Präzisionswerkzeuge is one of the world’s leading manufacturers of precision metal cutting tools.

RUKO is a renowned German company, founded in 1974, specializing in the production of high-quality, precision cutting tools for metalworking, such as drill bits (including gradual, rolled, ground), taps, dredges and foraminifera, known for innovation and excellent value for money for professionals, based in Holzgerlingen (near Stuttgart).
