Kūginė skylės pjūklas deimantinis keramikos šlifavimo M14 20/35/50 mm

Trumpai apie prekę

Prekė: Kūginė skylės pjūklas deimantinis keramikos šlifavimo M14 20/35/50 mm. Kategorija: Pjaustytuvai.

• Gamintojas: Vorfal
• Modelis: V04367_2

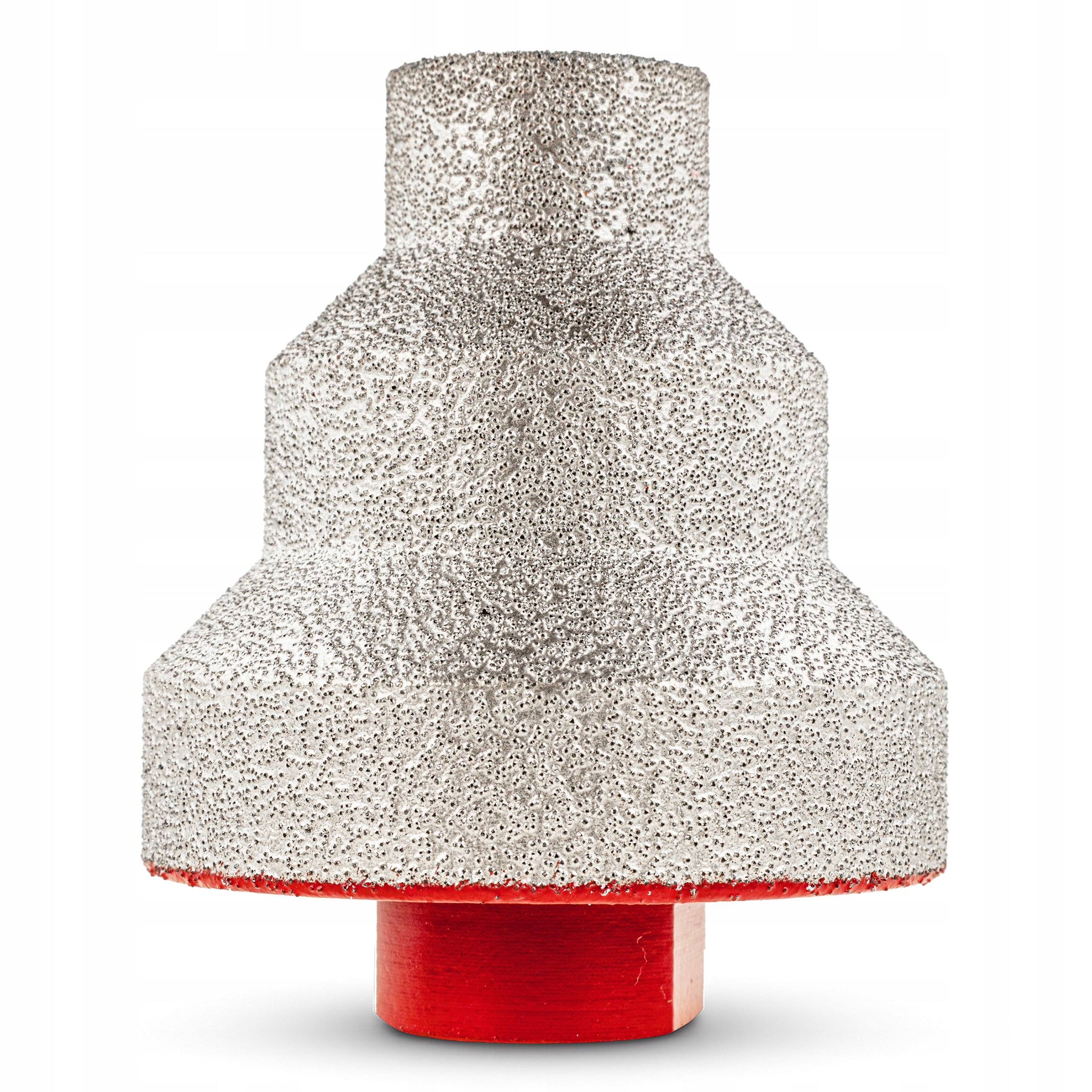

Professional stage diamond mill designed for angle grinders with M14 thread. With three working steps (20 mm, 35 mm, 50 mm), enables fast and precise expansion, dredging and alignment of holes in hard materials such as gres, ceramics, marble, granite or quartz sinters.

The vacuum soldering (vacuum brazed) technology ensures permanent diamond placement and a very long tool life. The cutter is covered with high-quality synthetic diamond on the entire working surface, and the spiral body effectively dissipates dust during operation.

Designed for dry operation – ideal in installation conditions where the use of water is impossible.

IDEAL FOR

⭐ Wall and floor tiles

⭐ Technical and porcelain gres

⭐ Marble, granite, quartz sinters

⭐ Glazed ceramics

⚙ APPLICATION

✅ Extension of holes in ceramic, stoneware and stone tiles

✅ Precise edge correction after cutting

✅ Deepening and smoothing holes for sockets, pipes, pipes or fittings

✅ Processing of elements of marble, granite, sinters and hard floor tiles

💎 ADVANTAGES OF THE PRODUCT

✔ 3 degrees in 1 tool – 20 mm / 35 mm / 50 mm – ideal for a variety of applications without the need to replace the cutter

✔ Premium synthetic diamond – provides exceptional durability and grinding speed

✔ Vacuum soldering technology – diamonds embedded on the entire surface of the cone

✔ M14 attachment – fits most popular angle grinders

✔ Dry operation – no need for water cooling

✔ Universal application – stoneware, ceramics, marble, granite, sinters

📐 TECHNICAL DATA

• Type: Step Diamond Cutter (3 in 1)

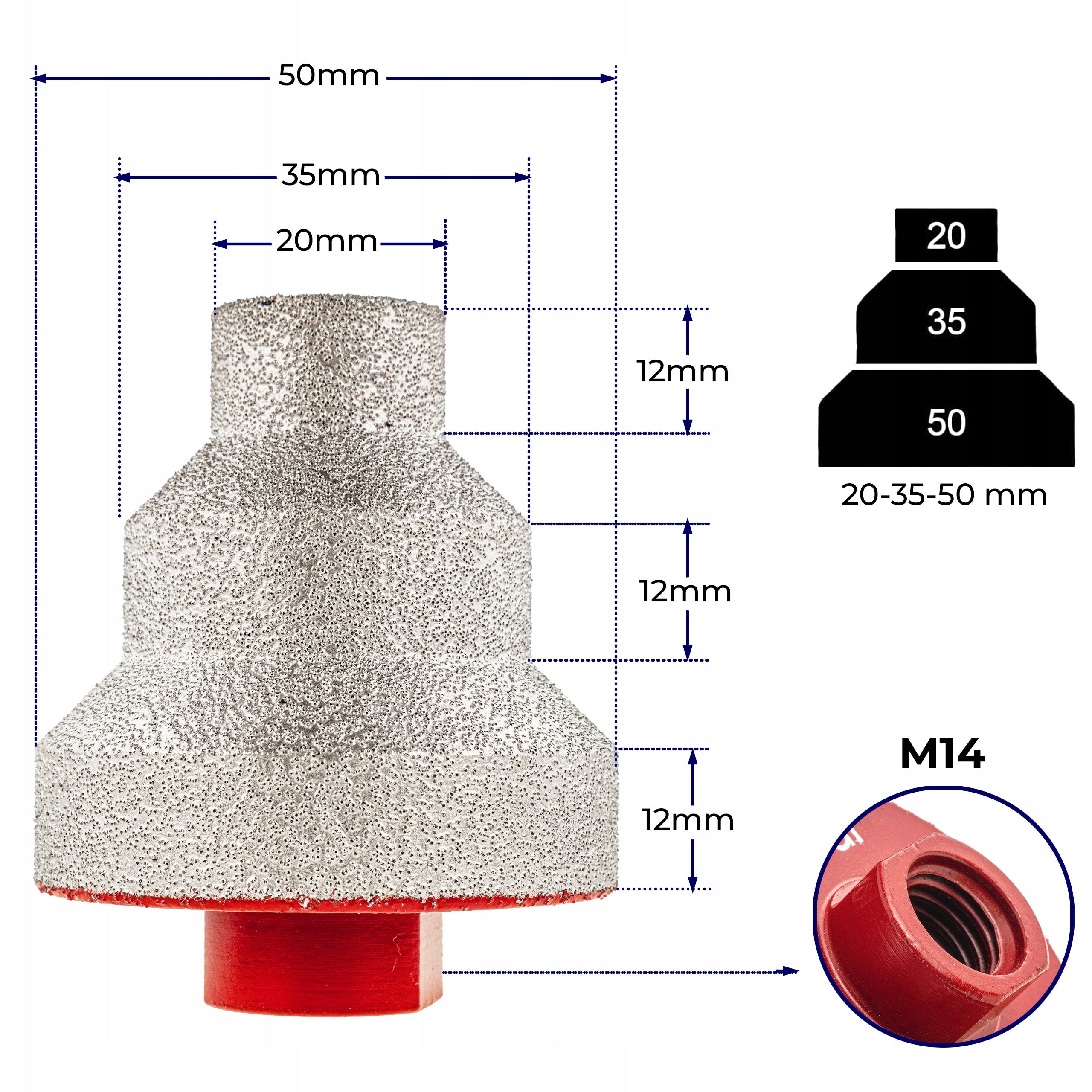

• Working diameters: 20 mm / 35 mm / 50 mm

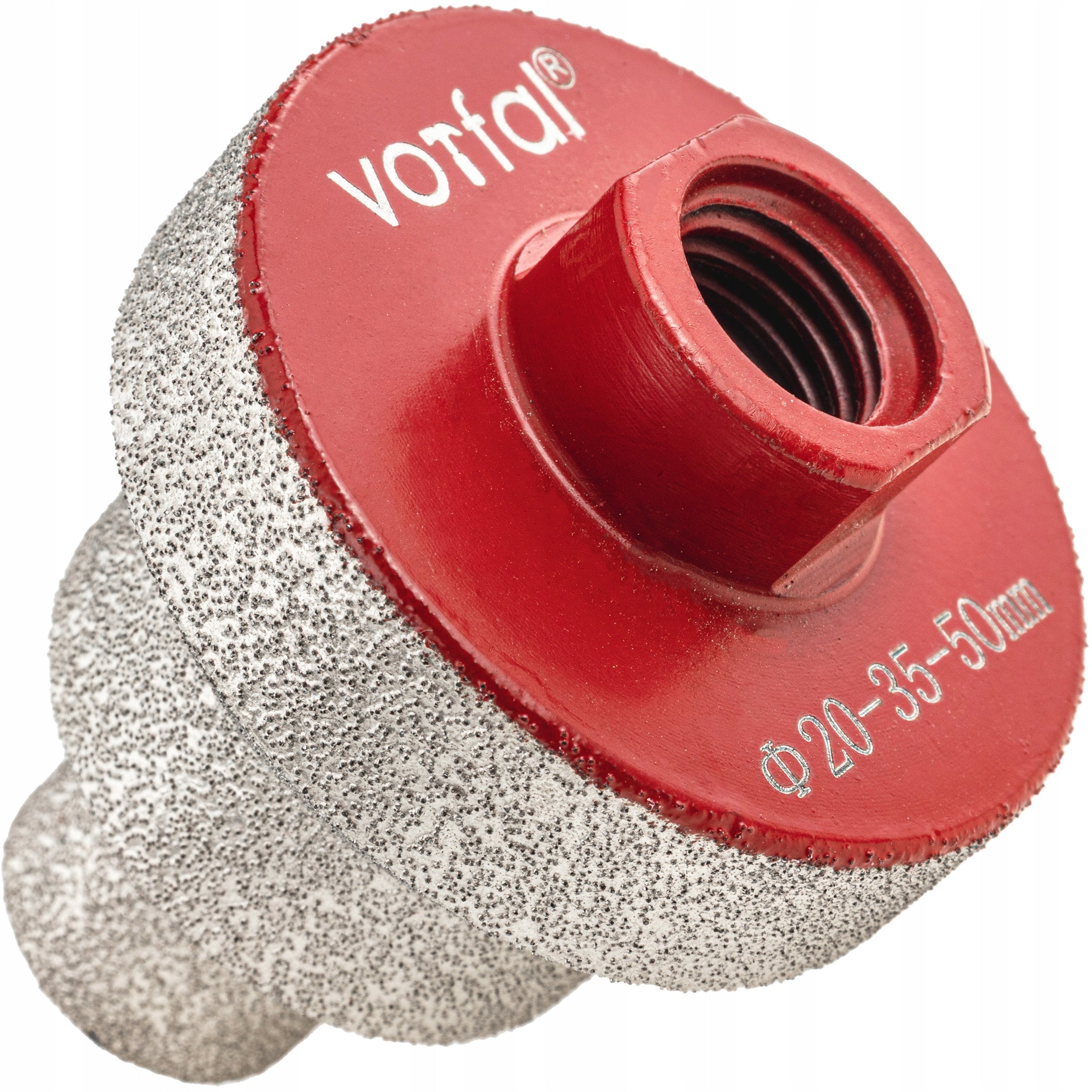

• Fastening: thread M14
• Technology: vacuum brazed (vacuum brazed)
• Diamond: synthetic high-end
• Operating mode: dry
• Workpiece material: gres, ceramic, marble, granite, quartz sinter
• Compatibility: Most angle grinders with M14 mount

🎯 Tips for making holes

With its high-quality diamond coating, the step cutter with layered structure provides excellent wear resistance and long-lasting, precise work.

1 First, set the cutter at an angle of 45°

Tilt the tool slightly – less downforce reduces the risk of slipping.

2 Maintain high revs throughout operation

This allows you to open a crescent incision for easy hole positioning.

3 Gradually raise the tool to an upright position (90°)

Drill with even, moderate downward pressure.
