Kryžminis lazerinis nivelyras 50m rinkinys

Trumpai apie prekę

Prekė: Kryžminis lazerinis nivelyras 50m rinkinys. Kategorija: Lazeriniai nivelyrai.

• Gamintojas: HUMBERG
• Modelis: HM-171
• Ilgis: 10 cm
• Svoris: 3.7 kg

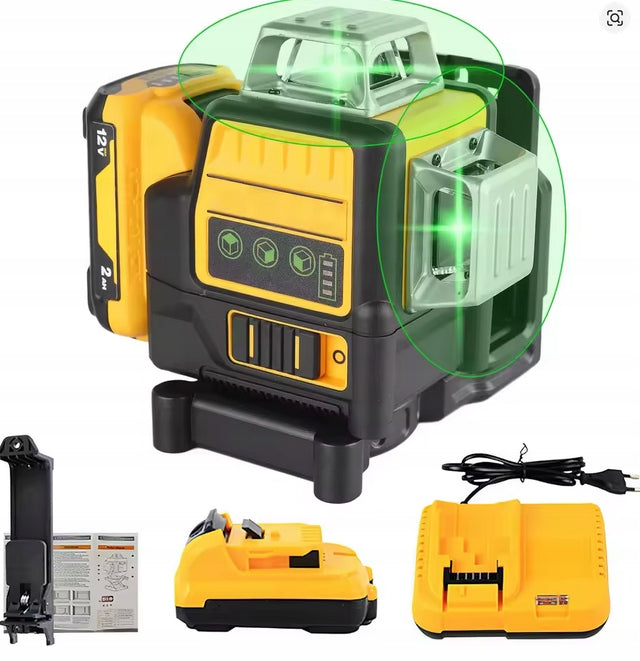

advanced laser level generating four independent 360 degree laser planes (referred to as 4D technology). The device is designed for precise level and vertical determination in construction, renovation and finishing applications, allowing simultaneous covering of the entire room with floor-to-ceiling lines.

Optical system and operating parameters:

• Laser beam: The device uses a green laser with a wavelength of 515 nm. The green beam is characterized by better visibility to the human eye in bright lighting conditions compared to the standard red beam.
• Number of lines: 16 independent lines (four full 360° planes).
• Range: The maximum operating range under standard conditions is up to 50 meters.
• Accuracy: The declared measurement precision is +/- 0,3 mm.
• Working range: The level operates at positive temperatures and below zero (possibility of operating at sub-zero temperatures).

Functions and mechanisms:

• Self-leveling: The built-in magnetic damping system compensates for ground unevenness up to 4 degrees. After exceeding this range, the device signals a position error (usually beam flashing).

Power supply and design:

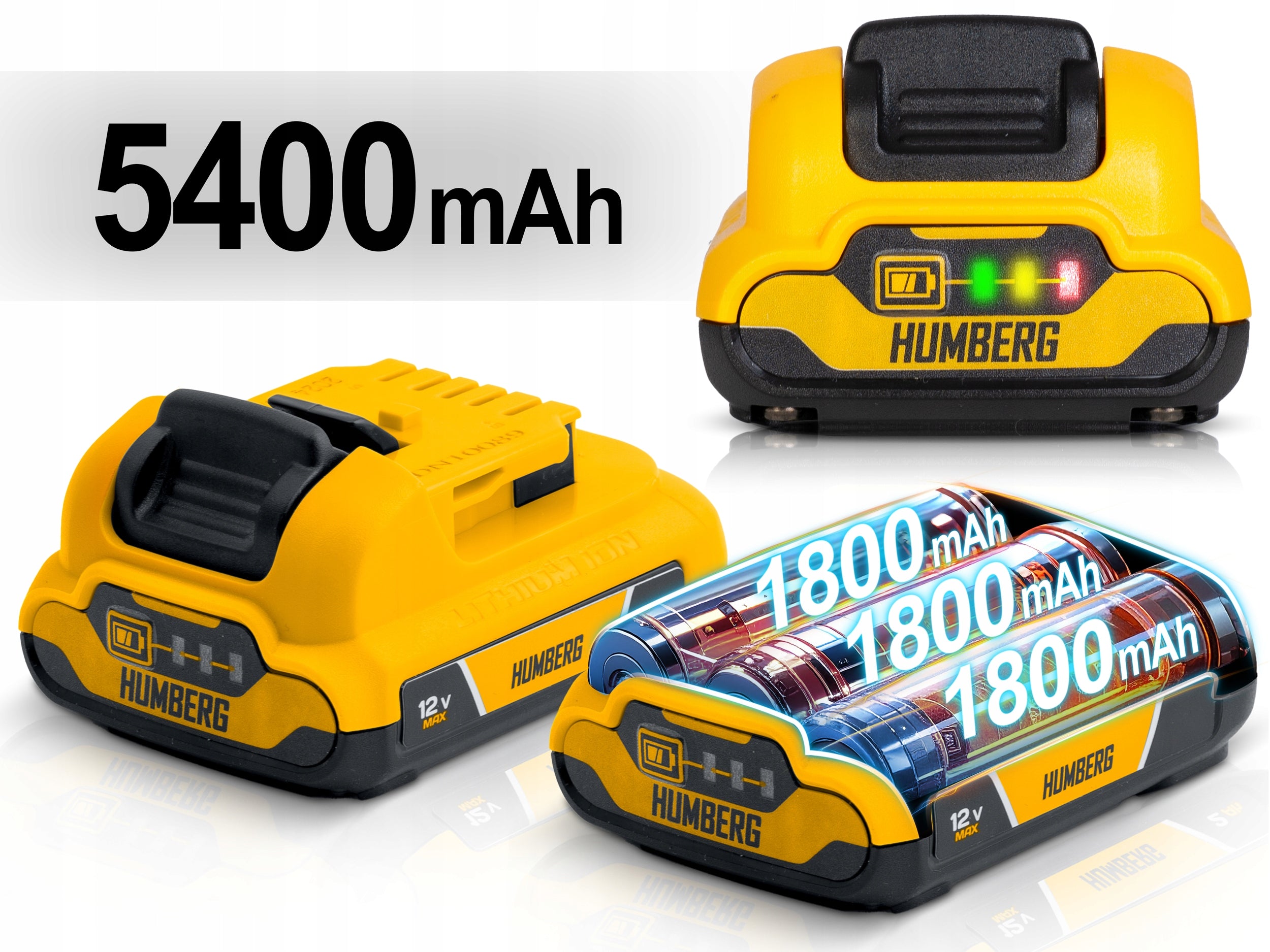

• Power type: Cordless. The set includes two replaceable lithium-ion batteries. The dual battery system allows for continuous operation without downtime for charging.
• Charging: The batteries are charged using a dedicated mains charger (included).
• Strength: The housing has an IP54 rating, protecting the internal components from dust ingress and splashing water from any direction.
• Dimensions: 14 cm (height) x 14 cm (width) x 10 cm (length).
• Weight: The weight of the set with packaging is 3,7 kg.

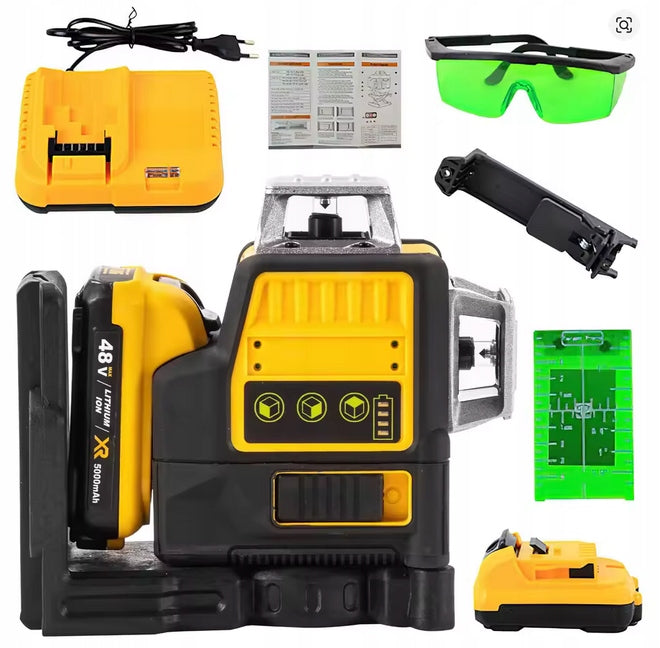

Detailed description of accessories included:

The set comes in a dedicated carrying case, and its contents include:

• Handle : Multifunctional holder that allows you to mount the laser on metal surfaces (thanks to strong magnets) or screw to the wall. It offers angle and distance adjustment from the mounting surface.
• Glasses: Special glasses that improve the visibility of the green laser beam in bright environments.
• Aiming disc: Auxiliary element with graduation, facilitating precise aiming and measurement of deviations
• suitcase
• 2x battery
• charger

Data:

• Maximum range: 50 m
• Number of beams: 16 lines
• Number of batteries included: 2 Li-Ion batteries
• Complete set + suitcase included
• Waterproof IPX54
• Self-leveling
