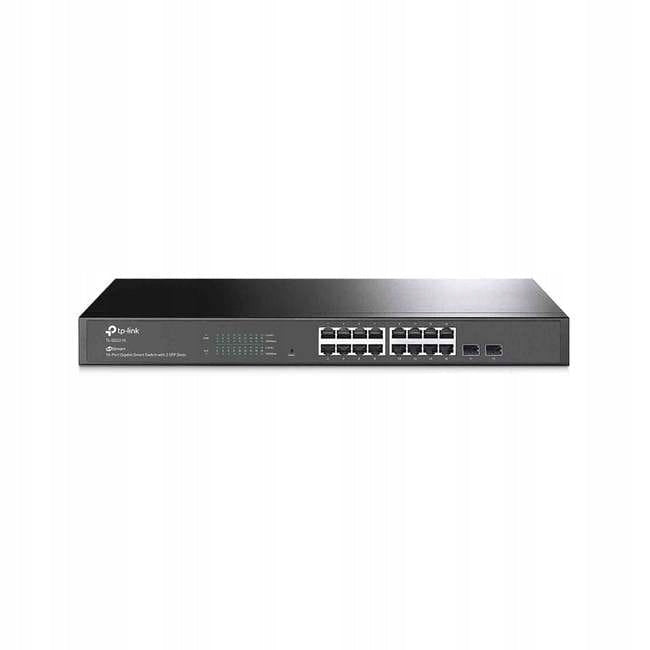

Komutatorius TP-Link TL-SG2218, 16 x 1 Gbit, 2 x SFP

Trumpai apie prekę

Prekė: Komutatorius TP-Link TL-SG2218, 16 x 1 Gbit, 2 x SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: TL-SG2218

JetStream Smart Switch, 16 Gigabit Ports, 2 SFP Slots

• Gigabit ports: 16 gigabit RJ45 ports and 2 gigabit SFP slots translate into stable high-speed connections.
• Operation integrated with the Omada SDN platform: Maintenance-free ZTP configuration, central cloud management and intelligent monitoring.
• Central management: Cloud access and the Omada app are a management convenience.
• Reliable security: Binding IP addresses, MAC and ports, ACL, Port Security, protection against DoS attacks, Storm Control, DHCP Snooping, 802.1X, authentication via Radius server and much more.
• Optimization of voice and video transmission: QoS L2/L3/L4 and IGMP Snooping.
• Self-management: The site, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image give great management capabilities.

Centralized management

Convenient gigabit switch for building a comprehensive Omada network

16 gigabit RJ45 ports and 2 gigabit SFP ports

Reliable gigabit ports

SDN solutions are fully integrated together to create high-performance networking

Centralized management in the cloud

Investing in LAN protection

Reliable security

Advanced Layer 2+ Features

QoS L2/L3/L4, ACL, static routing and more

Software-defined network infrastructure (SDN) control with cloud access

Omada’s software-defined network infrastructure control (SDN) platform integrates network devices, including access points, switches and network gateways, providing end-to-end central management from the cloud. Omada enables you to create a highly scalable network — fully controlled through a single interface. This translates into seamless wired and wireless connections that are essential in hospitality, education, retail, offices and many other industries and facilities.

Management via cloud or desktop controllers

Remote control of equipment in multiple locations

Maintenance-free ZTP configuration

Intelligent monitoring

Advanced Layer 3 Features

The extensive features of L2+ and L3 help you build a highly scalable and well-secured network that is reliable and efficient – ideal for offices, campuses and service providers.

Effective safeguards

IP-MAC-Port-VID binding, port protection, Storm Control and DHCP Snooping are the features of the TL-SG2218 switch that protect your network from threats. The device also gives you the ability to define the most common DoS attacks, so you can detect and prevent them early. In contrast, the ACL function (L2 to L4) applies when blocking access to specific network resources. The packet submission denied can be set for specific source or destination MAC addresses, IP addresses, TCP/UDP ports, or VLAN IDs. In addition, the switch uses 802.1X encryption in conjunction with RADIUS/Tacacs+ server functions to authenticate users seeking access to the network.

Functions of the L2+ layer

Thanks to the extensive layer two functions, including support for 802.1Q tag VLAN, port mirroring, STP/RSTP/MSTP, port aggregation and 802.3x flow control, TL-SG2218 switches are characterized by versatility of operation. The IGMP Snooping feature allows you to intelligently target multicast streams only to specific subscribers, and the IGMP Throttling and IGMP Filtering features effectively restrict unauthorized users from accessing multicast streams. The TL-SG2218 also supports static routing, which allows you to segment your network and increase its performance.

Advanced QoS features

To ensure better audio and video transmission in a single network traffic, network administrators can prioritize e.g. for individual IP addresses, MAC addresses, TCP or UDP ports, etc. This ensures that audio and video transmission is smooth and lag-free.

Facilities for service providers

TL-SG2218 is a great solution for Internet service providers due to the availability of the following features: sFlow, QinQ, L2PT, PPPoE ID Insertion and IGMP authentication. OAM 802.3ah and Device Connection Detection Protocol (DLDP) make network monitoring and management easier.

Support for IPv6

The switch supports many IPv6 functions, such as dual IPv4/IPv6, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 interface, PMTU Discovery and IPv6 Neighbor Discovery, so that the network fully fits into NGN standards, and replacing the hardware with a new one will not be necessary.

• TL-SG2218:
• Hardware Features:
• Ports:
• 16 RJ45 10/100/1000 Mbps ports
• 2 SFP slots
• Fanless: Yes
• Power supply: 100-240 V AC~50/60 Hz
• Dimensions: 440 × 180 × 44 mm (17,3 × 7,1 × 1,7 inches)
• Assembly: Rack-mountable
• Max energy consumption: 12,3 W (220 V/50 Hz)
• Amount of heat generated: 41,97 BTU/hr
• Efficiency:
• Capacity: 36 Gbps
• Package redirection speed: 26,8 Mp/s
• MAC address table: 8K
• Jumbo frames: 9 KB
• Software Features:
• Quality of Service:
• 8 queues of prioritization
• Support for 802.1p CoS/DSCP prioritization
• Priority Schedule Mode: (SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR)
• Bandwidth control
• Smoother operation
• Actions for flows
• L2 and L2+ functions:
• Link aggregation
• Spanning tree protocol (STP)
• Feedback loop detection
• Flow control
• Mirroring
• L2 Multicast:
• Support 511 IGMP groups (IPv4, IPv6)
• IGMP Snooping
• IGMP authentication
• MVR
• MLD Snooping
• Multicast transmission filtering: 256 profiles and 16 profile entries
• VLANs:
• VLAN groups
• Tagging 802.1Q VLAN
• MAC VLAN address: 12 entries
• VLAN protocol
• GVRP
• VLAN VPN (QinQ)
• Voice VLAN
• Access control lists:
• Time-based access control list (ACL)
• MAC ACL Address
• IP address of the ACL
• IPv6 ACLs
• Package Content ACL
• Combined ACL
• Access control policy
• ACL to port/VLAN
• Security of transmission:
• Binding IP, MAC and port addresses
• Binding IPv6, MAC and ports
• Protection against DoS attacks
• Protect ports through static/dynamic configuration
• Storm Control Broadcast/Multicast/Unicast
• IP/port/MAC based access control
• Authentication 802.1X
• AAA (including TACACS+)
• Port isolation
• Secure web management via HTTPS with SSLv3/TLS 1.2 encryption
• Secure CLI management with SSHv1/SSHv2 encryption
• IPv6:
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACLs
• IPv6 interface
• Static IPv6 routing
• Neighbor discovery (ND) used by IPv6 nodes
• Path maximum transmission unit (MTU) discovery
• ICMP v6
• TCP v6/UDP v6
• IPv6 applications:(DHCPv6 client, Ping6, Tracert6, Telnet (v6), SNMP IPv6, SSH IPv6, SSL IPv6, Http/Https, TFTP IPv6
• Features of the L3 switch:
• 16 IPv4/IPv6 interfaces
• Static routing
• Static ARP entries
• 316 ARP entries
• ARP proxy
• Gratuitous ARP
• DHCP server
• DHCP Relay
• DHCP L2 Relay
• Management:
• GUI graphical interface
• CLI command line interface via console and telnet port
• SNMP v1/v2c/v3
• SDM Template
• DHCP/BOOTP client
• LLDP/LLDP-MED 802.1ab
• Automatic DHCP installation
• Dual Image, Dual Configuration
• Monitoring CPU usage
• Diagnostics of cables
• EEE
• Password recovery
• SNTP
• System logs
• Advanced features:
• Support for Omada hardware controllers (OC200/OC300), software controller, cloud-based controller
• Automatic detection of devices
• Group configurations
• Group software updates
• Intelligent monitoring of network status
• Warnings of unusual events
• Unified configuration process
• Reboot schedule
• Maintenance-free ZTP configuration
• Other:
• Certificates: CE, FCC, RoHS
• Package Contents: TL-SG2218 Switch
• Power cable
• Installation instructions
• Mounting kit
• Rubber feet
• Working environment:
• Permissible operating temperature: 0℃~40℃ (32℉~104℉);
• Permissible storage temperature: -40℃~70℃ (-40℉~158℉);
• Permissible air humidity: 10%~90%, non-condensing
• Permissible storage humidity: 5%~90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Number of ports	18
Parametry	EAN (GTIN)	6935364006419
Parametry	Manufacturer code	TL-SG2218
