Komutatorius TP-LINK TL-SG116

Trumpai apie prekę

Prekė: Komutatorius TP-LINK TL-SG116. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: 1210002616980

Stable connections for multiple devices

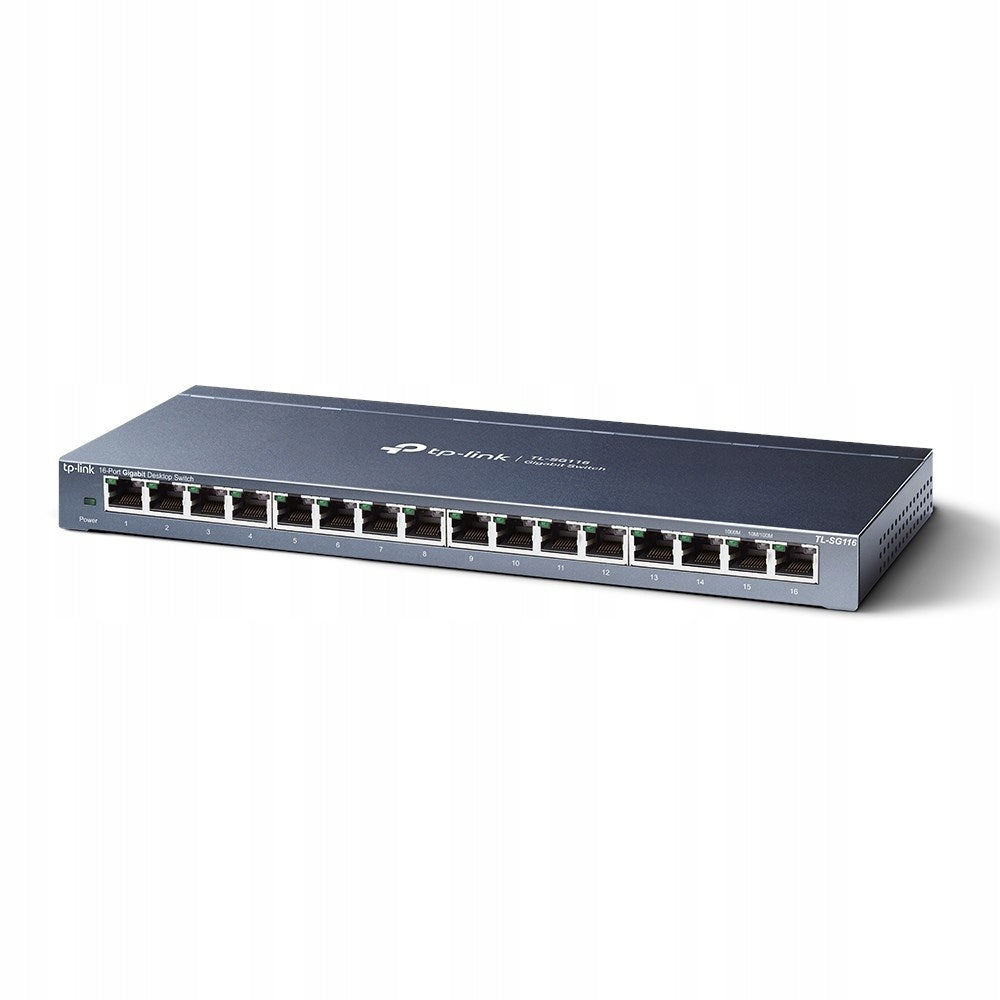

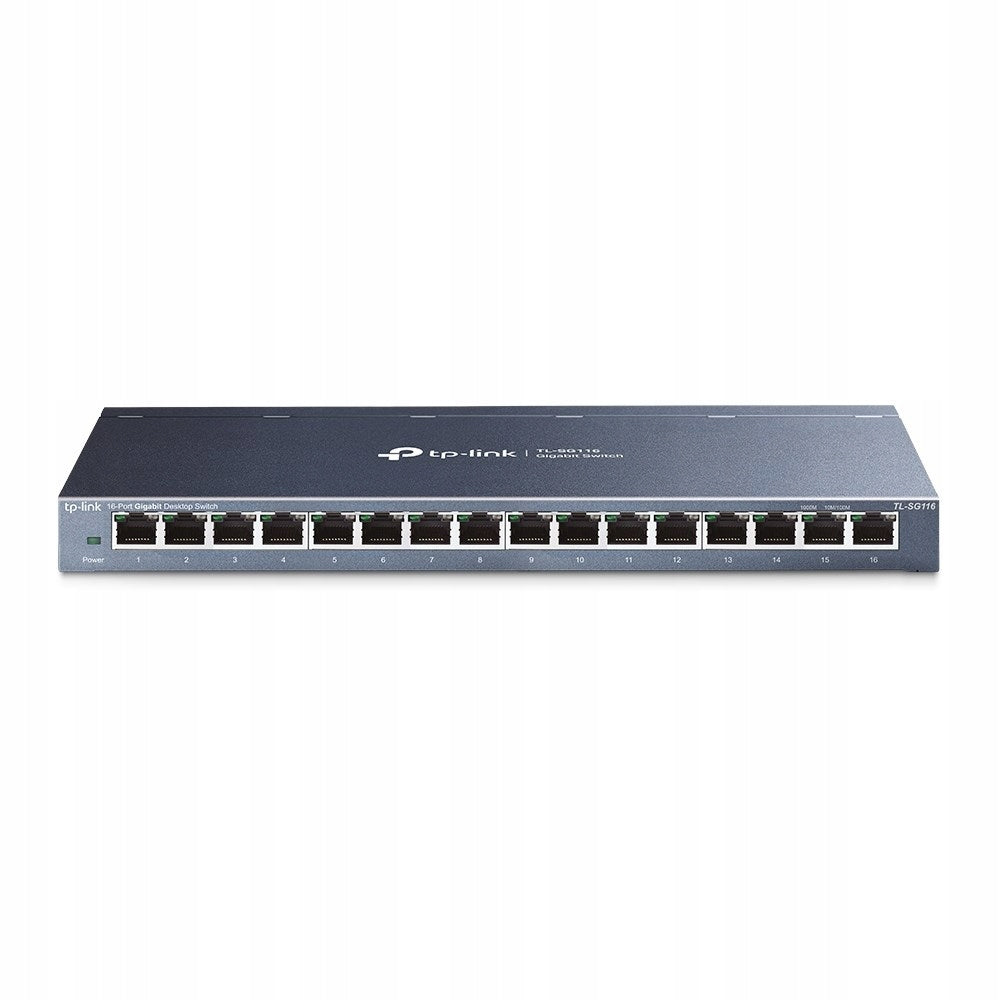

Switch TP-Link TL-SG116 is a practical solution for home, office and small business that allows you to conveniently expand your wired network. It offers multiple Gigabit Ethernet ports for fast data transfer between computers, TVs, consoles, NAS and other network devices. The automatic connection parameter recognition technology makes it easy to install and allows you to enjoy efficient communication without complicated setup.

Intelligent traffic management

Although the device acts as an unmanaged switch, it uses a number of features to improve the user experience. QoS support helps prioritize critical services such as online calls, video streams and online games. IGMP Snooping, VLAN support and flow control support orderly and stable operation of the infrastructure, while protection against network loops increases the reliability of the entire connection.

Robust construction and flexible installation

The metal casing ensures durability and works well in everyday use. The compact form factor allows you to set the switch on your desk or mount it on the wall, matching the device to the available space. Features such as automatic MDI/MDI-X, Jumbo frame support and store-and-forward design support seamless data exchange, while easy-to-read LEDs make it easy to quickly control call activity.

Product Features:

• Service Quality (QoS): Yes
• Product color: Black
• Support 10G: No
• Number of queues: 4
• Cable Types Supported: Cat3
• Port mirroring: Yes
• Connection aggregator: Yes
• Full duplex: Yes
• Number of VLANs: 32
• Harmonised system code (HS): 85176990
• Address table size: 8000 inputs
• Compatible with Jumbo Frames: Yes
• DC input voltage: 9 V
• Heat emission: 31,68 BTU/h
• Cable length measurement: Yes
• PoE support: No
• Product depth: 111,7 mm
• AC input voltage: 220 V
• Automatic MDI/MDI-X: Yes
• Input current: 0.6 A
• Store-and-forward: Yes
• Product width: 286 mm
• Movement increase control: Yes
• Copper Ethernet cabling technology: 1000BASE-T
• Auto-Negotiation: Yes
• Jumbo Frames extension: 9000
• Input frequency AC: 50 Hz
• Communication standards: IEEE 802.1p
• Basic RJ-45 switching Number of Ethernet ports: 16
• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Wall mountable: Yes
• Switch type: Not managed
• Short instruction manual: Yes
• IGMP snooping: Yes
• Frame mounting options: No
• Power consumption (max): 9,3 W
• Cables: AC
• Transfer speed: 23,81 Mpps
• Frequency limit: Yes
• Product height: 25,4 mm
• Flow control support: Yes
• Temperature range (operation): 0 - 40 °C
• LEDs: Yes
• Package buffer memory: 4,1 MB
• protection against entering the loop: Yes
• Temperature range (storage): -40 - 70 °C
• Number of Gigabit Ethernet ports: 16
• VLAN support: Yes
• Housing material: Metal
• Routing/switching throughput: 32 Gbit/s
• Power supply included: Yes
• Relative humidity range: 10 - 90%
• Admissible relative humidity: 5 - 90%
• Virtual LAN functions: Protocol-based VLAN
