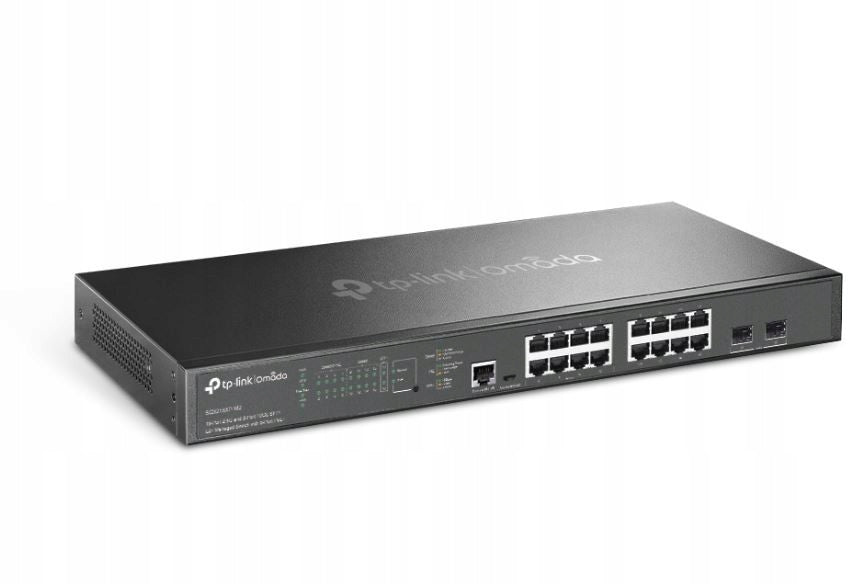

Komutatorius TP-Link SG3218XP-M2 Omada, 8x PoE+ 2,5 Gb/s, 8x 2,5 Gb/s, 2x SFP+

Trumpai apie prekę

Prekė: Komutatorius TP-Link SG3218XP-M2 Omada, 8x PoE+ 2,5 Gb/s, 8x 2,5 Gb/s, 2x SFP+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: TP-Link
• Modelis: SG3218XP-M2

SG3218XP-M2

• 2.5G ports for Wi-Fi 7/6E/6: 8 2.5G PoE+ ports and 8 2.5G ports without PoE reaching speeds of up to 2,5Gb/s, allows you to reach the full potential of Wi‑Fi 7/6E/6 access points
• Instant 10G connectivity: 2 10Gb/s SFP+ slots provide high bandwidth and non-blocking switching capability
• PoE power supply with a total power of 240 W: 8 PoE+ ports compliant with 802.3at/af standards, providing a total of 240 W* of power supply
• Integration with Omada SDN platform: Maintenance-free ZTP configuration**, Centralized Cloud Management and Intelligent Monitoring
• Central management: Cloud access and Omada app for management convenience
• Static routing: Facilitates the routing of internal traffic for more efficient use of network resources
• Reliable security: IP-MAC-Port address binding, ACL, Port Security, DoS attack protection, Storm Control, DHCP Snooping, 802.1X, RADIUS authentication and more
• Optimization of voice and video transmission: L2/L3/L4 QoS and IGMP snooping

Use the full potential of Wi-Fi 7/6E/6 with multi-gigabit PoE+ ports

The switch is equipped with 8 PoE+ ports with a speed of 2,5 Gbps, which is why it is already ready to build the network of the future, providing enough bandwidth to support Wi-Fi 7/6E/6 access points. The ability to transfer data and power via a single Ethernet cable and 240W of total PoE power* make finding the right location for the switch as well as end devices not problematic.

Business switch with Uplink 10G slots

Two 10 Gbps SFP+ slots provide non-blocking switching and reduce latency to a minimum. Thanks to this, connections to servers and other switches are established quickly and are characterized by high reliability.

Software control of network infrastructure (SDN) with access from the cloud

The Omada software-defined network infrastructure control (SDN) platform integrates network devices, including access points, switches and network gateways, providing end-to-end central management from the cloud. Omada enables you to create a highly scalable network — fully controlled through a single interface. This translates into seamless wired and wireless connections that are essential in hospitality, education, retail, offices and many other industries and facilities.

Access from Cloud

• Management via cloud or desktop controllers
• Managing multiple locations in the cloud
• Zero Touch

Advanced Layer 3 features***

The extensive features of L2+ and L3 help you build a highly scalable and well-secured network that is reliable and efficient – ideal for offices, campuses and service providers.

• Effective security

  IP-MAC-Port-VID binding, port protection, Storm Control and DHCP Snooping are the features of the SG3218XP-M2 switch that protect the network from threats. The device also gives you the ability to define the most common DoS attacks, so you can detect and prevent them early. In contrast, the ACL function (L2 to L4) applies when blocking access to specific network resources. The packet submission denied can be set for specific source or destination MAC addresses, IP addresses, TCP/UDP ports, or VLAN IDs. In addition, the switch uses the 802.1X protocol, which works in conjunction with the functions of the RADIUS/Tacacs+ server, to authenticate users seeking access to the network.

• L2+

  Thanks to the extensive functions of the L2+ layer, including support for VLAN 802.1Q tag, Port mirroring, STP/RSTP/MSTP, LACP link aggregation and 802.3x flow control function, SG3218XP-M2 switches are characterized by versatility of operation. The IGMP Snooping feature allows you to intelligently route multicast streams only to specific subscribers, and the IGMP Throttling and IGMP Filtering features effectively restrict unauthorized users from accessing multicast broadcasts. The SG3218XP-M2 also supports Static routing, which allows you to segment your network and increase its performance.

• Advanced QoS

  To ensure better audio and video transmission in a single network traffic, network administrators can prioritize e.g. for individual IP addresses, MAC addresses, TCP or UDP ports, etc. This ensures smooth and lag-free audio and video transmission.

• Functions for service providers***

  SG3218XP-M2 is a great solution for Internet service providers due to the availability of the following features: QinQ, L2PT, PPPoE ID Insertion and IGMP Authentication. OAM 802.3ah and Device Connection Detection Protocol (DLDP) make it easier to monitor, manage your network and troubleshoot Ethernet connections.

• IPv6 support

  The switch supports many IPv6 features, such as Dual IPv4/IPv6 stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 interface, PMTU Discovery and IPv6 Neighbor Discovery, so that the network fully fits into Next Generation Network (NGN) standards, without the need to replace hardware with a new one.

SG3218XP-M2:

Hardware Features:

• Ports:
• 16 RJ45 2,5 Gbps ports
• 2 SFP+ 10G Slots
• 1 RJ45 Console Port
• 1 MicroUSB console port
• Number of fans: 2
• Power supply: 100-240 V AC~50/60 Hz
• PoE ports (RJ45):
• Compliance with standards: 802.3at/af
• 8 PoE+ ports (802.3at PoE), up to 30W per port
• Total power supply PoE: 240 W
• Dimensions (S x G x W): 440 × 180 × 44 mm
• Assembly: Rack Mount
• Max Energy consumption: 299,4 W (110V/60Hz)(with 240 W connected PoE devices)
• Amount of heat generated: 1021,64 BTU/h (110 V/60 Hz) (with 240 W PoE devices connected)

Efficiency:

• Switching performance: 120 Gbps
• Package redirection speed: 89,28 Mp/s
• MAC address table: 16 K
• Package buffer: 12 Mb
• Jumbo frames: 9 KB
• Software Features:
• Quality of Service:
• 8 queues of prioritization
• Support for 802.1p CoS/DSCP prioritization
• Priority Schedule Mode
• Bandwidth control
• Smoother operation
• Flow actions: QoS remark (802.1P Remark, DSCP Remark)
• Features of the L3 switch:
• 32 IPv4/IPv6 interfaces
• Static routing
• Static ARP
• ARP proxy
• Gratuitous ARP
• DHCP server
• DHCP relay
• DHCP L2 Relay
• L2 and L2+ functions:
• Link aggregation
• Spanning Tree Protocol (STP)
• Loopback detection (Loopback)
• Flow control
• Mirroring
• L2 Multicast:
• IGMP Snooping
• IGMP authentication
• MLD Snooping
• MVR
• Multicast transmission filtering: 256 profiles and 16 profile entries
• Advanced features:
• Automatic detection of devices
• Group configurations
• Group software updates
• Intelligent monitoring of network status
• Warnings of unusual events
• Unified configuration process
• Reboot schedule
• VLANs:
• VLAN groups
• Tagging 802.1Q VLAN
• MAC VLAN address: 256 entries
• VLAN protocol: Protocol 16 template, Protocol 16 VLAN
• GVRP
• VLAN VPN (QinQ)
• Voice VLAN
• Access control lists:
• Time-based access control list (ACL)
• MAC ACL Address
• IP address of the ACL
• Combined ACL
• Package Content ACL
• IPv6 ACLs
• Access control policy
• Application of ACL to Port/VLAN
• Security of transmission:
• Binding IP, MAC and Port addresses
• Binding IPv6, MAC and Ports
• Protection against DoS attacks
• Protect ports through static/dynamic configuration
• Storm Control Broadcast/Multicast/Unicast
• Authentication 802.1X
• AAA (including TACACS+)
• Port isolation
• Secure web management via HTTPS with SSLv3/TLS 1.2 encryption
• Secure CLI management with SSHv1/SSHv2 encryption
• IP/Port/MAC access control
• IPv6:
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACLs
• IPv6 interface
• Static IPv6 routing
• Neighbor discovery (ND) used by IPv6
• Maximum transmission unit (MTU) path detection
• ICMP v6
• TCP v6/UDP v6
• Applications of IPv6
• MIB:
• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support for private TP-Link MIB

Management:

• Omada app: Yes. Requires the use of OC300 Controller, OC200 Controller, Cloud-based Omada Controller or Omada Software Controller.
• Central management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud access: Yes. Requires the use of OC300 Controller, OC200 Controller, Cloud-based Omada Controller or Omada Software Controller.
• Support-free ZTP configuration: Yes. Requires the use of a cloud-based Omada Controller.
• Management panel functions:
• GUI graphical interface
• CLI command line interface via console port, Telnet
• SNMPv1/v2c/v3
• SDM Template
• DHCP/BOOTP client
• 802.1ab LLDP/LLDP-MED.
• Automatic DHCP installation
• Dual Image, Dual Configuration
• Monitoring CPU usage
• Diagnostics of cables
• EEE
• Password recovery
• SNTP
• System logs

Other:

• Certificates: CE, FCC, RoHS

Content of the package:

• SG3218XP-M2
• Power cable
• Quick installation instructions
• Rack Cabinet Mounting Kit
• Rubber feet

System requirements:

• Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7, 8, 10, 11”
• MAC® OS
• NetWare®
• UNIX®
• Linux

Working environment:

• Permissible operating temperature: 0℃~50℃ (32℉~122℉);
• Permissible storage temperature: -40℃~70℃ (-40℉~158℉);
• Permissible air humidity: 10%~90%, non-condensing
• Permissible storage humidity: 5%~90%, non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Number of ports	18
Parametry	EAN (GTIN)	4897098689721
Parametry	Manufacturer code	SG3218XP-M2
Parametry	Packaging status	original
