Komutatorius Planet WGS-4215-8T2S, pagal užsakymą

Trumpai apie prekę

Prekė: Komutatorius Planet WGS-4215-8T2S, pagal užsakymą. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: WGS-4215-8T2S

Planet WGS-4215-8T2S on request

Planet

Easy installation and network expansion

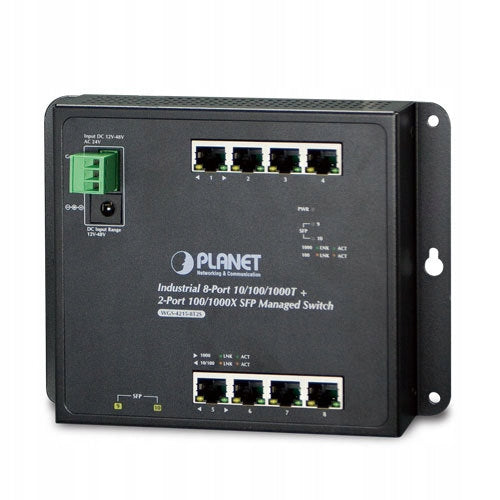

Designed for wall-mount installation or simply wall-mounted anywhere convenient, the PLANET WGS-4215-8T2S, an innovative industrial 8-port 10/100/1000T + 2-port 100/1000X SFP wall-mountable managed switch, offers IPv6/IPv4 dual stack management, intelligent layer 2 management features and a user-friendly interface. The WGS-4215-8T2S is able to operate reliably, stably and quietly in any environment without affecting its performance. Featuring an ultra-fast network and operating temperatures from -40 to 75 degrees C in a compact yet durable IP30 metal housing, the WGS-4215-8T2S is the ideal solution to meet the demand for the following network applications:

• Building/Home Automation Network
• Internet of Things (IoT)
• IP monitoring
• Wireless LAN

Cybersecurity networking solution to minimize security risks

The WGS-4215-8T2S supports SSHv2 and TLS protocols, providing strong protection against advanced threats. It includes a number of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, 802.1x port-based network access control, RADIUS and TACACS+ user account management, SNMPv3 authentication and so on to complement it as a full security solution.

Redundant ring, fast recovery for critical network applications

The WGS-4215-8T2S supports redundant ring technology and has a strong, fast self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) in the client network to increase system reliability and uptime in a variety of environments.

Innovative wall-mounted installation

The WGS-4215-8T2S is specifically designed for installation in a narrow environment such as a wall enclosure. Compact, flat and wall-mounted design easily fits in any space with limited space. It adopts user-friendly "Front Access" design, making the installation, wiring, LED monitoring and maintenance of the WGS-4215-8T2S placed in the housing very convenient for technicians. The WGS-4215-8T2S can be installed through fixed wall mounting, magnetic wall mounting or DIN rail, making its usability more flexible.

Dual power input for high availability network system

The WGS-4215-8T2S has a strong dual power input system (12V~48V DC or 24V AC) incorporated into the customer automation network to increase system reliability and run time. In the following example, when the 3-pin terminal block stops working, the hardware failover function will be activated automatically to continue powering the WGS-4215-8T2S with the DC plug alternatively without loss of operation.

Environmental resistant design

With IP30 protection, a flat but durable metal housing, the WGS-4215-8T2S provides a high level of resistance to electromagnetic interference and strong electrical surges that typically occur in production halls or curbside motion control cabinets without air conditioning. Being able to operate in the temperature range from -40 to 75 degrees C, the WGS-4215-8T2S can be placed in almost any harsh environment.

IPv6/IPv4 dual stack management

Supporting both IPv6 and IPv4 protocols, the WGS-4215-8T2S helps small and medium-sized businesses enter the IPv6 era with the lowest capital expenditures, as its network devices do not need to be replaced or renovated if the IPv6 FTTx edge network is configured.

Advanced Layer 2 features

The WGS-4215-8T2S can be programmed for advanced switch management features such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping and MLD Snooping. With link aggregation, the WGS-4215-8T2S allows you to connect high-speed connectivity to multiple ports, such as 16 Gbps fat pipe, and also supports failover. In addition, Link Layer Discovery Protocol (LLDP) is a Layer 2 protocol that helps detect basic information about neighboring devices in your local broadcast domain.

Efficient motion control

The WGS-4215-8T2S is equipped with robust QoS capabilities and efficient traffic management to enhance business-class data, voice and video solutions. The functionality includes broadcast/multicast/unicast storm control, bandwidth control for each port, 802.1p/CoS/IP DSCP QoS priorities, and adding notes. This ensures the best performance for VoIP transmissions and video streams, and enables enterprises to take full advantage of limited network resources.

Powerful security

PLANET WGS-4215-8T2S offers a comprehensive IPv4/IPv6 Layer 2 to Layer 4 access control (ACL) list to enforce security at the network edge. It can be used to restrict network access by rejecting packets based on source and destination IP addresses, TCP/UDP ports, or defined common network applications. The protection mechanism also includes user and device authentication based on 802.1X ports, which can be implemented with RADIUS to ensure port-level security and block illegal users. With the protected port feature, communication between edge ports can be prevented to guarantee user privacy. What’s more, the port security feature allows you to limit the number of network devices on a given port. Network administrators can now build highly secure enterprise networks with much less time and effort than before.

Friendly and secure management

For efficient management, the WGS-4215-8T2S is equipped with command line management interfaces, web and SNMP.

• With its built-in Web-based management interface, the WGS-4215-8T2S offers easy-to-use, platform-agnostic management and configuration features.
• Text management can be accessed via Telnet and the console port. With support for the standard SNMP protocol, the switch can be managed using any SNMP-based management software.
• What’s more, the WGS-4215-8T2S offers secure remote management with support for SSHv2, TLSv1.2 and SNMP v3 connections that encrypt packet content during each session.

Flexibility and solution for long-distance expansion

The two mini-GBIC slots built into the WGS-4215-8T2S support automatic SFP detection and dual speed as they are equipped with 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber optic transceivers to connect to the backbone switch and long-distance monitoring center. The distance can be increased from 550 meters to 2 kilometers (multimode fiber) and to more than 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for use in enterprise data centers and distributions.

Intelligent SFP diagnostic mechanism

The WGS-4215-8T2S supports SFP-DDM (Digital Diagnostic Monitor) function, which can easily monitor real-time SFP parameters for network administrator, such as optical output power, optical input power, temperature, laser polarization current and transceiver supply voltage.

Ready to work with IoT generation

The Internet is very popular all over the world, because users surf the web every day using their mobile devices, such as smartphones, tablets or laptops. However, users expect more from the convenience of the Internet, such as how to use mobile devices to control something over the Internet, making life more convenient. The WGS-4215-8T2S builds on this concept to help users deploy the Internet of Things (IoT) on their SOHO/home network. Home automation is no longer a dream, as a gigabit network can easily connect IoT devices in the cloud to create a smart home.

• Redundant Power Supply: No
• Management: Yes
• Primary Port Type: RJ45
• Primary Port Throughput: Gigabit Ethernet
• PoE Support: No
• Quantity per Master Carton: 20 pcs
• Height: 2.42 cm
• Width: 17.8 cm
• Depth: 13.4 cm
• Weight: 0.663 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	8
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	4711605281331
Parametry	Manufacturer code	WGS-4215-8T2S
