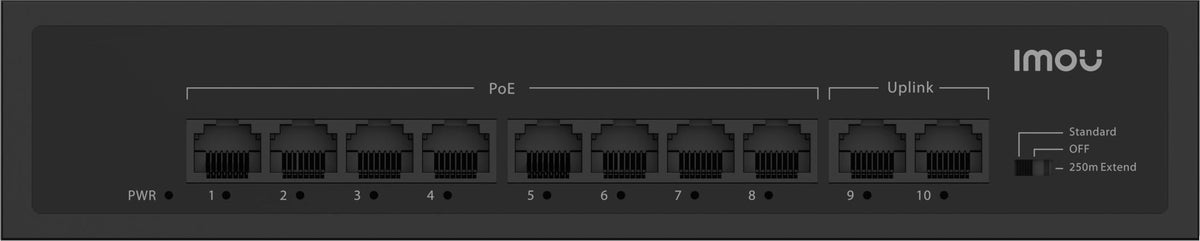

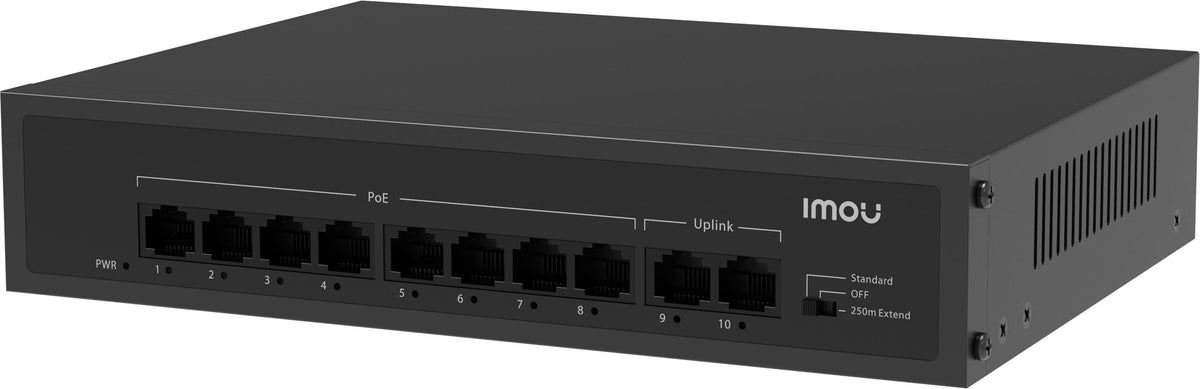

Komutatorius Imou SF110P, 10 jungčių, 8x PoE, 2x uplink

Trumpai apie prekę

Prekė: Komutatorius Imou SF110P, 10 jungčių, 8x PoE, 2x uplink. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Imou
• Modelis: SF110P-65

Imou SF110P is an efficient and reliable 10-port PoE switch, designed for IP monitoring systems and network installations requiring stable power supply to PoE devices. Equipped with 8 PoE ports 10/100 Mbps and 2 Uplink ports, it enables simultaneous data transmission and power supply to IP cameras, access points or other network devices. With support for IEEE 802.3af/at, a power budget of 65 W and Long Range PoE up to 250 m, the SF110P provides a practical solution for home, office and professional CCTV installations. Robust metal housing and Plug & Play technology guarantee durability and quick commissioning without complicated configuration.

• 8 PoE ports 10/100 Mbps + 2 Uplink ports 10/100 Mbps
• Support IEEE 802.3af / 802.3at standards
• PoE power budget up to 65 W
• Up to 30W of power per single PoE port
• PoE Long Range up to 250 m – ideal for IP monitoring
• Metal housing for increased durability of the device
• Plug & Play – quick installation without configuration
• Unmanaged Switch – simple and stable operation
• Overvoltage protection up to 4 kV
• Desktop or wall mount
• Stable operation at temperatures from -10°C to +55°C
• Ideal for IP cameras, CCTV systems and PoE devices

Ports and Network

• Model: Imou SF110P
• Device type: PoE switch unmanaged (Unmanaged)
• Network ports:8 × 10/100 Mbps PoE RJ45
• 2 × 10/100 Mbps Uplink RJ45
• Chipset: IP178G + IP175G

PoE and Power

• PoE standard: IEEE 802.3af / 802.3at
• Total PoE power budget: ≤65 W
• Maximum power per port: ≤30 W (Port 1 to 4)
• PoE Long Distance: up to 250 m
• Plug & Play: yes

Efficiency

• Switch type: Unmanaged (unmanaged)
• Switching Capacity: 1.6 Gbps
• Package forwarding speed: 1.488 Mpps
• MAC address table: 2K

Protection and Stability

• Overvoltage protection:Common Mode: 4 kV
• Differential Mode: 2 kV
• Stable data and PoE power transmission

Power supply

• Power Input: AC 100–240 V
• Power supply output: 52 V / 1.25 A / 65 W

LED signaling

• 1 × Power LED
• 10 × Link / Activity (Link/Ack) LED

Housing and Assembly

• Housing material: metal
• Type of assembly:desktop (Desktop)
• wall-mounted (Wall-mount)

Working conditions

• Working temperature: -10°C to +55°C
• Working humidity: 10–90%

Dimensions

• Dimensions: 220 × 162 × 43.2 mm

Application

• CCTV / IP monitoring systems
• PoE cameras
• PoE access points and network devices
• Home, office and professional installation
