Komutatorius DGS-3130-30S, 24x SFP, 2x 10Gb, 4x SFP+

Trumpai apie prekę

Prekė: Komutatorius DGS-3130-30S, 24x SFP, 2x 10Gb, 4x SFP+. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: D-Link
• Modelis: DGS-3130-30S/E

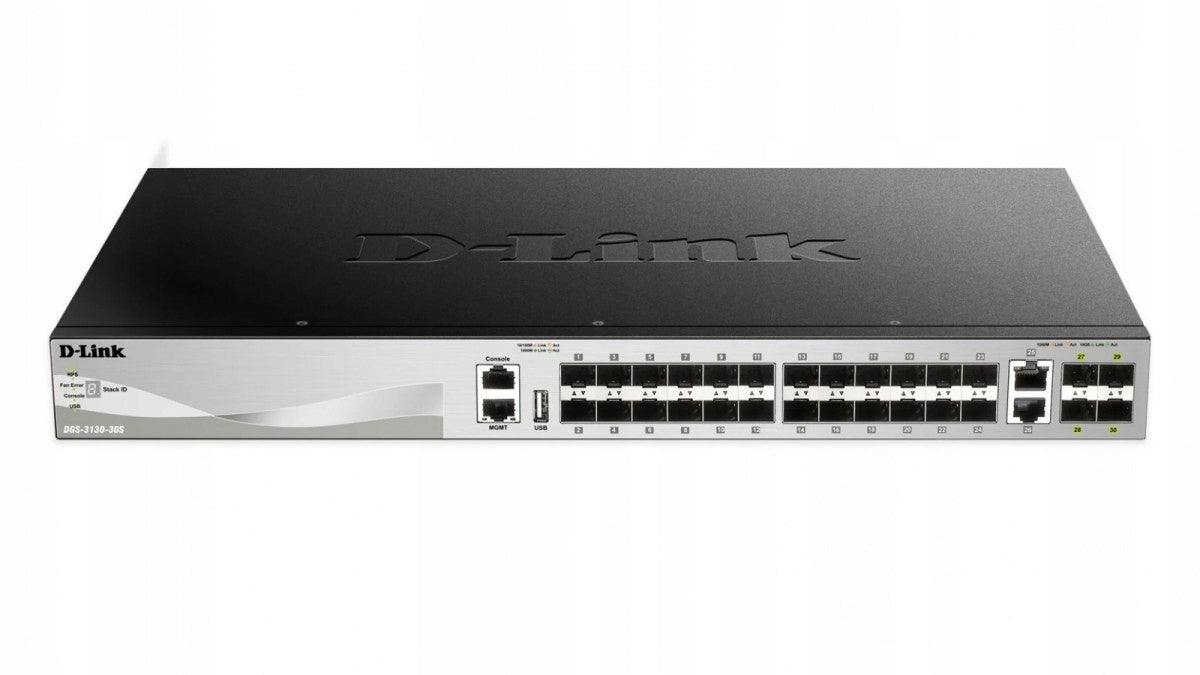

Switch DGS-3130-30S 24xSFP 2x10GB 4xSFP+

D-Link

The DGS-3130 series of managed Layer 3 switches are designed for small and medium-sized business networks, combining L2 and L3 layer functions. These devices can be deployed in a variety of configurations and topologies, which provides great flexibility. Each switch can be connected to others by creating a single physical or virtual stack, which increases redundancy, simplifies management, and enables you to manage the whole thing with a single IP address.

The DGS-3130 features advanced security options such as multi-layer access control lists (ACLs), Storm Control and IP-MAC-Port Binding (IMPB) along with DHCP Snooping. They support a variety of authentication mechanisms, including 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC), which enables fine-grained access control.

With a wide range of QoS/CoS features, the DGS-3130 series ensures that key network services such as VoIP, video conferencing, IPTV and IP monitoring are always prioritized, ensuring their reliability and performance.

• class_switch: Managed
• application: Medium and large companies (over 16 ports)
• switching_layer: L3
• network_architecture: GigabitEthernet
• number of_ports_10_100_mbps: None
• number of_ports_10_100_1000_mbps: 1
• number of_ports_10_100_1000_2500_mbps: None
• number of_ports_10gb: 2
• number of_ports_poe: None
• number of_ports_poe_plus: None
• number of_ports_combo: None
• number of_ports_sfp: 24
• number of_ports_sfp_plus: 4
• number of_ports_sfp56: None
• number of_ports_qsfp_plus: None
• port_console: Yes
• forward_mode: Store-and-forward
• throughput: 168 GB/s
• forwarding speed: 125 MB/s
• memory buffer: 2 MB
• size_array_addresses_mac: 16000
• support_frame_jumbo: No
• size_frame_jumbo: 9 KB
• possibility of_linking_w_stack: Yes
• maximum_number of_devices_in_stack: 9
• vlan: Max. Groups VLAN 4K Max. 1~4094 VID GVRP Max. Dynamic 4K VLAN Groups
• functions_l3: IPv4 ARP Entries 2048 512 Static ARP IPv6 ND Entries:1024 128 Static ND Entries
• type_housing: Rack
• fan: Yes
• Power Supply: Internal
• power consumption: 82.4 W
• time_work_between_failures: 487153 h
• dimensions: 440 x 250 x 44 mm
• weight: 3.21 kg

Specifications
