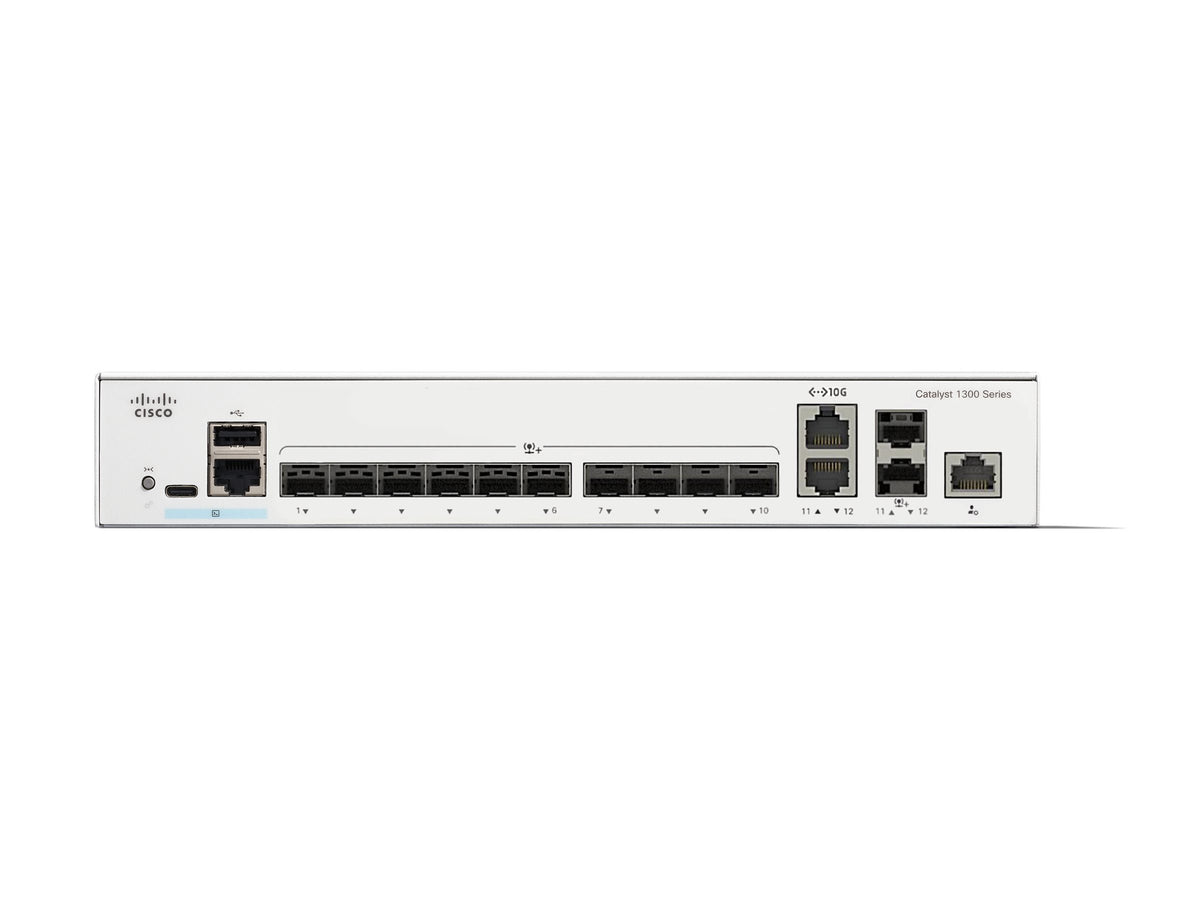

Komutatorius Cisco Catalyst C1300-12XS, 12 jungtys

Trumpai apie prekę

Prekė: Komutatorius Cisco Catalyst C1300-12XS, 12 jungtys. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: C1300-12XS

Cisco Catalyst C1300-12XS. Switch type: Managed, Multilayer switch: L2/L3. Address table size: 16000 inputs, Routing/switching throughput: 240 Gbit/s. Communication standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE... Possibilities of mounting in the frame

✏️ Key Technical Specifications:

• Data Transmission - Routing/Switching Throughput: 240 Gbit/s
• Data Transmission - MAC Address Table Size: 16000 entries
• Data Transmission - Number of Queues: 8
• Data Transmission - Static Route: Yes
• Data Transmission - Jumbo Frames Support: Yes
• Data Transmission - Jumbo Frame Size: 9000 bytes
• Data Transmission - Packet Buffer Memory: 3 MB
• Multicast Features - Multicast Support: Yes
• Protocols - GARP VLAN Registration Protocol (GVRP): Yes
• Protocols - IPv4 and IPv6 Features: ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
• Security - Access Control List (ACL): Yes
• Security - DHCP Features: DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
• Security - Access Control List (ACL) Policies: 1024
• Security - Encryption / Security: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
• Security - IGMP Snooping: Yes
• Security - IGMP Proxy: Yes
• Security - SSH/SSL Support: Yes
• Security - VLAN Support: Yes
• Security - Authentication Type: RADIUS, TACACS+
• Security - Authentication: MAC-based authentication, Web-based authentication
• Security - Queue Scheduling Algorithms: Weighted Round Robin (WRR)
• Management Features - Switch Type: Managed
• Management Features - Multi-Layer Switch: L2/L3
• Management Features - Quality of Service (QoS) Support: Yes
• Management Features - Reset Button: Yes
• Management Features - Command-Line Interface (CLI) Configuration: Yes
• Management Features - MIB Support: Yes
• Performance - Built-in Processor: Yes
• Design - Rack Mountable: Yes
• Ports and Interfaces - 10G Ethernet Ports (Copper): 2
• Ports and Interfaces - SFP+ Module Slots: 10
• Ergonomics - LED Indicators: Yes
• Power - Power Source: AC
• Power - AC Input Voltage: 100 - 220 V
• Power - AC Input Frequency: 50/60 Hz
• Power - Power Plug Type: Type C
• Operating Conditions - Operating Temperature Range: -5 - 50 °C (23 - 122 °F)
• Operating Conditions - Storage Temperature Range: -25 - 70 °C (-13 - 158 °F)
• Operating Conditions - Relative Humidity Range: 10 - 90%
• Operating Conditions - Allowable Relative Humidity: 10 - 90%
• Network - Networking Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Network - Port Mirroring: Yes
• Network - Policy-Based Routing: Yes
• Network - Link Aggregation: Yes
• Network - Traffic Shaping: Yes
• Network - Rate Limiting: Yes
• Network - Spanning Tree Protocol: Yes
• Network - Head-of-Line (HOL) Blocking: Yes
• Network - Virtual LAN Features: Private VLAN, Voice VLAN
• Features - Product Color: Gray
• Logistics Data - Country of Origin: China
• Packaging Data - Package Depth: 402.3 mm
• Packaging Data - Package Weight: 3.55 kg
• Weight & Dimensions - Product Weight: 2.67 kg
• Weight & Dimensions - Product Width: 300 mm
• Weight & Dimensions - Product Depth: 268 mm
• Weight & Dimensions - Product Height: 44 mm
• Classification - Manufacturer Code: C1300-12XS
• Classification - EAN: 889728521598
• Classification - Product ID: 118618147
