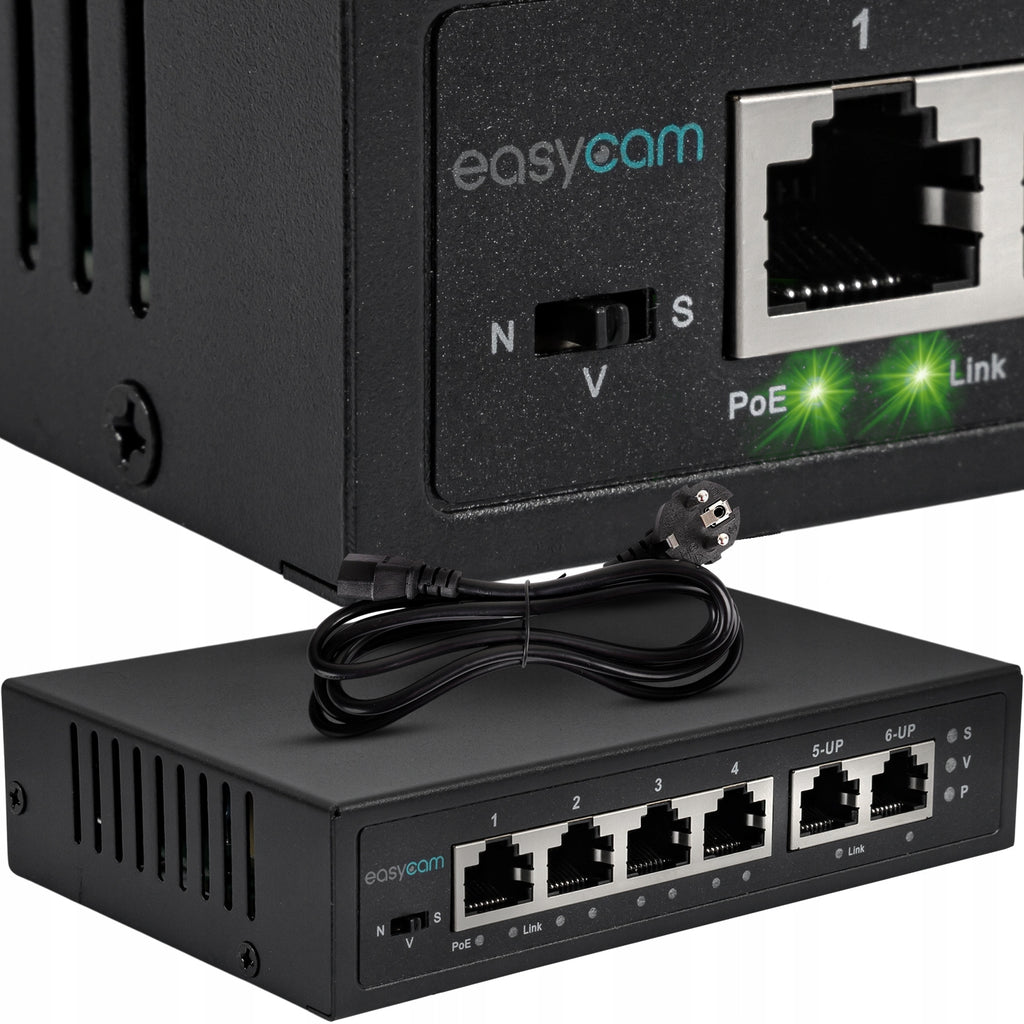

Komutatorius 4x PoE 10/100Mbps, 2x uplink, 60W, tinkantis EasyCam stebėjimo kameroms

Trumpai apie prekę

Prekė: Komutatorius 4x PoE 10/100Mbps, 2x uplink, 60W, tinkantis EasyCam stebėjimo kameroms. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: EC-POE-SW42

Switch PoE EasyCam EC-POE-SW42 is a compact yet extremely versatile solution that provides simultaneous data transmission and power to network devices. Designed for monitoring installations, expansion of the company network and Wi-Fi systems – it guarantees stability of operation and simplified installation in all conditions.

• Network standard: IEEE802.3 IEEE802.3U IEEE802.3x IEEE802.3af IEEE802.3at
• Ports: 4 x 10/100Mbps RJ45 PoE 2 x 10/100Mbps RJ54
• PoE Standard: IEEE802.3af/at (PoE Pin 12+/36-) Maximum port load: 30W
• Watchdog: Support automatic detection
• Function switch: Automatic device test with PING function, in the absence of communication, there is a reset at the output of the device.
• Transmission method: Store-and-Forward
• Switching speed: 1.6Gbps
• MAC address table: 1000
• Buffer: 768K
• Transmission range: 10BASE-TX: Cat3, 4, 5 UTP (250 meters) 100BASE-TX: Cat3, 4, 5 UTP (150 meters)
• LED status: P: Power status V: Port isolation mode (VLAN) S: Super mode (250m) PoE: PoE power supply (orange) Link: 10/100M Connection status (green)
• Usage environment: Working temperatures: 0°C - 40°C Storage temperature: -40°C – 75°C Air humidity: 10%-90%
• Weight: 0.55 kg
• Security level: 3KV 8/20 μf IP30
• Dimensions: Device: 95x105x33mm Packaging: 197x170x49mm
• Housing: Desktop
• Power supply: 110-240Vac 50/60Hz 1.1A Max
• PoE budget: 60W

The EasyCam EC-POE-SW42 switch is designed to maximize network infrastructure simplification. Thanks to PoE technology, both data transmission and power supply are carried out using a single cable, which reduces the amount of wiring, accelerates installation and minimizes installation costs.

Three operating modes allow you to customize the device for different applications:

• Standard: classic networking for everyday use,
• VLAN: port isolation — protection against the spread of unnecessary network traffic,
• Long Range (Super Mode): increased transmission range up to 250 meters.

The device is perfect for CCTV installations. It will easily power IP cameras, Wi-Fi access points or VoIP phones, eliminating the need for additional power supplies. The extended range function enables stable data transmission even over a distance of up to 250 meters – which is sometimes crucial in large outdoor and industrial installations.

Thanks to the Watchdog function, the switch independently monitors the stability of connected devices. If a port fails or crashes, it immediately resets it, restoring the smooth operation of the network without the need for manual intervention.

High quality and metal, solid housing protect the device against mechanical damage and electromagnetic interference. The built-in 3KV surge protection protects your network devices from voltage spikes, and the wide temperature range guarantees reliability even in less favorable conditions.

✔ Combination of power supply and transmission in one cable

✔ Automatic port reset function

✔ Support for monitoring and office networks

✔ Transmission range up to 250 meters

✔ Solid metal housing

✔ Surge protection

✔ VLAN mode for added security

Bet on the stability, flexibility and security of your network – choose EasyCam EC-POE-SW42 and have control over every detail of your infrastructure.

Specifications
