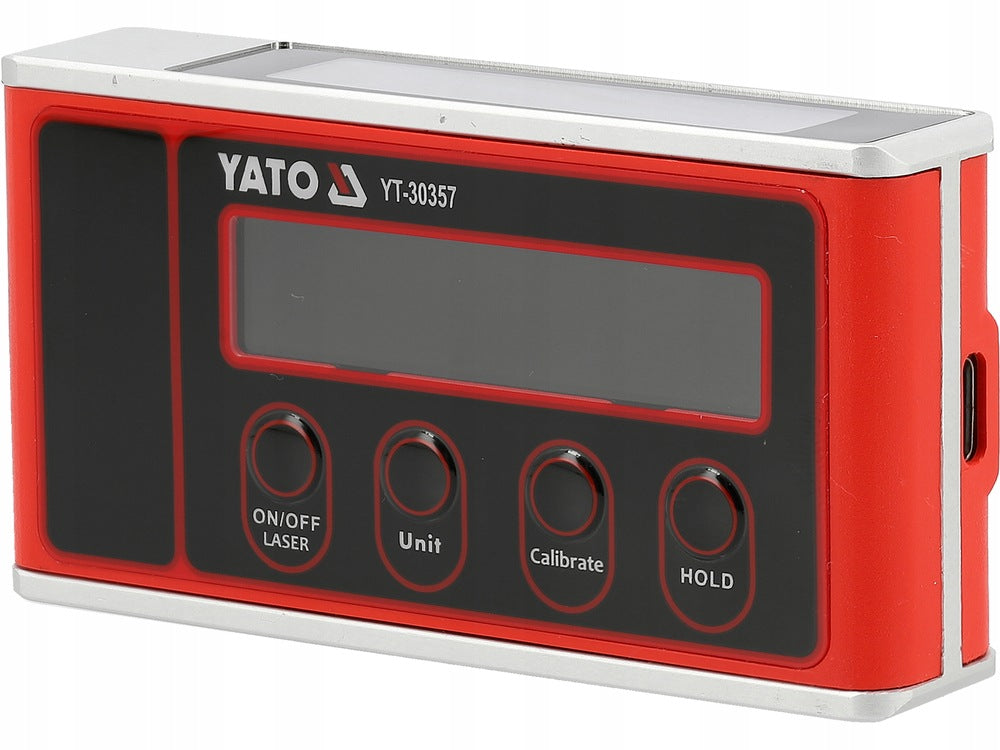

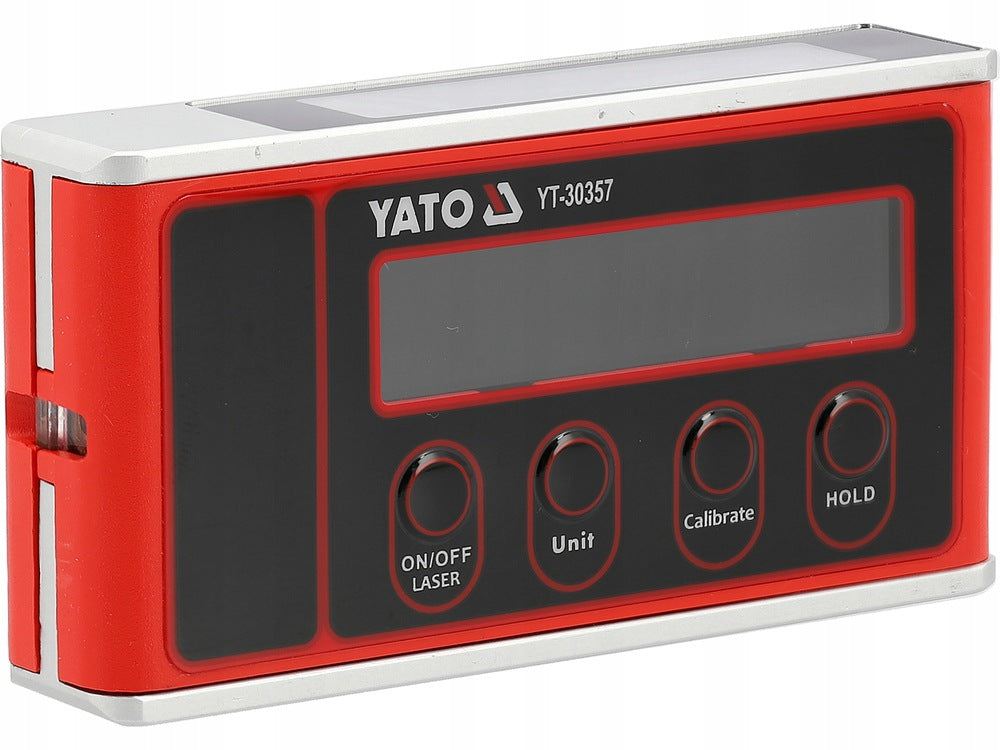

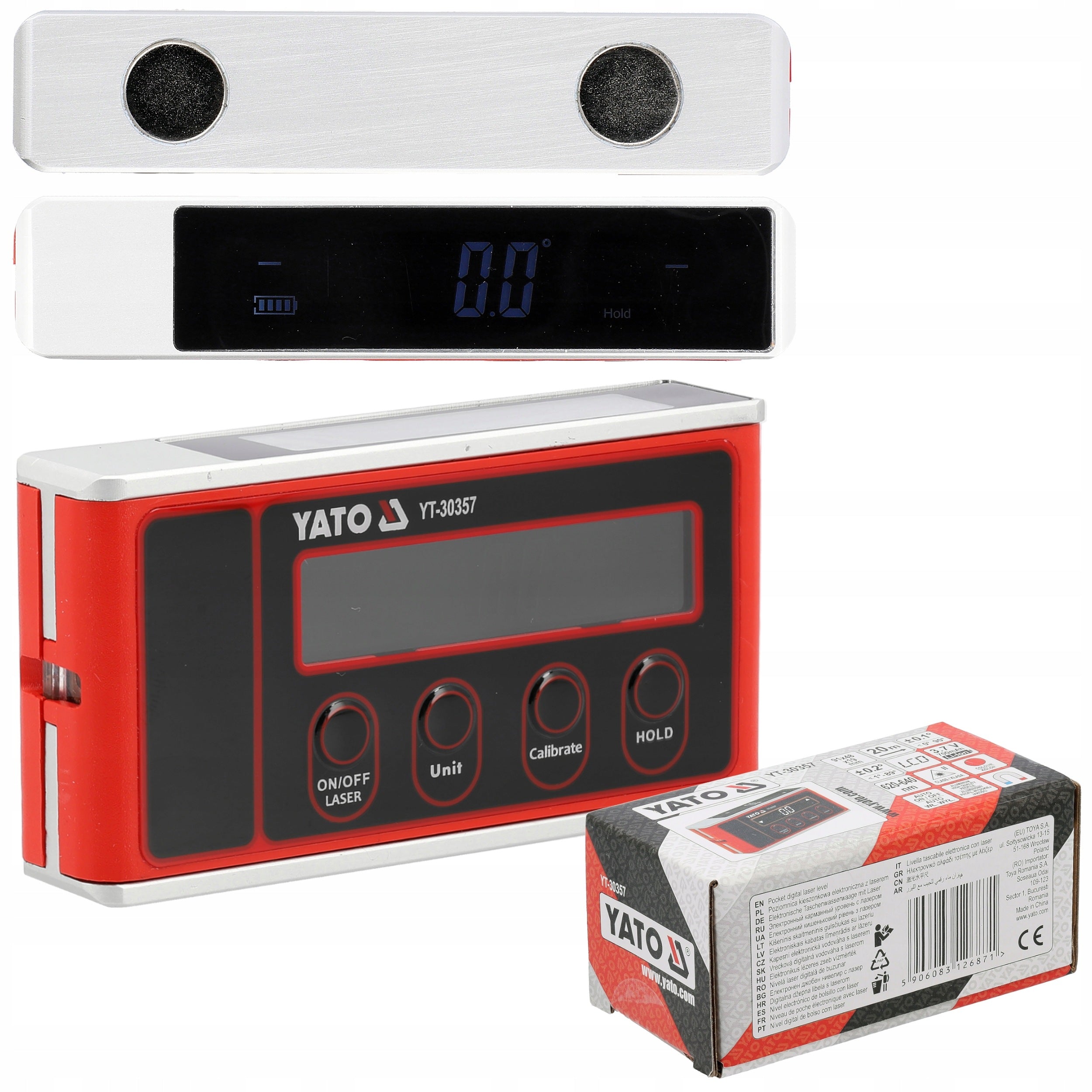

Kišeninis gulsčiukas su lazeriu YATO, magnetinis, LCD ekranas

Trumpai apie prekę

Prekė: Kišeninis gulsčiukas su lazeriu YATO, magnetinis, LCD ekranas. Kategorija: Lazeriniai nivelyrai.

• Gamintojas: Yato
• Modelis: YT-30357

✅Laser measurement accuracy

Electronic pocket level with laser YT-30357 is a multifunctional measuring instrument designed to control the level, vertical and angle of inclination, as well as to determine the reference line during assembly and finishing works.

❇ The built-in laser enables fast routing and precise positioning of components, while the electronic measuring system ensures high accuracy of indications.

❇ The compact design of the works well both during workshop work and field installation.

❇ The device is equipped with a clear LCD display with automatic rotation of indications, the function of stopping the measurement result and a Li-Ion battery charged via USB-C port.

❇ Aluminum profile and magnet in the base allow stable attachment to steel elements, increasing comfort and precision of measurements.

✳ electronic measurement of level, vertical and angle of inclination

✳ built-in laser for routing and determining reference lines

✳ laser range: up to 20 m

✳ measuring range: 0°-90°

✳ accuracy:

✳ ±0,1° for 0° and 90° positions

✳ ±0,2° in the range 1°-89°

✳ red laser with a wavelength of 620-640 nm

✳ laser power: < 1 mW

✳ laser class: II

❎LCD display with 180° auto-rotation of readings

❎Option to display results in different units:

❎degrees

❎percent

❎inches per foot (decimal)

❎inches per foot (fraction)

❎millimeters per meter (mm/m)

❇ HOLD function to stop the measurement result

❇ calibration button for high measurement accuracy

❇ automatic shutdown after about 180 s of inactivity and the possibility of manual shutdown

❇ battery level indicator with four-segment battery symbol

❇ built-in Li-Ion 3,7 V / 700 mAh battery

❇ charging via USB Type-C port

❇ high quality aluminium profile

❇ magnet for mounting to steel surfaces

❇ compact dimensions: 91 x 48 x 19 mm

❇ mass: 92 g

✅Application:

✳ determining the reference line during assembly and routing

✳ control of the level, vertical and angle of inclination of elements

✳ assembly of furniture, steel structures and bodies

✳ installation, renovation and finishing works requiring precise positioning of elements

✅Detailed technical data:

❎Laser range: up to 20 m

❎Measuring range: 0°-90°

❎Accuracy (0° and 90°): ±0,1°

❎Accuracy (1°-89°): ±0,2°

❎Laser wavelength: 620-640 nm

❎Laser power: < 1 mW

❎Laser class: II

❎Display rotation: 180°

❎Automatic shutdown: after about 180 s

❎Battery: Li-Ion 3,7 V / 700 mAh

❎Charging: USB Type-C port

❎Dimensions: 91 x 48 x 19 mm

❎Weight: 92 g

⚠ Warnings for use:

Attention! Laser radiation. Do not stare at the laser beam. Class 2 laser device.
