Keturių kolonų keltuvas TW 445E-400-G, 4,5 t

Trumpai apie prekę

Prekė: Keturių kolonų keltuvas TW 445E-400-G, 4,5 t. Kategorija: Keltuvai stulpams.

• Gamintojas: Twin Busch
• Modelis: TW445E-400-G

✅ Reputable brand

Twin Busch® Germany

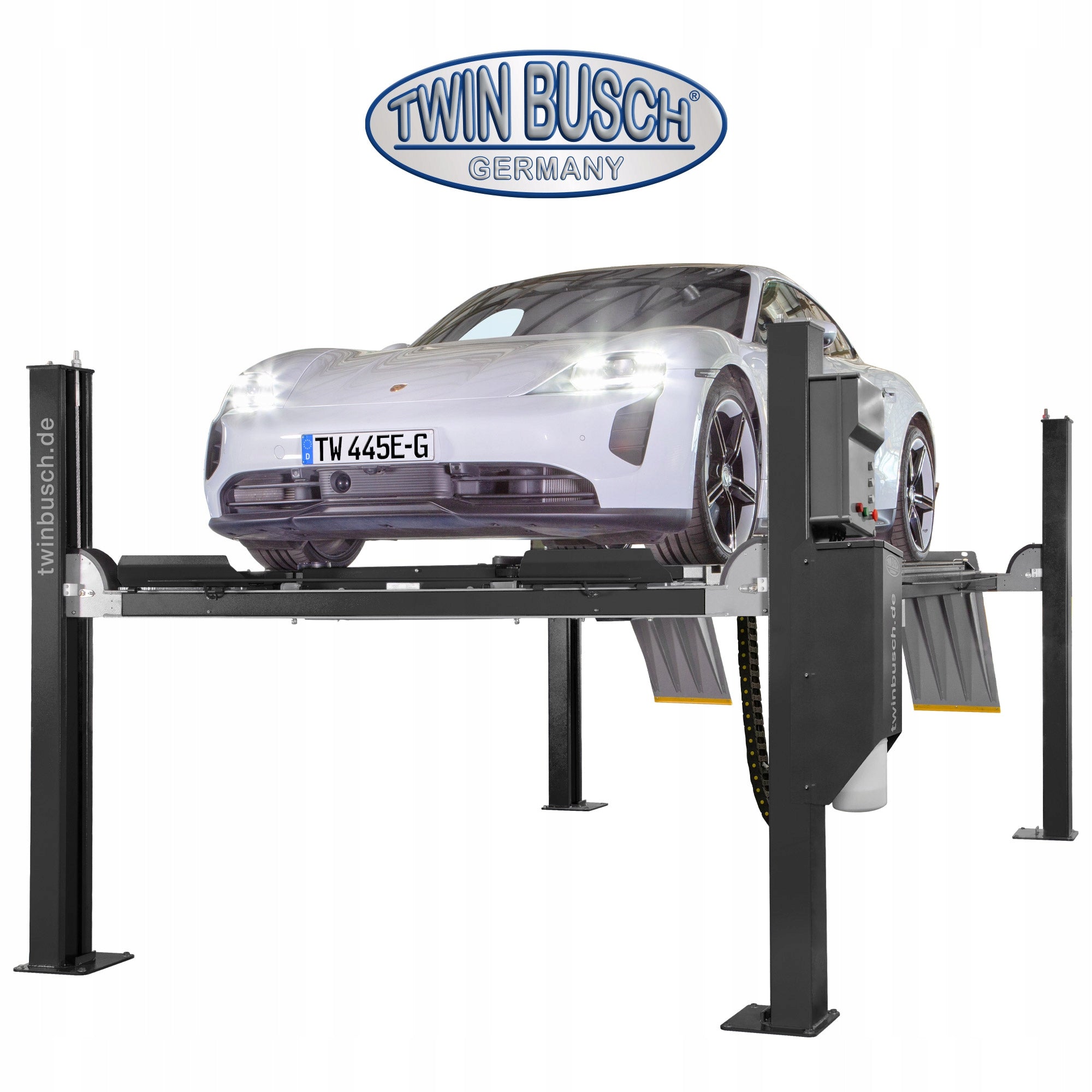

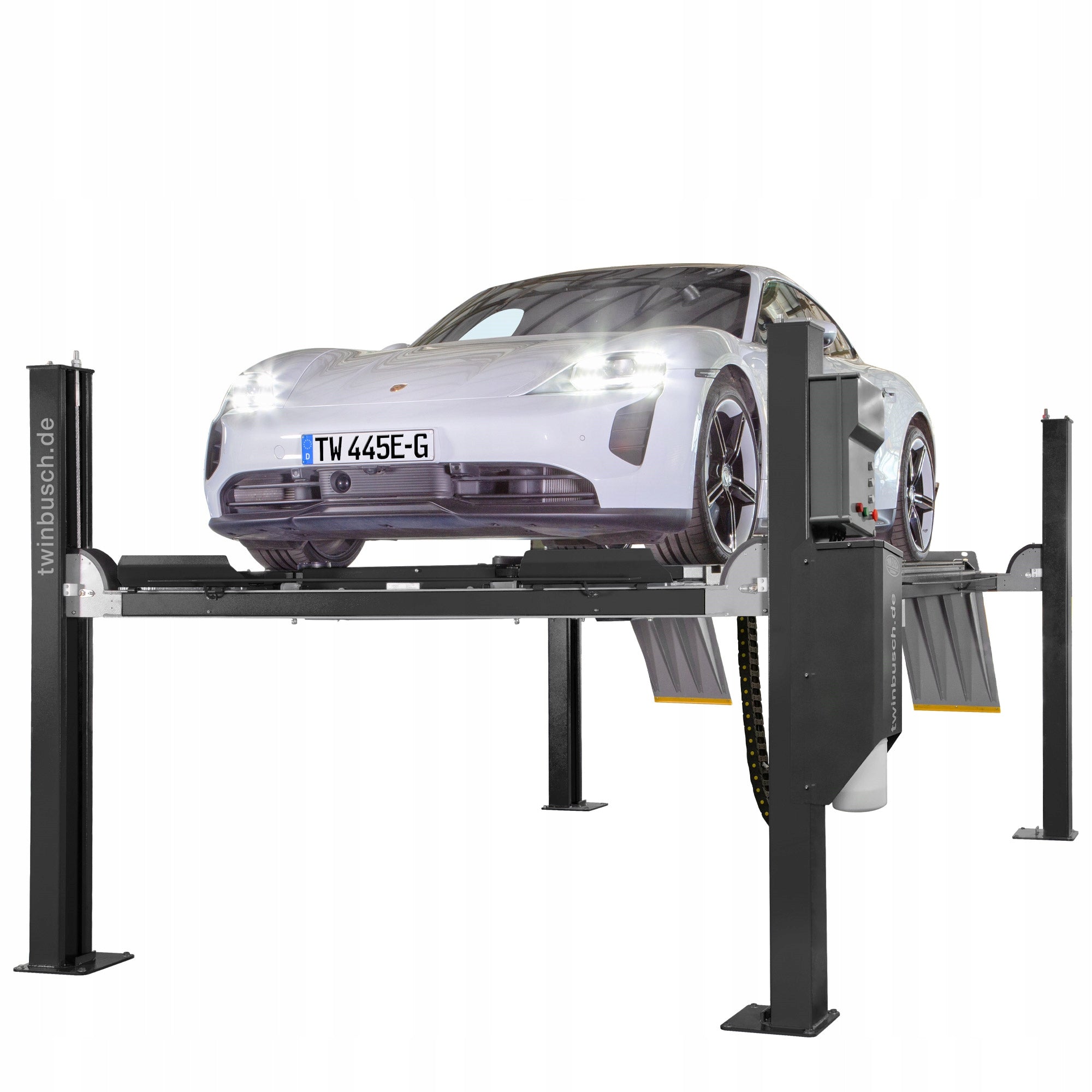

Electro-hydraulic 4-post lift TW 445E-400-G with automatic safety latch release. Ideal for car repair, vehicle diagnostics, and wheel alignment measurements. This 4-post lift can raise any vehicle, from passenger cars to vans.

Optional accessories include an axle lift, turntables, and ramps. With TW445-V rail extensions, the length is 5186 mm, allowing a maximum wheelbase of 4855 mm, and a maximum wheelbase for wheel alignment of 4480 mm. Using TW445-V and TW445-H, the length is 5176 mm, with a maximum wheelbase of 5385 mm. The exact wheelbase depends on tire size.

✅ Compare the benefits of the product!

• High quality 1A with CE-Certificate
• Production according to ISO 9001 standards
• Control box IP 54 with 24V control unit
• Automatic locking and unlocking security
• Lifting capacity 4500 kg
• Terminal switch 24 V
• Overload valve hydraulic
• Protection against overturning of the vehicle
• Blocking position over the entire lifting height
• Security against loose rope and rope breakage
• Sliding plates headband protective for feet
• Acoustic warning signal
• Width between columns: 2700 mm
• Maximum wheelbase for axle setting: 3700 mm
• Maximum wheelbase for lifting: 4320 mm
• Maximum wheelbase for wheel geometry setting using TW445-V overrun extensions: 4480 mm
• Maximum wheelbase for lifting with track extensions TW445-V: 4855 mm
• Maximum wheelbase for lifting using track extensions TW445-V and TW445-H: 5385 mm
• NEW: Includes engine cover (Stylish design, dust protection and noise cancellation)

• Lifting capacity 4.500 kg
• Lifting height 1850 mm
• Length of overrun rails 4510 mm
• Width of overrun rails 536 mm
• Overrun height 126 mm
• Lifting time approx. 50 s
• Electrical Voltage 400V/3 Phase
• Engine power 2,2 kW
• Electrical protection 16 A
• Weight 1301 kg

✔ Electric motor

Powerful industrial-grade electric motor, protected by a robust housing.

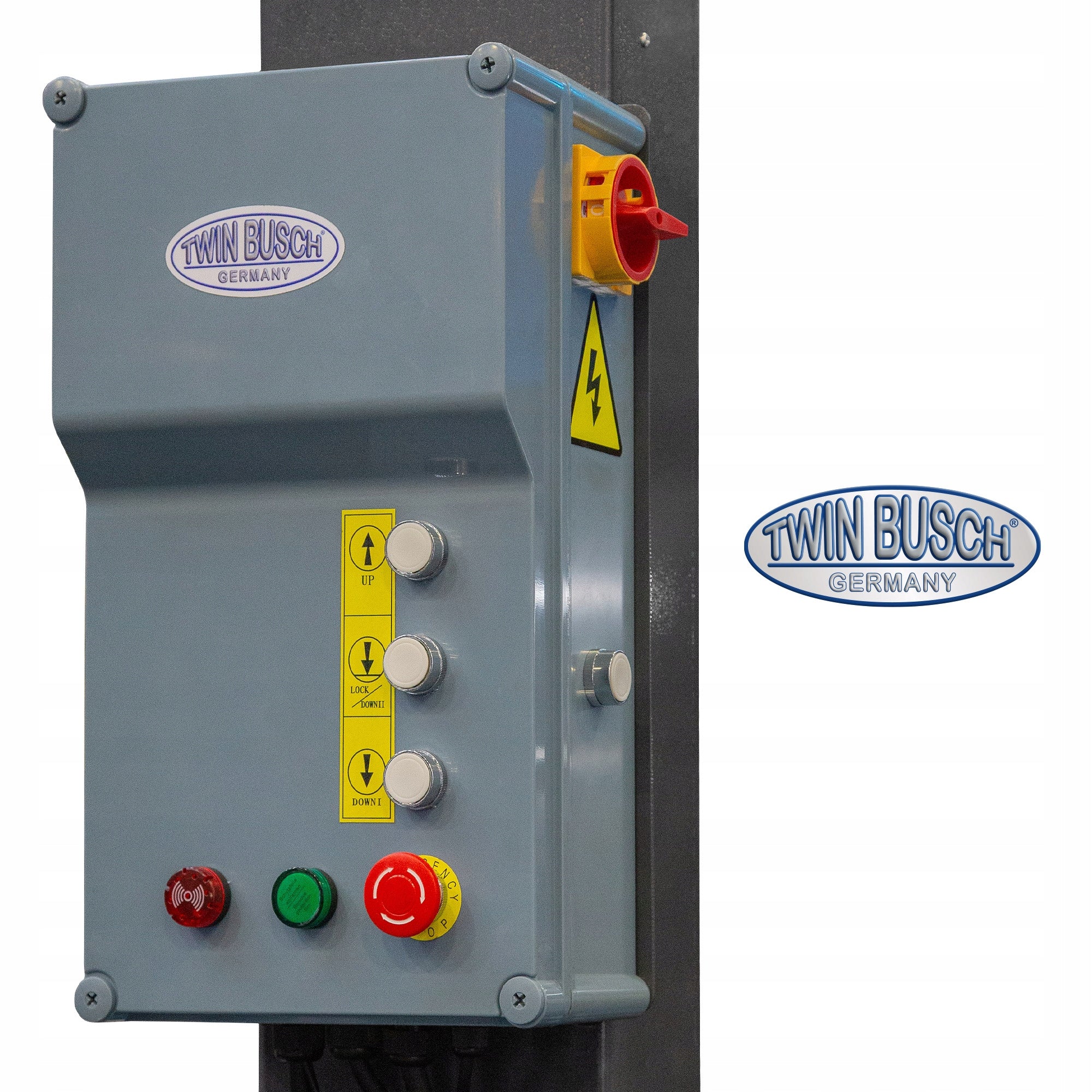

✔ Control unit

The convenient control unit (protection rating IP 54 and control voltage 24 V) is equipped with a limit switch limiting the stroke height and an automatic safety device ensuring safe operation.

✔ Wheel geometry

The 4-column lift is ideal for setting wheel geometry because it has sliding plates on the back. These plates provide the necessary relief for wheel suspension, allowing for precise and reliable measurement results.

✔ Rampy

Flexible, wide and extremely long access ramps allow easy access to the lift platform and are therefore also ideal for vans.

✔ Mounting plates

The 4-column lift is equipped with mounting plates that increase its versatility and enable fast and precise positioning of optional accessories, such as turntables.

• Production according to ISO 9001 standards
• Current Certificate CE
• Declaration of conformity EC
• Instruction in Polish, German and English
• Satisfaction of customers
• German quality
