Trumpai apie prekę
Prekė: Keturių kolonų autoserviso keltuvas 6,4T INVENTO EL 464WA. Kategorija: Keltuvai stulpams.
- Gamintojas: Invento
- Modelis: INVEL464WA

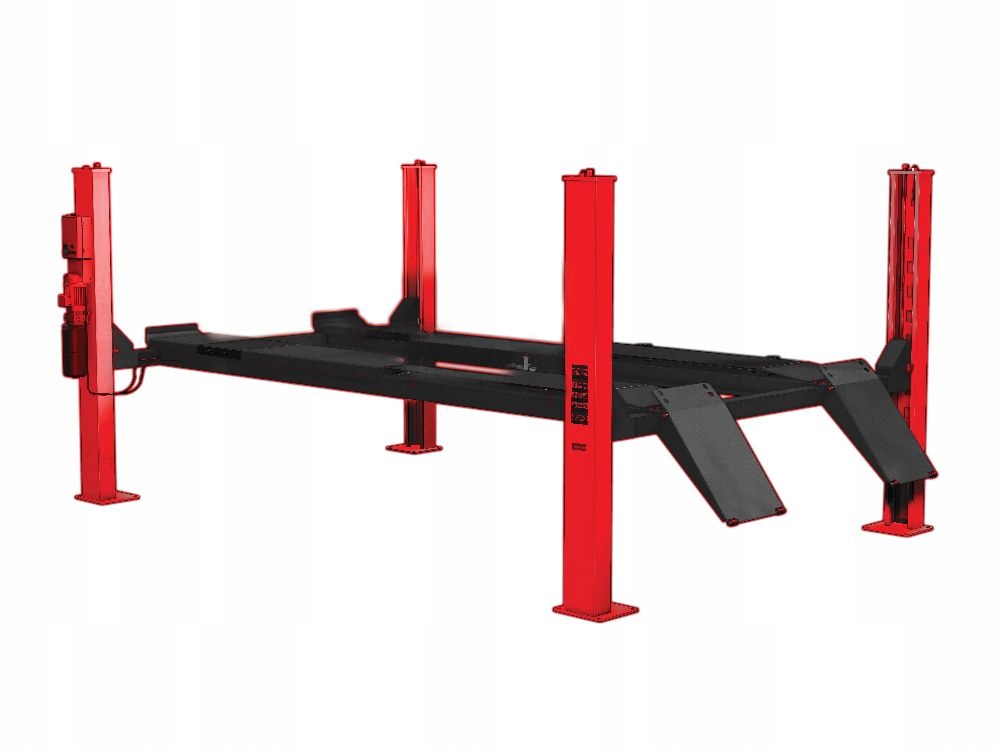

INVENTO EL464WA is a four-column diagnostic lift with a lifting capacity of 6400 kg. Flat platforms with a length of 5216 mm allow handling of passenger cars and vans, and the maximum lifting height of 1900 mm provides convenient access to the chassis.
The lift has loosening plates and places for turntables, thanks to which it can be used as a station for diagnostics and wheel geometry.
🛡 Security and CE Compliance
INVENTO EL464WA is equipped with the security features required in the CE documentation. Pneumatic locks placed inside the columns secure the platforms at a fixed height.
The electrohydraulic drive ensures smooth lifting, while the massive design supports stable operation with heavy-duty vehicles.
- Lifting capacity: 6400 kg
- Maximum lifting height: 1900 mm
- Four-column design
- Flat platforms with a length of 5216 mm
- Relaxing plates
- Places for turntables
- Pneumatic locks inside columns
- Electrohydraulic drive
- Ability to service passenger cars and vans
- Lifting time: 60 seconds
📊 Technical data
- Model: INVENTO EL464WA
- Type: four-column diagnostic lift
- Lifting capacity: 6400 kg
- Maximum lifting height: 1900 mm
- Minimum platform height: 178 mm
- Overall height: 2362 mm
- Platform Length: 5216 mm
- Overall length: 6502 mm
- Platform Width: 512 mm
- Overall width: 3320 mm
- Lifting time: 60 s
- Drive: electrohydraulic
- Power supply: 400 V, 50 Hz
- Power: 3 kW
- Operating temperature: -10°C to 40°C
INVENTO EL464WA combines a lifting capacity of 6,4 tons, long platforms and equipment needed for the diagnostic stand. Relaxing plates, turntable spaces and a four-column design allow you to prepare a functional station for passenger cars and vans.
📐 Diagnostic station
The platforms have loosening plates and prepared places for turntables. Such equipment makes it possible to use the lift when inspecting the suspension and measuring the geometry of the wheels.
The length of the ramps of 5216 mm allows you to set longer delivery vehicles on the lift as well.
🔧 Access to chassis
The maximum lifting height is 1900 mm, which provides access to the chassis during diagnostic and service work.
The minimum platform height is 178 mm, making the lift entrance convenient also for lower suspended vehicles.
🏢 Working and assembly conditions
The lift is designed to be installed in indoor, enclosed rooms free from obstacles. The permissible operating temperature is from -10°C to 40°C.
The price does not include the installation of the device.
📌 Optional equipment

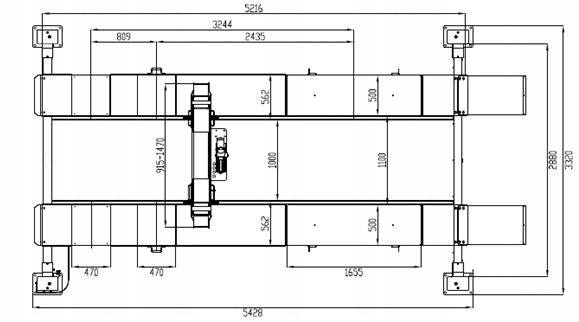

The axial lift visible in the technical drawings is optional equipment and is not standard equipment of the lift.
🚚 Terms of delivery
The transport service does not include unloading the device at the customer.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Invento |
| Parametry | Manufacturer code | INVEL464WA |
| Parametry | EAN (GTIN) | 5904533334135 |
| Parametry | Number of columns | 4 |
| Parametry | Overall width | 3320 mm |
| Parametry | Overall height | 2314 mm |
| Parametry | Total length | 5428 mm |
| Parametry | Power supply | 400 V |
| Parametry | Engine power | 3 kW |
| Parametry | Lifting capacity | 6400 kg |
| Parametry | Minimum lifting height | 178 mm |
| Parametry | Maximum lifting height | 1900 mm |
