Keltuvas DUCT LIFT 12 t su skersiniu laikikliu ir prailginimo kabeliu, AUTOMET

Cena:
€1.216,25
Noliktava:
Ir noliktavā

Trumpai apie prekę

Prekė: Keltuvas DUCT LIFT 12 t su skersiniu laikikliu ir prailginimo kabeliu, AUTOMET. Kategorija: Pavarų dėžės keltuvai.

  • Gamintojas: AUTOMET
  • Modelis: PK120,Tr,P.

The PK-120 duct lift is designed for partial lifting of the vehicle and dismantling of the gearbox on the workshop channel in order to carry out inspection and repair works.

.

characteristic:

  • Rollers
  • Maximum lifting capacity 12 t
  • Lifting height 500 mm

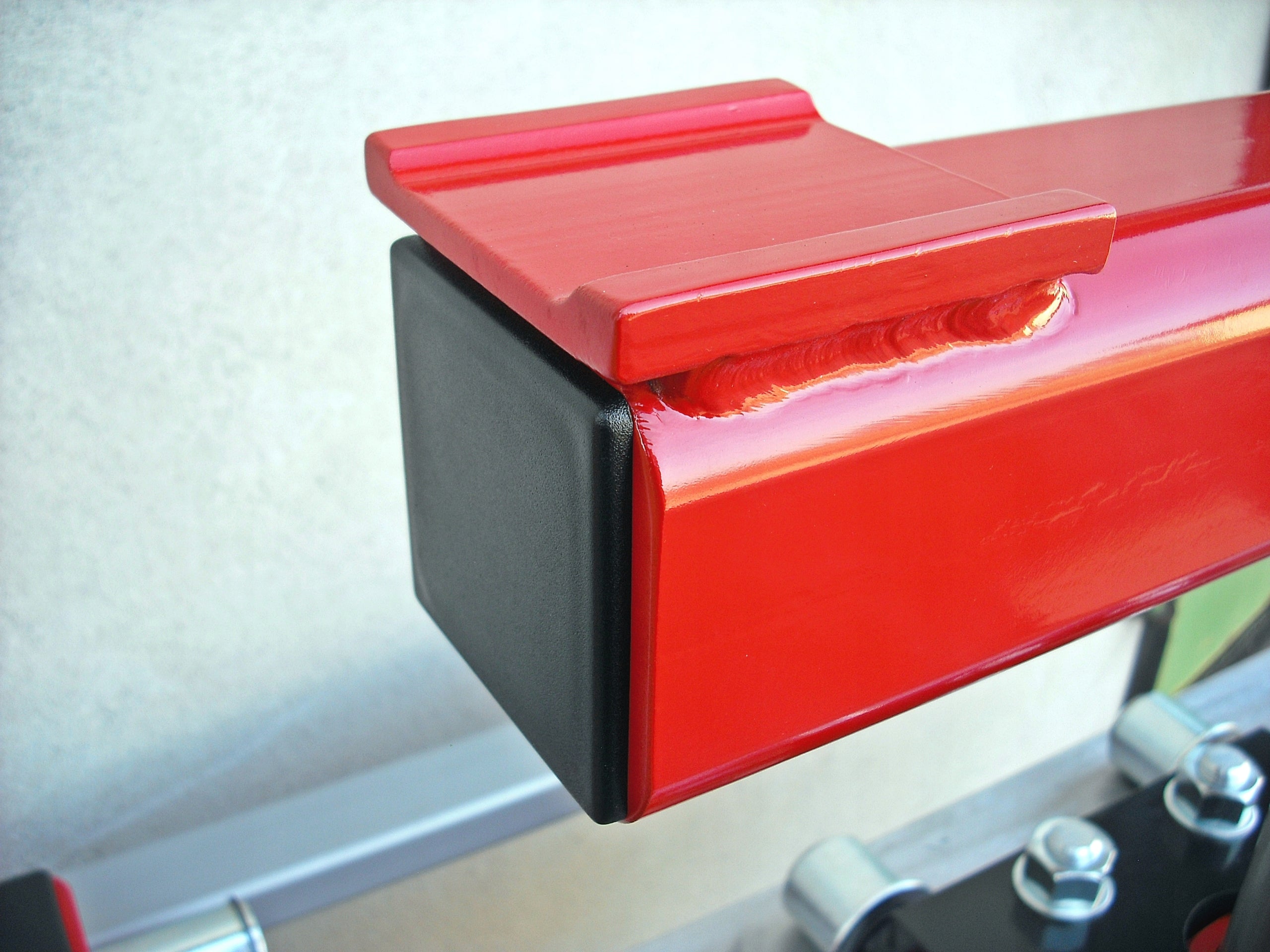

  • Metal cap actuator 90x90x20 mm
  • Manual hydraulic pump
  • The lift is adapted to the width of the channel (channel of any width)

.

Each lift has stepless adjustment to accurately fit the channel.

The lift is 0 – 50 mm above the floor (to be agreed).

Special piston seal ensures long-term use of the lift without oil leakage (pictured).

.

The lifter has:

  • Health and Safety Instructions (to hang on the wall)
  • Declaration of conformity for the CE mark
  • guarantee card
  • instruction manual

***

Additional equipment (included in this set):

.

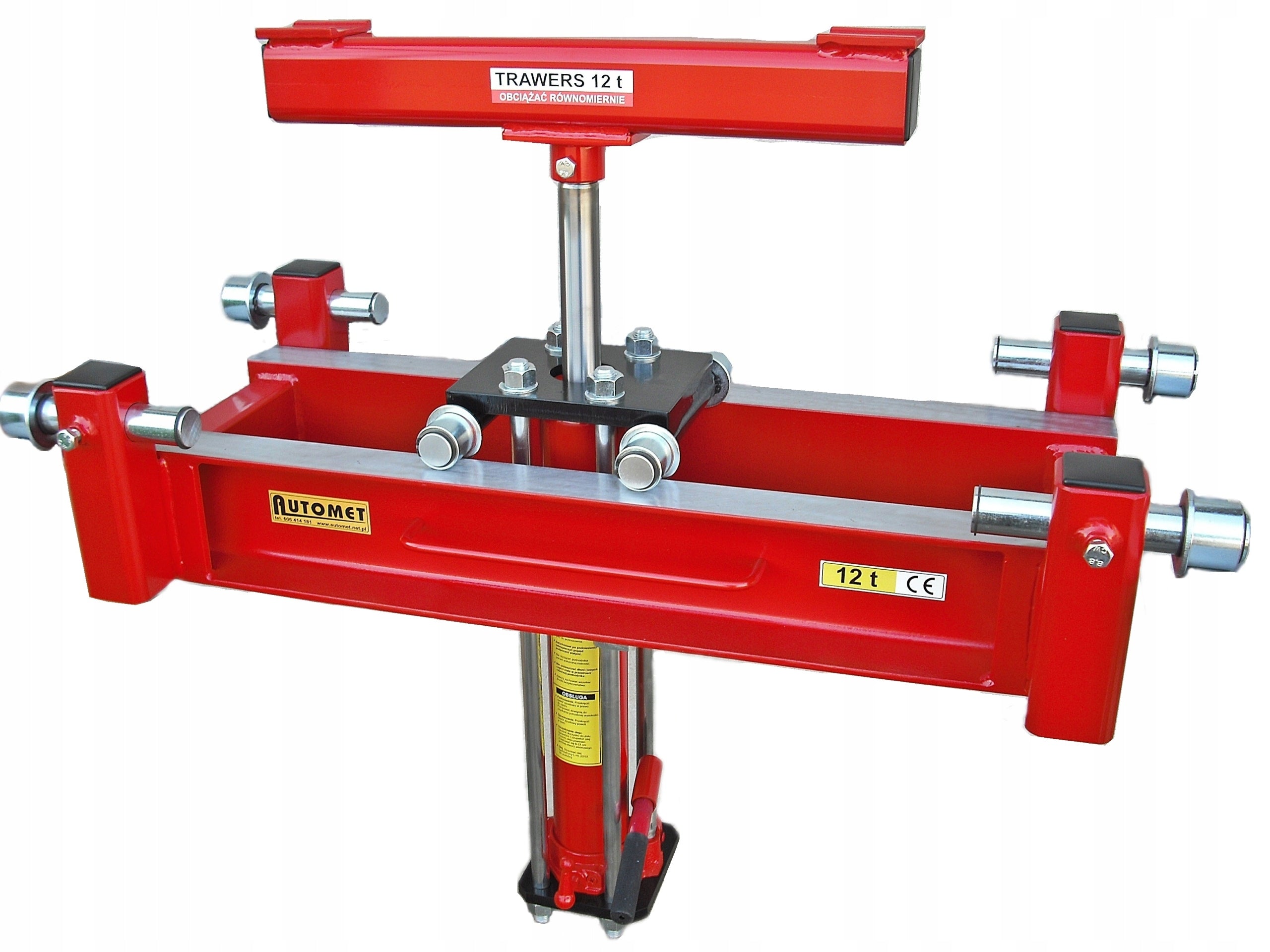

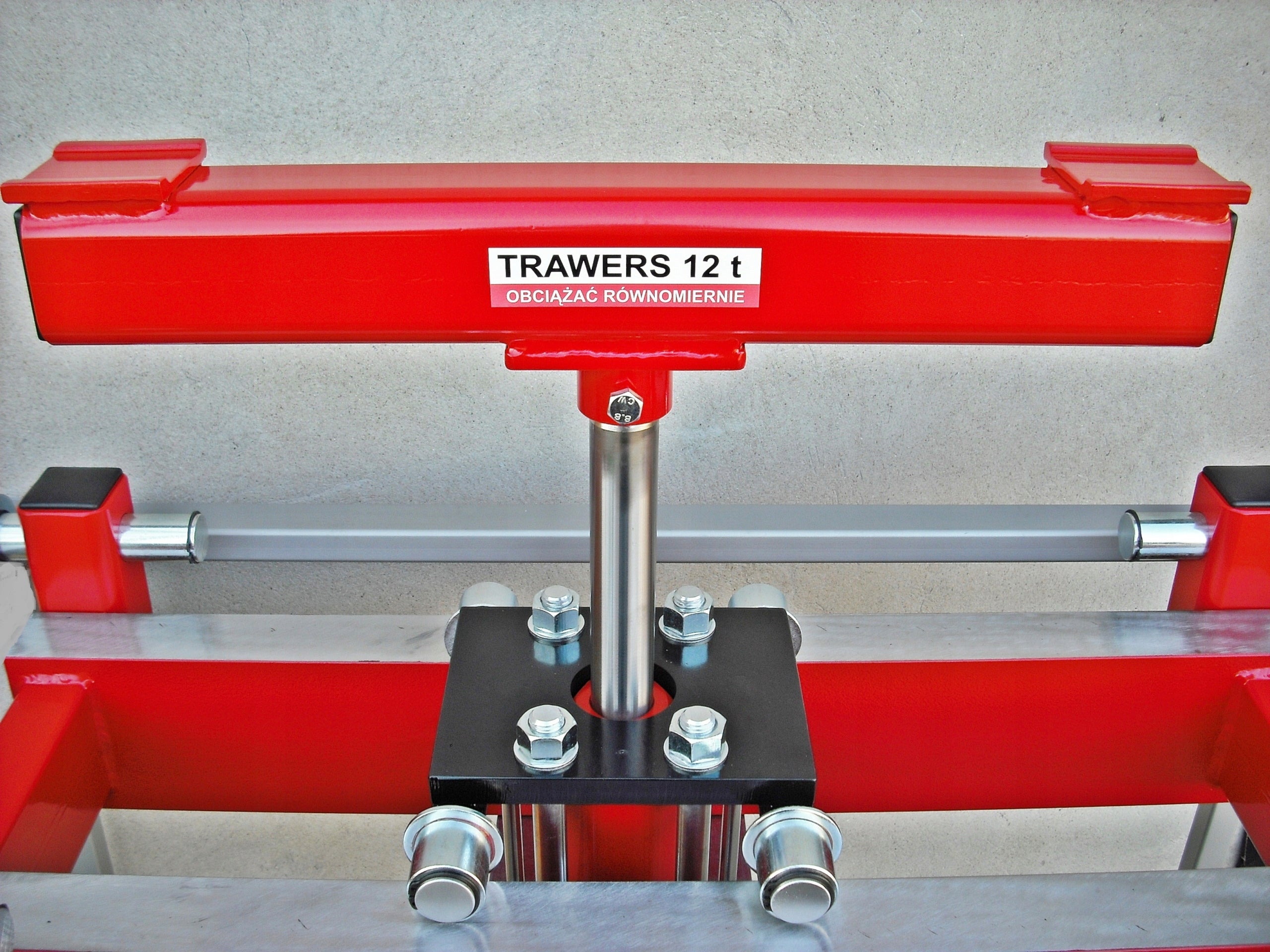

TRAVERSE – transverse beam (photo 2)

When applied to the actuator, it allows two-point support of the vehicle – front or rear.

  • Maximum lifting capacity 12 t
  • Length 600 mm
  • Height from actuator 100 mm

.

ACTUATOR EXTENDER (photo 4)

It is put in place of a metal cap.

Height from actuator 120 mm

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

The lift is painted in blue or red.

The recipients of lifts are, among others, Vehicle Control Stations.

.

Producer:

AUTOMET

WHEN BUYING, PLEASE PROVIDE (photo next) :

channel dimensions (without slack):

  • L1 - width at the periphery (channel cover)
  • L - width below the periphery (between walls)
  • S - internal width of the angle (a lift rides on it)
  • H - inner height of the angle
  • blue or red.

For a different edging than the angle, please inform about it in order to select the appropriate rollers and adjust them to the lift path (a sketch of the channel may be needed).

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand AUTOMET
Parametry Manufacturer code PK120,Tr,P.
Parametry EAN (GTIN) 5906630865383
Parametry Lifting capacity 12000 kg
Parametry Minimum lifting height 1 mm
Parametry Maximum lifting height 500 mm
