Prekė: Kamera Raspberry Pi su OV5647 jutikliu Waveshare 11297. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: RPi Camera (D)

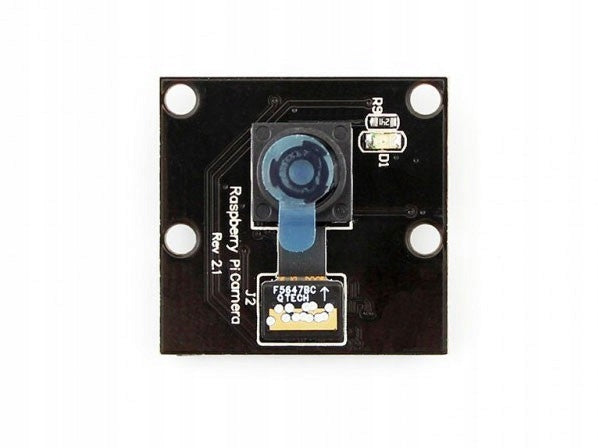

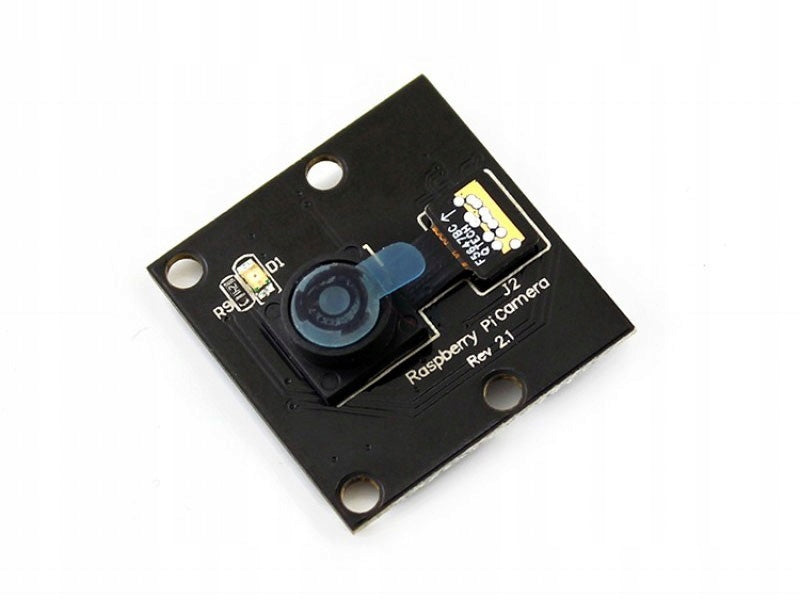

HD (D) camera for Raspberry Pi with OV5647 sensor - Waveshare 11297
Description
5 MPx camera module with OV5647 sensor designed for Raspberry Pi boards equipped with CSI connector. The camera allows you to capture images in 1080p30, 720p60 and 640x480p60/90 resolutions, as well as take photos with a resolution of 2592 x 1944 pixels. The connection is made using the MIPI CSI-2 interface, ensuring fast image data transfer.
The camera is equipped with a fixed focal length lens of 3.4 mm and an aperture of F2.8. The viewing angle is about 66° (diagonal), which corresponds to the standard viewing angle without wide-angle effect. The module is used in monitoring systems, vision projects and embedded solutions.

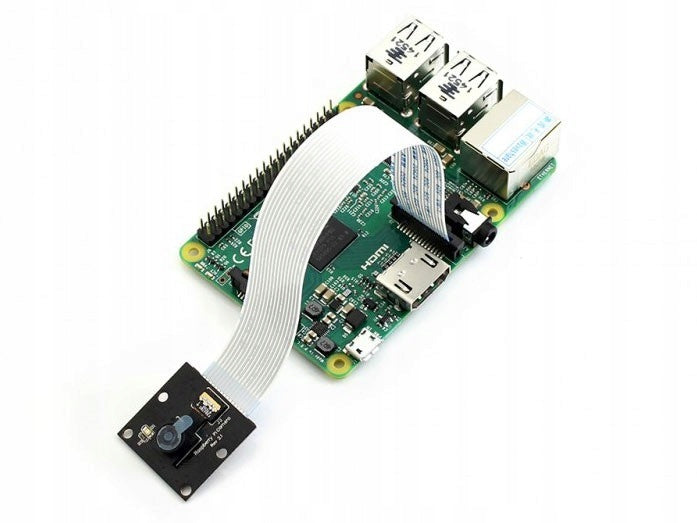

The compact dimensions of 25 x 24 x 9 mm and the FFC tape connection allow integration in devices with limited space. To work with Raspberry Pi Zero, a dedicated connection tape is required.
Properties
- Compatibility: Raspberry Pi with CSI connector (m.in. Raspberry Pi 5, 4B, 3B+, 3B, 2B, 1B+, Zero, Zero 2W)
- Sensor: OV5647 (CMOS)
- Resolution: 5 MPx (2592 x 1944)
- Video Resolution: 1080p30, 720p60, 640x480p60/90
- Interface: MIPI CSI-2
- Matrix Size: 1/4"
- Aperture: F2.8
- Focal length: 3.4 mm
- Viewing angle: 66° (diagonal)
- Focus adjustment: fixed focus
- IR filter: built-in
- Dimensions: 25 x 24 x 9 mm
Comes with
- HD D camera - Raspberry Pi camera with OV5647 sensor
- Connection tape FFC 16 cm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | RPi Camera (D) |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Camera |
| Parametry | EAN (GTIN) | 5906623421633 |
| Parametry | Batteries included | no |
